ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9912)

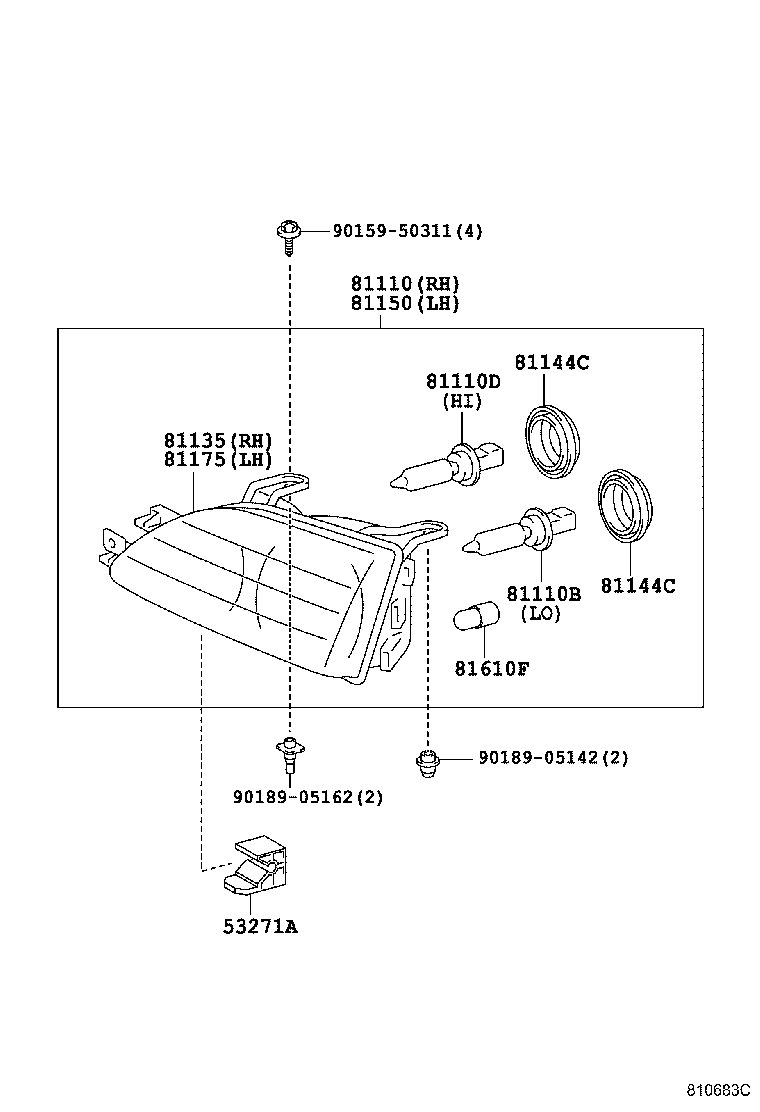

Click highlighted areas on diagram

diagram 53271A 81110 81110B 81110D 81135 81144C 81144C 81150 81175 81610F 9015950311 9018905142 9018905162
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

AT211,CT216,ST21#

 2
53271-20020

AT211,CT216,ST21#

 2
81110 - HEADLAMP ASSY, RH
81110-0W010

AT211,CT216,ST21#..E,G

 1
81110-0W020

ST215..GT,GTT

 1
81110-0W020

ST21#..G

TWISTER *(T)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90080-81041

AT211,CT216,ST21#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

AT211,CT216,ST21#..E,G

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90981-20001

ST21#..G,GT,GTT

85V 35W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0W020

ST215..GT,GTT

 1
81130-21080

AT211,CT216,ST21#..E,G

 1
81140-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81130-0W010

AT211,CT216,ST21#..E,G

 1
81130-0W020

ST21#..G

TWISTER *(T)

 1
81144C - COVER, HEADLAMP SOCKET
81139-05120

AT211,CT216,ST21#

 4
81135-3A150

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 2
90075-65002

AT211,CT216,ST21#..E,G

 2
81144C - COVER, HEADLAMP SOCKET
81139-05120

AT211,CT216,ST21#

 4
81135-3A150

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 2
90075-65002

AT211,CT216,ST21#..E,G

 2
81150 - HEADLAMP ASSY, LH
81150-0W020

ST215..GT,GTT

 1
81150-0W010

AT211,CT216,ST21#..E,G

 1
81150-0W020

ST21#..G

TWISTER *(T)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0W010

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST215..GT,GTT

 1
81070-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81170-21080

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST21#..G

TWISTER *(T)

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT211,CT216,ST21#

12V 5W

 2
99132-12050

AT211,CT216,ST21#

12V 5W

 2
Common parts
90159-50311
90189-05142
90189-05162

(9912- )G,GT,GTT

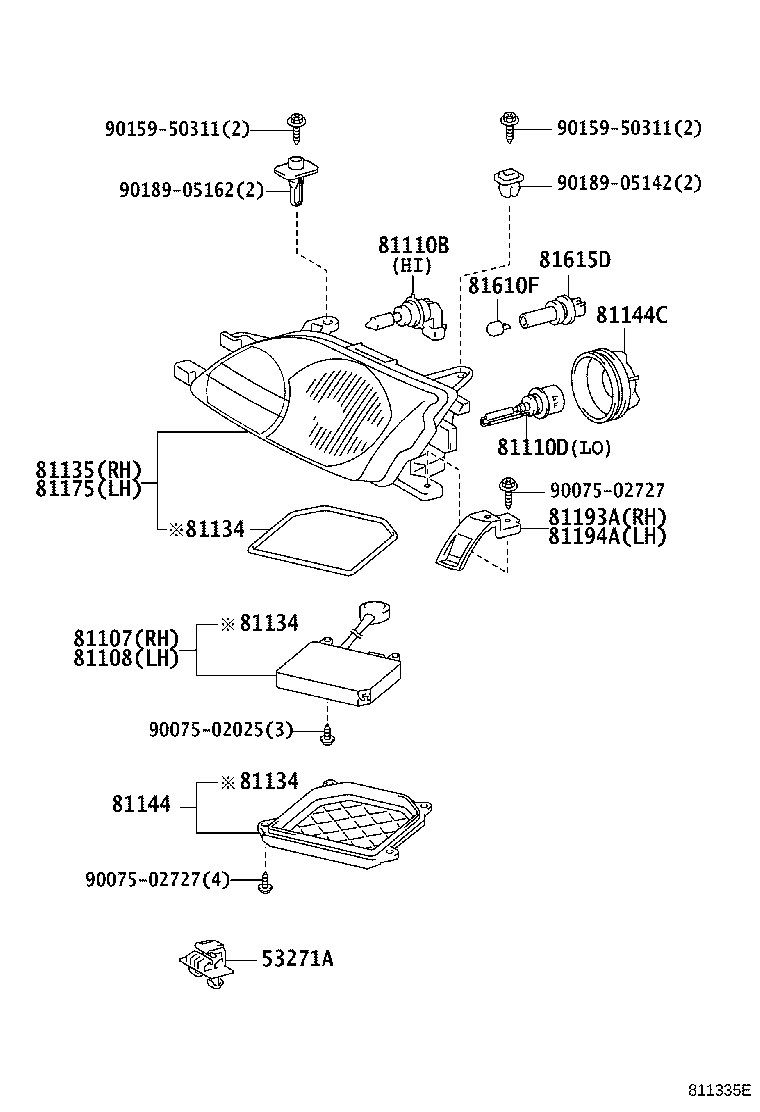

Click highlighted areas on diagram

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

diagram 53271A 81107 81108 81110B 81110D 81134 81134 81134 81135 81144 81144C 81175 81193A 81194A 81610F 81615D 9007502025 9007502727 9007502727 9015950311 9015950311 9018905142 9018905162
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

AT211,CT216,ST21#

 2
53271-20020

AT211,CT216,ST21#

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-33370

ST21#..G,GT,GTT

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-33370

ST21#..G,GT,GTT

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90080-81041

AT211,CT216,ST21#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

AT211,CT216,ST21#..E,G

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90981-20001

ST21#..G,GT,GTT

85V 35W

 2
81134 - GASKET, HEADLAMP
90075-99137

ST21#..G,GT,GTT

 2
81134 - GASKET, HEADLAMP
90075-99137

ST21#..G,GT,GTT

 2
81134 - GASKET, HEADLAMP
90075-99137

ST21#..G,GT,GTT

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0W020

ST215..GT,GTT

 1
81130-21080

AT211,CT216,ST21#..E,G

 1
81140-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81130-0W010

AT211,CT216,ST21#..E,G

 1
81130-0W020

ST21#..G

TWISTER *(T)

 1
81144 - COVER, HEADLAMP, NO.1
90075-67002

ST21#..G,GT,GTT

 2
81144C - COVER, HEADLAMP SOCKET
81139-05120

AT211,CT216,ST21#

 4
81135-3A150

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 2
90075-65002

AT211,CT216,ST21#..E,G

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-0W010

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST215..GT,GTT

 1
81070-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81170-21080

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST21#..G

TWISTER *(T)

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-21010

AT211,CT216,ST21#

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-21010

AT211,CT216,ST21#

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT211,CT216,ST21#

12V 5W

 2
99132-12050

AT211,CT216,ST21#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60030

AT211,CT216,ST21#

 2
Common parts
90075-02025
90075-02727
90159-50311
90189-05142
90189-05162

(9912- )E,G

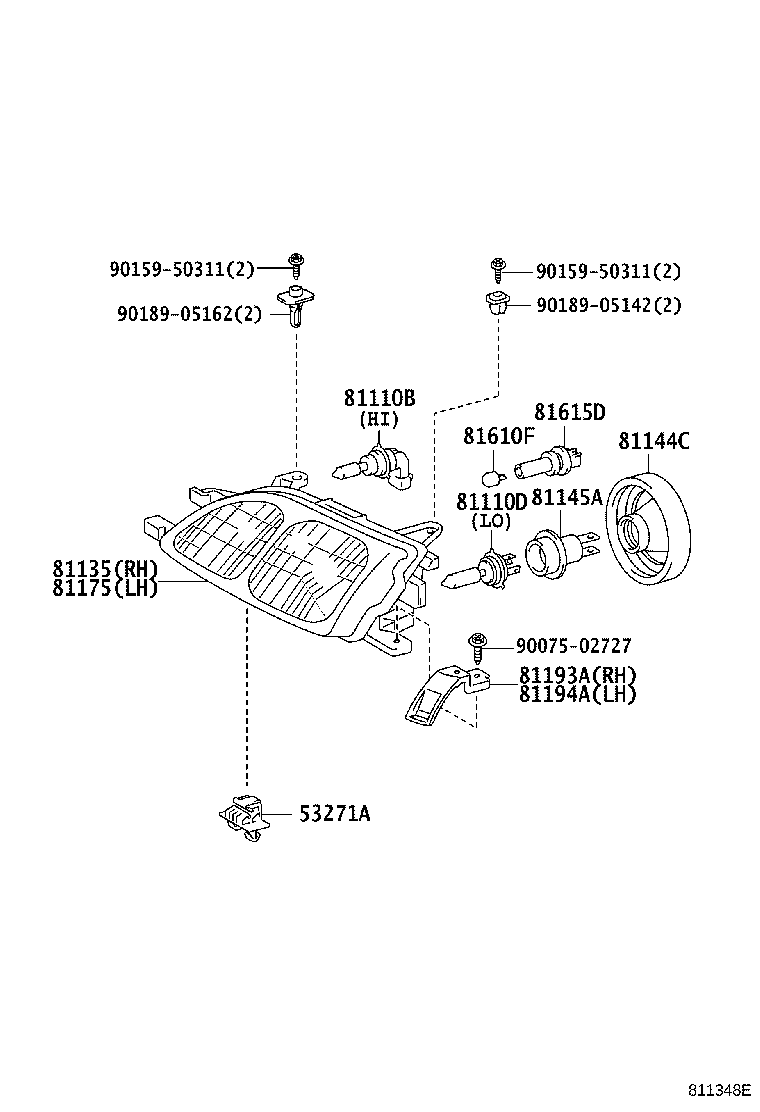

Click highlighted areas on diagram

diagram 53271A 81110B 81110D 81135 81144C 81145A 81175 81193A 81194A 81610F 81615D 9007502727 9015950311 9015950311 9018905142 9018905162
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

AT211,CT216,ST21#

 2
53271-20020

AT211,CT216,ST21#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90080-81041

AT211,CT216,ST21#

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

AT211,CT216,ST21#..E,G

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81067

AT211,CT216,ST21#

12V 55W

 2
90981-20001

ST21#..G,GT,GTT

85V 35W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0W020

ST215..GT,GTT

 1
81130-21080

AT211,CT216,ST21#..E,G

 1
81140-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81130-0W010

AT211,CT216,ST21#..E,G

 1
81130-0W020

ST21#..G

TWISTER *(T)

 1
81144C - COVER, HEADLAMP SOCKET
81139-05120

AT211,CT216,ST21#

 4
81135-3A150

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 2
90075-65002

AT211,CT216,ST21#..E,G

 2
81145A - ADAPTER ASSY
90075-99140

AT211,CT216,ST21#..E,G

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-0W010

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST215..GT,GTT

 1
81070-21090

ST21#..G,GT,GTT

ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ

 1
81170-21080

AT211,CT216,ST21#..E,G

 1
81170-0W020

ST21#..G

TWISTER *(T)

 1
81193A - PROTECTOR, HEADLAMP, RH
81193-21010

AT211,CT216,ST21#

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-21010

AT211,CT216,ST21#

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT211,CT216,ST21#

12V 5W

 2
99132-12050

AT211,CT216,ST21#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60030

AT211,CT216,ST21#

 2
Common parts
90075-02727
90159-50311
90189-05142
90189-05162
