ST215G-DWPVF (1997)
Toyota Caldina

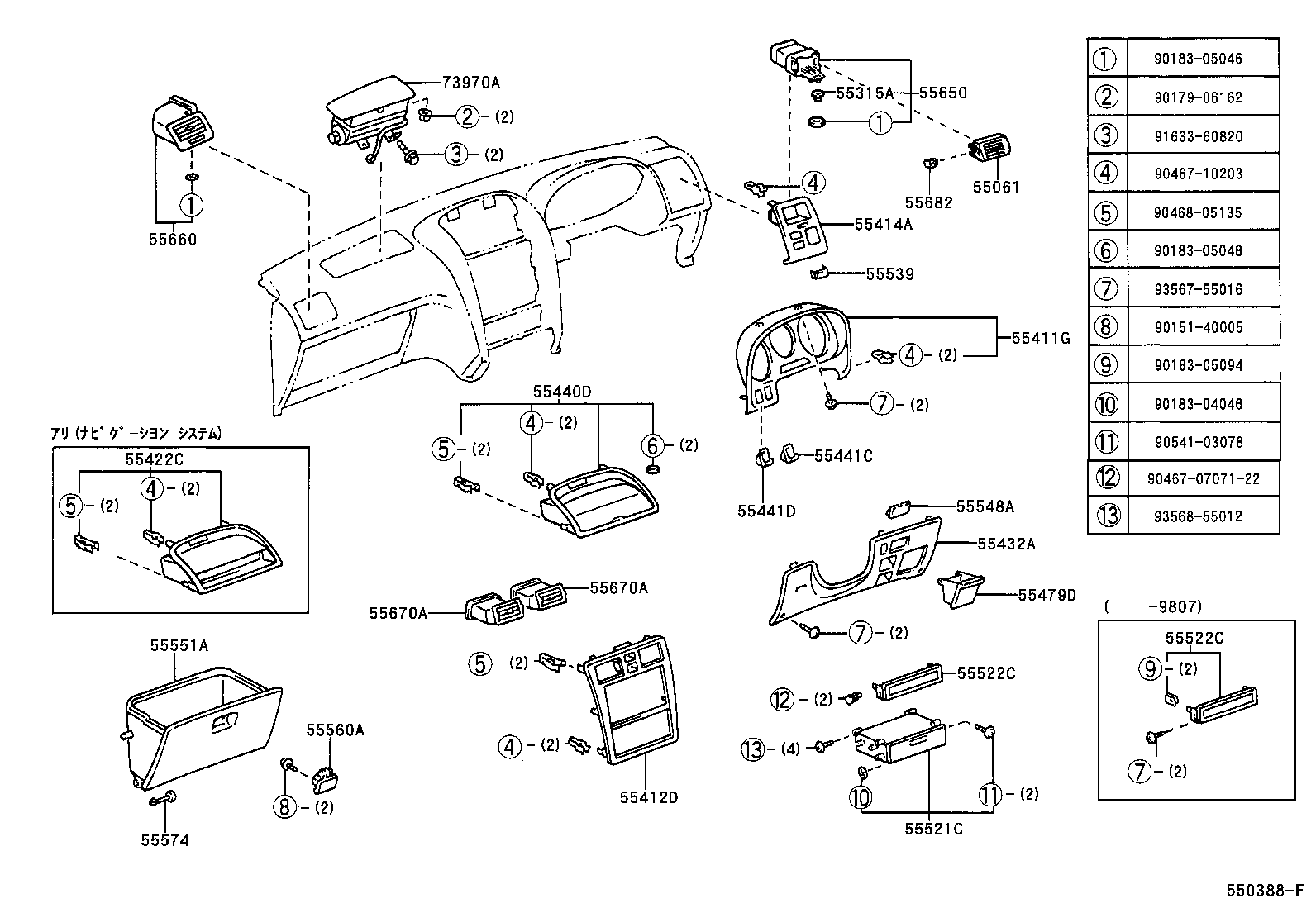

ILLUST NO. 2 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12201C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 55061-12201B0 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-89109 |
AT211,CT216,ST21# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-21010 |
AT211,CT216,ST21# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-21020 |
ST215..GT,GTT |
1 | ||
| 55412-21020 |
ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55412-21010 |
AT211,CT216,ST21#..E,G |
1 | ||
| 55412-21030 |
ST21#..GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55412-21030 |
ST21#..G,GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-21010 |
AT211,CT216,ST21# |
1 | ||
| 55414-21020 |
ST21#..GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55414-21010 |
AT211,CT216,ST21#..E,G |
1 | ||
| 55414-21020 |
ST21#..G,GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-21010 |
AT211,CT216,ST21# |
1 | ||
| 55422-21030 |
ST21#..GT,GTT |
1 | ||
| 55422-21020 |
AT211,CT216,ST21#..E,G |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-21010B2 |
AT211,CT216,ST21# DK.CHARCOAL,TRIM2# |
1 | ||
| 55432-21010B0 |
AT211,CT216,ST21# MD.CHARCOAL,TRIM1# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-21010 |
AT211,CT216,ST21#..E |
1 | ||
| 55440-21010 |
AT211,CT216,ST21#..E,G |
1 | ||
| 55440-21020 |
ST215..GT,GTT |
1 | ||
| 55440-21040 |
ST21#..G,GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55440-21040 |
ST21#..GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ) |
1 | ||
| 55440-21030 |
ST21#..G |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
AT211,CT216,ST21#..E BLACK,TRIM2# |
1 | ||
| 55441-12130C0 |
AT211,CT216,ST21#..E BLACK,TRIM1# |
1 | ||
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
AT211,CT216,ST21# BLACK,TRIM1# |
1 | ||
| 55441-12130C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20100B2 |
AT211,CT216,ST21# DK.CHARCOAL,TRIM2# |
1 | ||
| 55479-20100B1 |
AT211,CT216,ST21# MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-32020 |
ST21#..G TWISTER *(T) |
1 | ||
| 55521-32020 |
AT211,CT216,ST21# |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-32030 |
AT211,CT216,ST21# |
1 | ||
| 55522-33030 |
ST21#..G TWISTER *(T) |
1 | ||
| 55522-33030 |
AT211,CT216,ST21# |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-32030 |
AT211,CT216,ST21# |
1 | ||
| 55522-33030 |
ST21#..G TWISTER *(T) |
1 | ||
| 55522-33030 |
AT211,CT216,ST21# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 55539-32010C0 |
AT211,CT216,ST21# BLACK,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-21010B0 |
AT211,CT216,ST21# MD.CHARCOAL,TRIM1# |
1 | ||
| 55548-21010B2 |
AT211,CT216,ST21# DK.CHARCOAL,TRIM2# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-21010B2 |
AT211,CT216,ST21# DK.CHARCOAL,TRIM2# |
1 | ||
| 55551-21010B0 |
AT211,CT216,ST21# MD.CHARCOAL,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080B3 |
AT211,CT216,ST21# MD.CHARCOAL,TRIM1# |
1 | ||
| 55560-12080B5 |
AT211,CT216,ST21# DK.CHARCOAL,TRIM2# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT211,CT216,ST21# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-21010 |
AT211,CT216,ST21# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-21020B0 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-21020C0 |
AT211,CT216,ST21#..E,G BLACK,TRIM2# |
1 | ||
| 55660-21030C0 |
ST21#..G,GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ),BLACK,TRIM2# |
1 | ||
| 55660-21030C0 |
ST21#..GT,GTT ｱﾘ(ﾁﾀﾝ ﾀｲﾌﾟ ｵ-ﾅﾒﾝﾄ),BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-21010 |
AT211,CT216,ST21# |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-21010 |
AT211,CT216,ST21# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-12140 |
AT211,CT216,ST21# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-21011C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 73970-21010B0 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90179-06162 | ||||
| 90183-04046 | ||||
| 90183-05046 | ||||
| 90183-05048 | ||||
| 90183-05094 | ||||
| 90467-0707122 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 90541-03078 | ||||
| 91633-60820 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||

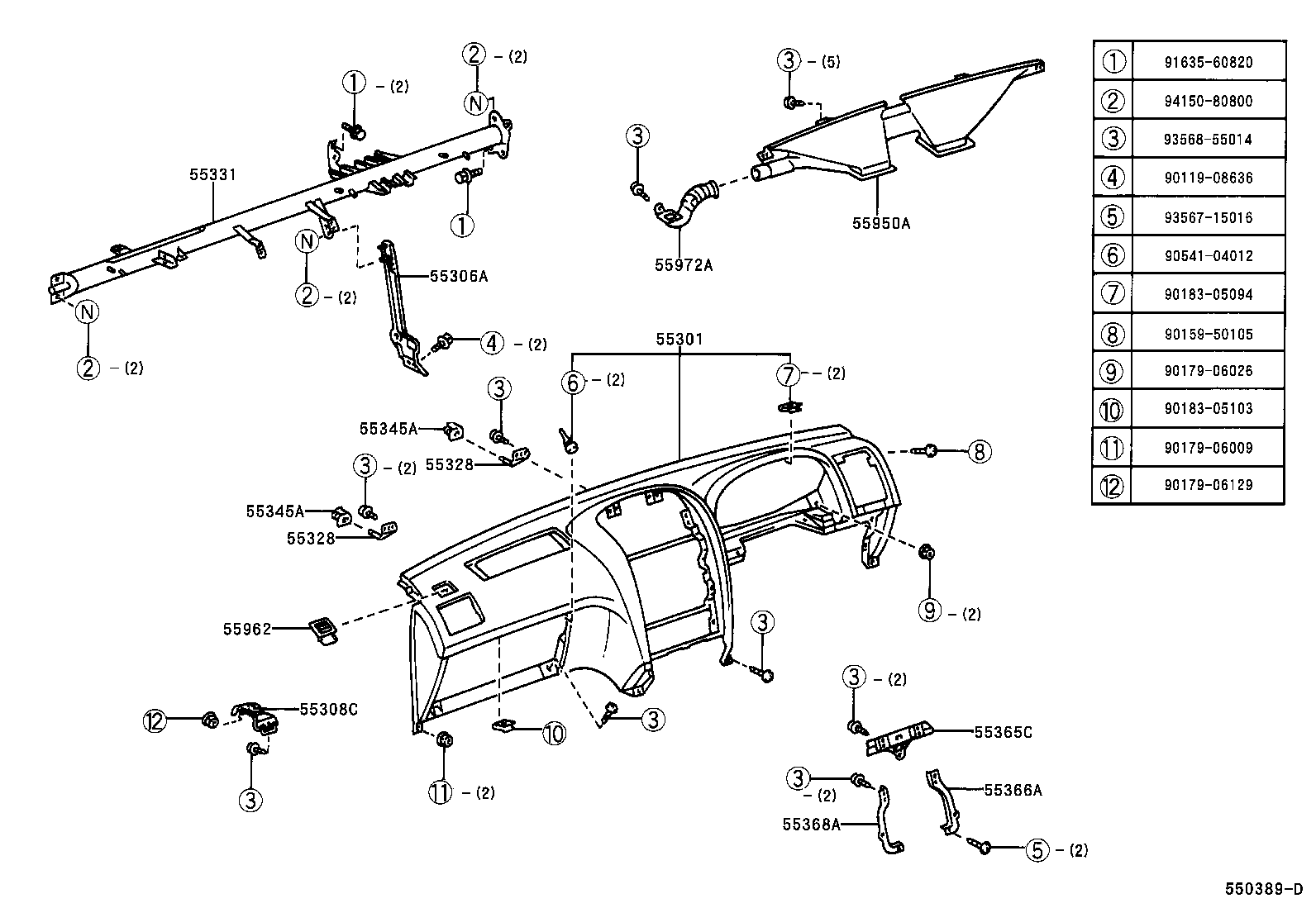

ILLUST NO. 1 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-21140C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 55311-21140B0 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20290 |
AT211,CT216,ST21# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20210 |
AT211,CT216,ST21# |
1 | ||
| 55308-21010 |
AT211,CT216,ST21# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT211,CT216,ST21# 右側,左側 |
2 | ||
| 55328-21010 |
AT211,CT216,ST21# ｾﾝﾀ |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20100 |
AT211,CT216,ST21# 右側,左側 |
2 | ||
| 55328-21010 |
AT211,CT216,ST21# ｾﾝﾀ |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-21020 |
AT211,CT216,ST21# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-20060 |
AT211,CT216,ST21# |
5 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-20060 |
AT211,CT216,ST21# |
5 | ||
| 55365C - BRACKET, RADIO TUNER MOUNTING, NO.1 | ||||
| 55365-21010 |
AT211,CT216,ST21# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-21010 |
AT211,CT216,ST21# |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-21010 |
AT211,CT216,ST21# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-21010 |
AT211,CT216,ST21# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-21010B0 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-21010C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-21010 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90159-50105 | ||||
| 90179-06009 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90541-04012 | ||||
| 91635-60820 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||
| 94150-80800 | ||||
