ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )E,G,GT

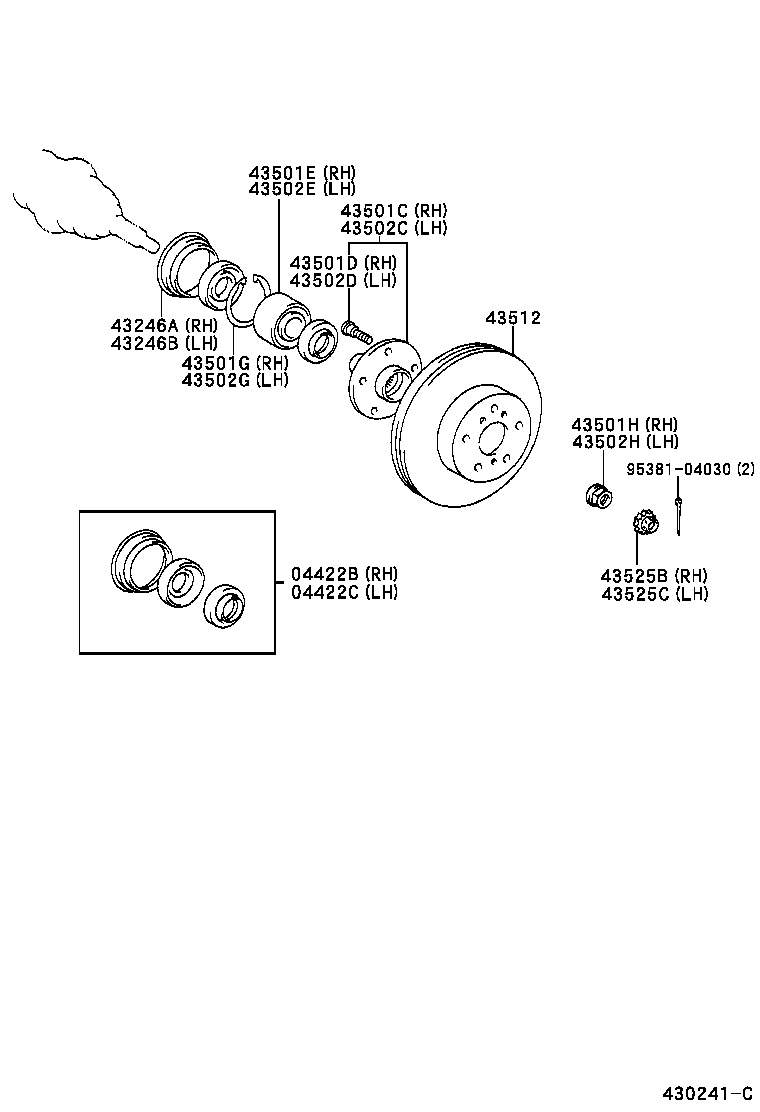

Click highlighted areas on diagram

diagram 04422B 04422C 43246A 43246B 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512 43525B 43525C 9538104030
Part # Description Qty Price
04422B - SEAL KIT, FRONT AXLE OIL, RH
04422-20080

AT211,CT216,ST21#..E,G,GT

 1
04422-20150

AT211,CT216,ST21#..E,G,GT

 1
04422C - SEAL KIT,FRONT AXLE OIL, LH
04422-20150

AT211,CT216,ST21#..E,G,GT

 1
04422-20080

AT211,CT216,ST21#..E,G,GT

 1
43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246-12020

AT211,CT216,ST21#..E,G,GT

 1
43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43246-12020

AT211,CT216,ST21#..E,G,GT

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-20131

AT211,CT216,ST21#..E,G,GT

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

AT211,CT216,ST21#..E,G,GT

 5
43501E - BEARING (FOR FRONT AXLE HUB RH)
90369-38003

AT211,CT216,ST21#..E,G,GT

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-79002

AT211,CT216,ST21#..E,G,GT

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90179-22020

AT211,ST21#

 1
90178-22001

AT211,CT216,ST21#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-20131

AT211,CT216,ST21#..E,G,GT

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

AT211,CT216,ST21#..E,G,GT

 5
43502E - BEARING (FOR FRONT AXLE HUB LH)
90369-38003

AT211,CT216,ST21#..E,G,GT

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-79002

AT211,CT216,ST21#..E,G,GT

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90179-22020

AT211,ST21#

 1
90178-22001

AT211,CT216,ST21#

 1
43512 - DISC, FRONT
43512-20470

AT211,CT216,ST21#..E,G

 2
43512-20600

ST21#..GT,GTT

 2
43512-21010

AT211,CT216,ST21#..E,G

 2
43512-20601

ST21#..GT,GTT

 2
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-20030

AT211,CT216,ST21#

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-20030

AT211,CT216,ST21#

 1
Common parts
95381-04030
