ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )3SG#

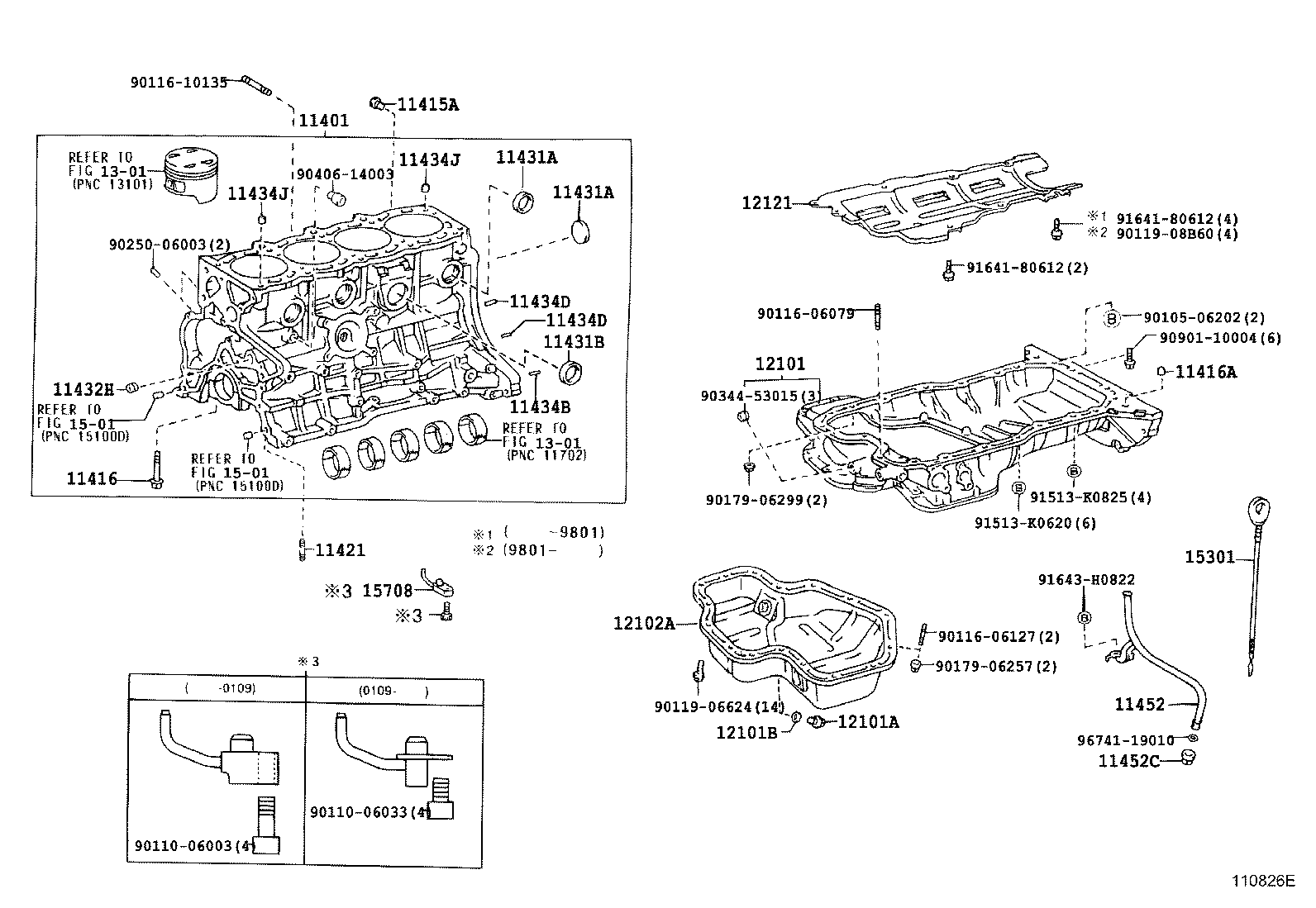

Click highlighted areas on diagram

diagram 11401 11415A 11416 11416A 11421 11431A 11431A 11431B 11432H 11434B 11434D 11434D 11434J 11434J 11452 11452C 12101 12101A 12101B 12102A 12121 1301 1301 1501 1501 15301 15708 9010506202 9011006003 9011006033 9011606079 9011606127 9011610135 9011906624 9011908B60 9017906257 9017906299 9025006003 9034453015 9040614003 9090110004 91513K0620 91513K0825 9164180612 9164180612 91643H0822 9674119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79885

3SGE..ST215

 1
11401-79886

3SGE..ST215

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

3SFE,3SG#..ST21#

 1
90345-52001

3SG#..ST21#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

3SFE,3SG#..ST21#

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13004

3SG#..ST21#

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-06048

3SG#..ST21#

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3SFE,3SG#..ST21#

 8
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3SFE,3SG#..ST21#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

3SFE,3SG#..ST21#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53015

3SG#..ST21#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3SFE,3SG#..ST21#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06015

3SG#..ST21#

長さ=11,外径=6

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06015

3SG#..ST21#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3SFE,3SG#..ST21#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3SFE,3SG#..ST21#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-88560

3SGE..ST21#

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
90405-10034

3SG#..ST21#

 1
12101 - PAN SUB-ASSY, OIL
12101-88560

3SGE..ST21#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

3SFE,3SG#..ST21#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

3SFE,3SG#..ST21#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-88560

3SGE..ST21#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-88561

3SG#..ST215

 1
12121-88563

3SG#..ST21#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-88560

3SGE..ST21#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-88462

3SG#..ST21#

 4
15790-88460

3SG#..ST21#

 4
Common parts
90105-06202
90110-06003
90110-06033
90116-06079
90116-06127
90116-10135
90119-06624
90119-08B60
90179-06257
90179-06299
90250-06003
90344-53015
90406-14003
90901-10004
91513-K0620
91513-K0825
91641-80612
91643-H0822
96741-19010
