ST215G-DWPGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

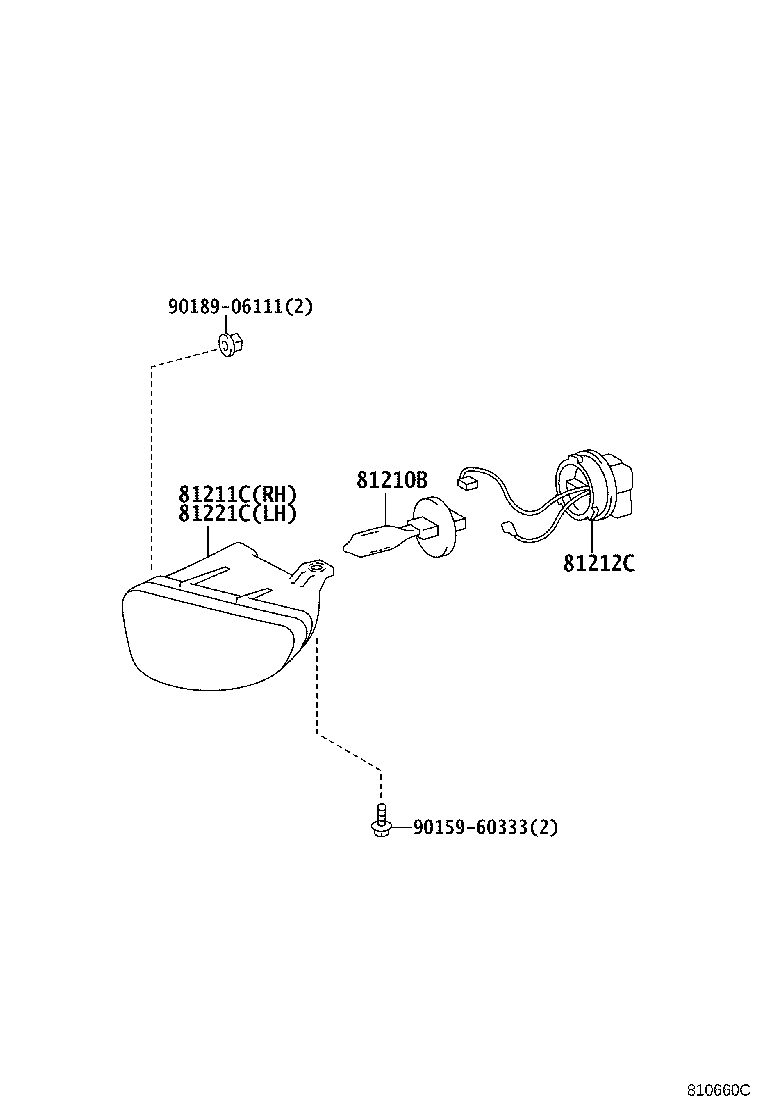

(9708-9912)

Click highlighted areas on diagram

diagram 81210B 81211C 81212C 81221C 9015960333 9018906111
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13071

ST21#..G,GT,GTT

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81040

AT211,CT216,ST21#

12V 51W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-21030

ST21#..G,GT,GTT

 1
81211-21040

AT211,CT216,ST21#

 1
81212C - COVER, FOG LAMP
90075-66001

ST21#..G,GT,GTT

 2
90075-65010

AT211,CT216,ST21#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-21040

AT211,CT216,ST21#

 1
81221-21030

ST21#..G,GT,GTT

 1
Common parts
90159-60333
90189-06111

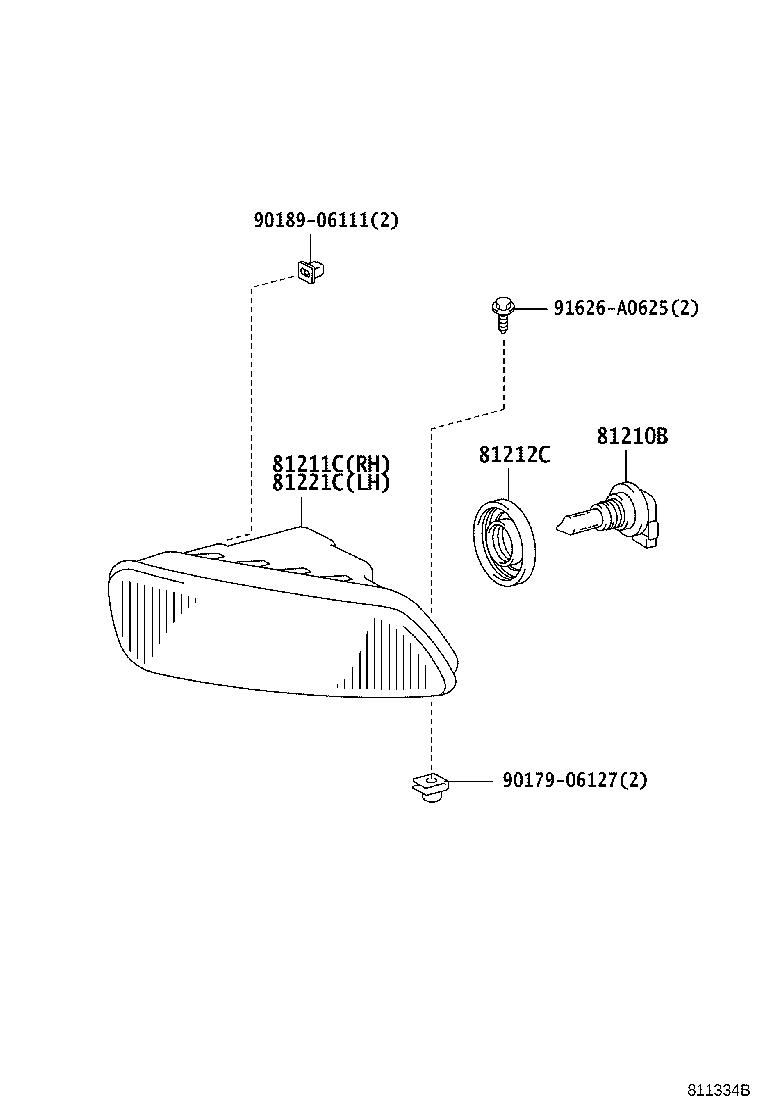

(9912- )

Click highlighted areas on diagram

diagram 81210B 81211C 81212C 81221C 9017906127 9018906111 91626A0625
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13071

ST21#..G,GT,GTT

12V 55W,ﾊﾛｹﾞﾝ

 2
90080-81040

AT211,CT216,ST21#

12V 51W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-21030

ST21#..G,GT,GTT

 1
81211-21040

AT211,CT216,ST21#

 1
81212C - COVER, FOG LAMP
90075-66001

ST21#..G,GT,GTT

 2
90075-65010

AT211,CT216,ST21#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-21040

AT211,CT216,ST21#

 1
81221-21030

ST21#..G,GT,GTT

 1
Common parts
90179-06127
90189-06111
91626-A0625
