ST215G-DWPGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

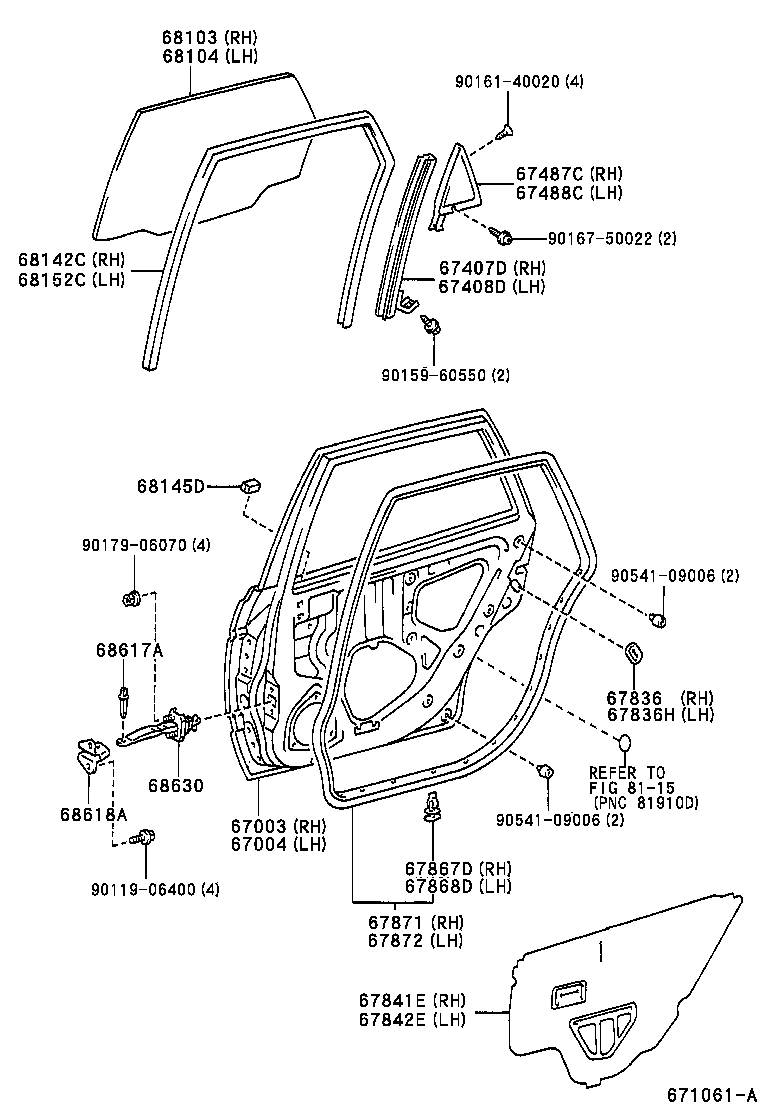

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 67003 67004 67407D 67408D 67487C 67488C 67836 67836H 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68142C 68145D 68152C 68617A 68618A 68630 8115 9011906400 9015960550 9016140020 9016750022 9017906070 9054109006 9054109006
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-21090

AT211,CT216,ST21#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-21090

AT211,CT216,ST21#

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-21020

AT211,CT216,ST21#

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-21020

AT211,CT216,ST21#

 1
67487C - SEAL, REAR DOOR REAR GUIDE, RH
67487-21020

AT211,CT216,ST21#

 1
67488C - SEAL, REAR DOOR REAR GUIDE, LH
67488-21020

AT211,CT216,ST21#

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

AT211,CT216,ST21#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

AT211,CT216,ST21#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67805-21030

AT211,CT216,ST21#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67806-21030

AT211,CT216,ST21#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

AT211,CT216,ST21#

 19
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

AT211,CT216,ST21#

 19
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-21050

AT211,CT216,ST21#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-21050

AT211,CT216,ST21#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-21090

AT211,CT216,ST21#..E,G

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68113-21100

ST21#..G

TWISTER *(T) OR TWISTER *(G)

 1
68113-21100

ST21#..G

*UVCTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ,TWISTER *(T)

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-21100

ST21#..G

*UVCTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ,TWISTER *(T)

 1
68114-21090

AT211,CT216,ST21#..E,G

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68114-21100

ST21#..G

TWISTER *(T) OR TWISTER *(G)

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-21040

AT211,CT216,ST21#

 1
68145D - CUSHION, REAR DOOR WINDOW
68145-20050

AT211,CT216,ST21#

 2
68152C - RUN, REAR DOOR GLASS, LH
68152-21020

AT211,CT216,ST21#

 1
68617A - PIN, REAR DOOR CHECK
68617-20050

AT211,CT216,ST21#

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
68618-26010

AT211,CT216,ST21#

 2
68618-20030

AT211,CT216,ST21#

 2
68630 - CHECK ASSY, REAR DOOR
68630-20140

AT211,CT216,ST21#

 2
Common parts
90119-06400
90159-60550
90161-40020
90167-50022
90179-06070
90541-09006
Linked diagrams
8115

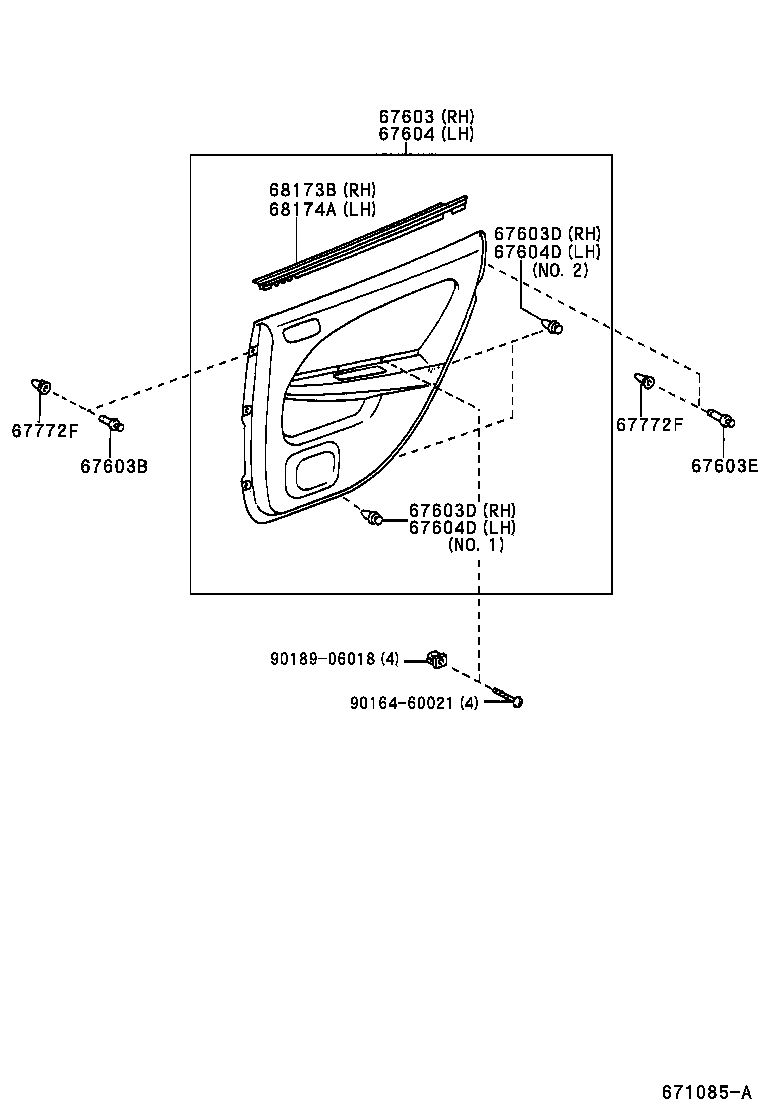

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 67603 67603B 67603D 67603D 67603E 67604 67604D 67604D 67772F 67772F 68173B 68174A 9016460021 9018906018
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-21160B0

AT211,CT216,ST21#..E,G

SHADOW GRAY,TRIM1#

 1
67630-21190C0

AT211,CT216,ST21#..E,G

BLACK,TRIM2#

 1
67630-21200C0

ST21#..G

TWISTER *(G),BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07173C0

AT211,CT216,ST21#

BLACK,TRIM2#

 6
90467-07173B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 6
67603D - RETAINER, REAR DOOR TRIM, RH
67771-28020

AT211,CT216,ST21#

NO.2

 2
67771-12050

AT211,CT216,ST21#

 3
67771-12050

AT211,CT216,ST21#

NO.1

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-28020

AT211,CT216,ST21#

NO.2

 2
67771-12050

AT211,CT216,ST21#

 3
67771-12050

AT211,CT216,ST21#

NO.1

 1
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07173B1

AT211,CT216,ST21#

MD. CHARCOAL,TRIM15

 4
90467-07173B2

AT211,CT216,ST21#

DK.CHARCOAL,TRIM2#

 4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-21160B0

AT211,CT216,ST21#..E,G

SHADOW GRAY,TRIM1#

 1
67640-21190C0

AT211,CT216,ST21#..E,G

BLACK,TRIM2#

 1
67640-21200C0

ST21#..G

TWISTER *(G),BLACK,TRIM2#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050

AT211,CT216,ST21#

NO.1

 1
67771-28020

AT211,CT216,ST21#

NO.2

 2
67771-12050

AT211,CT216,ST21#

 3
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050

AT211,CT216,ST21#

NO.1

 1
67771-28020

AT211,CT216,ST21#

NO.2

 2
67771-12050

AT211,CT216,ST21#

 3
67772F - CAP, REAR DOOR TRIM RETAINER
67772-21010

AT211,CT216,ST21#

 10
67772F - CAP, REAR DOOR TRIM RETAINER
67772-21010

AT211,CT216,ST21#

 10
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-21030

AT211,CT216,ST21#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-21020

AT211,CT216,ST21#

 1
Common parts
90164-60021
90189-06018
