ST215G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

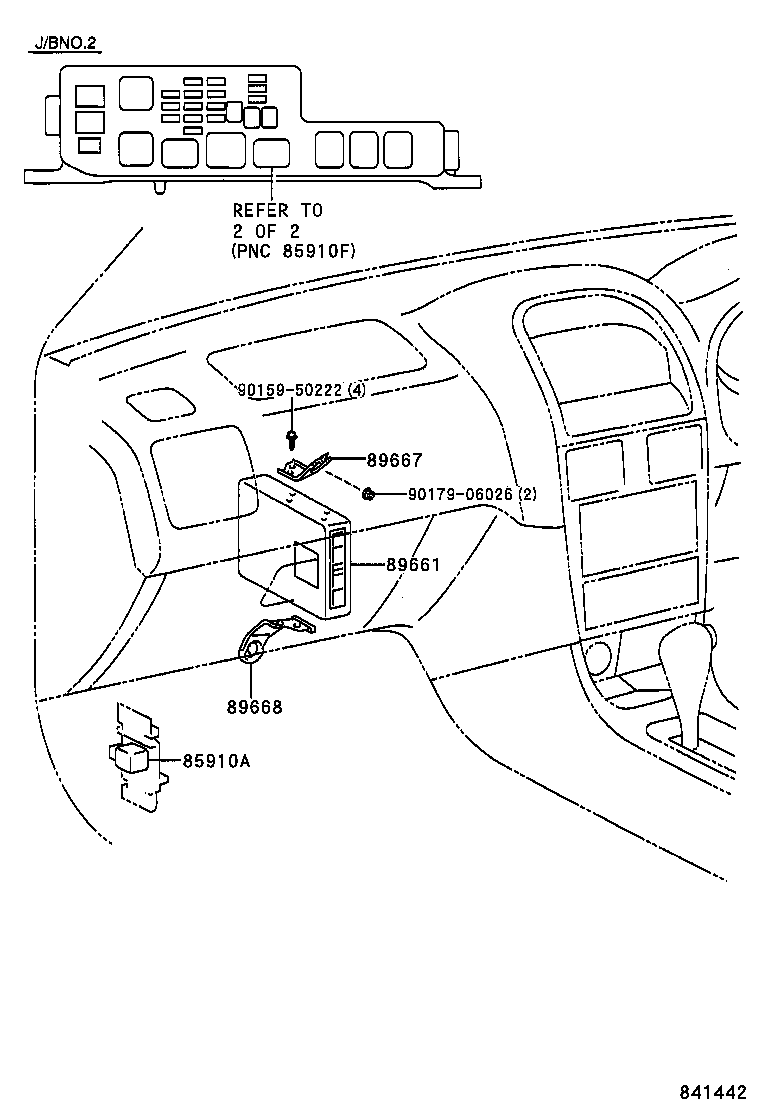

ILLUST NO. 1 OF 2(9708- )AT211,ST21#

Click highlighted areas on diagram

diagram 85910A 89661 89667 89668 9015950222 9017906026
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

AT211,ST21#

 1
90987-02012

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012

 1
90987-02022

AT211,ST21#

 1
90987-02015

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015

 1
89661 - COMPUTER, ENGINE CONTROL
89661-21280

ST215..4FC..(E,G)

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20380

AT211,ST21#

 1
89667-20380

AT211,ST21#..E,G

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20340

AT211,ST21#

 1
89668-20340

AT211,ST21#..E,G

 1
Common parts
90159-50222
90179-06026

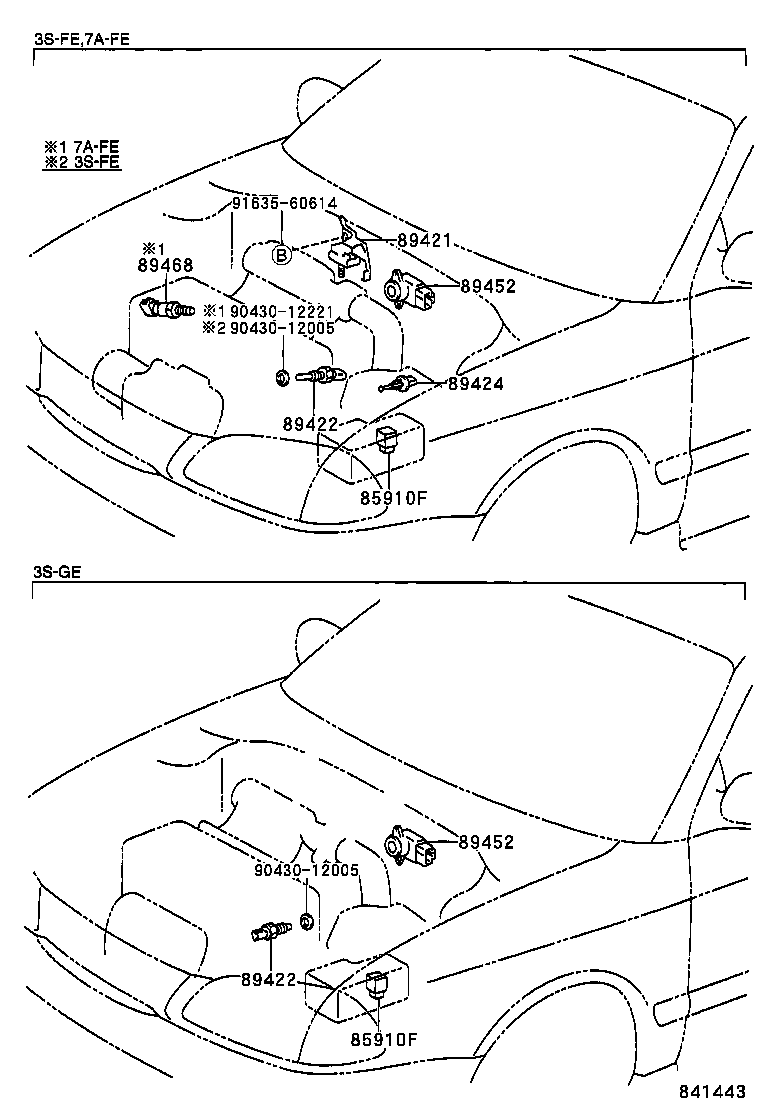

ILLUST NO. 2 OF 2(9708- )AT211,ST21#..E,G,GT

Click highlighted areas on diagram

diagram 85910F 85910F 89421 89422 89422 89424 89452 89452 89468 9043012005 9043012005 9043012221 9163560614
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

AT211,ST21#

 1
90987-02012

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012

 1
90987-02015

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015

 1
90987-02022

AT211,ST21#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

AT211,ST21#

 1
90987-02012

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012

 1
90987-02015

AT211,ST21#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015

 1
90987-02022

AT211,ST21#

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20250

AT211,ST21#..E,G

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ST21#..E,G

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ST21#..E,G

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AT211,ST21#..E,G

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

ST21#..E,G

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

ST21#..E,G

 1
Common parts
90430-12005
90430-12221
91635-60614
