ST215G-DWPEK (1997)
Toyota Caldina

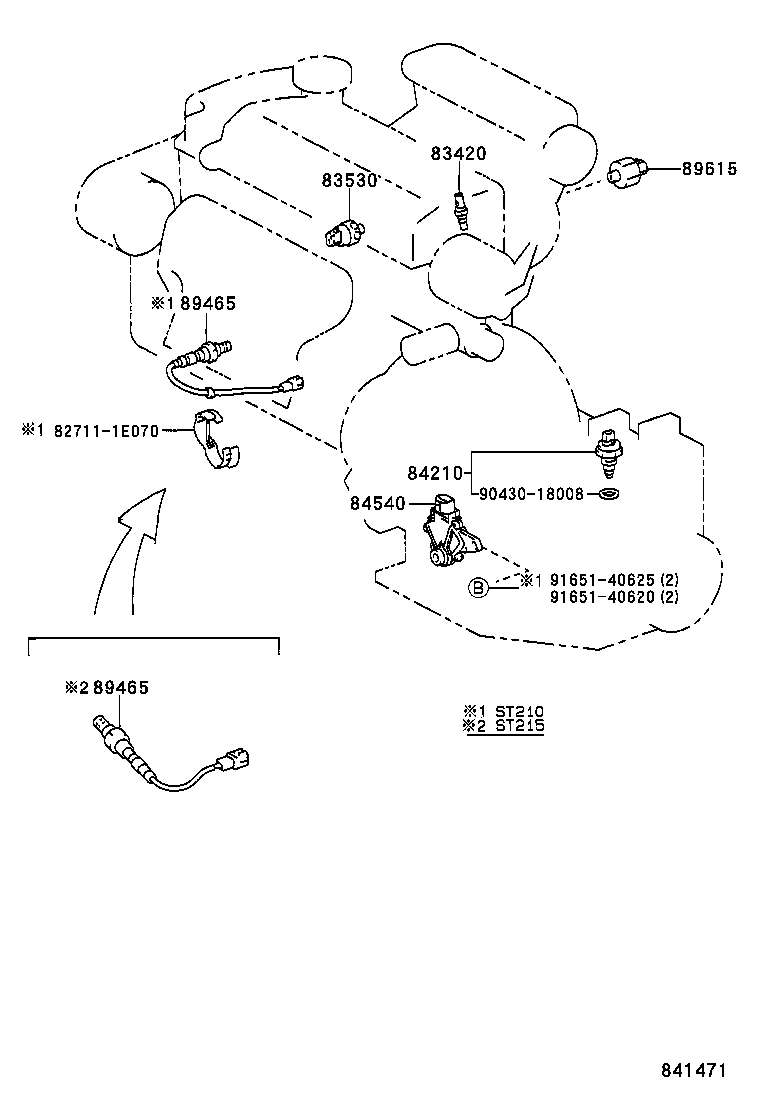

ILLUST NO. 1 OF 6(9708- )ST21#..E,G
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AT211,ST21#..E,G YAZAKI |
1 | ||
| 83420-16050 |
AT211,ST21#..E,G DENSO |
1 | ||
| 83420-AA010 |
AT211,ST21#..E,G TMMC |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
AT211,ST21# |
1 | ||
| 83530-60020 |
ST21# YAZAKI |
1 | ||
| 83530-30090 |
AT211,ST21# |
1 | ||
| 83530-28020 |
ST21# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
CT216,ST215..4FC..(E,G,GT) |
1 | ||
| 84540-16050 |
CT216,ST215..4FC..(E,G) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20270 |
ST215..E,G |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20270 |
ST215..E,G |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
ST21#..E,G NIPPONDENSO |
1 | ||
| 89615-33020 |
ST21#..E,G DENSO |
1 | ||
| 89615-32040 |
ST21#..E,G TOYOTA |
1 | ||
| 89615-20030 |
ST21#..E,G TOYOTA |
1 | ||
| 89615-32040 |
ST21#..E,G TOYOTA |
1 | ||
| 89615-20030 |
ST21#..E,G TOYOTA |
1 | ||
| 89615-32030 |
ST21#..E,G DENSO |
1 | ||
| 89615-32030 |
ST21#..E,G DENSO |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

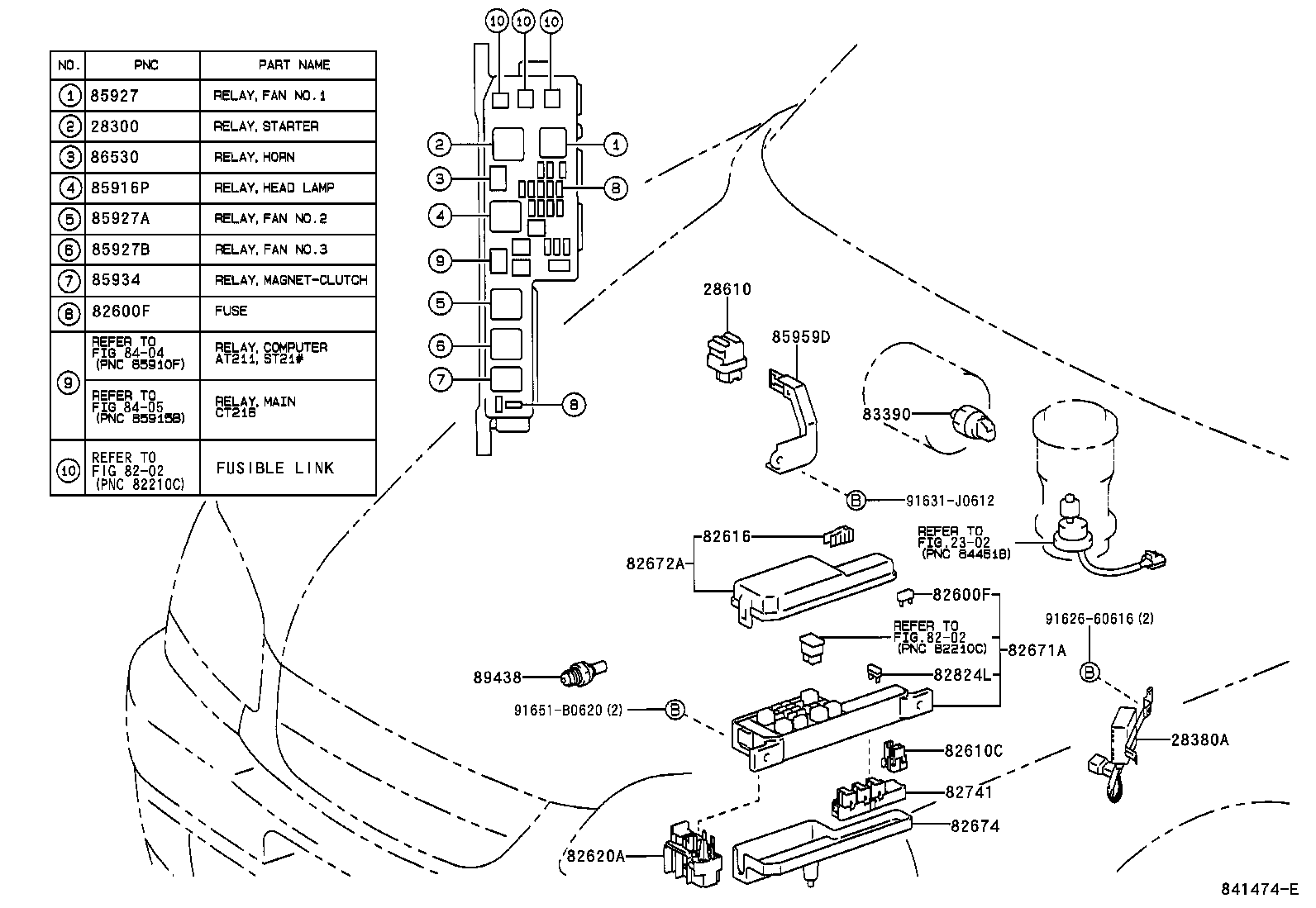

ILLUST NO. 2 OF 6(9708- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AT211,CT216,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
AT211,CT216,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT211,CT216,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
AT211,CT216,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
AT211,CT216,ST21# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
AT211,CT216,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT211,CT216,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AT211,CT216,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
AT211,CT216,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT211,CT216,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
AT211,CT216,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
AT211,CT216,ST21# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
AT211,CT216,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT211,CT216,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-21010 |
ST21#..G,GT,GTT |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT211,CT216,ST21# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20170 |
AT211,CT216,ST21# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-21010 |
AT211,ST21#..E,G,GT |
1 | ||
| 82720-21010 |
AT211,ST21#..E,G |
1 | ||
| 82720-21050 |
ST21#..G ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ;TWISTER *(G);TWISTER *(T) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-21020 |
AT211,CT216,ST21# |
1 | ||
| 82672-21022 |
AT211,ST21# |
1 | ||
| 82672-21021 |
AT211,ST21# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-21020 |
AT211,CT216,ST21# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-21010 |
AT211,ST21# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT211,CT216,ST21# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85916-30060 |
ST21#..G ｱｸﾃｲﾌﾞ ｽﾎﾟ-ﾂ;TWISTER *(T) |
1 | ||
| 90987-02006 |
AT211,CT216,ST21#..E,G |
1 | ||
| 90987-02006 |
AT211,CT216,ST21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
AT211,CT216,ST21# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02012 |
AT211,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90987-02022 |
AT211,ST21# |
1 | ||
| 90987-02012 |
AT211,ST21# |
1 | ||
| 90987-02015 |
AT211,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04005 |
AT211,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-04005 |
1 | ||
| 90987-04004 |
AT211,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-04004 |
1 | ||
| 90987-04004 |
AT211,ST21# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
AT211,CT216,ST21# |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90080-87011 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011 |
1 | ||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ST21# |
1 | ||
| Common parts | ||||
| 91626-60616 | ||||
| 91631-J0612 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

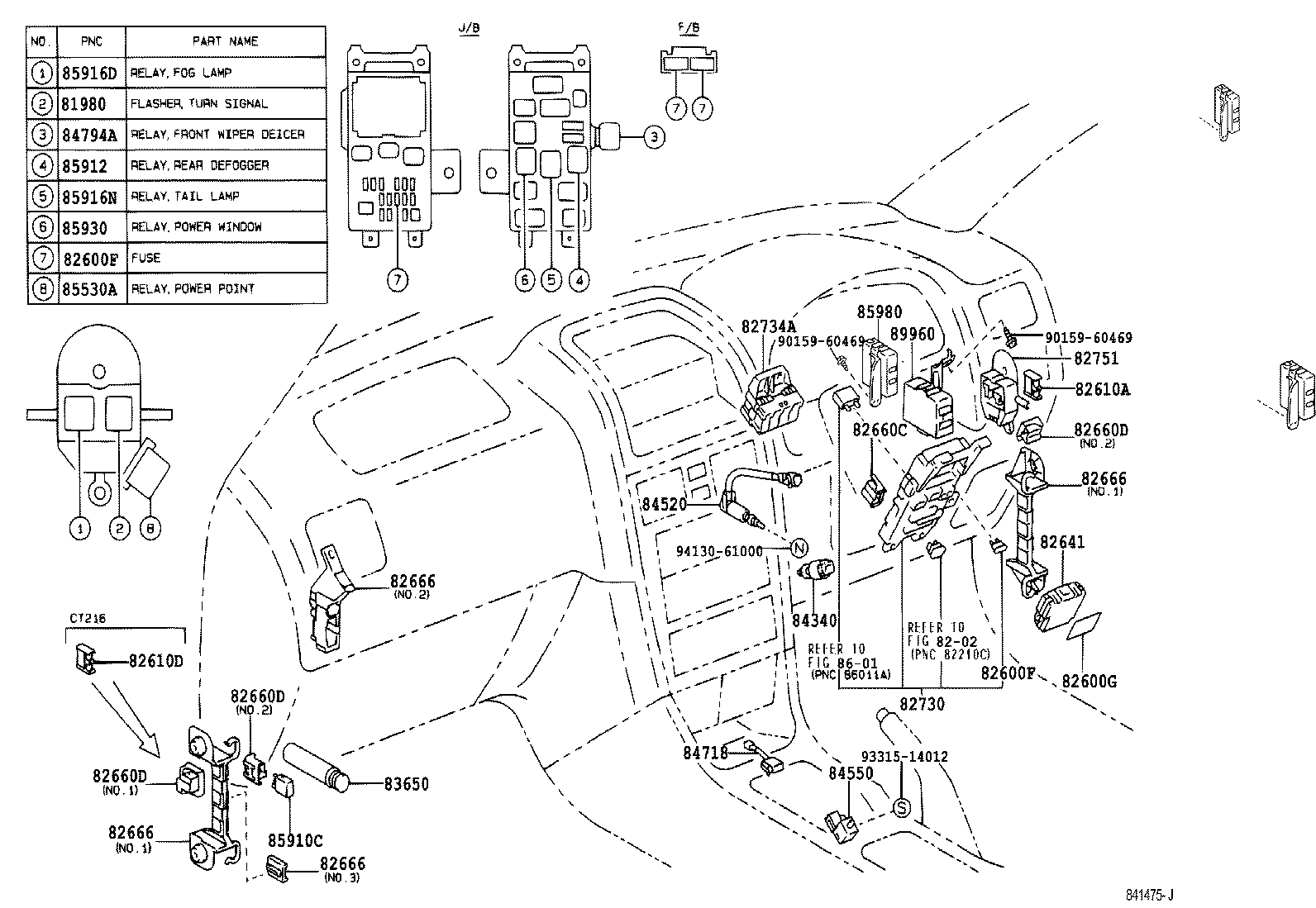

ILLUST NO. 3 OF 6(9708- )
COWL & CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT211,CT216,ST21# |
1 | ||
| 81980-12110 |
AT211,CT216,ST21# |
1 | ||
| 81980-32010 |
AT211,CT216,ST21# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AT211,CT216,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
AT211,CT216,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT211,CT216,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
AT211,CT216,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
AT211,CT216,ST21# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
AT211,CT216,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT211,CT216,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
AT211,CT216,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09007 |
AT211,CT216,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT211,CT216,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
AT211,CT216,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09012 |
AT211,CT216,ST21# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
AT211,CT216,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT211,CT216,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-21010 |
AT211,CT216,ST21# |
1 | ||
| 82685-21011 |
AT211,CT216,ST21# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
AT211,CT216,ST21# |
1 | ||
| 82610-20080 |
AT211,CT216,ST21#..E,GT,GTT |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-21030 |
AT211,CT216,ST21#..E |
1 | ||
| 82641-21040 |
ST21#..G,GT,GTT |
1 | ||
| 82641-21020 |
ST21#..G,GT,GTT |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
AT211,CT216,ST21# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
AT211,CT216,ST21# NO.2 |
2 | ||
| 82660-44010 |
AT211,CT216,ST21# NO.1 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
AT211,CT216,ST21# NO.2 |
2 | ||
| 82660-44010 |
AT211,CT216,ST21# NO.1 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
AT211,CT216,ST21# NO.2 |
2 | ||
| 82660-44010 |
AT211,CT216,ST21# NO.1 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-20260 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 82666-20030 |
AT211,CT216,ST21# NO.1 |
2 | ||
| 82666-21040 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-20260 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 82666-20030 |
AT211,CT216,ST21# NO.1 |
2 | ||
| 82666-21040 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-20260 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 82666-20030 |
AT211,CT216,ST21# NO.1 |
2 | ||
| 82666-21040 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-20260 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 82666-20030 |
AT211,CT216,ST21# NO.1 |
2 | ||
| 82666-21040 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-21011 |
AT211,CT216,ST21# |
1 | ||
| 82730-21010 |
AT211,CT216,ST21# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20030 |
AT211,CT216,ST21# |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-20060 |
AT211,CT216,ST21# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT211,CT216,ST21# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-35020 |
AT211,CT216,ST21# |
1 | ||
| 84340-32050 |
AT211,CT216,ST21# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT211,CT216,ST21# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87011 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT211,CT216,ST21# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AT211,CT216,ST21#..E |
1 | ||
| 90987-02015 |
ST21#..G,GT,GTT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02012 |
ST21#..G,GT,GTT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21#..E ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87010 |
ST21#..G,GT,GTT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87011 |
ST21#..G,GT,GTT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011 |
1 | ||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02022 |
ST21#..G,GT,GTT ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 90080-87011 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87011 |
1 | ||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90080-87010 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90080-87010 |
1 | ||
| 90987-02015 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02015 |
1 | ||
| 90987-02012 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
1 | ||
| 90080-87011 |
AT211,CT216,ST21# |
1 | ||
| 90987-02022 |
AT211,CT216,ST21# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02022 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20400 |
AT211,CT216,ST21#..E |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-21010 |
ST21#..G,GT,GTT |
1 | ||
| Common parts | ||||
| 90159-60469 | ||||
| 93315-14012 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||

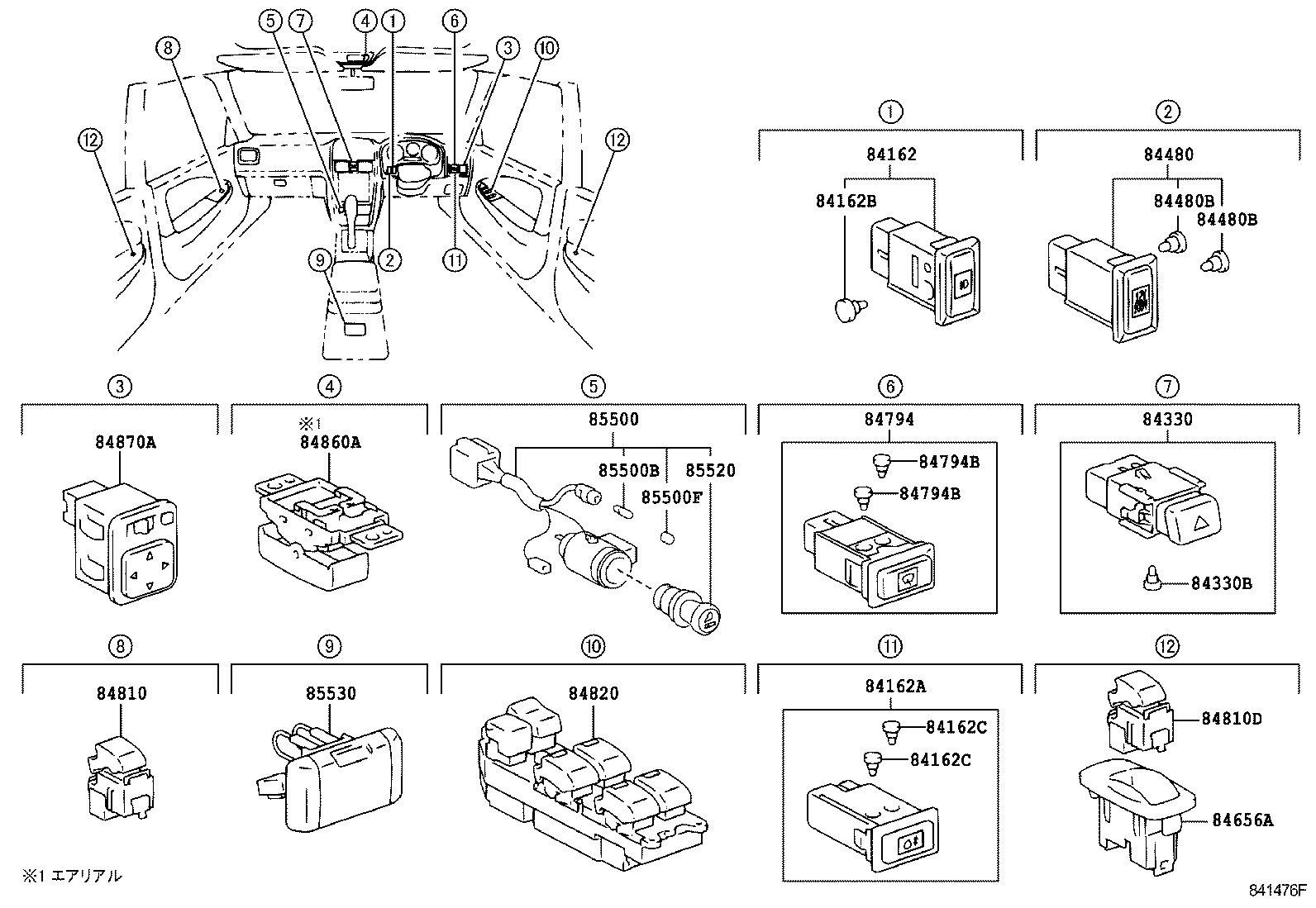

ILLUST NO. 4 OF 6(9708- )
INSTRUMENT PANEL & DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95D00 |
AT211,CT216,ST21#..E |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-21010 |
AT211,CT216,ST21# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
AT211,CT216,ST21#..E 14V 0.84W |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT211,CT216,ST21# 14V 0.7W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT211,CT216,ST21# 14V 0.7W |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-21020 |
AT211,CT216,ST21# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AT211,CT216,ST21# 14V 0.91W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-21010 |
ST21#..G,GT,GTT |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90010-01049 |
ST21#..G,GT,GTT 14V0.91W,ｲｴﾛｰ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-10310 |
ST21#..G,GT,GTT 14V 0.91W |
1 | ||
| 90010-01018 |
ST21#..G,GT,GTT 14V 0.91W,ｷｬｯﾌﾟ無し,ｲｴﾛｰ |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90010-01049 |
ST21#..G,GT,GTT 14V0.91W,ｲｴﾛｰ ｷｬｯﾌﾟ付き |
1 | ||
| 84999-10310 |
ST21#..G,GT,GTT 14V 0.91W |
1 | ||
| 90010-01018 |
ST21#..G,GT,GTT 14V 0.91W,ｷｬｯﾌﾟ無し,ｲｴﾛｰ |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040B1 |
AT211,CT216,ST21# SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040C0 |
AT211,CT216,ST21# BLACK,TRIM2# |
2 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84790-21010 |
AT211,CT216,ST21# |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
AT211,CT216,ST21# 14V 0.91W |
2 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
AT211,CT216,ST21# 14V 0.91W |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT211,CT216,ST21# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AT211,CT216,ST21# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-21020 |
AT211,CT216,ST21# |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-21010B1 |
ST21#..G,GT,GTT ｴｱﾘｱﾙ,MD.CHARCOAL,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
AT211,CT216,ST21# |
1 | ||
| 84870-16040 |
AT211,CT216,ST21# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-21020 |
AT211,CT216,ST21# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT211,CT216,ST21# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT211,CT216,ST21# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AT211,CT216,ST21# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-21041B0 |
ST21#..G,GT,GTT MD.CHARCOAL,TRIM1# |
1 | ||
| 85530-21041B1 |
ST21#..G,GT,GTT DK.CHARCOAL,TRIM2# |
1 | ||
| 85530-21040B0 |
ST21#..G,GT,GTT MD.CHARCOAL,TRIM1# |
1 | ||

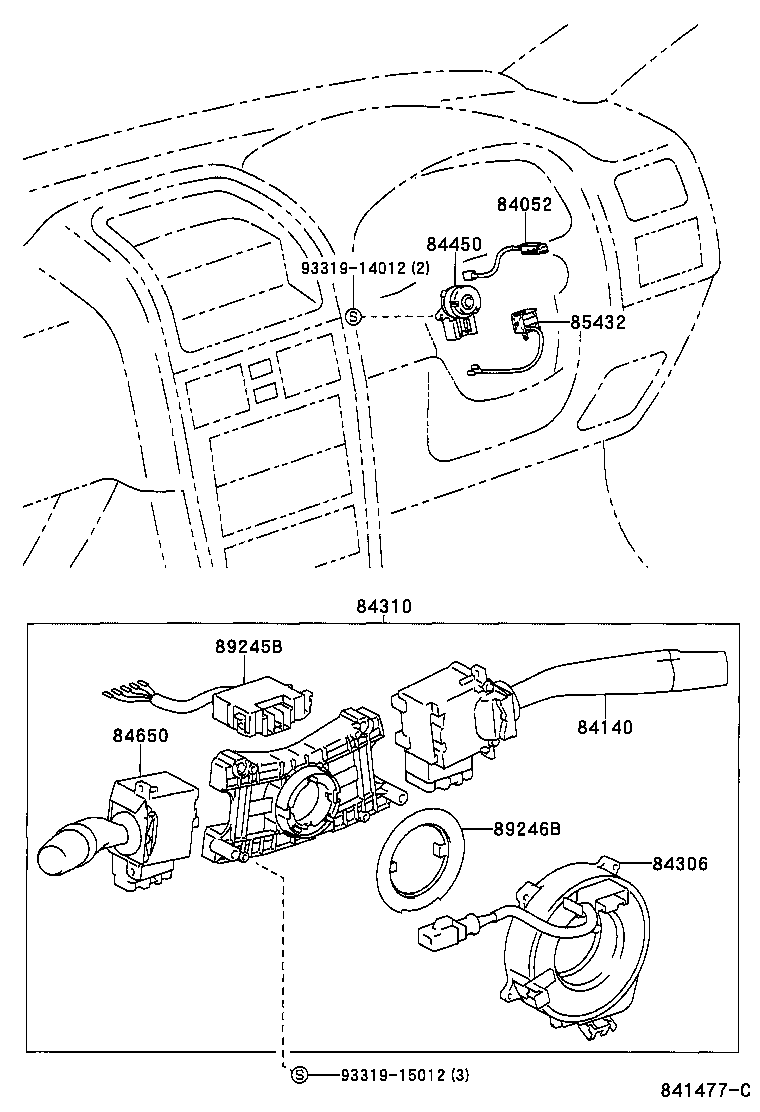

ILLUST NO. 5 OF 6(9708- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AT211,CT216,ST21# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20600 |
ST21#..G,GT;ST215..5F..GTT |
1 | ||
| 84140-20570 |
AT211,CT216,ST21#..E |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 84310-21160 |
ST21#..G,GT;ST215..5F..GTT |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AT211,CT216,ST21# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G380 |
ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AT211,CT216,ST21#..4FC |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

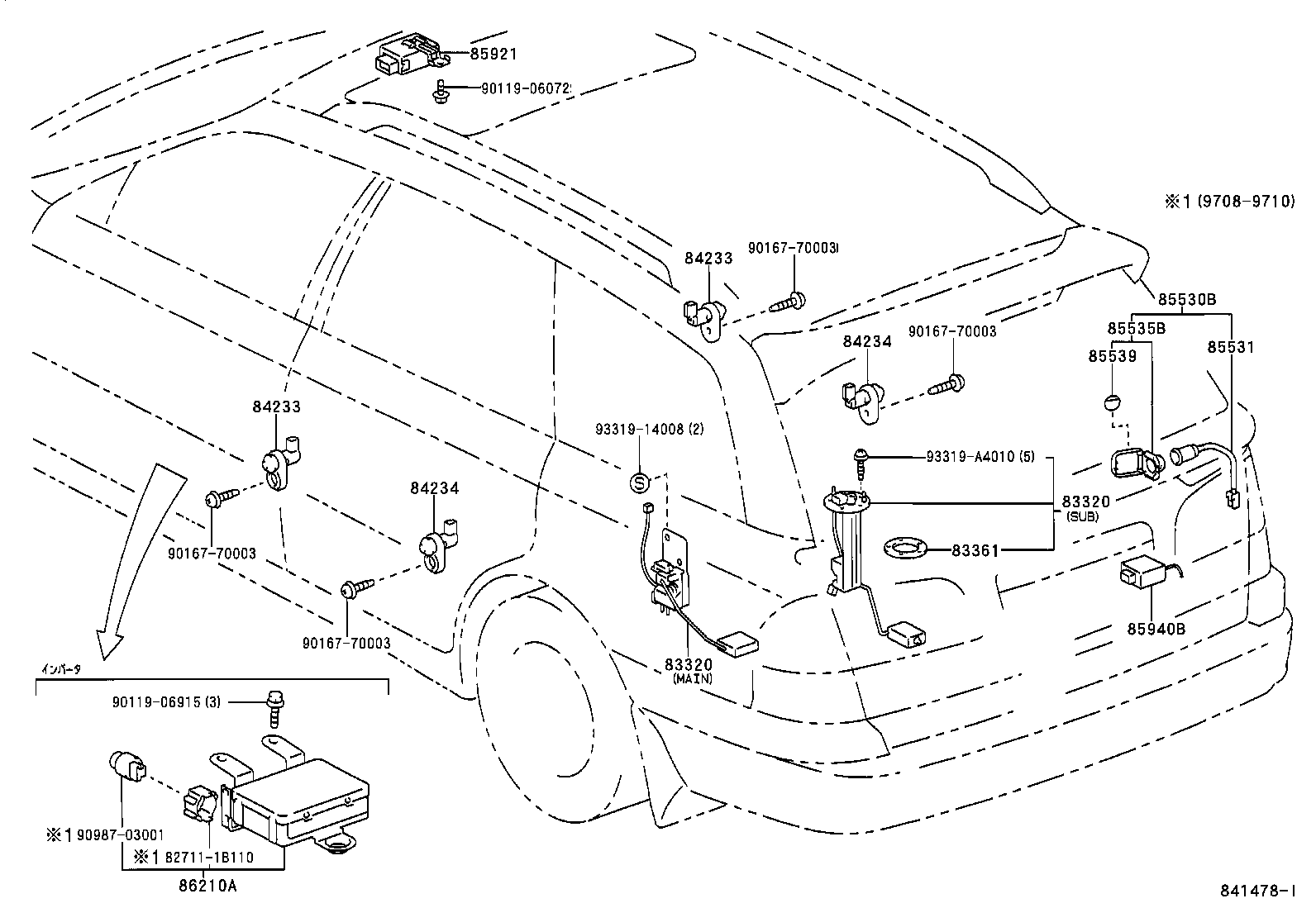

ILLUST NO. 6 OF 6(9708- )
BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-21120 |
CT216,ST215 ﾒｲﾝ |
1 | ||
| 83320-80361 |
CT216,ST215 ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-21120 |
CT216,ST215 ﾒｲﾝ |
1 | ||
| 83320-80361 |
CT216,ST215 ｻﾌﾞ |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CT216,ST215 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 84231-33071 |
AT211,CT216,ST21# |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-21030B0 |
ST21#..G,GT,GTT MD. CHARCOAL,TRIM2# |
1 | ||
| 85530-21020B0 |
AT211,CT216,ST21#..E MD. CHARCOAL,TRIM2# |
1 | ||
| 85530-21030B0 |
ST21#..G,GT,GTT MD. CHARCOAL,TRIM1# |
1 | ||
| 85530-21020B0 |
AT211,CT216,ST21#..E MD. CHARCOAL,TRIM1# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-21010 |
AT211,CT216,ST21#..E |
1 | ||
| 85531-21020 |
ST21#..G,GT,GTT |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-21030B0 |
AT211,CT216,ST21#..E MD.CHARCOAL,TRIM2# |
1 | ||
| 85535-21030B0 |
AT211,CT216,ST21#..E MD.CHARCOAL,TRIM1# |
1 | ||
| 85535-21020B0 |
ST21#..G,GT,GTT MD.CHARCOAL,TRIM1# |
1 | ||
| 85535-21020B0 |
ST21#..G,GT,GTT MD.CHARCOAL,TRIM2# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
ST21#..G,GT,GTT |
1 | ||
| 85539-33020 |
AT211,CT216,ST21#..E |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-21020 |
ST21#..G,GT,GTT ｴｱﾘｱﾙ |
1 | ||
| 85921-12061 |
AT211,CT216,ST21# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-21040 |
AT211,CT216,ST21# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-21020 |
ST21#..G,GT,GTT |
1 | ||
| 86210-21011 |
ST21#..G,GT,GTT |
1 | ||
| Common parts | ||||
| 82711-1B110 | ||||
| 90119-06072 | ||||
| 90119-06915 | ||||
| 90167-70003 | ||||
| 90987-03001 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
