ST215G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

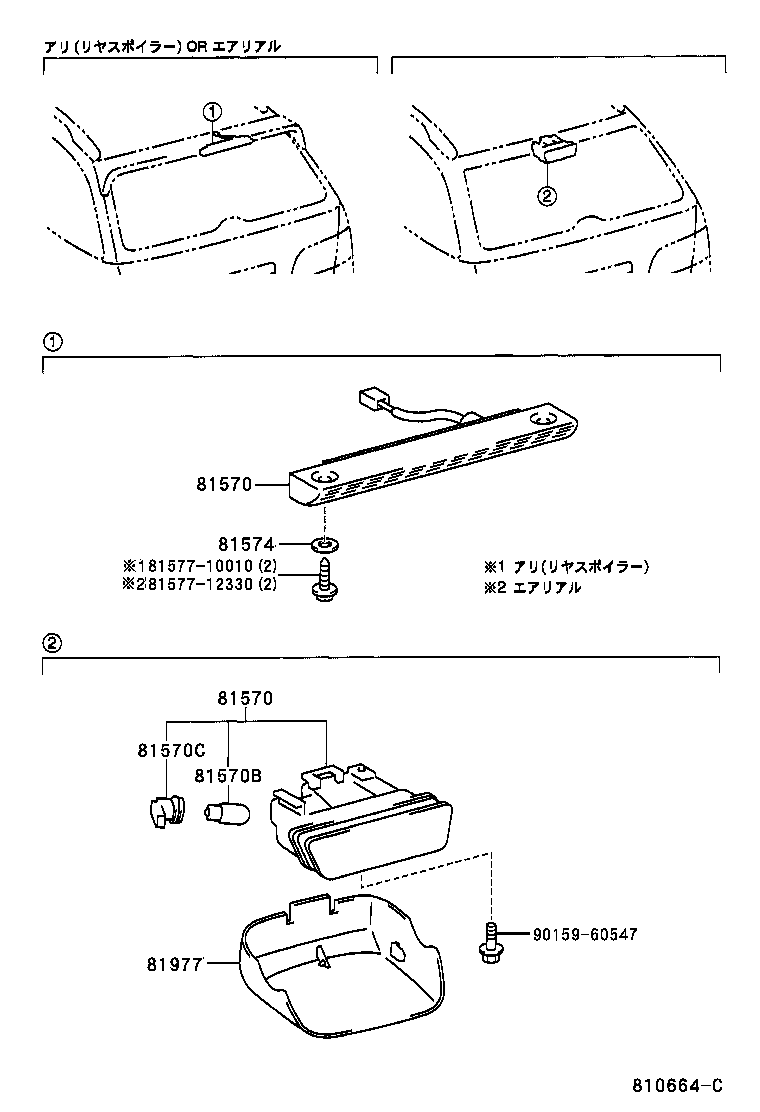

Click highlighted areas on diagram

diagram 81570 81570 81570B 81570C 81574 8157710010 8157712330 81977 9015960547
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-21070

ST215;AT211,CT216,ST210..E,G

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-21080

ST21#..G,GT,GTT

ｴｱﾘｱﾙ

 1
81570-21060

AT211,CT216,ST21#..E

 1
81570 - LAMP ASSY, CENTER STOP
81570-21070

ST215;AT211,CT216,ST210..E,G

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-21080

ST21#..G,GT,GTT

ｴｱﾘｱﾙ

 1
81570-21060

AT211,CT216,ST21#..E

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

AT211,CT216,ST21#..E

12V 16W

 1
81570C - SOCKET, CENTER STOP LAMP
90075-99005

AT211,CT216,ST21#..E

 1
81574 - COVER, CENTER STOP LAMP
81574-10010

AT211,CT216,ST21#

 2
81977 - COVER, CENTER STOP LAMP
81977-21020

AT211,CT216,ST21#..E

 1
81977-21030

AT211,CT216,ST21#..E

 1
Common parts
81577-10010
81577-12330
90159-60547
