Toyota Caldina ST215 RADIATOR GRILLE

ST215G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002

Engine 3SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9708-9912)

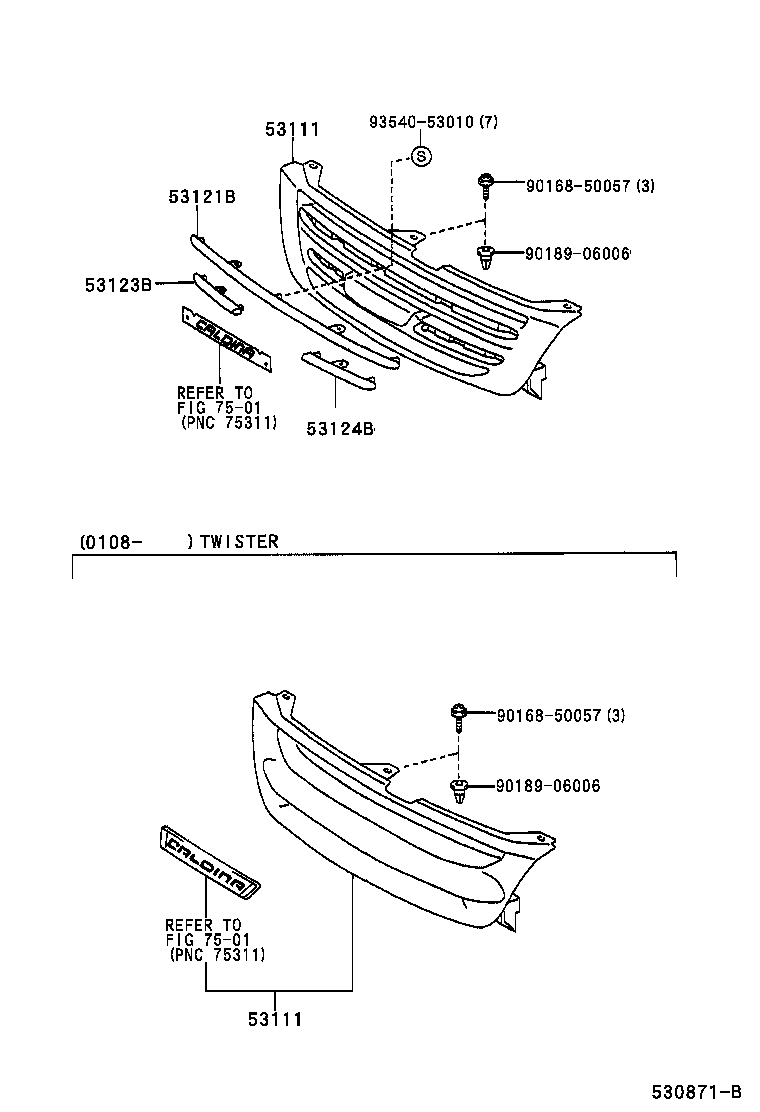

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-21040A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	08/1997 - 12/1999	1
53111-21040C0	AT211,CT216,ST21#..E,G BLACK ME,2DB	08/1997 - 12/1999	1
53111-21040D0	AT211,CT216,ST21#..E,G RED MC.,2DP	08/1997 - 12/1999	1
53111-21040J0	AT211,CT216,ST21#..E,G DK.BLUE M.M.,8L3	08/1997 - 12/1999	1
53111-21040B0	AT211,CT216,ST21#..E,G SILVER ME,199	08/1997 - 12/1999	1
53111-21060A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	12/1999 - 12/2999	1
53111-21060B0	AT211,CT216,ST21#..E,G SILVER ME.,199	12/1999 - 08/2001	1
53111-21040G0	AT211,CT216,ST21#..E,G DK.MOSS GREEN MM,2DQ	08/1997 - 12/1999	1
53111-21060C0	AT211,CT216,ST21#..E,G BLACK MC.,209	12/1999 - 12/2999	1
53111-21080B1	ST21#..G TWISTER *(G),SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21060D0	AT211,CT216,ST21#..E,G RED MC.,3M8	12/1999 - 12/2999	1
53111-21060J0	AT211,CT216,ST21#..E,G DK.BLUE MC.,8P4	12/1999 - 12/2999	1
53111-21060A1	AT211,CT216,ST21#..E,G SU. WHITE PM.,051	12/1999 - 12/2999	1
53111-21060B1	AT211,CT216,ST21#..E,G SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21080A0	ST21#..G TWISTER *(G),SUPER WHITE 2,040	08/2001 - 12/2999	1
53111-21080C0	ST21#..G TWISTER *(G),BLACK MC.,209	08/2001 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-21040A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	08/1997 - 12/1999	1
53111-21040C0	AT211,CT216,ST21#..E,G BLACK ME,2DB	08/1997 - 12/1999	1
53111-21040D0	AT211,CT216,ST21#..E,G RED MC.,2DP	08/1997 - 12/1999	1
53111-21040J0	AT211,CT216,ST21#..E,G DK.BLUE M.M.,8L3	08/1997 - 12/1999	1
53111-21040B0	AT211,CT216,ST21#..E,G SILVER ME,199	08/1997 - 12/1999	1
53111-21060A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	12/1999 - 12/2999	1
53111-21060B0	AT211,CT216,ST21#..E,G SILVER ME.,199	12/1999 - 08/2001	1
53111-21040G0	AT211,CT216,ST21#..E,G DK.MOSS GREEN MM,2DQ	08/1997 - 12/1999	1
53111-21060C0	AT211,CT216,ST21#..E,G BLACK MC.,209	12/1999 - 12/2999	1
53111-21080B1	ST21#..G TWISTER *(G),SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21060D0	AT211,CT216,ST21#..E,G RED MC.,3M8	12/1999 - 12/2999	1
53111-21060J0	AT211,CT216,ST21#..E,G DK.BLUE MC.,8P4	12/1999 - 12/2999	1
53111-21060A1	AT211,CT216,ST21#..E,G SU. WHITE PM.,051	12/1999 - 12/2999	1
53111-21060B1	AT211,CT216,ST21#..E,G SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21080A0	ST21#..G TWISTER *(G),SUPER WHITE 2,040	08/2001 - 12/2999	1
53111-21080C0	ST21#..G TWISTER *(G),BLACK MC.,209	08/2001 - 12/2999	1
Common parts
90168-50057
90189-06006
Linked diagrams
7501

(9912- )E,G

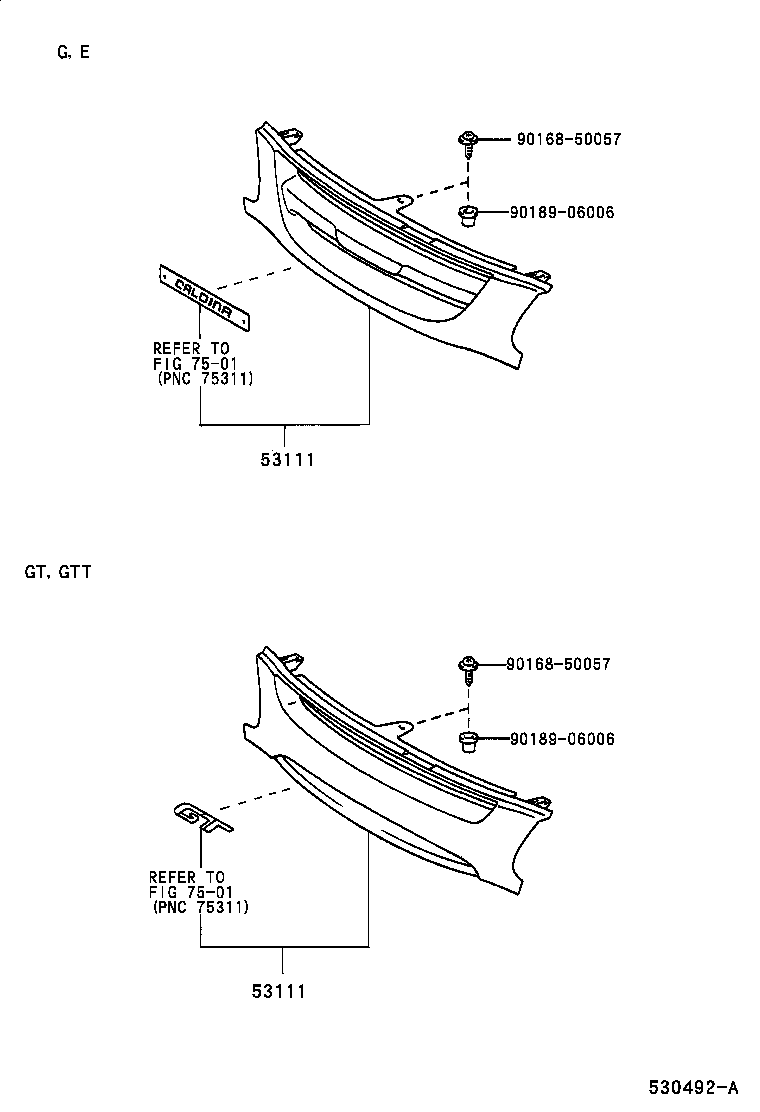

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-21040A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	08/1997 - 12/1999	1
53111-21040C0	AT211,CT216,ST21#..E,G BLACK ME,2DB	08/1997 - 12/1999	1
53111-21040D0	AT211,CT216,ST21#..E,G RED MC.,2DP	08/1997 - 12/1999	1
53111-21040J0	AT211,CT216,ST21#..E,G DK.BLUE M.M.,8L3	08/1997 - 12/1999	1
53111-21040B0	AT211,CT216,ST21#..E,G SILVER ME,199	08/1997 - 12/1999	1
53111-21060A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	12/1999 - 12/2999	1
53111-21060B0	AT211,CT216,ST21#..E,G SILVER ME.,199	12/1999 - 08/2001	1
53111-21040G0	AT211,CT216,ST21#..E,G DK.MOSS GREEN MM,2DQ	08/1997 - 12/1999	1
53111-21060C0	AT211,CT216,ST21#..E,G BLACK MC.,209	12/1999 - 12/2999	1
53111-21080B1	ST21#..G TWISTER *(G),SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21060D0	AT211,CT216,ST21#..E,G RED MC.,3M8	12/1999 - 12/2999	1
53111-21060J0	AT211,CT216,ST21#..E,G DK.BLUE MC.,8P4	12/1999 - 12/2999	1
53111-21060A1	AT211,CT216,ST21#..E,G SU. WHITE PM.,051	12/1999 - 12/2999	1
53111-21060B1	AT211,CT216,ST21#..E,G SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21080A0	ST21#..G TWISTER *(G),SUPER WHITE 2,040	08/2001 - 12/2999	1
53111-21080C0	ST21#..G TWISTER *(G),BLACK MC.,209	08/2001 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-21040A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	08/1997 - 12/1999	1
53111-21040C0	AT211,CT216,ST21#..E,G BLACK ME,2DB	08/1997 - 12/1999	1
53111-21040D0	AT211,CT216,ST21#..E,G RED MC.,2DP	08/1997 - 12/1999	1
53111-21040J0	AT211,CT216,ST21#..E,G DK.BLUE M.M.,8L3	08/1997 - 12/1999	1
53111-21040B0	AT211,CT216,ST21#..E,G SILVER ME,199	08/1997 - 12/1999	1
53111-21060A0	AT211,CT216,ST21#..E,G SUPER WHITE 2,040	12/1999 - 12/2999	1
53111-21060B0	AT211,CT216,ST21#..E,G SILVER ME.,199	12/1999 - 08/2001	1
53111-21040G0	AT211,CT216,ST21#..E,G DK.MOSS GREEN MM,2DQ	08/1997 - 12/1999	1
53111-21060C0	AT211,CT216,ST21#..E,G BLACK MC.,209	12/1999 - 12/2999	1
53111-21080B1	ST21#..G TWISTER *(G),SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21060D0	AT211,CT216,ST21#..E,G RED MC.,3M8	12/1999 - 12/2999	1
53111-21060J0	AT211,CT216,ST21#..E,G DK.BLUE MC.,8P4	12/1999 - 12/2999	1
53111-21060A1	AT211,CT216,ST21#..E,G SU. WHITE PM.,051	12/1999 - 12/2999	1
53111-21060B1	AT211,CT216,ST21#..E,G SILVER ME.,1C0	08/2001 - 12/2999	1
53111-21080A0	ST21#..G TWISTER *(G),SUPER WHITE 2,040	08/2001 - 12/2999	1
53111-21080C0	ST21#..G TWISTER *(G),BLACK MC.,209	08/2001 - 12/2999	1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-21010	AT211,CT216,ST21#..E,G	12/1999 - 12/2999	1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
53123-21010	AT211,CT216,ST21#..E,G	12/1999 - 12/2999	1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
53124-21010	AT211,CT216,ST21#..E,G	12/1999 - 12/2999	1
Common parts
90168-50057
90189-06006
93540-53010
Linked diagrams
7501

ST215G-DWPEK (1997)

(9708-9912)

(9912- )E,G
