ST215G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )3SFE

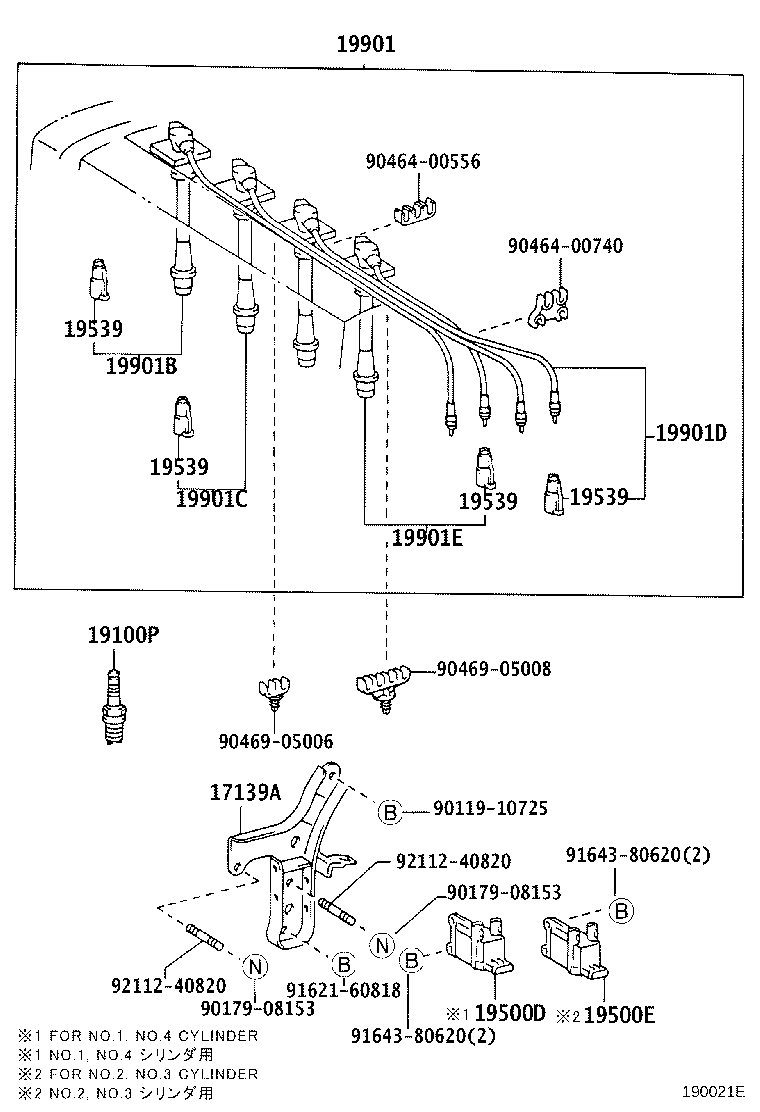

Click highlighted areas on diagram

diagram 17139A 19100P 19500D 19500E 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 9011910725 9017908153 9017908153 9046400556 9046400740 9046905006 9046905008 9162160818 9164380620 9164380620 9211240820 9211240820
Part # Description Qty Price
17139A - STAY, MANIFOLD, NO.1
17139-74180

3SFE..ST21#

 1
19100P - PLUG, SPARK
90919-01198

3SFE..ST21#

K20TR11

 4
19500D - COIL, IGNITION, NO.1
90919-02217

3SFE..ST21#

 1
19500E - COIL, IGNITION, NO.2
90919-02218

3SFE..ST21#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST21#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST21#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST21#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST21#

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22400

3SFE..ST21#

 1
90919-22386

3SFE..ST21#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15546

3SFE..ST21#

 1
90919-15466

3SFE..ST21#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15465

3SFE..ST21#

 1
90919-15547

3SFE..ST21#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15548

3SFE..ST21#

 1
90919-15464

3SFE..ST21#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15463

3SFE..ST21#

 1
90919-15549

3SFE..ST21#

 1
Common parts
90119-10725
90179-08153
90464-00556
90464-00740
90469-05006
90469-05008
91621-60818
91643-80620
92112-40820
