ST215G-DWMGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

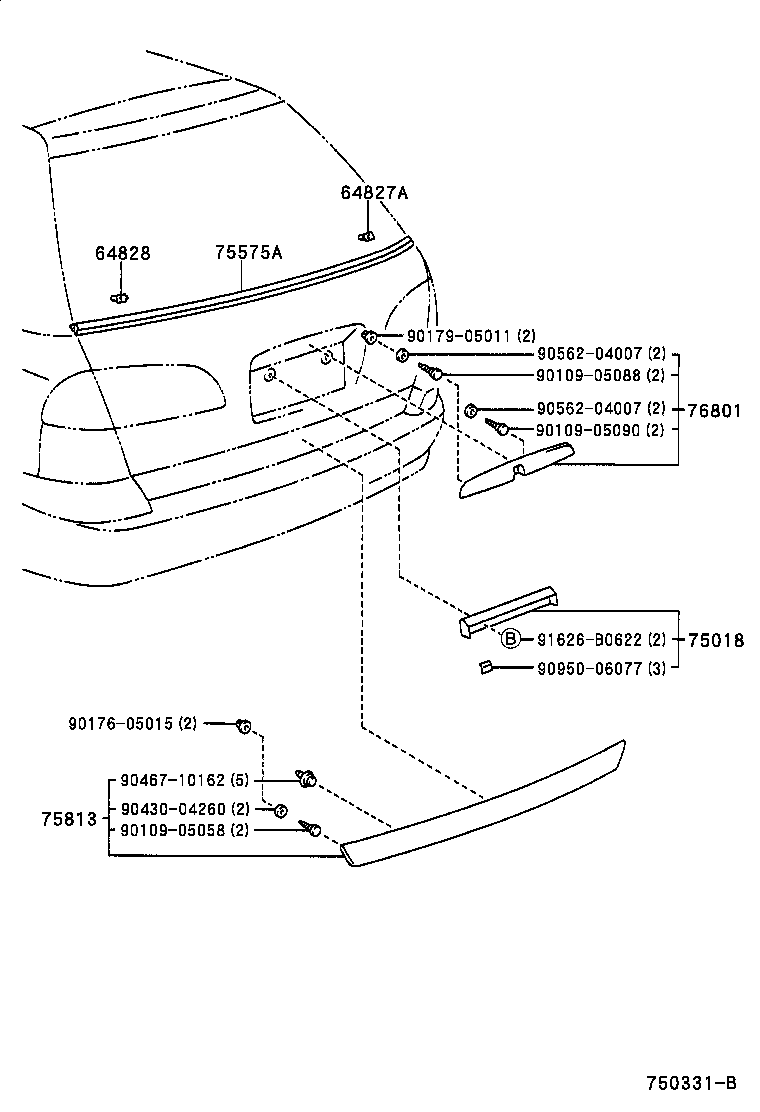

Click highlighted areas on diagram

diagram 64827A 64828 75018 75575A 75813 76801 9010905058 9010905088 9010905090 9017605015 9017905011 9043004260 9046710162 9056204007 9056204007 9095006077 91626B0622
Part # Description Qty Price
64827A - CLIP, BACK WINDOW GLASS, RH
64827-21010

AT211,CT216,ST21#

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-21010

AT211,CT216,ST21#

 1
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-21040

AT211,CT216,ST21#

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-21020

AT211,CT216,ST21#

 1
75813 - MOULDING, BACK DOOR
75813-21020

AT211,CT216,ST21#

ﾄｿｳ ﾅｼ

 1
75813-21900

AT211,CT216,ST21#

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-21011A0

AT211,CT216,ST21#

SUPER WHITE 2,040

 1
76801-21010B0

AT211,CT216,ST21#

SILVER ME,199

 1
76801-21010A0

AT211,CT216,ST21#

SUPER WHITE 2,040

 1
76801-21010G0

AT211,CT216,ST21#

DK.MOSS GREEN MM,2DQ

 1
76801-21010J0

AT211,CT216,ST21#

DK.BLUE M.M.,8L3

 1
76801-21011D0

AT211,CT216,ST21#

RED MC.,2DP

 1
76801-21020D0

AT211,CT216,ST21#

RED MC.,3M8

 1
76801-21011J0

AT211,CT216,ST21#

DK.BLUE M.M.,8L3

 1
76801-21010D0

AT211,CT216,ST21#

RED MC.,2DP

 1
76801-21011B0

AT211,CT216,ST21#

SILVER ME.,199

 1
76801-21011C0

AT211,CT216,ST21#

BLACK ME,2DB

 1
76801-21011G0

AT211,CT216,ST21#

DK.MOSS GREEN MM,2DQ

 1
76801-21010C0

AT211,CT216,ST21#

BLACK ME,2DB

 1
76801-21020B0

AT211,CT216,ST21#

SILVER ME.,199

 1
76801-21020A0

AT211,CT216,ST21#

SUPER WHITE 2,040

 1
76801-21020C0

AT211,CT216,ST21#

BLACK MC.,209

 1
76801-21020A1

AT211,CT216,ST21#

SU. WHITE PM.,051

 1
76801-21020J0

AT211,CT216,ST21#

DK.BLUE MC.,8P4

 1
76801-21020B1

AT211,CT216,ST21#

SILVER ME.,1C0

 1
Common parts
90109-05058
90109-05088
90109-05090
90176-05015
90179-05011
90430-04260
90467-10162
90562-04007
90950-06077
91626-B0622
