ST215G-DWMGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

Click highlighted areas on diagram

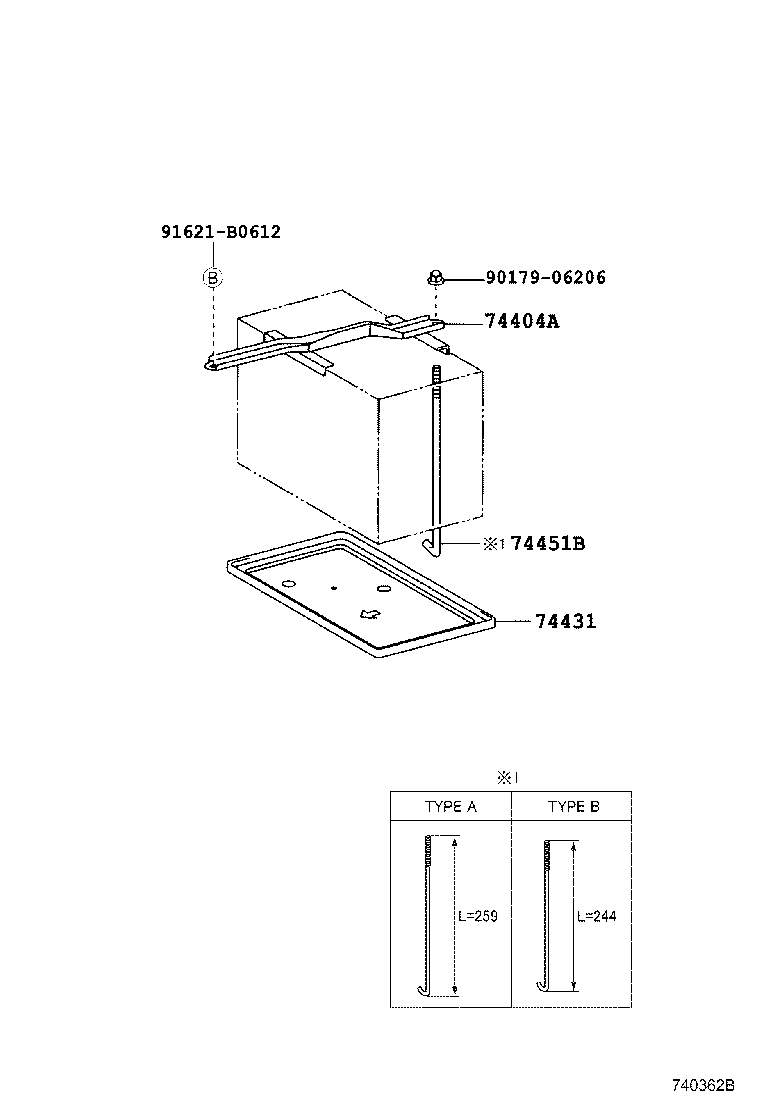

diagram 74404A 74431 74451B 9017906206 91621B0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-21010

AT211,ST21#

 1
74431 - TRAY, BATTERY
74431-20090

ST215..E,G,GT;ST215..5F..GTT;AT211,ST210..E,G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
74431-20080

AT211;ST215..5F..(E,G)

 1
74451B - BOLT, BATTERY CLAMP
74451-32071

AT211,CT216,ST21#

TYPE B:ｲﾗｽﾄ参照

 1
74451-32070

AT211,CT216,ST21#

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
90179-06206
91621-B0612
