ST215G-DWMGK (1997)
Toyota Caldina
(9708- )CT216,ST215

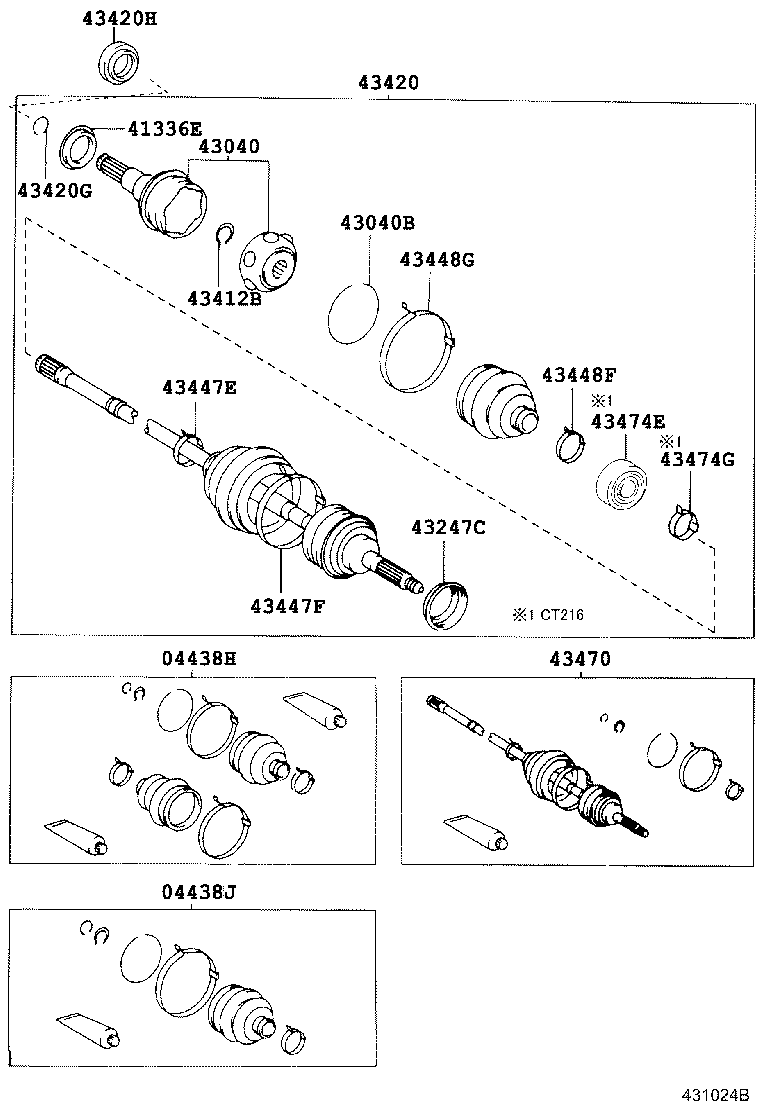

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-21060 |
ST210..GT;CT216,ST215..E,G,GT |
1 | ||
| 04438-21061 |
ST210..GT;CT216,ST215..E,G,GT |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-21050 |
ST210..GT;CT216,ST215..E,G,GT |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
CT216,ST21#..E,G,GT |
1 | ||
| 41336-32020 |
ST210..GT;CT216,ST215..E,G,GT |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-32010 |
CT216,ST215..E,G,GT |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-79001 |
ST210..GT;CT216,ST215 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
AT211,CT216,ST21# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
ST210..GT;CT216,ST215 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-21021 |
ST215..E,G,GT |
1 | ||
| 43420-21020 |
ST215..E,G,GT |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
CT216,ST21#..E,G,GT |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35033 |
ST215..5F..(E,G) |
1 | ||
| 90311-35048 |
ST215..5F..(E,G) |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01A65 |
ST210..GT;CT216,ST215 内径=34.1 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01937 |
ST210..GT;CT216,ST215 内径=95.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
ST210..GT;CT216,ST215 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42346-22010 |
ST210..GT;CT216,ST215 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29505 |
CT216,ST215..E,G,GT |
1 | ||
| 43470-29506 |
CT216,ST215..E,G,GT |
1 | ||
(9708- )CT216,ST215..E,G,GT

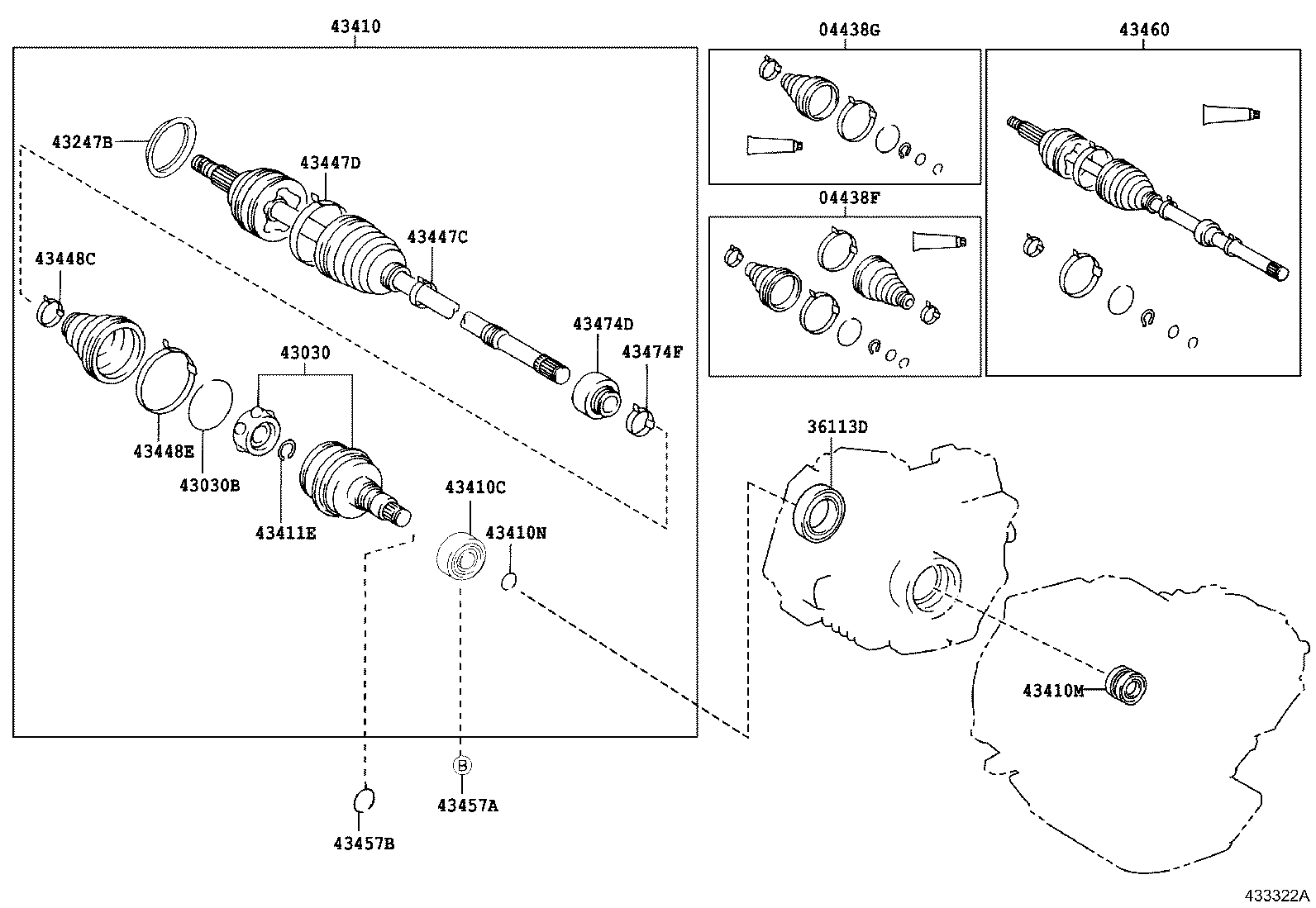

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-21040 |
CT216,ST215..E,G,GT |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-21030 |
CT216,ST215..E,G,GT |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
CT216,ST215..E,G,GT |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-21020 |
CT216,ST215..E,G,GT |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
ST210..GT;CT216,ST215 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
AT211,CT216,ST21# |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-21030 |
ST215..E,G,GT |
1 | ||
| 43410-21031 |
ST215..E,G,GT |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
CT216,ST21#..E,G,GT |
1 | ||
| 90363-36006 |
CT216,ST215..E,G,GT |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-28003 |
ST215..5F..(E,G) |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
CT216,ST21#..E,G,GT |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-25034 |
ST210..GT;CT216,ST215 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01A65 |
ST210..GT;CT216,ST215 内径=34.1 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01937 |
ST210..GT;CT216,ST215 内径=95.0 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST210..GT;CT216,ST215 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ST210..GT;CT216,ST215 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19023 |
CT216,ST215..E,G,GT *10−1.25PX27.8−14.8 |
1 | ||
| 90901-19060 |
CT216,ST215..E,G,GT *10−1.25PX28.5−14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
CT216,ST215..E,G,GT |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-29336 |
ST215..E,G,GT |
1 | ||
| 43460-29335 |
ST215..E,G,GT |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-20090 |
ST215..4FC..GTT;CT216,ST215..E,G,GT |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 90949-01696 |
CT216,ST215 |
1 | ||
