Toyota Caldina ST215 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
JP
CALDINA
ST215G-DWMGK (1997)
4103 - DISC WHEEL & WHEEL CAP

ST215G-DWMGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002

Engine 3SFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

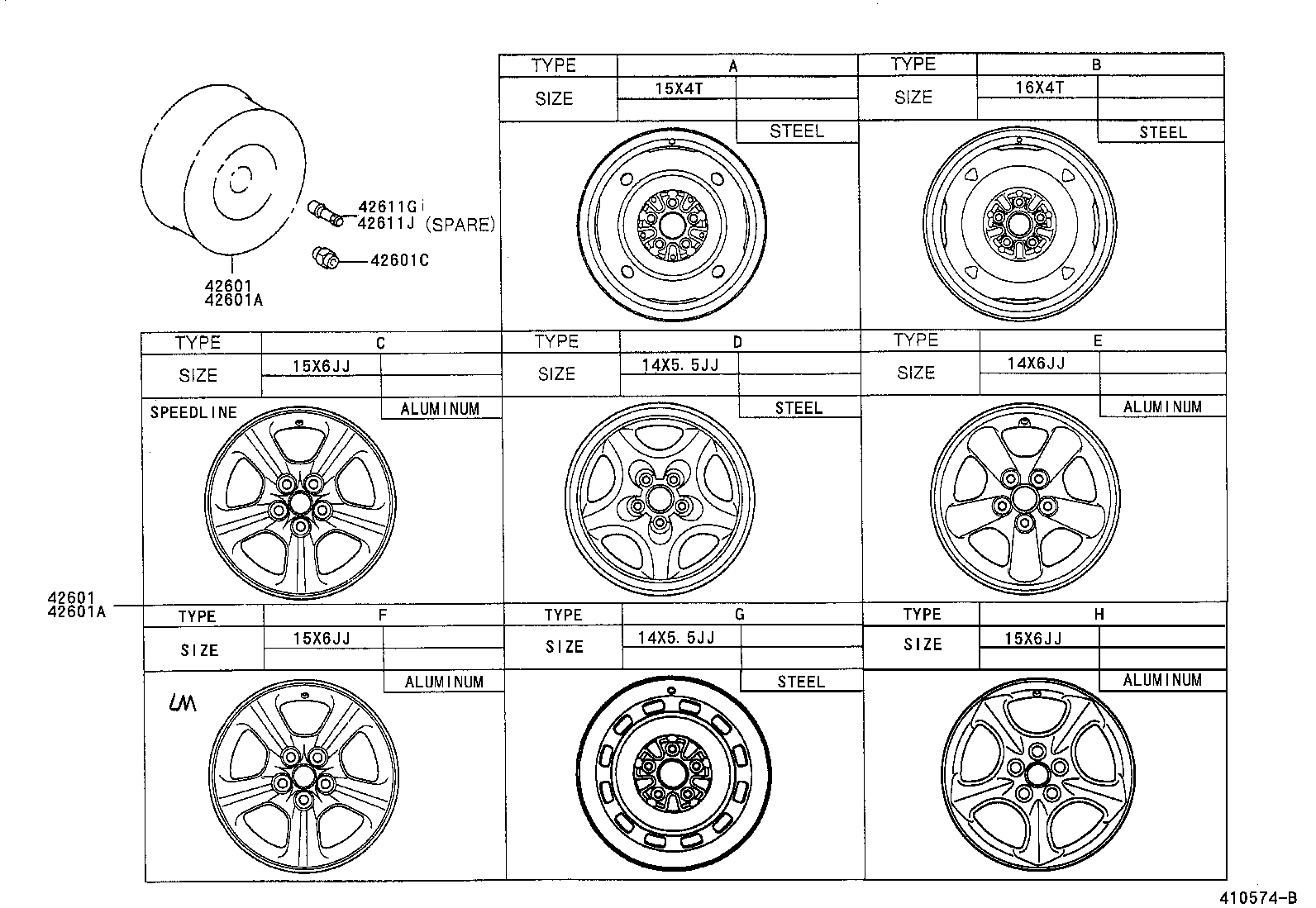

ILLUST NO. 1 OF 4(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-21110	AT211,CT216,ST21#..E,G 14X5.5J,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	4
42611-2087001	AT211,CT216,ST21#..E,G 14X5.5JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	12/1999 - 12/2999	4
42611-21120	AT211,CT216,ST21#..E,G 14X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	4
42601 - WHEEL, DISC
42611-21110	AT211,CT216,ST21#..E,G 14X5.5J,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	4
42611-2087001	AT211,CT216,ST21#..E,G 14X5.5JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	12/1999 - 12/2999	4
42611-21120	AT211,CT216,ST21#..E,G 14X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-20440	AT211,CT216,ST21#..E,G 15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	1
42611-21120	AT211,CT216,ST21#..E,G 14X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	1
42611-2087001	AT211,CT216,ST21#..E,G 14X5.5JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	12/1999 - 12/2999	1
42611-21110	AT211,CT216,ST21#..E,G 14X5.5J,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	1
42601A - WHEEL, DISC (FOR SPARE)
42611-20440	AT211,CT216,ST21#..E,G 15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	1
42611-21120	AT211,CT216,ST21#..E,G 14X6JJ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	1
42611-2087001	AT211,CT216,ST21#..E,G 14X5.5JJ,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	12/1999 - 12/2999	1
42611-21110	AT211,CT216,ST21#..E,G 14X5.5J,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	1
42601C - NUT, HUB (FOR AXLE)
90942-01021	AT211,CT216,ST21#..E,G TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	20
90942-01007	AT211,CT216,ST21#..E,G TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	12/1999 - 12/2999	20
90942-01033	ST215..E,G;AT211,CT216,ST210 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AT211,CT216,ST21#	08/1997 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AT211,CT216,ST21#	08/1997 - 12/2999	1

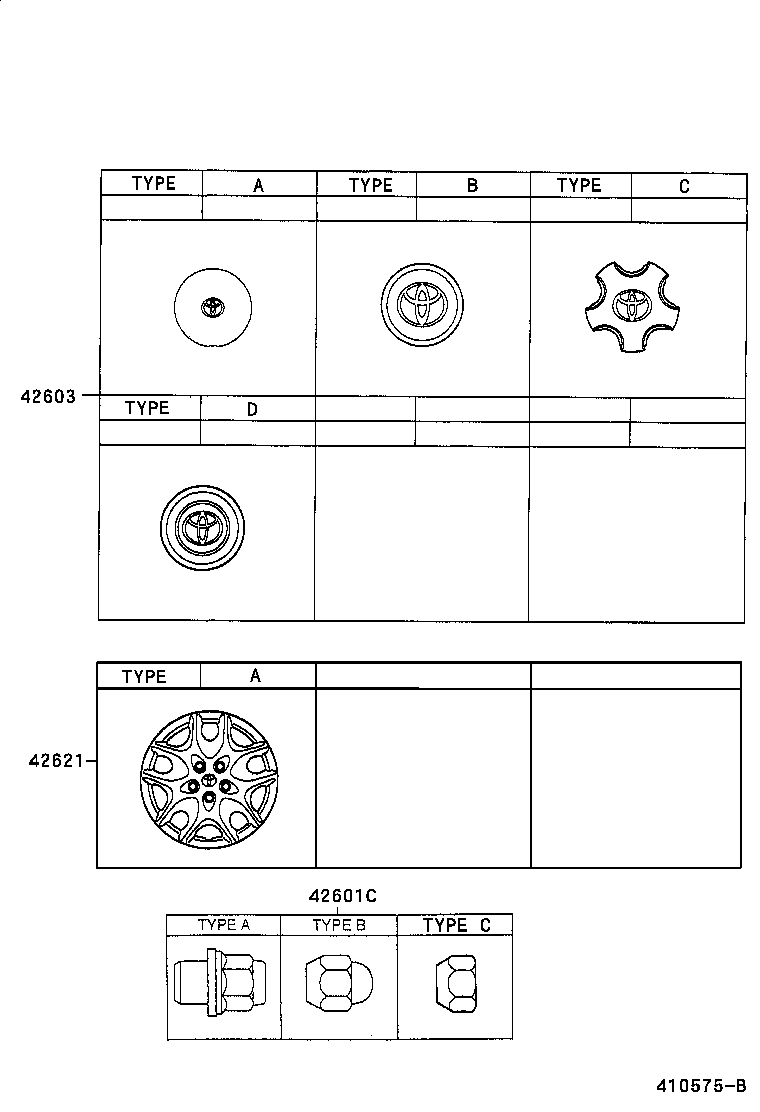

ILLUST NO. 2 OF 4(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601C - NUT, HUB (FOR AXLE)
90942-01021	AT211,CT216,ST21#..E,G TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	20
90942-01007	AT211,CT216,ST21#..E,G TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	12/1999 - 12/2999	20
90942-01033	ST215..E,G;AT211,CT216,ST210 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-21030	AT211,CT216,ST21#..E,G *STE,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/1999	4
42603-21010	AT211,CT216,ST21#..E,G *ALU,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1997 - 12/2999	4
42621 - CAP, WHEEL
42602-20460	AT211,CT216,ST21#..E,G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/1999 - 12/2999	4

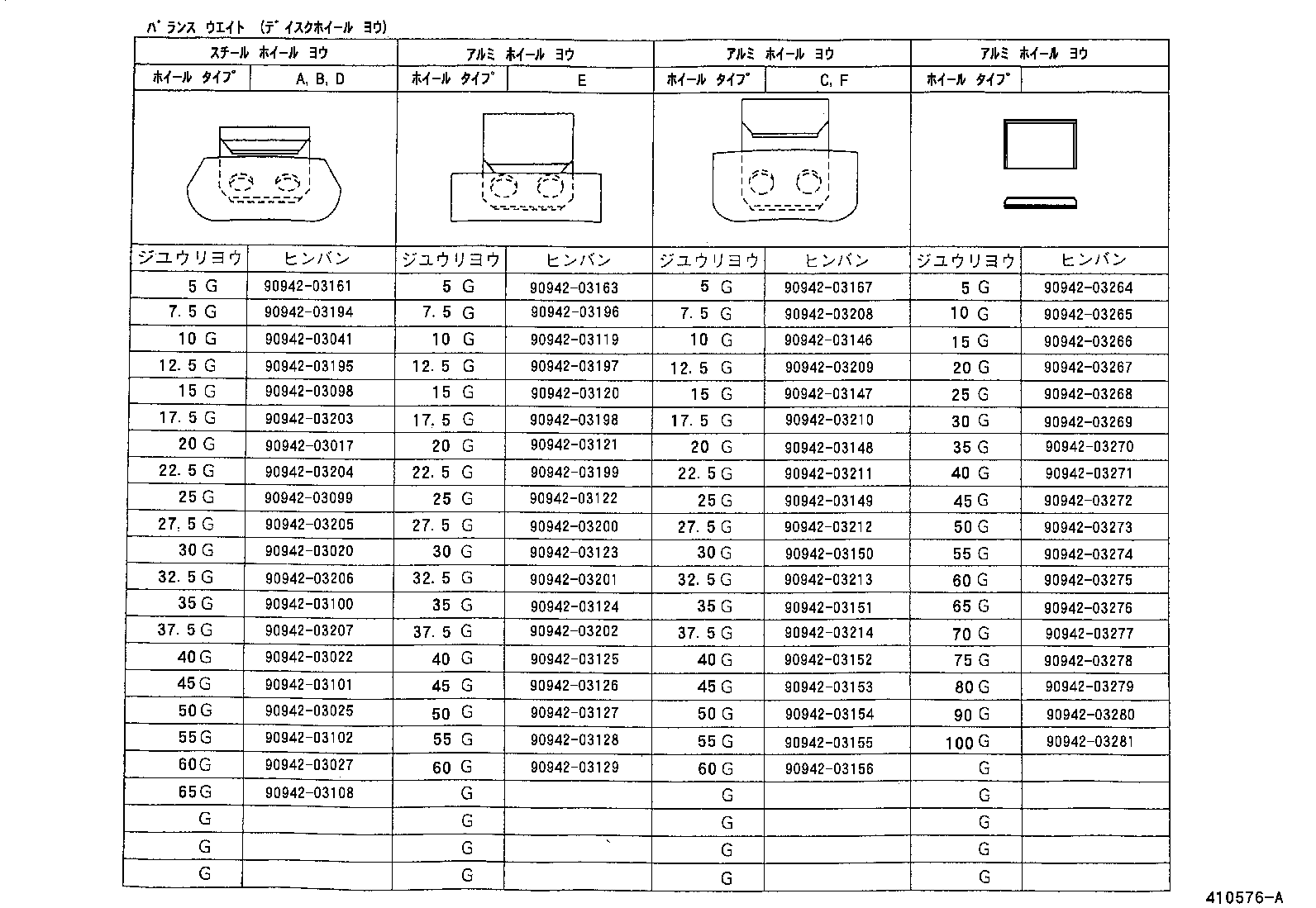

ILLUST NO. 3 OF 4(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03119
90942-03120
90942-03121
90942-03122
90942-03123
90942-03124
90942-03125
90942-03126
90942-03127
90942-03128
90942-03129
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03163
90942-03167
90942-03194
90942-03195
90942-03196
90942-03197
90942-03198
90942-03199
90942-03200
90942-03201
90942-03202
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03266
90942-03267
90942-03268
90942-03269
90942-03270
90942-03271
90942-03272
90942-03273
90942-03274
90942-03275
90942-03276
90942-03277
90942-03278
90942-03279
90942-03280
90942-03281

ILLUST NO. 4 OF 4(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ST215G-DWMGK (1997)

ILLUST NO. 1 OF 4(9708- )

ILLUST NO. 2 OF 4(9708- )

ILLUST NO. 3 OF 4(9708- )

ILLUST NO. 4 OF 4(9708- )
