ST215G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

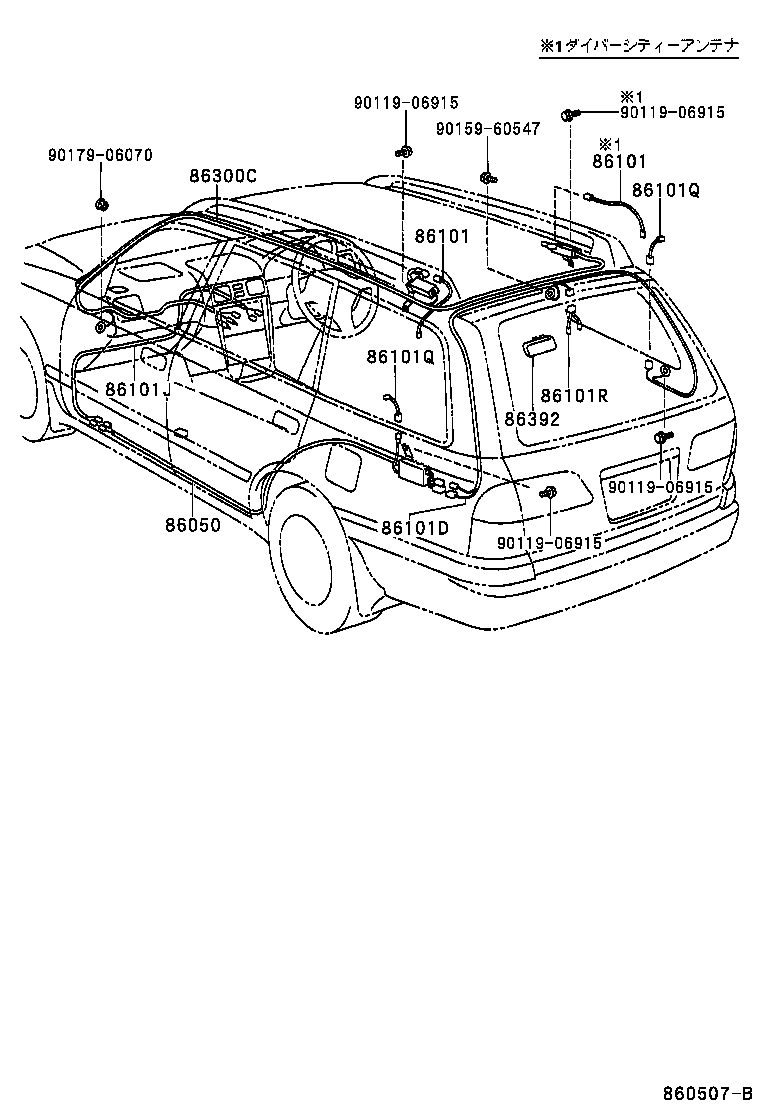

Click highlighted areas on diagram

diagram 86050 86101 86101 86101D 86101J 86101Q 86101Q 86101R 86300C 86392 9011906915 9011906915 9011906915 9011906915 9015960547 9017906070
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-21010

AT211,CT216,ST21#

 1
86050-21020

AT211,CT216,ST21#

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-21090

AT211,CT216,ST21#

 1
86101-21090

ST215..4FC..GTT;AT211,CT216,ST21#..E,G

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 2
86101-21090

AT211,CT216,ST21#..E,G

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-21090

AT211,CT216,ST21#

 1
86101-21090

ST215..4FC..GTT;AT211,CT216,ST21#..E,G

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 2
86101-21090

AT211,CT216,ST21#..E,G

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-21070

AT211,CT216,ST21#

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-21080

AT211,CT216,ST21#

 1
86101-21120

AT211,CT216,ST21#

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-21100

ST21#..G,GT,GTT

 1
86101-21100

AT211,CT216,ST21#

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 2
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-21100

ST21#..G,GT,GTT

 1
86101-21100

AT211,CT216,ST21#

ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 2
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-21110

AT211,CT216,ST21#

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-21110

AT211,CT216,ST21#

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ & ﾑｰﾝﾙｰﾌ)

 1
86300-21080

AT211,CT216,ST21#

 1
86300-21090

AT211,CT216,ST21#

ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
86300-21100

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86392 - ORNAMENT, ANTENNA
86392-21020

AT211,CT216,ST21#

 1
Common parts
90119-06915
90159-60547
90179-06070
