ST215G-DWMEK (1997)
Toyota Caldina

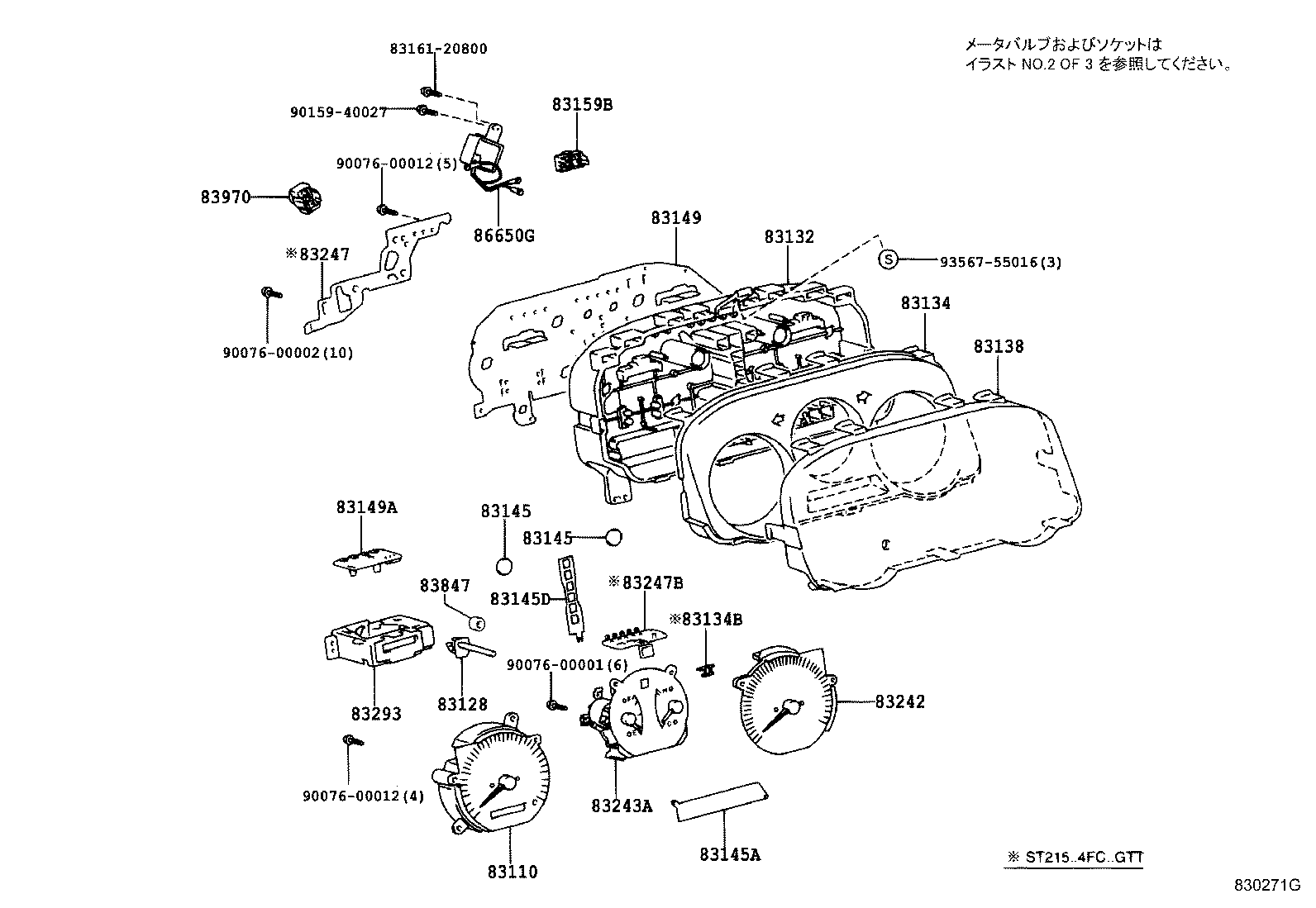

ILLUST NO. 1 OF 3(9708-9912) ; (9912- )E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-21010 |
AT211,CT216,ST21#..E YAZAKI |
1 | ||
| 83220-21010 |
AT211,CT216,ST21#..E,G YAZAKI |
1 | ||
| 83220-21030 |
ST21#..G YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-21150 |
AT211,CT216,ST21# |
1 | ||
| 83224-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-21070 |
ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT |
1 | ||
| 83841-21200 |
ST215..5F..(G,GTT) |
1 | ||
| 83841-21070 |
AT211,CT216,ST21#..E |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-21150 |
AT211,CT216,ST21# |
1 | ||
| 83821-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83821-21190 |
ST21#..G,GT;ST215..5F..GTT |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-21150 |
AT211,CT216,ST21# |
1 | ||
| 83852-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83852-21250 |
ST21#..G,GT,GTT |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
AT211,CT216,ST21#..E |
2 | ||
| 83145-89320 |
AT211,CT216,ST21# |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
AT211,CT216,ST21#..E |
2 | ||
| 83145-89320 |
AT211,CT216,ST21# |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-21070 |
ST215..5F;AT211,ST210 |
1 | ||
| 83831-21070 |
ST215..5F..E;AT211,ST210..E |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-21100 |
ST215..5F..E |
1 | ||
| 83861-21100 |
ST215..5F |
1 | ||
| 83861-21200 |
ST215..5F..(G,GTT) |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-21150 |
CT216,ST215 YAZAKI |
1 | ||
| 83862-21150 |
CT216,ST215..E YAZAKI |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
AT211,CT216,ST21# |
1 | ||
| 83159-22170 |
AT211,CT216,ST21#..E |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-21090 |
ST21#..E |
1 | ||
| 83881-21190 |
ST21#..G |
1 | ||
| 83881-21090 |
ST21#..E,G |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-21070 |
AT211,ST215..5F..E |
1 | ||
| 83882-21070 |
AT211,ST215..5F..(E,G) |
1 | ||
| 83882-21200 |
ST215..5F..G |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44010 |
AT211,ST21#..E |
1 | ||
| 83293-21040 |
ST215..G |
1 | ||
| 83293-44010 |
AT211,ST21#..E,G |
1 | ||
| 83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1 | ||||
| 83847-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83847-21150 |
AT211,CT216,ST21# |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90076-00012 | ||||
| 90159-40027 | ||||
| 93567-55016 | ||||

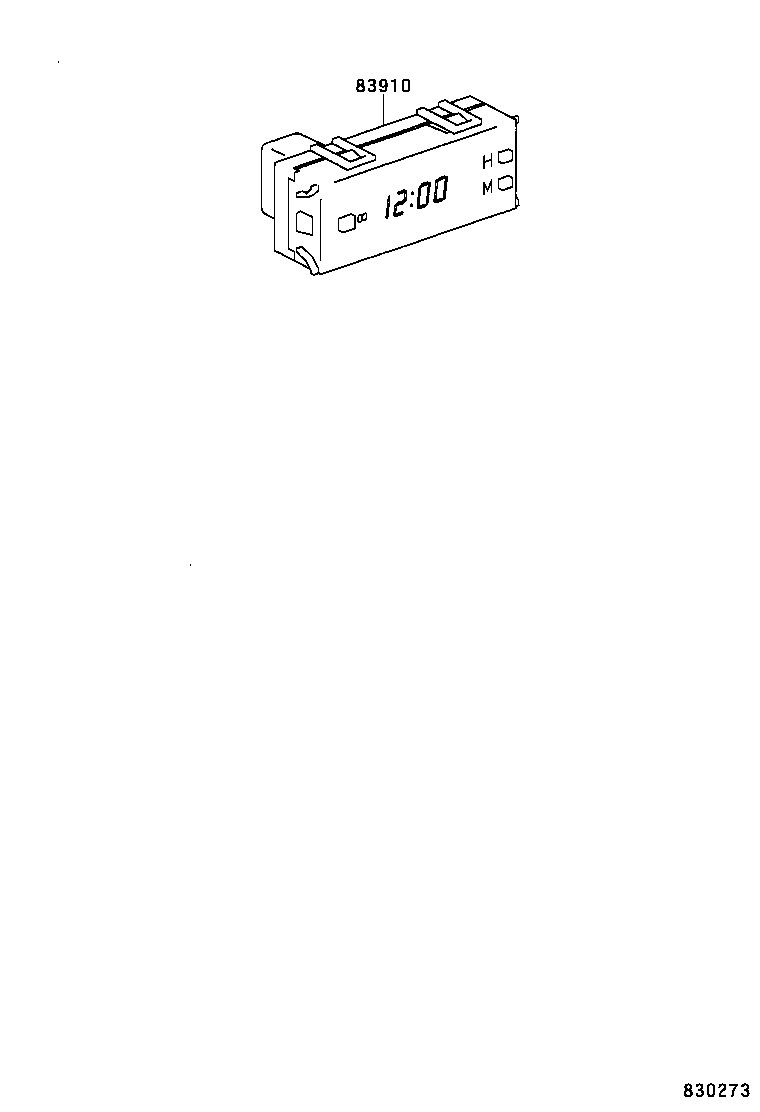

ILLUST NO. 3 OF 3(9708- )
ｸﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT211,CT216,ST21# |
1 | ||

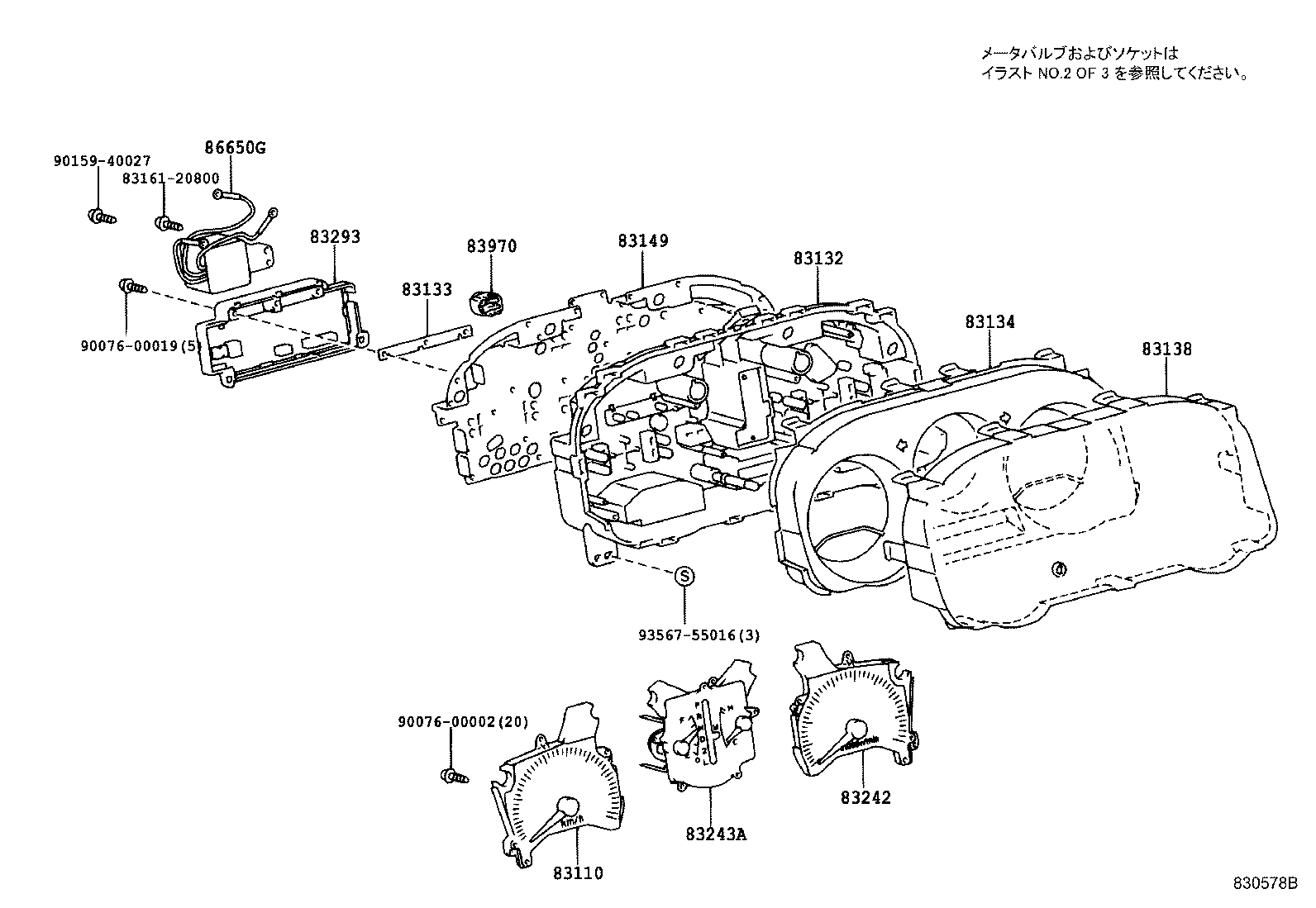

ILLUST NO. 1 OF 3(9912- )G,GT,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-21010 |
AT211,CT216,ST21#..E YAZAKI |
1 | ||
| 83220-21010 |
AT211,CT216,ST21#..E,G YAZAKI |
1 | ||
| 83220-21030 |
ST21#..G YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-21070 |
ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT |
1 | ||
| 83841-21200 |
ST215..5F..(G,GTT) |
1 | ||
| 83841-21070 |
AT211,CT216,ST21#..E |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-21250 |
ST21#..G,GT,GTT |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-21150 |
AT211,CT216,ST21# |
1 | ||
| 83821-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83821-21190 |
ST21#..G,GT;ST215..5F..GTT |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-21150 |
AT211,CT216,ST21# |
1 | ||
| 83852-21150 |
AT211,CT216,ST21#..E |
1 | ||
| 83852-21250 |
ST21#..G,GT,GTT |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-21100 |
ST215..5F..E |
1 | ||
| 83861-21100 |
ST215..5F |
1 | ||
| 83861-21200 |
ST215..5F..(G,GTT) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-21090 |
ST21#..E |
1 | ||
| 83881-21190 |
ST21#..G |
1 | ||
| 83881-21090 |
ST21#..E,G |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-21070 |
AT211,ST215..5F..E |
1 | ||
| 83882-21070 |
AT211,ST215..5F..(E,G) |
1 | ||
| 83882-21200 |
ST215..5F..G |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44010 |
AT211,ST21#..E |
1 | ||
| 83293-21040 |
ST215..G |
1 | ||
| 83293-44010 |
AT211,ST21#..E,G |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00002 | ||||
| 90076-00019 | ||||
| 90159-40027 | ||||
| 93567-55016 | ||||

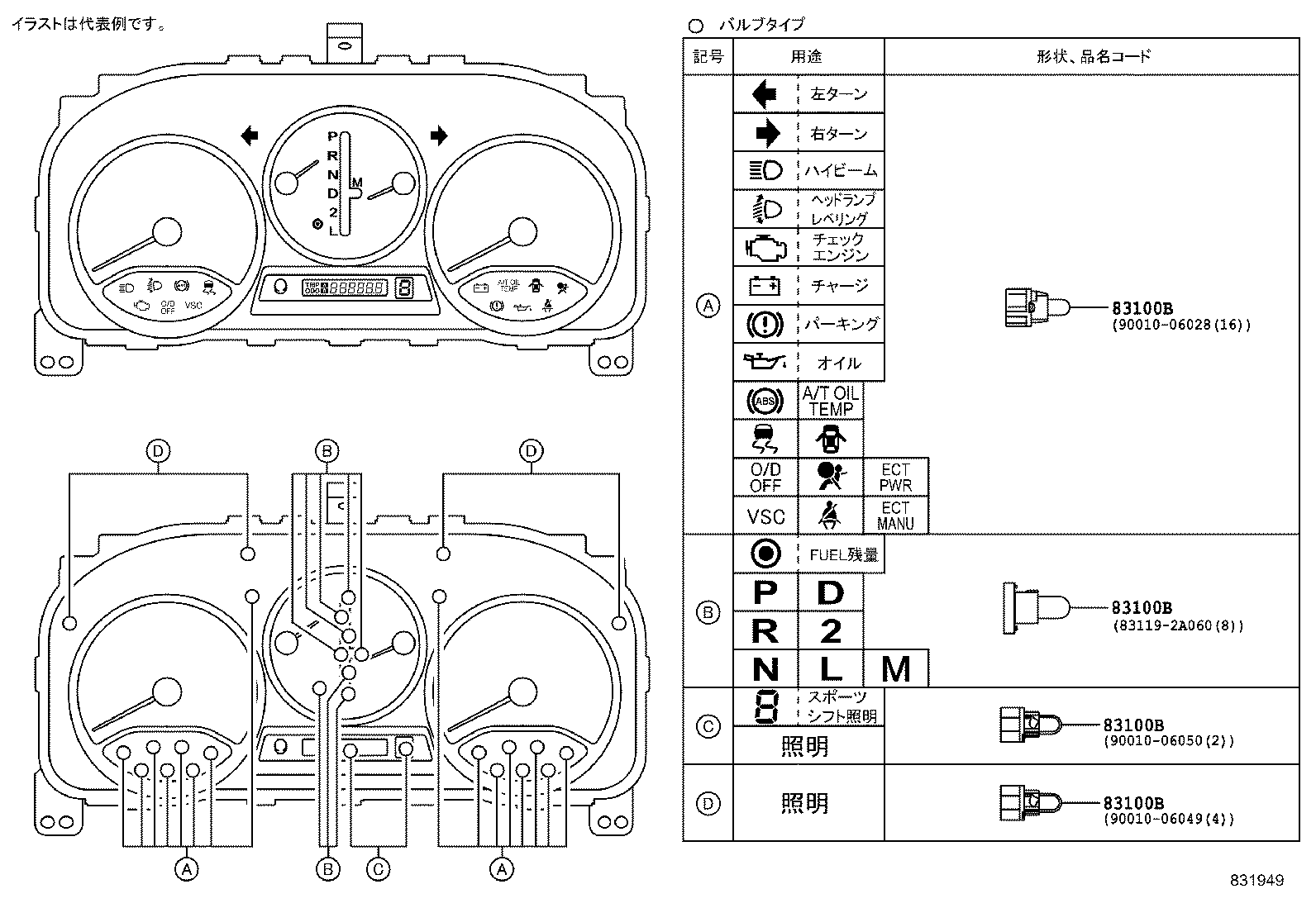

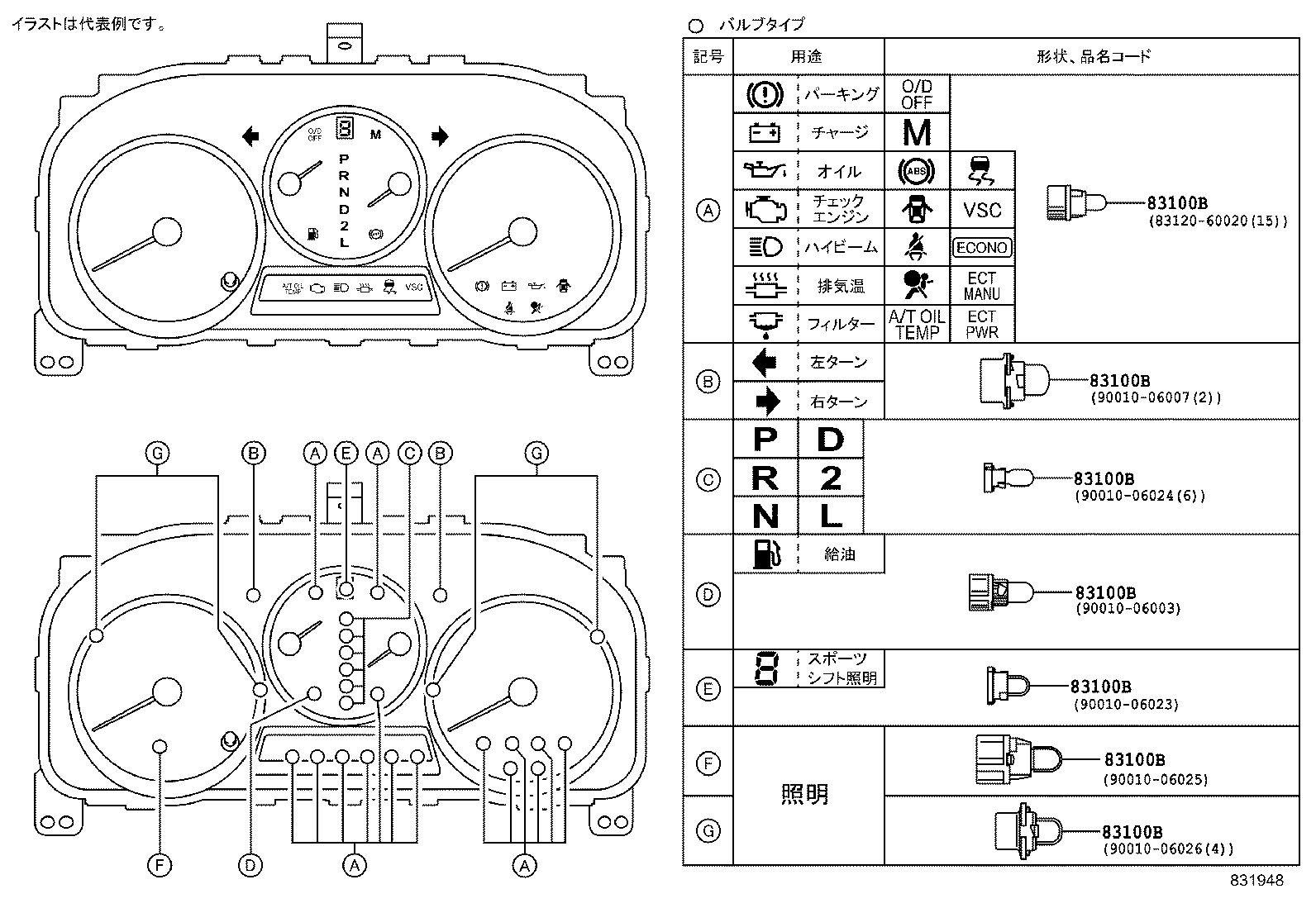

ILLUST NO. 2 OF 3(9708-9912) ; (9912- )E
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
ILLUST NO. 2 OF 3(9912- )G,GT,GTT
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-60020 |
ST215..5F 12V 1.4W,ｿｹｯﾄ付き |
10 | ||
| 83120-60020 |
AT211,ST21# 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06025 |
AT211,CT216,ST21# 12V 3.0W |
1 | ||
| 90010-06007 |
AT211,CT216,ST21# 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 83120-60020 |
ST215..5F..E 12V 1.4W,ｿｹｯﾄ付き |
9 | ||
| 90010-06003 |
AT211,CT216,ST21# 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 83119-2A060 |
ST21#..G,GT,GTT 14V 1.4W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21# 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06003 |
AT211,CT216,ST21#..E 14V 3.0W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
AT211,CT216,ST21#..E 12V 3.4W,ｿｹｯﾄ付き |
2 | ||
| 90010-06050 |
ST21#..G,GT,GTT 14V 0.84W |
1 | ||
| 90010-06026 |
AT211,CT216,ST21#..E 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-06025 |
AT211,CT216,ST21#..E 12V 3.0W |
1 | ||
| 90010-06049 |
ST21#..G,GT,GTT 13.5V 2.0W |
1 | ||
| 90010-06028 |
ST21#..G,GT,GTT 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
