ST215G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )CT216,ST215

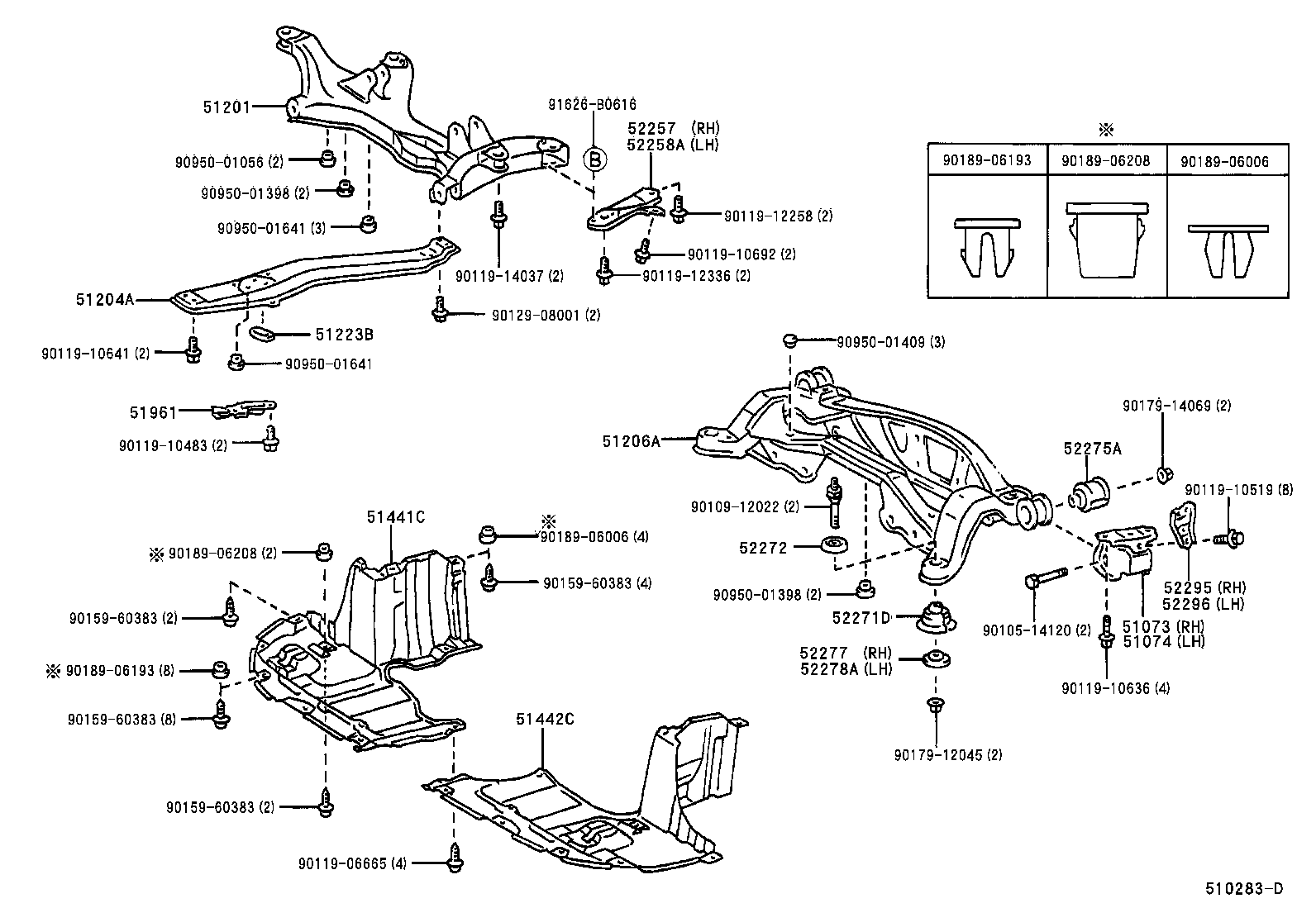

Click highlighted areas on diagram

diagram 51073 51074 51201 51204A 51206A 51223B 51441C 51442C 51961 52257 52258A 52271D 52272 52275A 52277 52278A 52295 52296 9010514120 9010912022 9011906665 9011910483 9011910519 9011910636 9011910641 9011910692 9011912258 9011912336 9011914037 9012908001 9015960383 9015960383 9015960383 9015960383 9017912045 9017914069 9018906006 9018906006 9018906193 9018906193 9018906208 9018906208 9095001056 9095001398 9095001398 9095001409 9095001641 9095001641 91626B0616
Part # Description Qty Price
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-32010

CT216,ST215

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-32010

CT216,ST215

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20290

CT216,ST215

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20121

CT216,ST215

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-21040

CT216,ST215..E,G,GT

 1
51206-21010

CT216,ST215..E,G,GT

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

AT211,CT216,ST21#

 1
51441C - COVER, ENGINE UNDER, RH
51441-21010

AT211,CT216,ST21#

 1
51442C - COVER, ENGINE UNDER, LH
51442-21010

AT211,CT216,ST21#

 1
51961 - HOOK, NO.1
51963-20130

AT211,CT216,ST21#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-21020

CT216,ST215

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-21020

CT216,ST215

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-32010

CT216,ST215..E,G

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-32010

CT216,ST215..E,G

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-32011

CT216,ST215..E,G

 2
52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52277-32010

CT216,ST215

 1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52277-32010

CT216,ST215

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-21010

CT216,ST215

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-21010

CT216,ST215

 1
Common parts
90105-14120
90109-12022
90119-06665
90119-10483
90119-10519
90119-10636
90119-10641
90119-10692
90119-12258
90119-12336
90119-14037
90129-08001
90159-60383
90179-12045
90179-14069
90189-06006
90189-06193
90189-06208
90950-01056
90950-01398
90950-01409
90950-01641
91626-B0616
