ST210G-DWPGK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

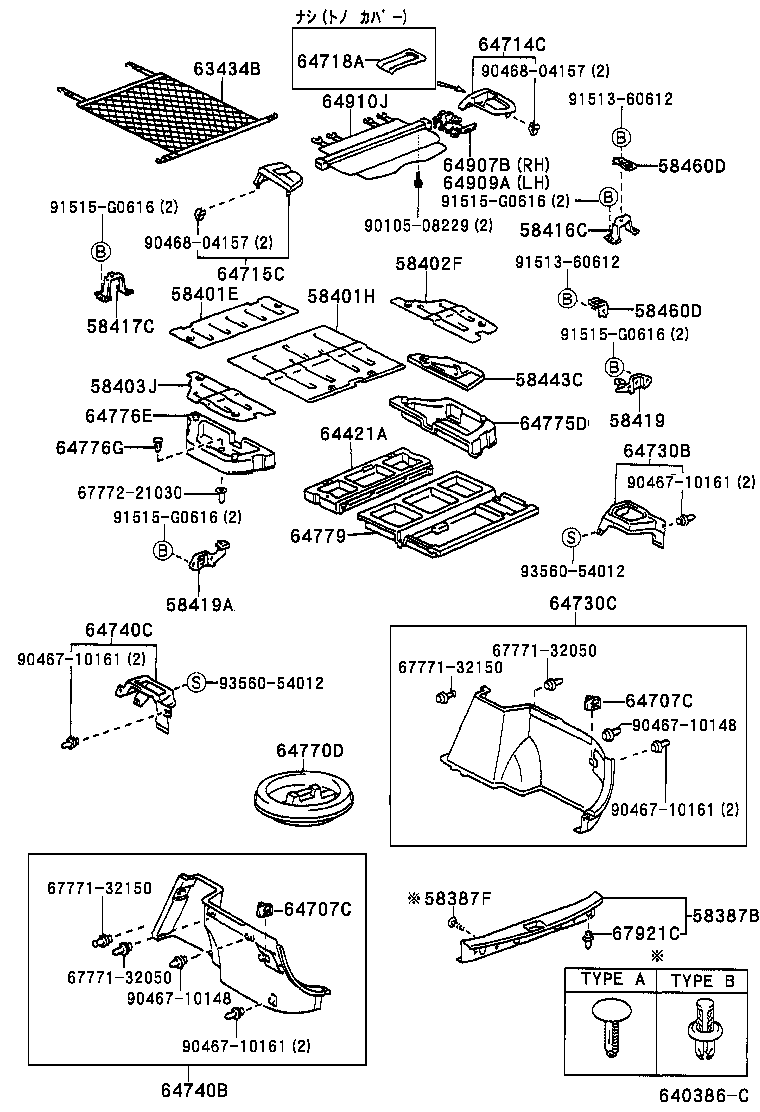

Click highlighted areas on diagram

diagram 58387B 58387F 58401E 58401H 58402F 58403J 58416C 58417C 58419 58419A 58443C 58460D 58460D 63434B 64421A 64707C 64707C 64714C 64715C 64718A 64730B 64730C 64740B 64740C 64770D 64775D 64776E 64776G 64779 64907B 64909A 64910J 6777132050 6777132050 6777132150 6777132150 6777221030 67921C 9010508229 9046710148 9046710148 9046710161 9046710161 9046710161 9046710161 9046804157 9046804157 9151360612 9151360612 91515G0616 91515G0616 91515G0616 91515G0616 9356054012 9356054012
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-21020B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
58387-21020C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
90467-07090C4

AT211,CT216,ST21#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM2#

 4
90467-07090B0

AT211,CT216,ST21#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 4
90467-07178C0

AT211,CT216,ST21#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,TRIM2#

 2
90467-07178B0

AT211,CT216,ST21#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 2
58401E - BOARD SUB-ASSY, DECK
58410-21010

AT211,CT216,ST21#

 1
58401H - BOARD SUB-ASSY, REAR FLOOR, NO.1
58401-21030

AT211,CT216,ST21#

 1
58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2
58402-21011

AT211,CT216,ST21#

 1
58402-21010

AT211,CT216,ST21#

 1
58403J - BOARD SUB-ASSY, REAR FLOOR, NO.3
58403-21011

AT211,CT216,ST21#

 1
58403-21010

AT211,CT216,ST21#

 1
58416C - BRACKET, DECK BOARD, NO.1 RH
58416-21020

AT211,CT216,ST21#

 1
58417C - BRACKET, DECK BOARD, NO.1 LH
58417-21010

AT211,CT216,ST21#

 1
58419 - BRACKET, DECK BOARD, NO.2
58418-21010

AT211,CT216,ST21#

 1
58419A - BRACKET, DECK BOARD, NO.3
58419-21010

AT211,CT216,ST21#

 1
58443C - CUSHION, DECK COMPARTMENT BOX
58443-21010

AT211,CT216,ST21#

 1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-21010

AT211,CT216,ST21#

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-21010

AT211,CT216,ST21#

 4
63434B - NET, ROOM RACK
63434-21010

ST21#..G,GT,GTT

 1
64421A - TRAY, LUGGAGE COMPARTMENT
64421-21010

AT211,CT216,ST21#

 1
64421-21020

AT211,CT216,ST21#

 1
64707C - KNOB, JACK COVER
64769-20010C0

AT211,CT216,ST21#

BLACK,TRIM2#

 2
64769-20010B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 2
64707C - KNOB, JACK COVER
64769-20010C0

AT211,CT216,ST21#

BLACK,TRIM2#

 2
64769-20010B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 2
64714C - COVER, DECK SIDE TRIM, RH
64714-21030B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64714-21030C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-21030C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64715-21030B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-21010C0

AT211;ST21#..4FC..G

BLACK,TRIM2#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-21020C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64730-21020B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64730C - BOARD, DECK TRIM SIDE, RH
64731-21070B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64731-21070C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64732-21090C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64732-21080B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-21040B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64740-21040C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64770D - COVER ASSY, SPARE WHEEL
64771-21030

AT211,CT216,ST21#

 1
64775D - GUARD, SPARE WHEEL
64775-21010

AT211,CT216,ST21#

 1
64776E - GUARD, SPARE WHEEL, NO.2
64776-21010

AT211,CT216,ST21#

 1
64776G - CLIP(FOR SPARE WHEEL GUARD)
90467-08150

AT211,CT216,ST21#

 1
64779 - TRAY, SPARE WHEEL COVER
64779-21010

AT211,CT216,ST21#

 1
64907B - STOPPER SUB-ASSY, TONNEAU COVER, RH
64907-21010C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64907-21010

AT211,CT216,ST21#

 1
64909A - STOPPER SUB-ASSY, TONNEAU COVER, LH
64909-21010C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64909-21010

AT211,CT216,ST21#

 1
64910J - COVER ASSY, TONNEAU
64910-21020B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
64910-21021C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
64910-21021B0

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
67921C - RETAINER, DECK TRIM SIDE BOARD
67921-32010

AT211,CT216,ST21#

 4
Common parts
67771-32050
67771-32150
67772-21030
90105-08229
90467-10148
90467-10161
90468-04157
91513-60612
91515-G0616
93560-54012
