ST210G-DWPEK (1997)
Toyota Caldina

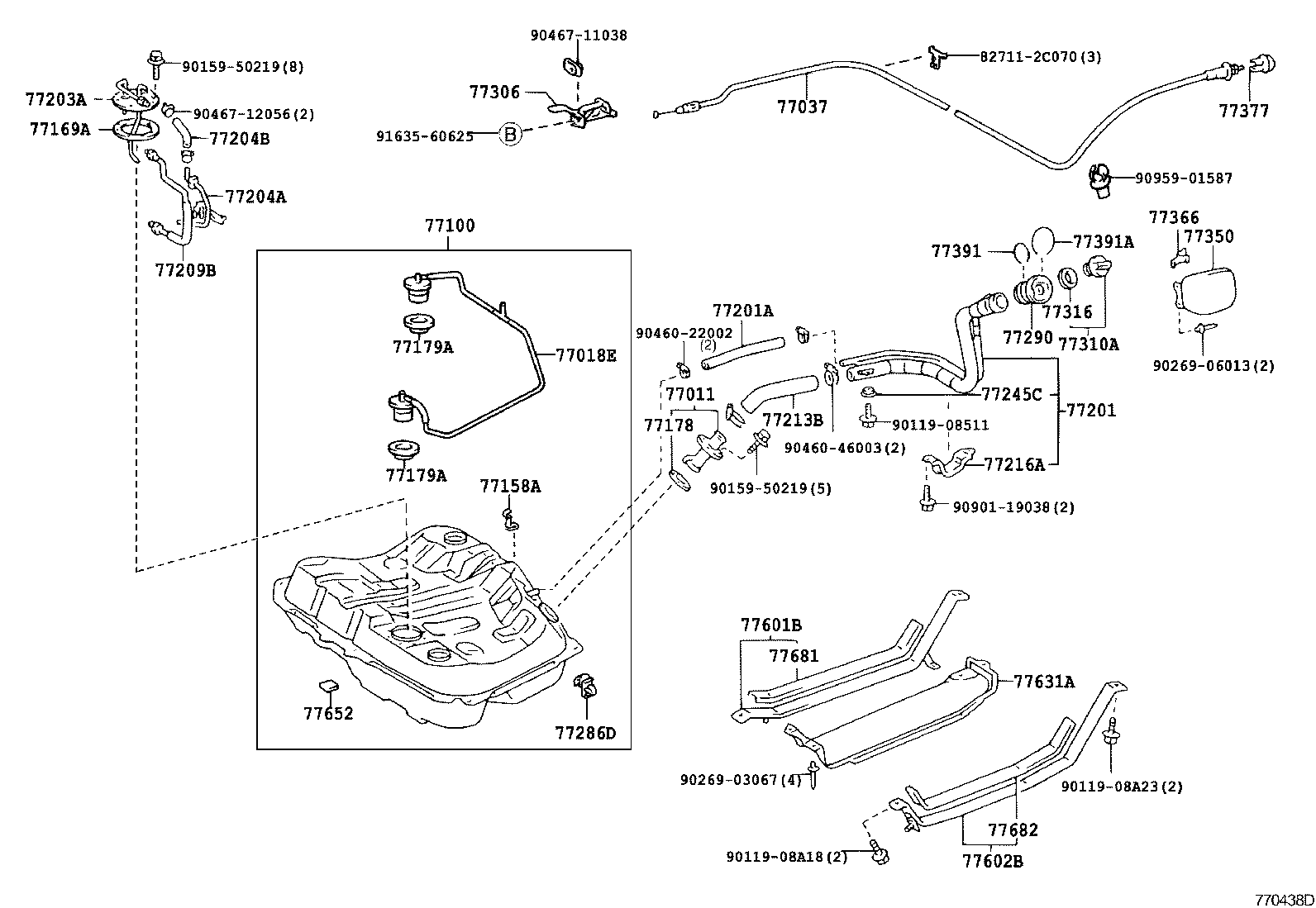

ILLUST NO. 1 OF 2(9708- )AT211,ST210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20100 |
AT211,CT216,ST21# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-20140 |
AT211,ST210 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-21010 |
AT211,CT216,ST21# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20740 |
AT211,ST210 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20020 |
AT211,ST210 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-20050 |
AT211,ST210 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT211,CT216,ST21# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
AT211,CT216,ST21# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
AT211,CT216,ST21# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-21080 |
AT211,ST210 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22036 |
AT211,ST210 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-20150 |
AT211,ST210 |
1 | ||
| 77203-21100 |
AT211,ST210 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-20090 |
AT211,ST210 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-06020 |
AT211,ST210 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-20110 |
AT211,ST210 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20150 |
AT211,ST210 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20180 |
AT211,ST210 |
1 | ||
| 77245C - SUPPORT, FUEL TANK | ||||
| 77245-20120 |
AT211,CT216,ST21# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20100 |
AT211,ST210 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-21030 |
AT211,CT216,ST21# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-21010 |
AT211,CT216,ST21# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
AT211,ST21# |
1 | ||
| 77310-16011 |
AT211,ST21# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT211,CT216,ST21# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-21050 |
AT211,CT216,ST21# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12080 |
AT211,CT216,ST21# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AT211,CT216,ST21# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AT211,CT216,ST21# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
AT211,CT216,ST21# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20220 |
AT211,ST210 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20140 |
AT211,ST210 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20090 |
AT211,ST210 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AT211,ST210 |
6 | ||
| 77651-20090 |
AT211,ST210 |
8 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AT211,CT216,ST21# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 82711-2C070 | ||||
| 90119-08511 | ||||
| 90119-08A18 | ||||
| 90119-08A23 | ||||
| 90159-50219 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-11038 | ||||
| 90467-12056 | ||||
| 90901-19038 | ||||
| 90959-01587 | ||||
| 91635-60625 | ||||

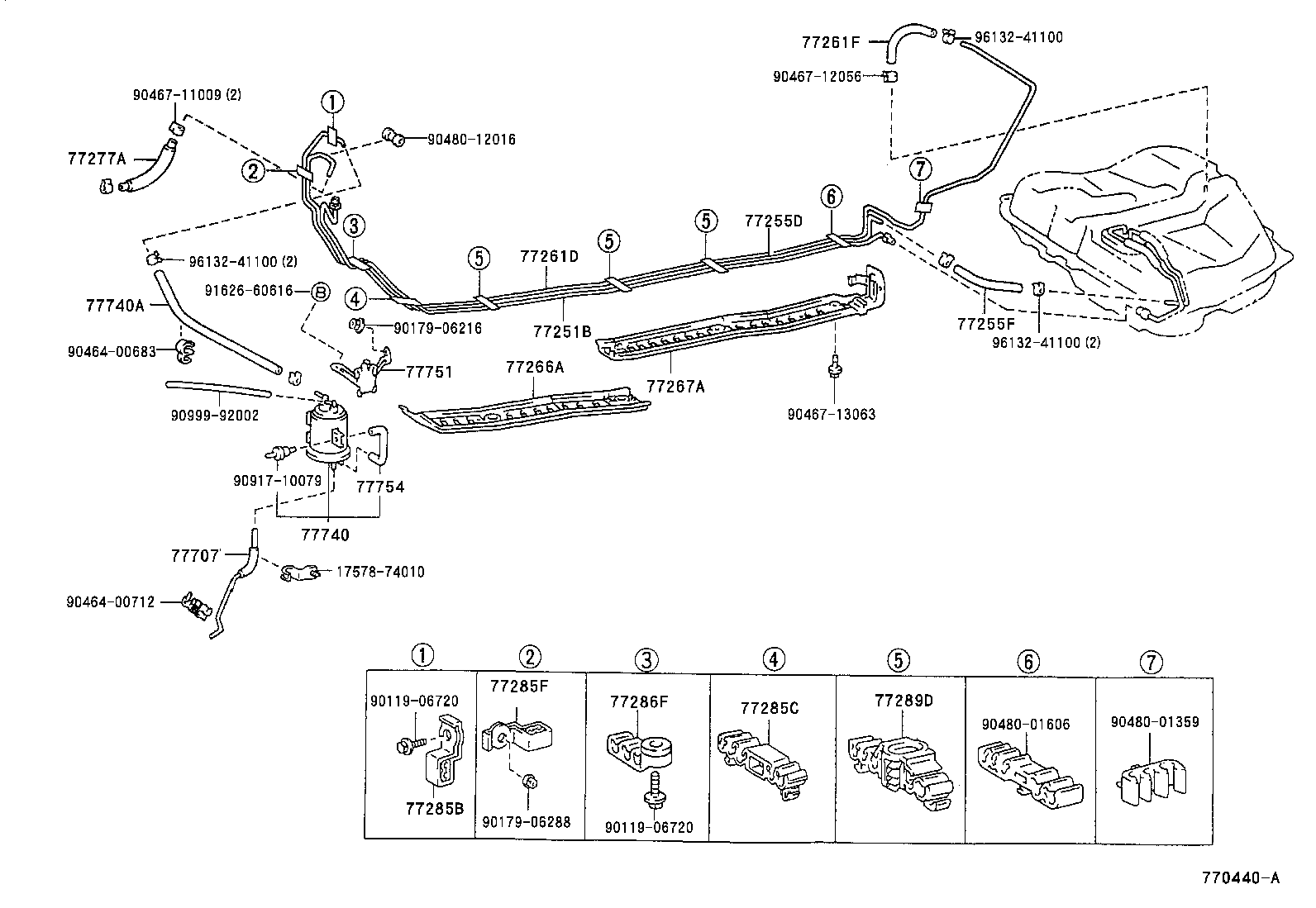

ILLUST NO. 2 OF 2(9708- )AT211,ST210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20751 |
AT211,ST21# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20620 |
AT211,ST21#..E,G,GT |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AT211,ST210 *H,L=160 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20371 |
AT211,ST210 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20180 |
AT211,ST210 長さ=180 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT211,CT216,ST21# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT211,CT216,ST21# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12153 |
ST21#..E,G 長さ=280 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20150 |
AT211,ST21# |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-12020 |
AT211,ST21# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20170 |
AT211,ST21# |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-21030 |
AT211,ST21# |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-20040 |
AT211,CT216,ST21# |
3 | ||
| 77298-12030 |
AT211,CT216,ST21# |
3 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-20050 |
AT211,ST21# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20420 |
AT211,ST21# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06040 |
AT211,ST21# *H,L=360 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20310 |
AT211,ST21# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20370 |
AT211,ST21# |
1 | ||
| Common parts | ||||
| 17578-74010 | ||||
| 90119-06720 | ||||
| 90179-06216 | ||||
| 90179-06288 | ||||
| 90464-00683 | ||||
| 90464-00712 | ||||
| 90467-11009 | ||||
| 90467-12056 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 90480-12016 | ||||
| 90917-10079 | ||||
| 90999-92002 | ||||
| 91626-60616 | ||||
| 96132-41100 | ||||
