ST210G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

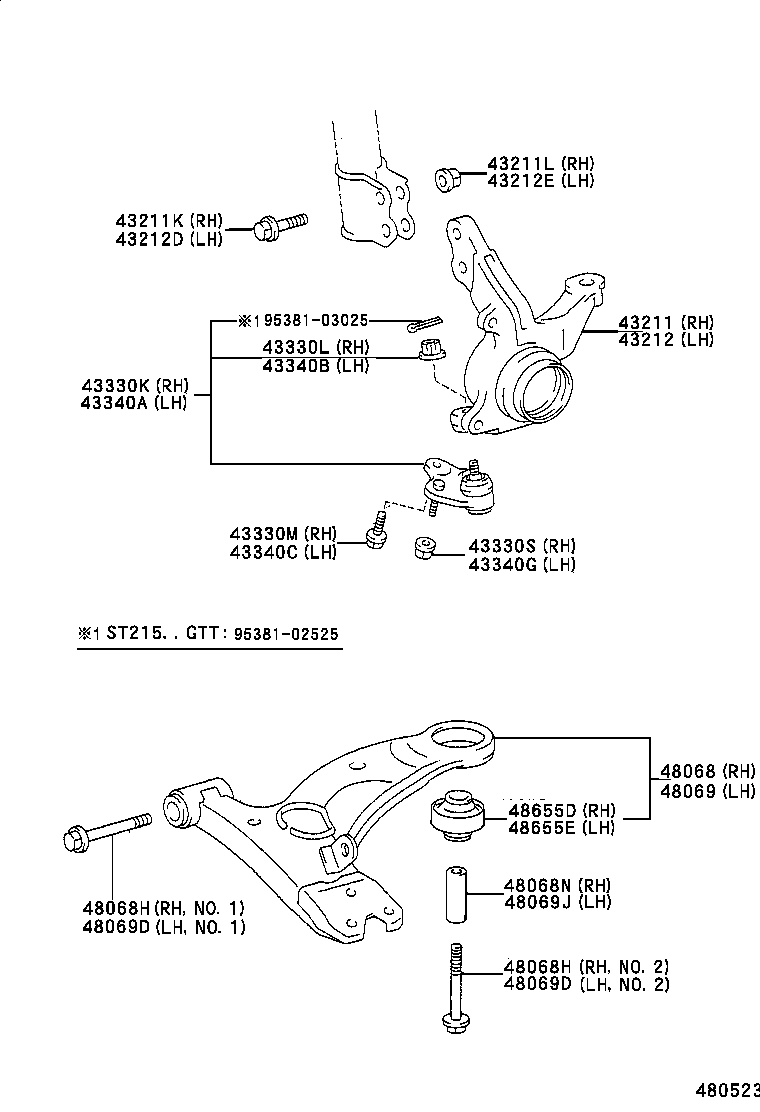

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48068N 48069 48069D 48069D 48069J 48655D 48655E 9538102525 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20300

AT211,ST210

 1
43211-20301

AT211,ST210

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15001

AT211,CT216,ST21#

外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90109-15002

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15003

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15001

AT211,CT216,ST21#

外径=15,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15004

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15005

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15006

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15004

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15006

AT211,CT216,ST21#

 2
90179-15001

AT211,CT216,ST21#..E,G,GT

 2
90179-15004

AT211,CT216,ST21#

 1
43212 - KNUCKLE, STEERING, LH
43212-20300

AT211,ST210

 1
43212-20301

AT211,ST210

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90109-15002

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15003

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15001

AT211,CT216,ST21#

外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90109-15004

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15004

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15006

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15005

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15001

AT211,CT216,ST21#

外径=15,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT211,CT216,ST21#..E,G,GT

 2
90179-15006

AT211,CT216,ST21#

 2
90179-15004

AT211,CT216,ST21#

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29375

AT211,CT216,ST21#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT211,CT216,ST21#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT211,CT216,ST21#

 1
90105-12156

AT211,CT216,ST21#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT211,CT216,ST21#

 2
90179-12070

AT211,CT216,ST21#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29375

AT211,CT216,ST21#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT211,CT216,ST21#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12156

AT211,CT216,ST21#

 1
90105-12122

AT211,CT216,ST21#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12070

AT211,CT216,ST21#

 2
90179-12052

AT211,CT216,ST21#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20221

AT211,ST210

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT211,CT216,ST21#

NO.2

 1
90119-14023

AT211,CT216,ST21#

NO.1

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT211,CT216,ST21#

NO.2

 1
90119-14023

AT211,CT216,ST21#

NO.1

 1
48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90389-19002

AT211,ST210

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20221

AT211,ST210

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT211,CT216,ST21#

NO.1

 1
90119-14046

AT211,CT216,ST21#

NO.2

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT211,CT216,ST21#

NO.1

 1
90119-14046

AT211,CT216,ST21#

NO.2

 1
48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90389-19002

AT211,ST210

 1
48655D - BUSH, FRONT LOWER ARM, NO.2 RH
48655-20221

AT211,ST210

 1
48655E - BUSH, FRONT LOWER ARM, NO.2 LH
48655-20221

AT211,ST210

 1
Common parts
95381-02525
95381-03025

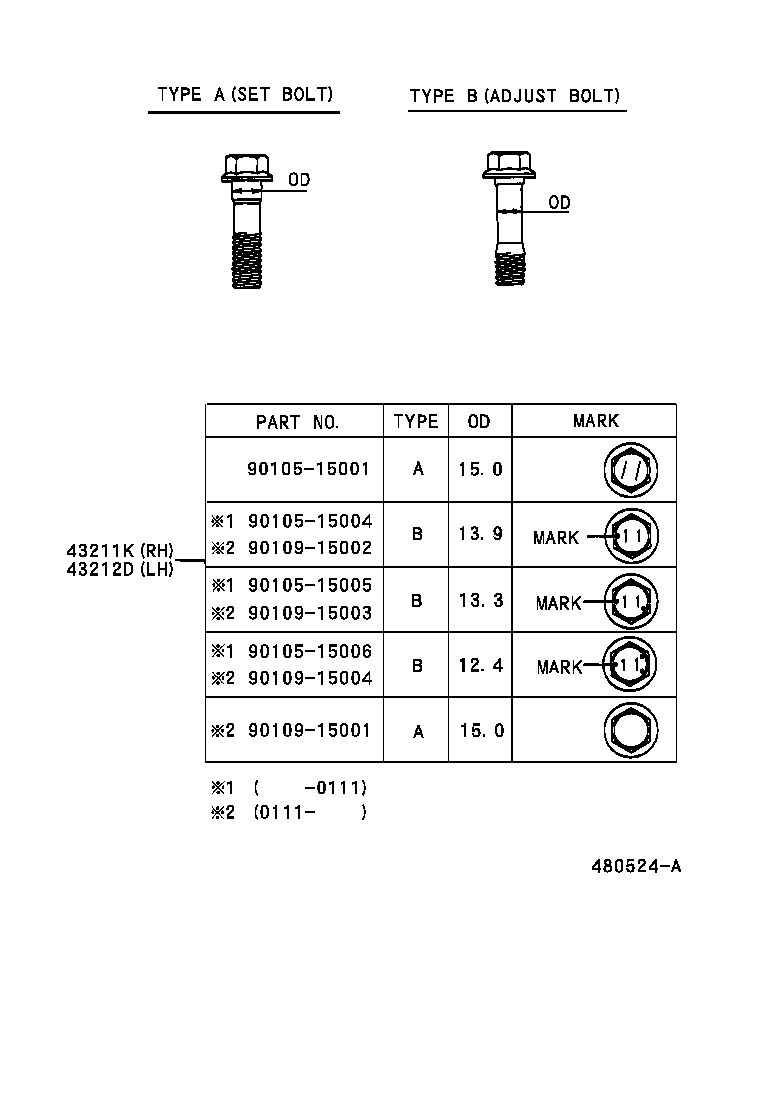

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15001

AT211,CT216,ST21#

外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90109-15002

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15003

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15001

AT211,CT216,ST21#

外径=15,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15004

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15005

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15006

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15004

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90109-15002

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15003

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15001

AT211,CT216,ST21#

外径=15.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90109-15004

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15004

AT211,CT216,ST21#

外径=13.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15006

AT211,CT216,ST21#

外径=12.4,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-15005

AT211,CT216,ST21#

外径=13.3,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90109-15001

AT211,CT216,ST21#

外径=15,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
