ST198V-DXPMK (1999)

Toyota Caldina

Production Aug 1999 - Jun 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ST198

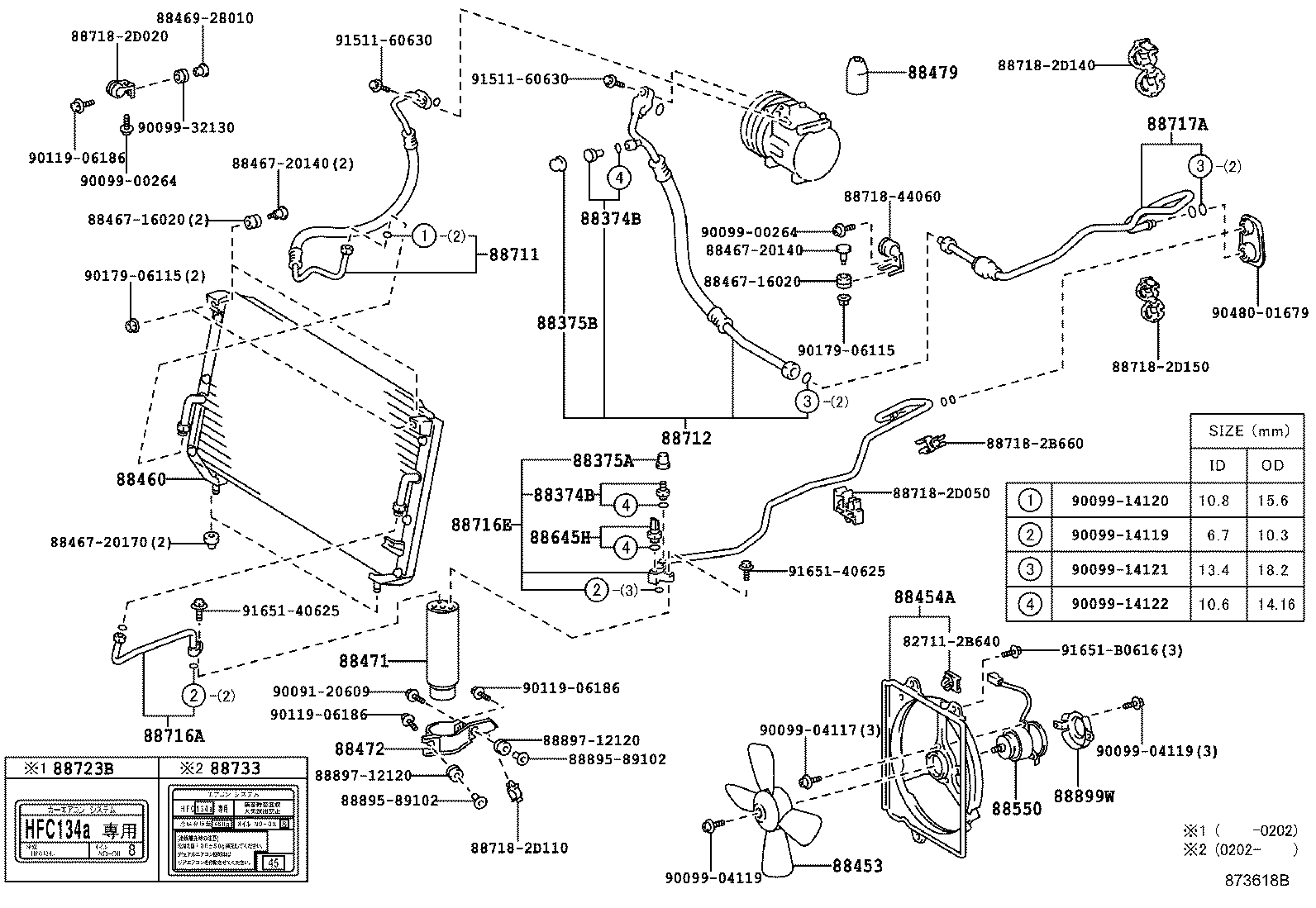

Click highlighted areas on diagram

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

diagram 827112B640 88374B 88374B 88375A 88375B 88453 88454A 88460 8846716020 8846716020 8846720140 8846720140 8846720170 8846928010 88471 88472 88479 88550 88645H 88711 88712 88716A 88716E 88717A 887182B660 887182D020 887182D050 887182D110 887182D140 887182D150 8871844060 88723B 88733 8889589102 8889589102 8889712120 8889712120 88899W 9009120609 9009900264 9009900264 9009904117 9009904119 9009904119 9009914119 9009914120 9009914121 9009914122 9009932130 9011906186 9011906186 9011906186 9017906115 9017906115 9048001679 9151160630 9151160630 9165140625 9165140625 91651B0616
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

CT196,198,ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20090

CT196,198;CT190..4FC

 1
88454A - SHROUD, FAN
88454-20121

CT196,198;CT190..4FC

 1
88454-20020

ET196,ST19#

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

ET196,ST19#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT191,CT19#,ET196,ST19#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20140

CT19#,ST19#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

CT196,198,ET196

250G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

ET196,ST19#

 1
16363-64070

CT196,198;CT190..4FC

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CT196..4FC;CT196..5F..UX;CT190,ET196,ST19#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B220

ST19#

 1
88712-2D230

ST198..UX

 1
88712-21180

ST198..U,UL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

CT19#,ET196,ST19#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170

CT19#,ET196,ST19#

 1
88716-2D630

ST198..U,UL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230

ET196,ST19#

 1
88717-2B290

CT196,198

 1
88717-2B650

ST198..U,UL

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

ET196..3FC..UX;CT19#,ET196,ST19#..4FC,5F

 1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-21030

CT19#,ET196,ST198

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

ET196,ST19#..CZ,FZ,TZ,U,UL,UX

 1
Common parts
82711-2B640
88467-16020
88467-20140
88467-20170
88469-28010
88718-2B660
88718-2D020
88718-2D050
88718-2D110
88718-2D140
88718-2D150
88718-44060
88895-89102
88897-12120
90091-20609
90099-00264
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06186
90179-06115
90480-01679
91511-60630
91651-40625
91651-B0616
