ST198V-DXPMK (1999)
Toyota Caldina

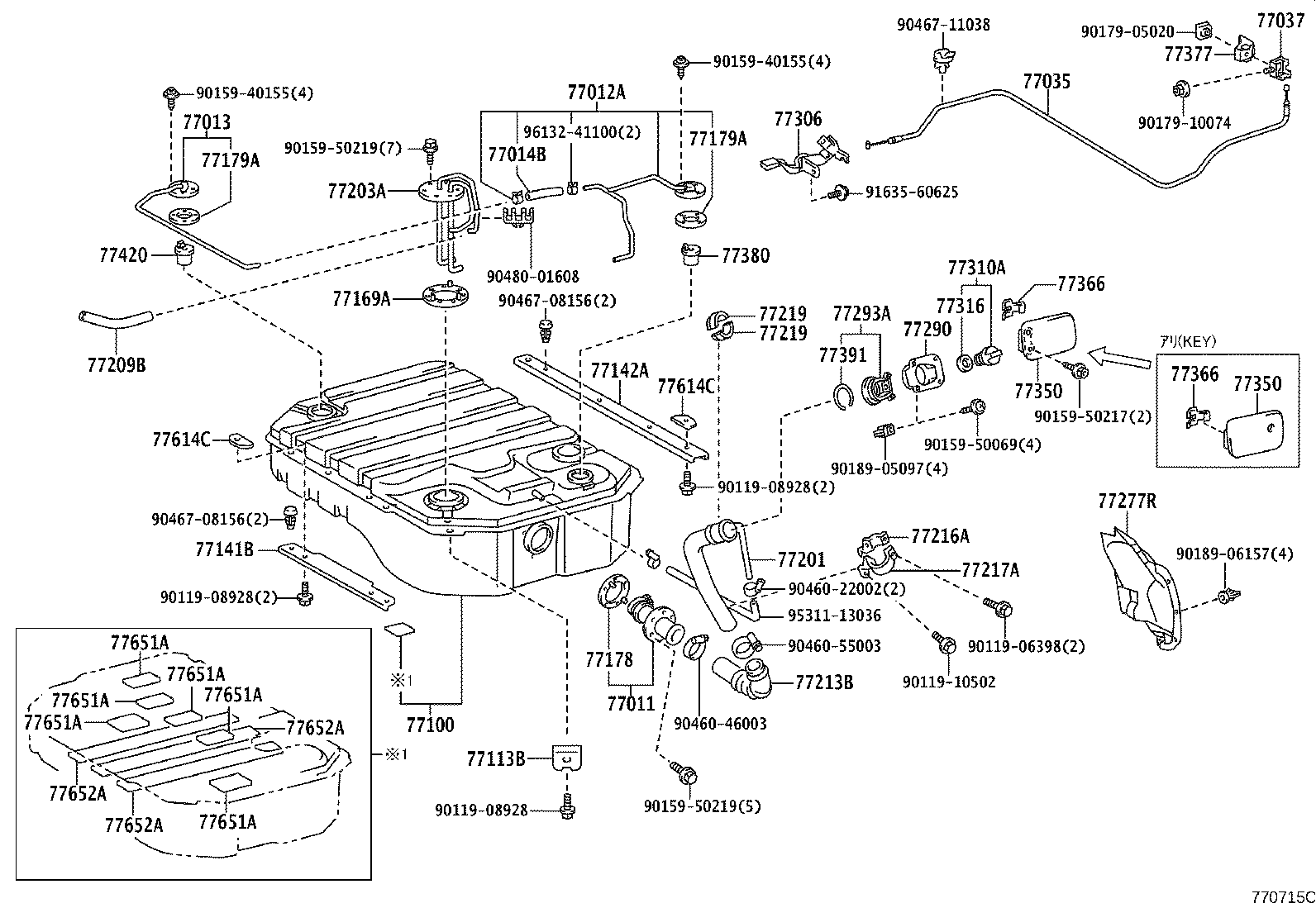

ILLUST NO. 1 OF 2(9908- )ST198
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
CT190,ST19# |
1 | ||
| 77011-12130 |
CT198,199,ST198 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-13030 |
CT198,199,ST198 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-13030 |
CT198,199,ST198 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-21020 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20070 |
AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-21070 |
CT199,ST198 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-13010 |
CT198,199,ST198 |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-13010 |
CT198,199,ST198 |
1 | ||
| 77142A - REINFORCEMENT, FUEL TANK FLANGE, NO.2 | ||||
| 77142-13010 |
CT198,199,ST198 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12020 |
ST198 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-21070 |
CT198,199,ST198 |
1 | ||
| 77201-20390 |
AT191,CT190,ST19# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-13110 |
ST198 |
1 | ||
| 77203-13120 |
ST198 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-13030 |
ST198 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-13080 |
CT198,199,ST198 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-13050 |
CT198,199,ST198 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-13030 |
CT198,199,ST198 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CT19#,ET196,ST19# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CT19#,ET196,ST19# |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-21010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77277-20210 |
CT190,ST19# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20140 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77290-21010 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-21040 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 77293-20090 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-14010 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AT191,ET196,ST19# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-21010 |
CT196,197,198,199,ET196,ST198..U ｱﾘ(KEY) |
1 | ||
| 77350-20210 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-21010 |
CT196,197,198,199,ET196,ST198..U ｱﾘ(KEY) |
1 | ||
| 77350-20210 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12030 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77360-20030 |
CT196,198,ET196..U |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12030 |
CT19#,ET196,ST19#..CZ,FZ,TZ,UL,UX |
1 | ||
| 77360-20030 |
CT196,198,ET196..U |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CT196,197,198,199,ET196,ST195,198 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-20020 |
CT19#,ET196,ST19# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77614C - SEAL, FUEL TANK COVER | ||||
| 77614-13020 |
CT198,199,ST198 |
6 | ||
| 77614C - SEAL, FUEL TANK COVER | ||||
| 77614-13020 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13040 |
CT198,199,ST198 |
6 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-13010 |
CT198,199,ST198 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-13010 |
CT198,199,ST198 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-13010 |
CT198,199,ST198 |
3 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-08928 | ||||
| 90119-10502 | ||||
| 90159-40155 | ||||
| 90159-50069 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-05097 | ||||
| 90189-06157 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-55003 | ||||
| 90467-08156 | ||||
| 90467-11038 | ||||
| 90480-01608 | ||||
| 91635-60625 | ||||
| 95311-13036 | ||||
| 96132-41100 | ||||

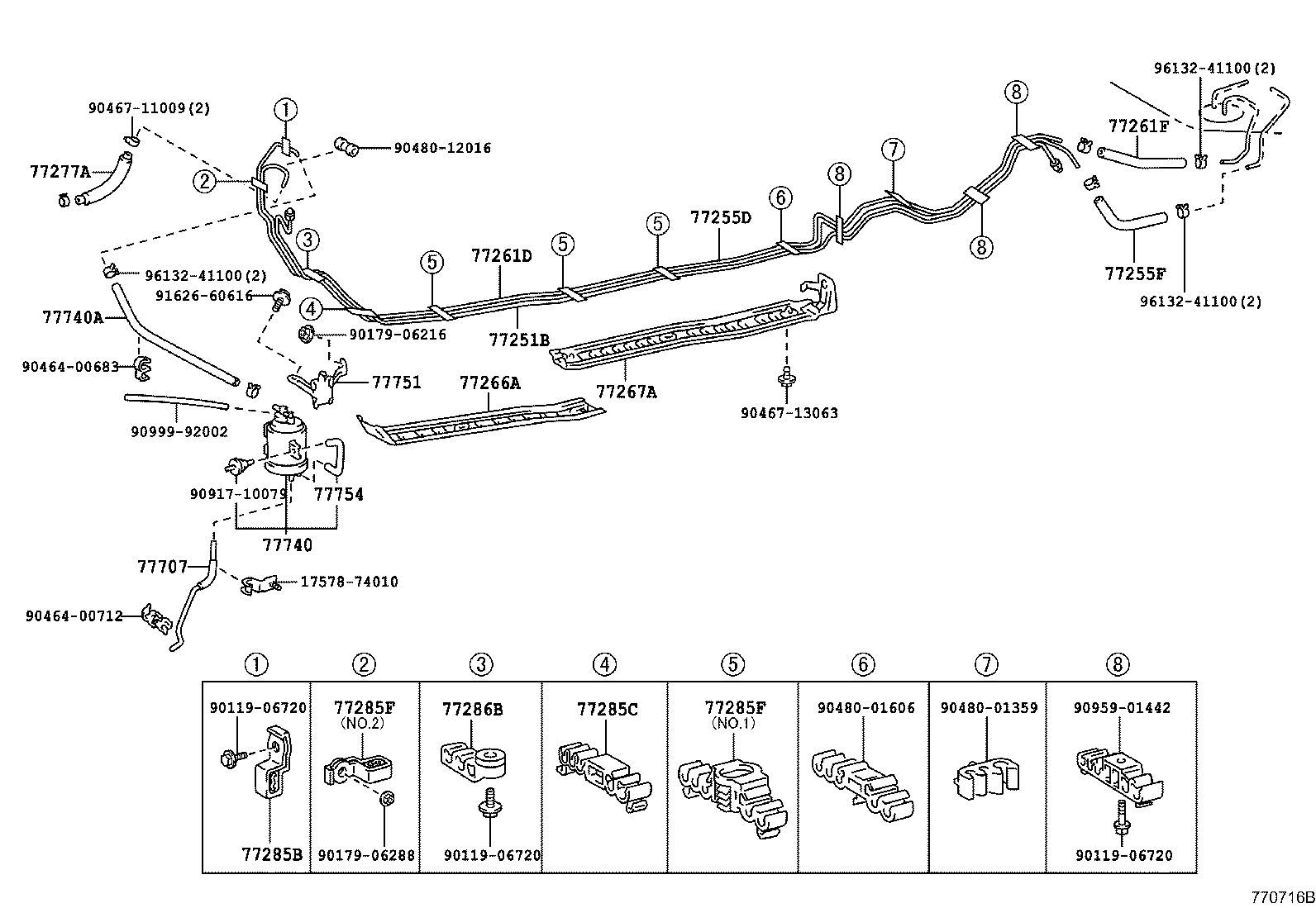

ILLUST NO. 2 OF 2(9908- )ST198
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20690 |
ST19# |
1 | ||
| 77251-21150 |
ST198 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20560 |
ST19# |
1 | ||
| 77255-21120 |
ST198 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CT190,198,199 *H,L=160 |
1 | ||
| 95333-06020 |
AT191,ST190,191,198 *H,L=160 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-21070 |
ST198 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
ST198 *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-21010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77267-20110 |
AT191,CT190,ST19# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20080 |
ST19# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-21030 |
ST198 |
1 | ||
| 77286-20070 |
CT19#,ET196,ST19# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-20030 |
ET196,ST19# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20410 |
ET196,ST19# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92002 |
ST19# *H,L=190,ﾏｰｸ=#* |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20260 |
ET196,ST19# |
1 | ||
| Common parts | ||||
| 17578-74010 | ||||
| 90119-06720 | ||||
| 90179-06216 | ||||
| 90179-06288 | ||||
| 90464-00683 | ||||
| 90464-00712 | ||||
| 90467-11009 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 90480-12016 | ||||
| 90917-10079 | ||||
| 90959-01442 | ||||
| 90999-92002 | ||||
| 91626-60616 | ||||
| 96132-41100 | ||||
