ST198V-DXPMK (1999)

Toyota Caldina

Production Aug 1999 - Jun 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ST198

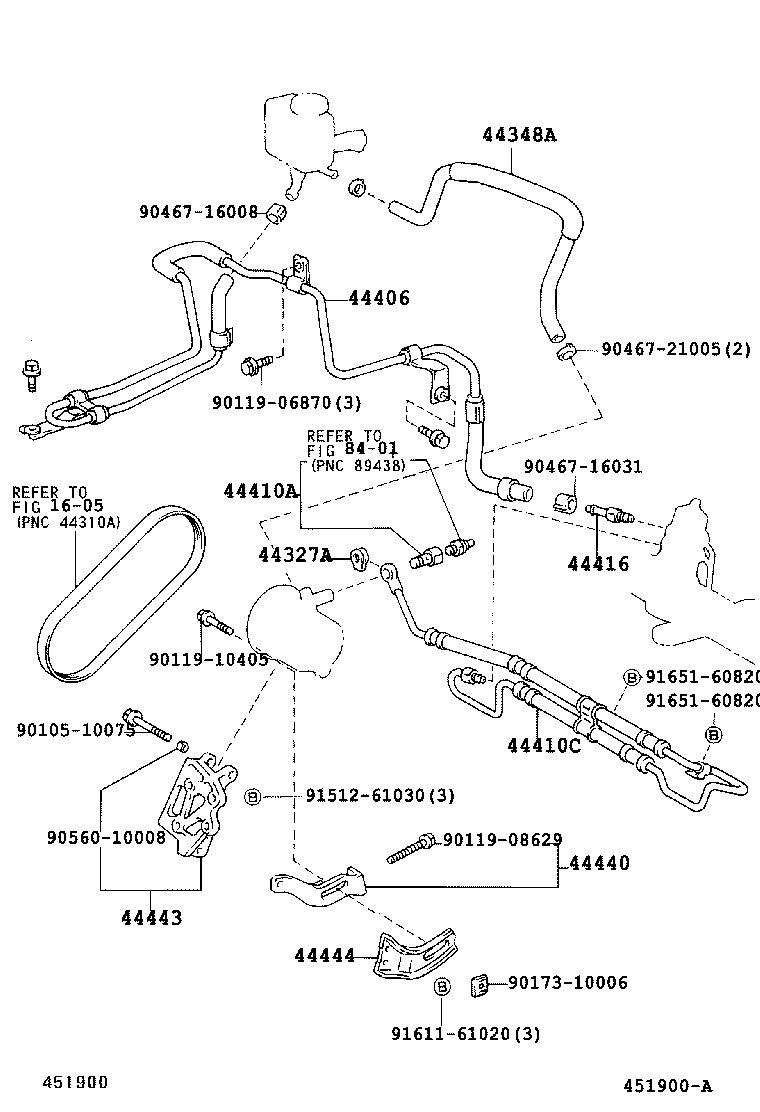

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410A 44410C 44416 44440 44443 44444 8401 9010510075 9011906870 9011908629 9011910405 9017310006 9046716008 9046716031 9046721005 9056010008 9151261030 9161161020 9165160820 9165160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-21040

ST198

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

ST195,198

 1
Common parts
90105-10075
90119-06870
90119-08629
90119-10405
90173-10006
90467-16008
90467-16031
90467-21005
90560-10008
91512-61030
91611-61020
91651-60820
Linked diagrams
1605
8401
