ST198V-DXPMK (1999)

Toyota Caldina

Production Aug 1999 - Jun 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ST198

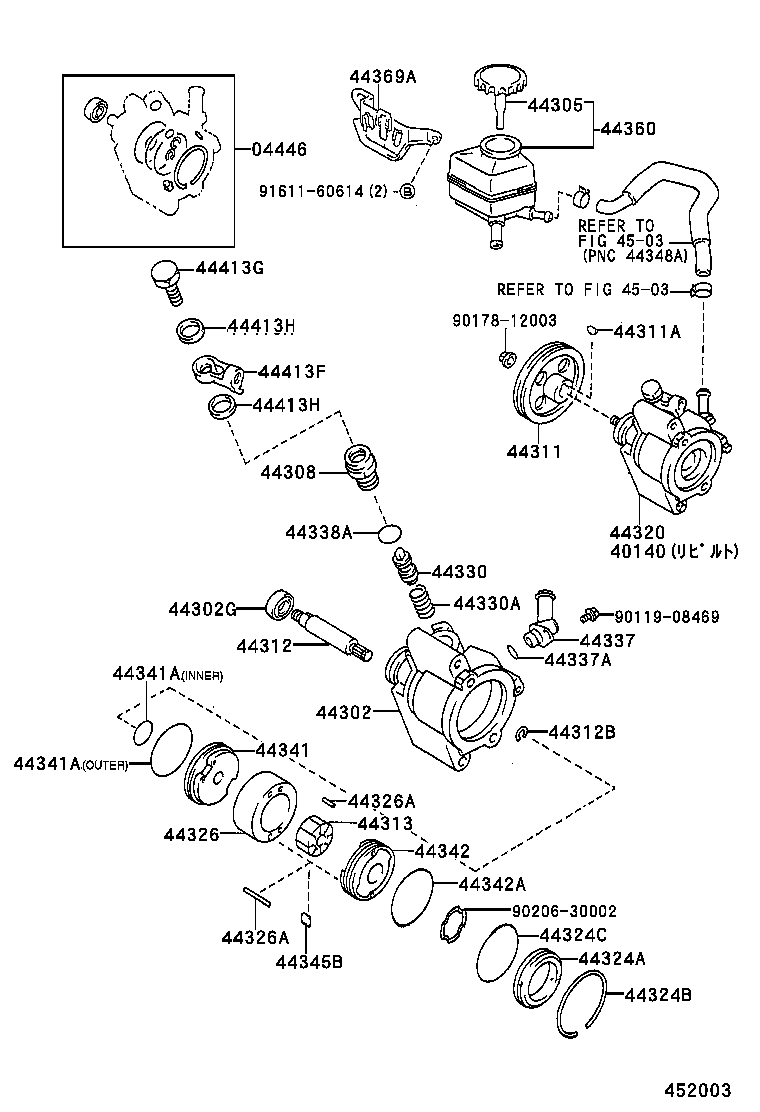

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44311A 44312 44312B 44313 44320 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44342 44342A 44345B 44360 44369A 44413F 44413G 44413H 44413H 4503 4503 9011908469 9017812003 9020630002 9161160614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-20030

CT19#,ST19#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-20600

ST198

ｶﾝﾚｲﾁ ｼﾖｳ,TOYODA KOKI

 1
40140-20590

ST198

TOYODA KOKI

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007

AT191,CT19#,ET196,ST19#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20040

CT19#,ET196,ST19#

 1
44311 - PULLEY, VANE PUMP
44311-20060

ST19#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

AT191,CT19#,ET196,ST19#

 1
44312 - SHAFT, VANE PUMP
44312-12030

AT191,CT19#,ET196,ST19#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

AT191,CT19#,ET196,ST19#

 1
44313 - ROTOR, VANE PUMP
44313-22050

AT191,CT19#,ET196,ST19#

ﾏｰｸ 1

 1
44313-22060

AT191,CT19#,ET196,ST19#

ﾏｰｸ 2

 1
44313-22070

AT191,CT19#,ET196,ST19#

ﾏｰｸ 3

 1
44313-22080

AT191,CT19#,ET196,ST19#

ﾏｰｸ 4

 1
44313-22040

AT191,CT19#,ET196,ST19#

ﾏｰｸ無し

 1
44324A - HOUSING, PUMP, REAR
44324-12031

AT191,CT19#,ET196,ST19#

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002

AT191,CT19#,ET196,ST19#

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-52001

CT19#,ET196,ST19#

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

AT191,CT19#,ET196,ST19#

長さ=28,外径=4.0

 1
90250-04049

AT191,CT19#,ET196,ST19#

長さ=43,外径=4.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047

AT191,CT19#,ET196,ST19#

長さ=28,外径=4.0

 1
90250-04049

AT191,CT19#,ET196,ST19#

長さ=43,外径=4.0

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

AT191,CT19#,ET196,ST19#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12030

ST19#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-12003

CT19#,ET196,ST19#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

AT191,CT19#,ET196,ST19#

内径=19.5,外径=22.5

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-32010

AT191,CT19#,ET196,ST19#

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AT191,CT19#,ET196,ST19#

内側

 1
90301-52001

AT191,CT19#,ET196,ST19#

外側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001

AT191,CT19#,ET196,ST19#

内側

 1
90301-52001

AT191,CT19#,ET196,ST19#

外側

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-32010

AT191,CT19#,ET196,ST19#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001

AT191,CT19#,ET196,ST19#

 1
44345B - PLATE, VANE PUMP
44345-12030

AT191,CT19#,ET196,ST19#

長さ=14.993

 10
44345-12010

AT191,CT19#,ET196,ST19#

長さ=14.997

 10
44345-12020

AT191,CT19#,ET196,ST19#

長さ=14.995

 10
44345-12040

AT191,CT19#,ET196,ST19#

長さ=14.991

 10
44345-12050

AT191,CT19#,ET196,ST19#

長さ=14.989

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20150

ST19#

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-20010

CT19#,ET196,ST19#

 1
44413F - TUBE, PRESSURE FEED, NO.2
44413-12150

ST19#

 1
44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
90401-16008

ST19#

 1
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
90430-16242

ST19#

 2
44413H - GASKET(FOR PRESSURE FEED TUBE NO.2)
90430-16242

ST19#

 2
Common parts
90119-08469
90178-12003
90206-30002
91611-60614
Linked diagrams
4503
