ST198V-DXPMK (1999)
Toyota Caldina
(9211-0104)

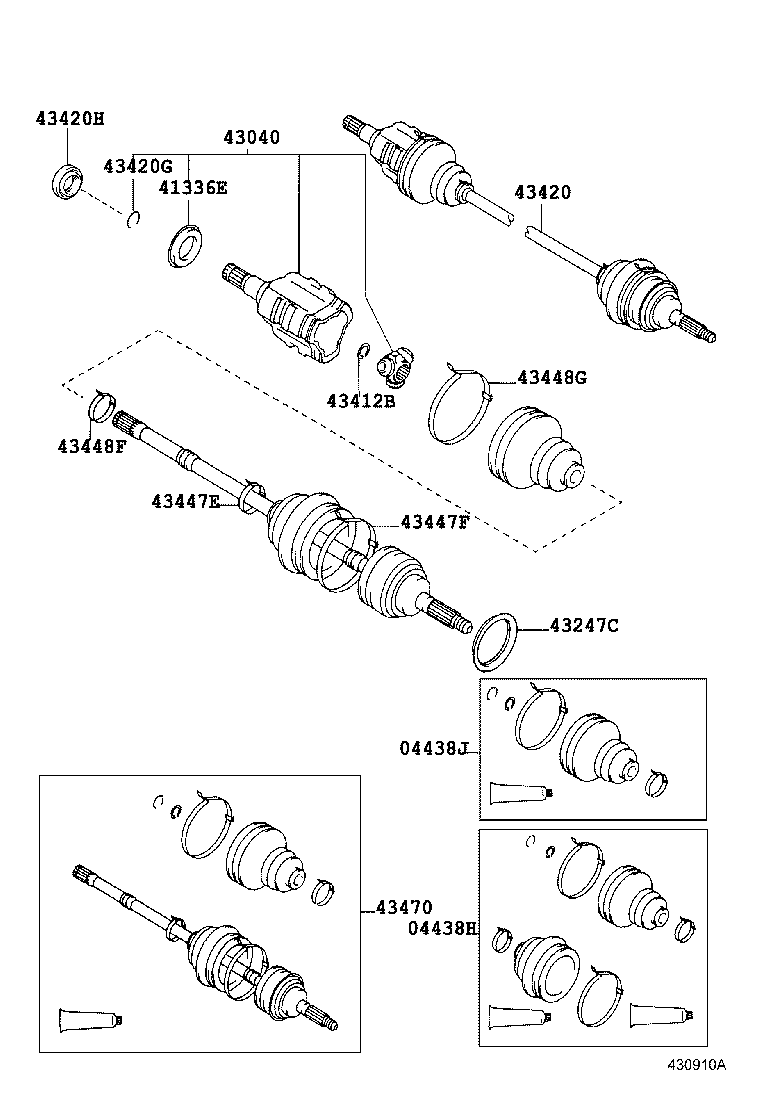

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12650 |
CT199,ST198 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-52051 |
CT199,ST198 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12040 |
CT198,199,ST195,198 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-12060 |
CT198,199,ST195,198 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-32164 |
CT199,ST198 |
1 | ||
| 43420-32163 |
CT199,ST198 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
AT191,CT198,199,ET196,ST195,198 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-44003 |
ST195,198..4FC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19310 |
CT199,ST198 |
1 | ||

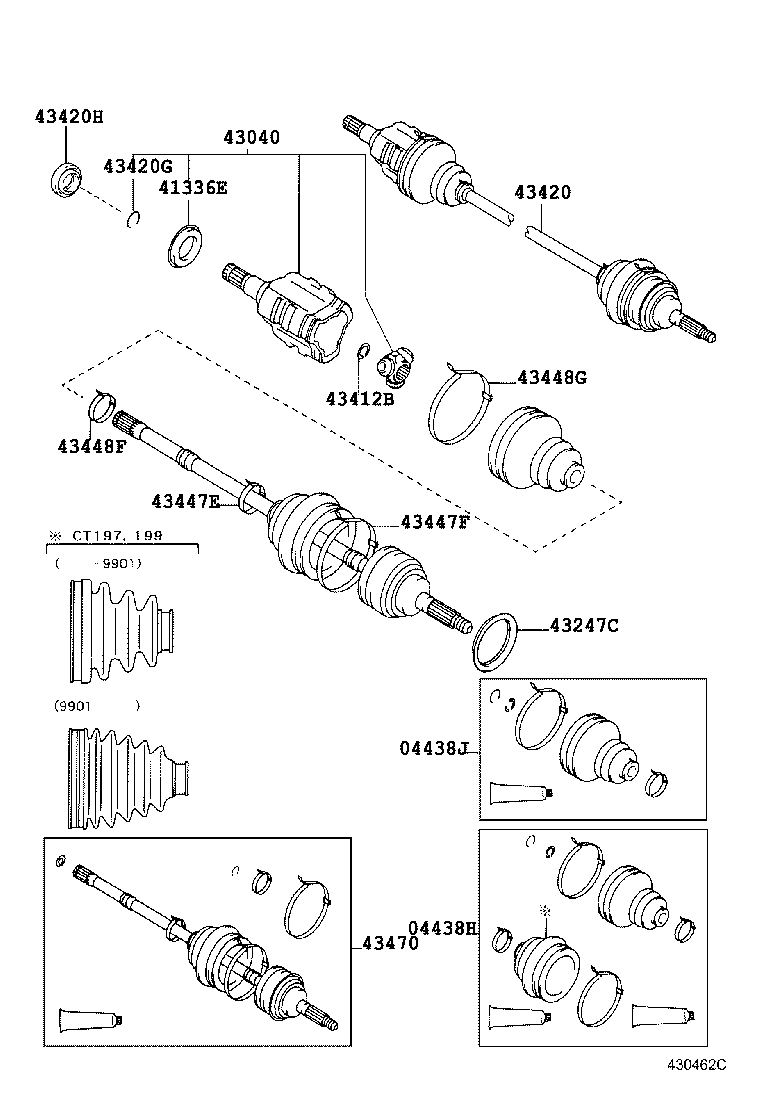

(0104- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12650 |
CT199,ST198 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-52051 |
CT199,ST198 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12040 |
CT198,199,ST195,198 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-12060 |
CT198,199,ST195,198 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-32164 |
CT199,ST198 |
1 | ||
| 43420-32163 |
CT199,ST198 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
AT191,CT198,199,ET196,ST195,198 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-44003 |
ST195,198..4FC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19310 |
CT199,ST198 |
1 | ||

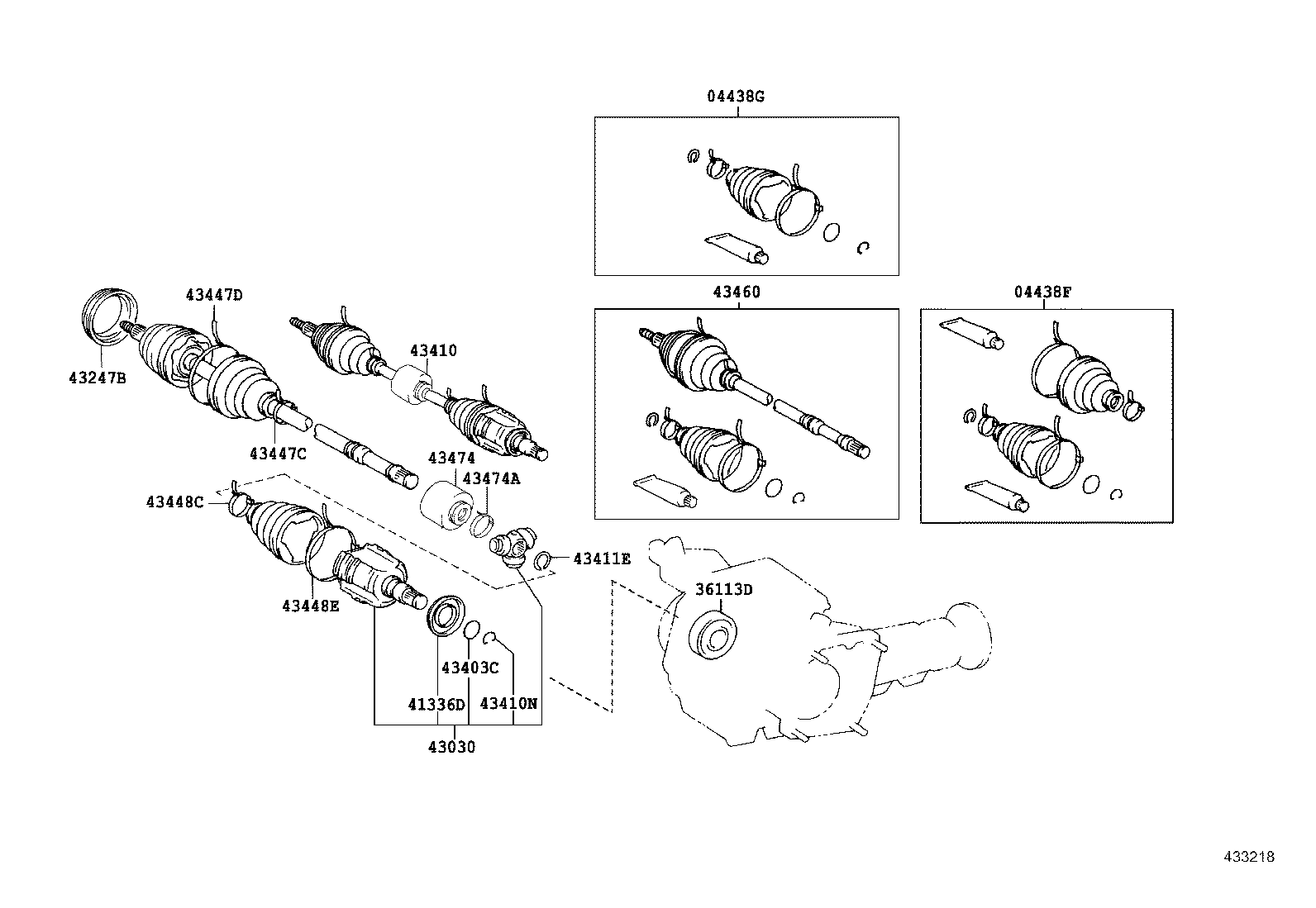

(9908-0104)ST198
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12650 |
CT199,ST198 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-52051 |
CT199,ST198 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-50025 |
ST198 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20040 |
CT198,199,ST195,198 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12050 |
CT198,199,ST195,198 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90301-26006 |
CT198,199,ST195,198 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12413 |
ST198 |
1 | ||
| 43410-12412 |
ST198 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
AT191,CT198,199,ET196,ST195,198 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-19310 |
CT199,ST198 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12030 |
ST195,198 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-12170 |
ST198 |
1 | ||
| 90949-01696 |
ST195,198 |
1 | ||
(0104- )ST198
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12650 |
CT199,ST198 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-52051 |
CT199,ST198 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-50025 |
ST198 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20040 |
CT198,199,ST195,198 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12050 |
CT198,199,ST195,198 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90301-26006 |
CT198,199,ST195,198 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12413 |
ST198 |
1 | ||
| 43410-12412 |
ST198 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
AT191,CT198,199,ET196,ST195,198 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-19310 |
CT199,ST198 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12030 |
ST195,198 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-12170 |
ST198 |
1 | ||
| 90949-01696 |
ST195,198 |
1 | ||
