ST198V-DXPMK (1999)

Toyota Caldina

Production Aug 1999 - Jun 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )3SFE

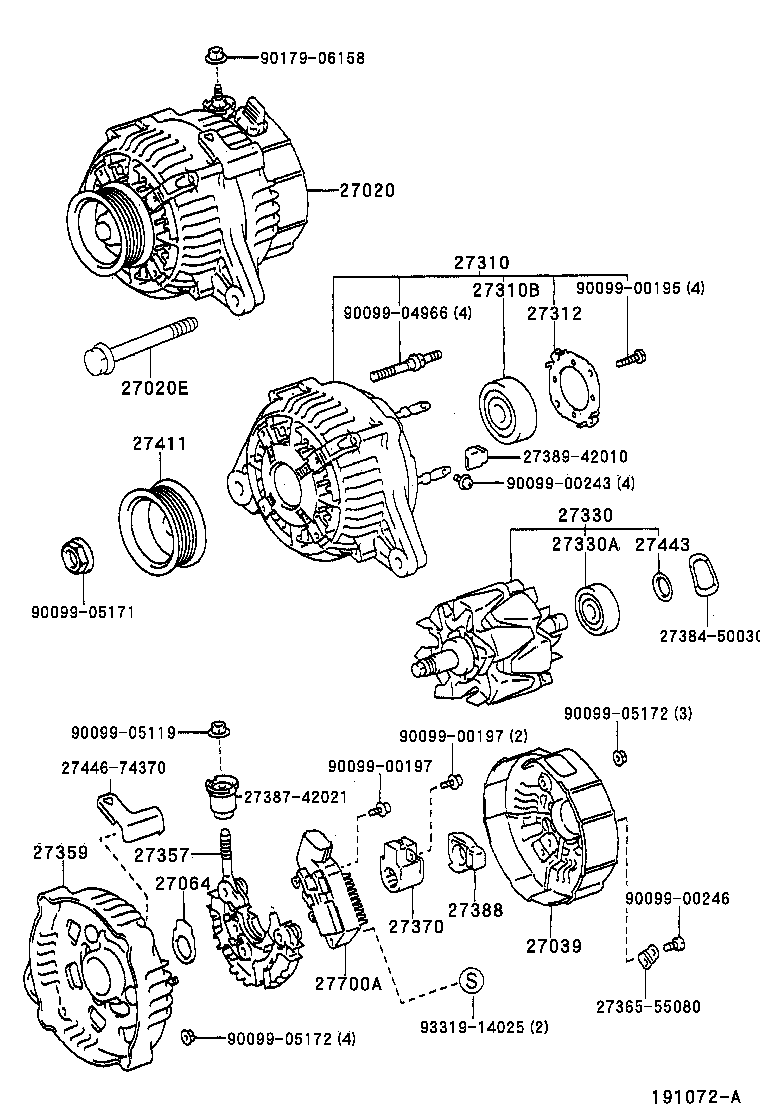

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 2736555080 27370 2738450030 2738742021 27388 2738942010 27411 27443 2744674370 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74410

3SFE,4SFE..ST19#..4FC

12V 80A

 1
27060-74650

3SFE..ST198

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10249

3S#,4SFE..ST19#

 1
27039 - COVER, ALTERNATOR REAR END
27039-70470

5EFE,3SFE..ET196,ST198..ATM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74120

3SFE,4SFE..ST19#..4FC

 1
27310-74490

3SFE..ST198

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM

 1
27330-74730

3SFE..ST198

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

5EFE..ET196..3FC;7AFE,2C#,3CE,3S#,4SFE..AT191,CT19#,ST19#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-42010

3SFE,4SFE..ST19#..4FC

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM

 1
27411 - PULLEY, ALTERNATOR
27411-42030

3S#,4SFE..ST19#..4FC

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

7AFE,2C#,3CE,5EFE,3S#,4SFE..AT191,CT19#,ET196,ST19#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

7AFE,3S#,4SFE..AT191,ST19#

 1
Common parts
27365-55080
27384-50030
27387-42021
27389-42010
27446-74370
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
93319-14025
