ST198V-DXPMK (1999)

Toyota Caldina

Production Aug 1999 - Jun 2002
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )3SFE

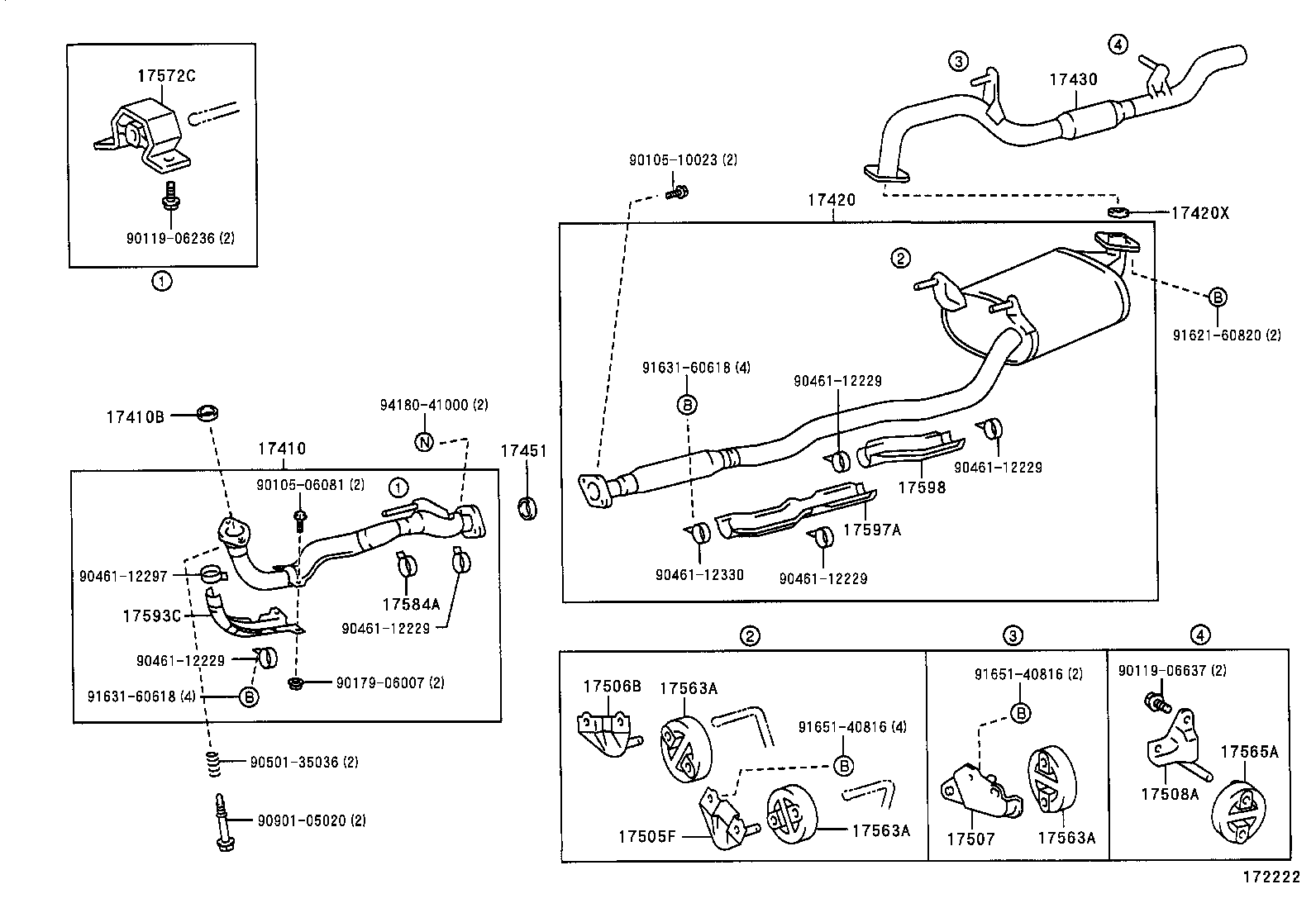

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17505F 17506B 17507 17508A 17563A 17563A 17563A 17565A 17572C 17584A 17593C 17597A 17598 9010506081 9010510023 9011906236 9011906637 9017906007 9046112229 9046112229 9046112229 9046112229 9046112229 9046112297 9046112330 9050135036 9090105020 9162160820 9163160618 9163160618 9165140816 9165140816 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7A641

3SFE..ST198

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-7A240

3SFE..ST198

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

2C,3CE,5EFE,3SFE..CT196,197,198,199,ET196,ST198

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B240

3SFE..ST198

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

7AFE,3SFE,4SFE..AT191,ST190,195,198

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-64060

2C,3CE,3SFE..CT198,199,ST198

 1
17506B - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17506-64020

2C,3CE,3SFE..CT198,199,ST198

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-11050

5EFE,3SFE..ET196,ST198

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-64050

2C,3CE,3SFE..CT198,199,ST198

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2C,3CE,3SFE..CT198,199,ST198

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74510

3SFE..ST198

 1
17584A - STOPPER, EXHUST PIPE, NO.1
17584-74140

3SFE..ST195,198

 1
17597A - PROTECTOR, EXHAUST PIPE, LOWER NO.5
17597-74181

3SFE..ST198

 1
17598 - PROTECTOR, EXAUST PIPE, LOWER NO.6
17598-74051

3SFE..ST198

 1
Common parts
90105-06081
90105-10023
90119-06236
90119-06637
90179-06007
90461-12229
90461-12297
90461-12330
90501-35036
90901-05020
91621-60820
91631-60618
91651-40816
94180-41000
