ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)

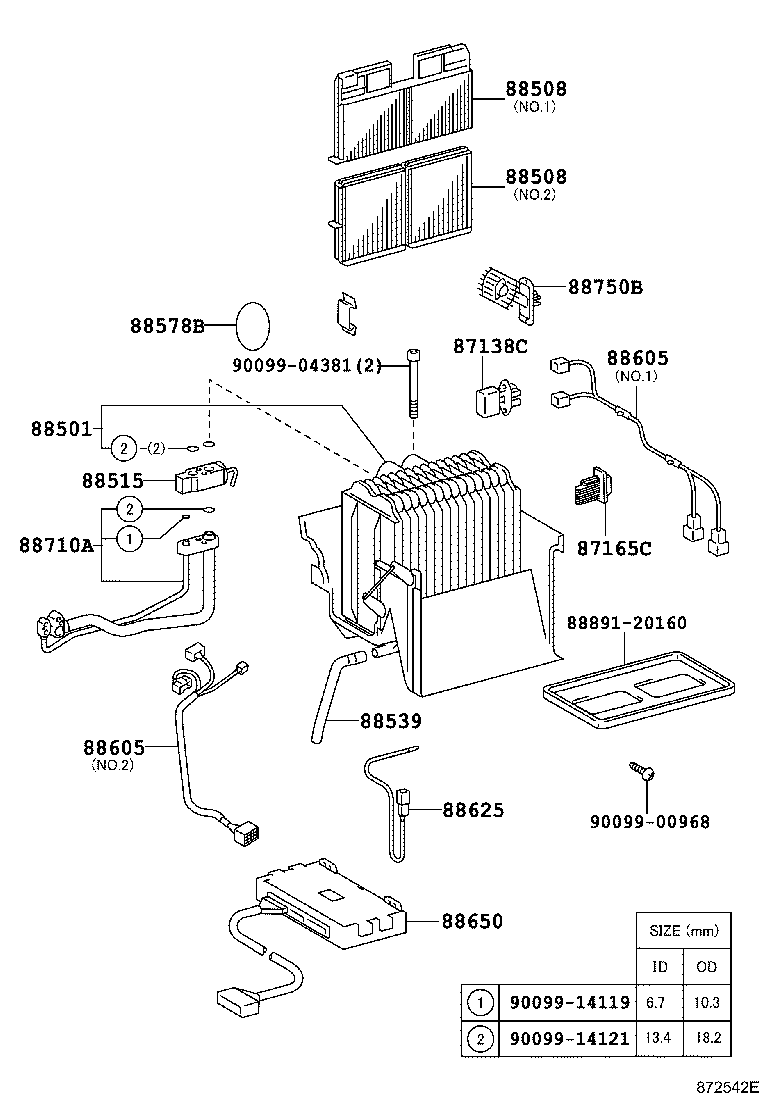

Click highlighted areas on diagram

diagram 87138C 87165C 88501 88508 88508 88515 88539 88578B 88605 88605 88625 88650 88710A 88750B 8889120160 9009900968 9009904381 9009914119 9009914121
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-20230

CT190,ST19#

 1
87165C - CONTROL, BLOWER MOTOR
87165-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20290

CT19#,ET196,ST19#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AT191,CT19#,ET196,ST19#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D470

AT191,CT190,ST19#

 1
88605-2D200

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88605-2D420

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D470

AT191,CT190,ST19#

 1
88605-2D200

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88605-2D420

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20390

CT19#,ET196,ST19#

 1
88625-3A090

AT191,CT19#,ET196,ST19#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B160

CT190,ST19#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20380

CT190,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88710-20600

AT191,CT19#,ET196,ST19#

 1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20020

CT190,ST19#

 1
88750-20020

CT190,ST19#

 1
Common parts
88891-20160
90099-00968
90099-04381
90099-14119
90099-14121

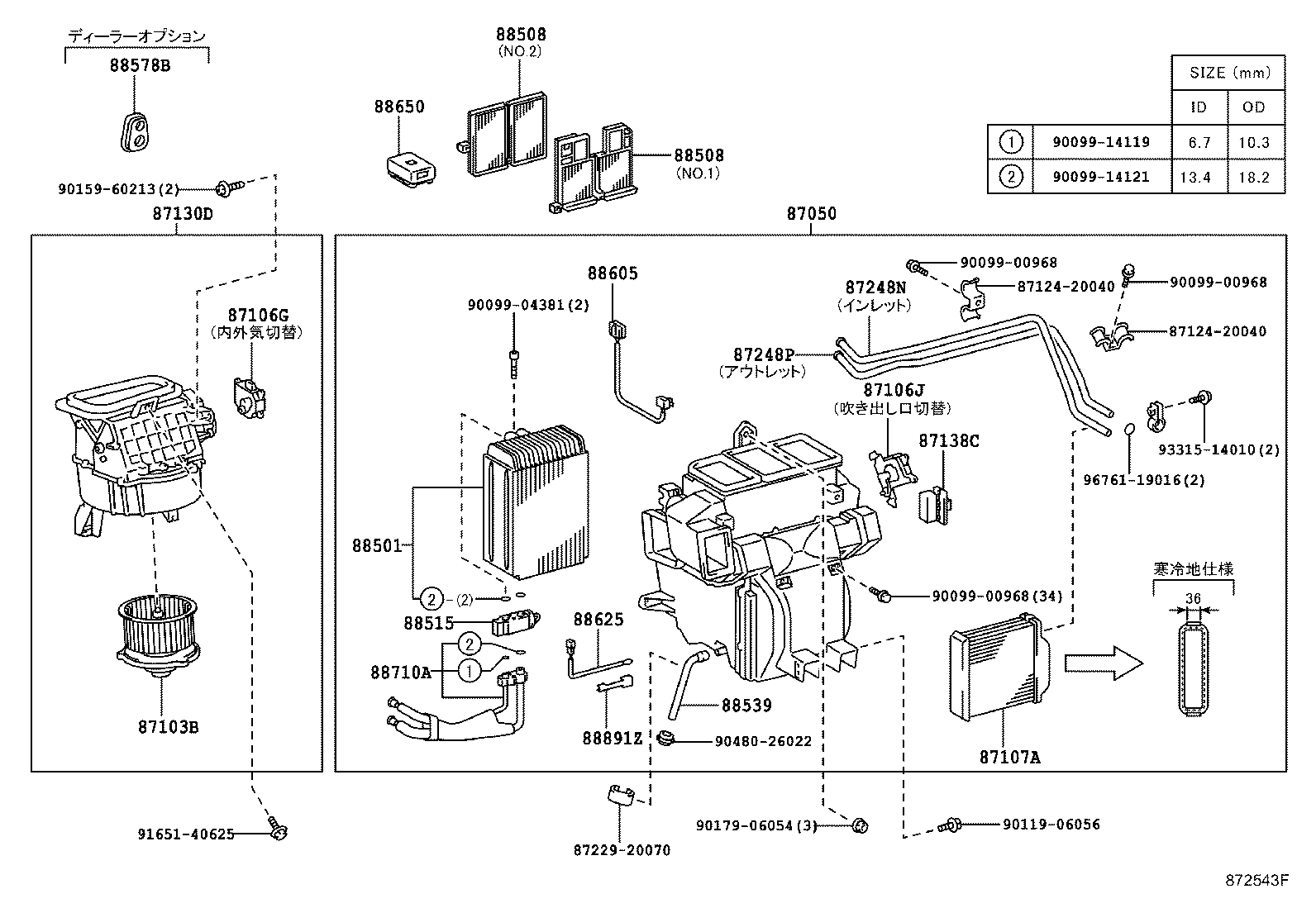

(9601- )

Click highlighted areas on diagram

ﾏﾆﾕｱﾙ

diagram 87050 87103B 87106G 87106J 87107A 8712420040 8712420040 87130D 87138C 8722920070 87248N 87248P 88501 88508 88508 88515 88539 88578B 88605 88625 88650 88710A 88891Z 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9011906056 9015960213 9017906054 9048026022 9165140625 9331514010 9676119016
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-21050

AT191,CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ｴｱｺﾝ)

 1
87050-21060

AT191,CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ｴｱｺﾝ);ｶﾝﾚｲﾁ ｼﾖｳ

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-22100

AT191,CT19#,ET196,ST19#

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-20360

AT191,CT190,ST19#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220

AT191,CT190,ST19#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-20600

AT191,CT19#,ET196,ST19#

 1
87107-20680

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130D - BLOWER ASSY
87130-20530

AT191,CT190,ST19#

 1
87138C - RESISTOR, BLOWER
87138-20230

CT190,ST19#

 1
87248N - PIPE, HEATER WATER INLET
87248-20360

AT191,CT19#,ET196,ST19#

 1
87248P - PIPE, HEATER WATER OUTLET
87248-20370

AT191,CT19#,ET196,ST19#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20290

CT19#,ET196,ST19#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AT191,CT19#,ET196,ST19#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D470

AT191,CT190,ST19#

 1
88605-2D200

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88605-2D420

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20390

CT19#,ET196,ST19#

 1
88625-3A090

AT191,CT19#,ET196,ST19#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B160

CT190,ST19#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20380

CT190,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88710-20600

AT191,CT19#,ET196,ST19#

 1
Common parts
87124-20040
87229-20070
90099-00968
90099-04381
90099-14119
90099-14121
90119-06056
90159-60213
90179-06054
90480-26022
91651-40625
93315-14010
96761-19016

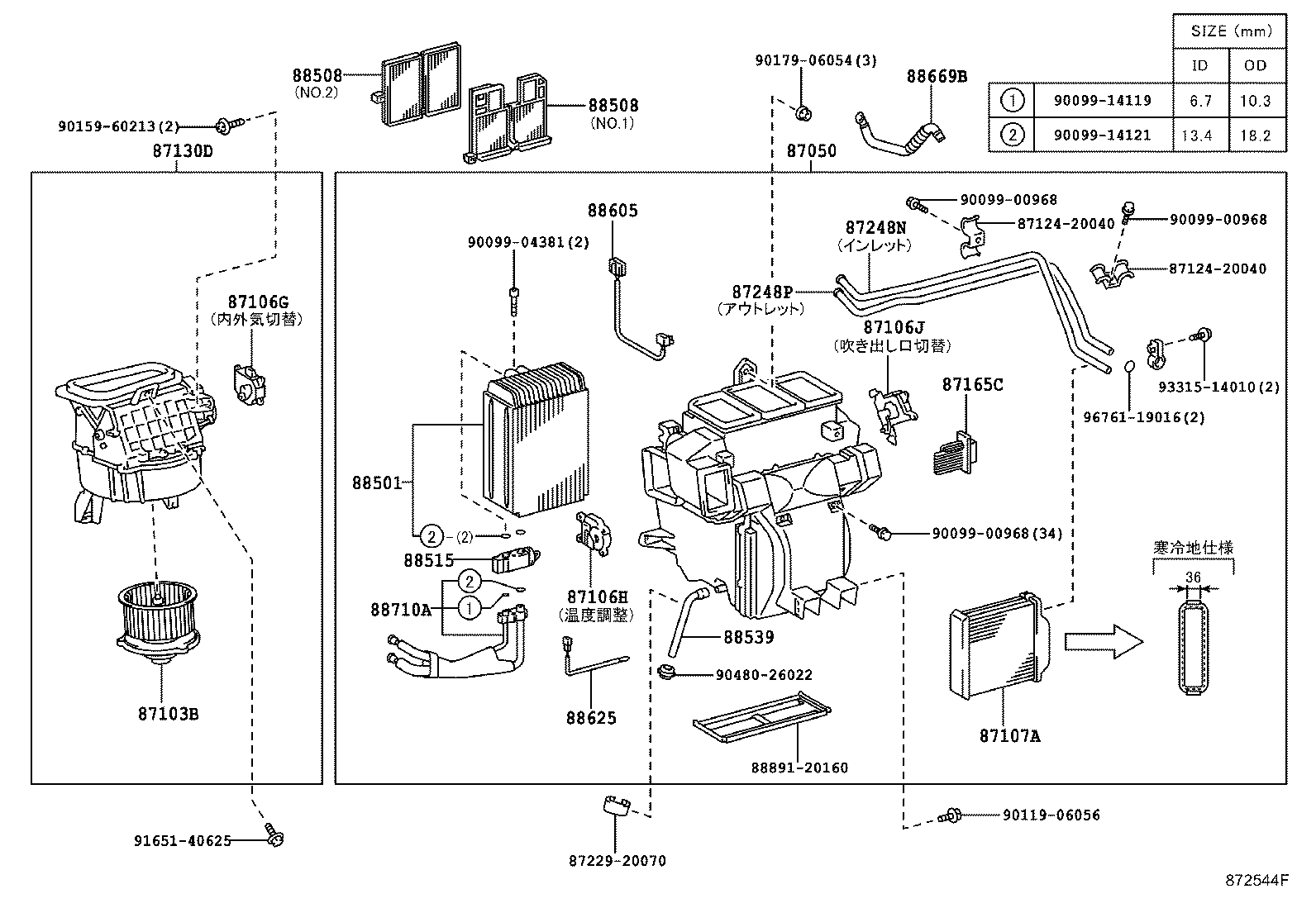

(9601- )

Click highlighted areas on diagram

ｵ-ﾄ

diagram 87050 87103B 87106G 87106H 87106J 87107A 8712420040 8712420040 87130D 87165C 8722920070 87248N 87248P 88501 88508 88508 88515 88539 88605 88625 88669B 88710A 8889120160 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9011906056 9015960213 9017906054 9048026022 9165140625 9331514010 9676119016
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-21050

AT191,CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ｴｱｺﾝ)

 1
87050-21060

AT191,CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ｴｱｺﾝ);ｶﾝﾚｲﾁ ｼﾖｳ

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-22100

AT191,CT19#,ET196,ST19#

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-20360

AT191,CT190,ST19#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-20350

AT191,CT190,ST19#..CZ,TZ,TZG

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-20220

AT191,CT190,ST19#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-20600

AT191,CT19#,ET196,ST19#

 1
87107-20680

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130D - BLOWER ASSY
87130-20530

AT191,CT190,ST19#

 1
87165C - CONTROL, BLOWER MOTOR
87165-21010

AT191,CT190,ST19#..CZ,TZ,TZG

 1
87248N - PIPE, HEATER WATER INLET
87248-20360

AT191,CT19#,ET196,ST19#

 1
87248P - PIPE, HEATER WATER OUTLET
87248-20370

AT191,CT19#,ET196,ST19#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20290

CT19#,ET196,ST19#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20030

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2)

 1
88508-20020

AT191,CT19#,ET196,ST19#

ｶﾝﾚｲﾁ,UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1)

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AT191,CT19#,ET196,ST19#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D470

AT191,CT190,ST19#

 1
88605-2D200

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88605-2D420

CT190,ST19#

NO.2

 1
88605-2D190

CT190,ST19#

NO.1

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20390

CT19#,ET196,ST19#

 1
88625-3A090

AT191,CT19#,ET196,ST19#

 1
88669B - HOSE, COOLER AIR
88669-20150

AT191,CT190,ST19#..CZ,TZ,TZG

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20380

CT190,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88710-20600

AT191,CT19#,ET196,ST19#

 1
Common parts
87124-20040
87229-20070
88891-20160
90099-00968
90099-04381
90099-14119
90099-14121
90119-06056
90159-60213
90179-06054
90480-26022
91651-40625
93315-14010
96761-19016
