Toyota Caldina ST195 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997

Engine 3SGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

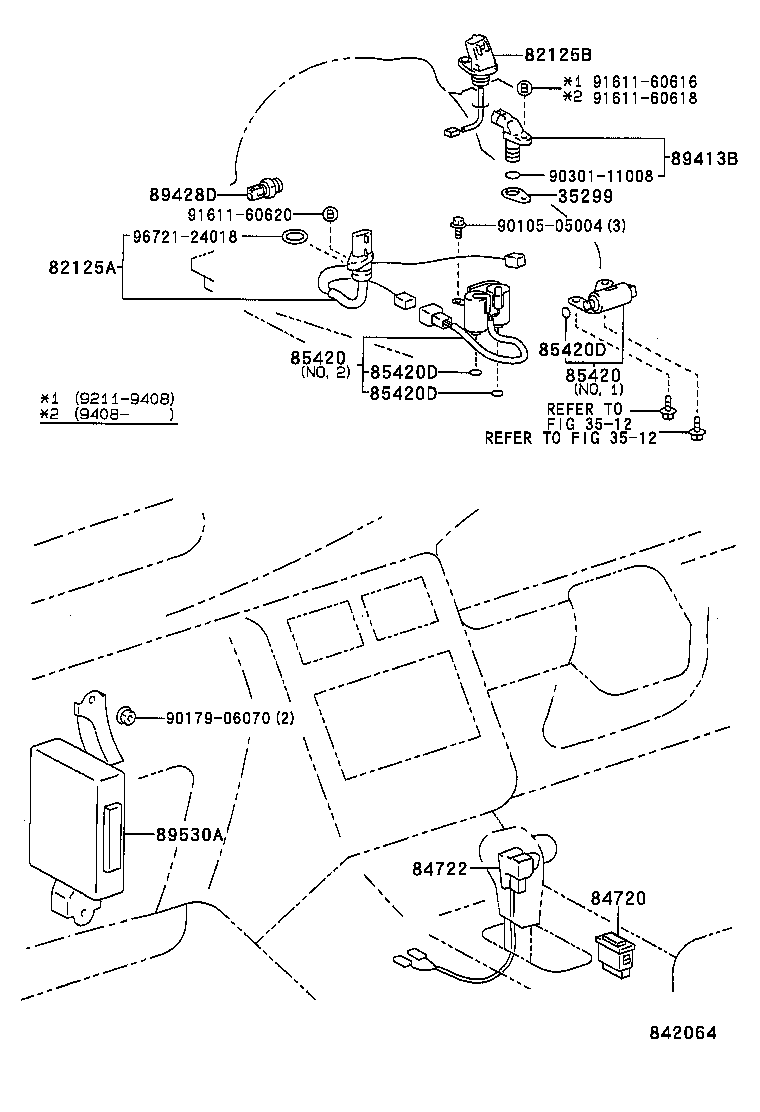

Click highlighted areas on diagram

Part #	Description	Period	Qty
82125A - WIRE, TRANSMISSION
82125-32050	ST195,198..4FC	11/1992 - 12/2999	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20170	AT191,ST19#..4FC	01/1996 - 12/2999	1
84720-20080	ST19#..4FC	11/1992 - 01/1996	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20110C0	CT190,196,ST19#..4FC BLACK,TRIM2#	11/1992 - 05/1993	1
84722-20170C0	AT191,CT190,196,197,ST19#..4FC BLACK,TRIM1#	01/1996 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32120	ST195..4FC NO.1	11/1992 - 01/1997	1
85420-32111	ST195,198..4FC NO.1	01/1997 - 12/2999	1
85420-32102	ST195,198..4FC NO.2	11/1992 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32120	ST195..4FC NO.1	11/1992 - 01/1997	1
85420-32111	ST195,198..4FC NO.1	01/1997 - 12/2999	1
85420-32102	ST195,198..4FC NO.2	11/1992 - 12/2999	1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010	ST195..4FC	02/1995 - 01/1996	1
89413-32010	ST195..4FC	11/1992 - 02/1995	1
89428D - SWITCH, TEMPERATURE, NO.2
89428-12140	ST195,198..4FC	11/1992 - 12/2999	1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-20400	ST195..4FC	11/1992 - 01/1993	1
Common parts
90105-05004
90179-06070
90301-11008
91611-60616
91611-60618
91611-60620
96721-24018
Linked diagrams
3512

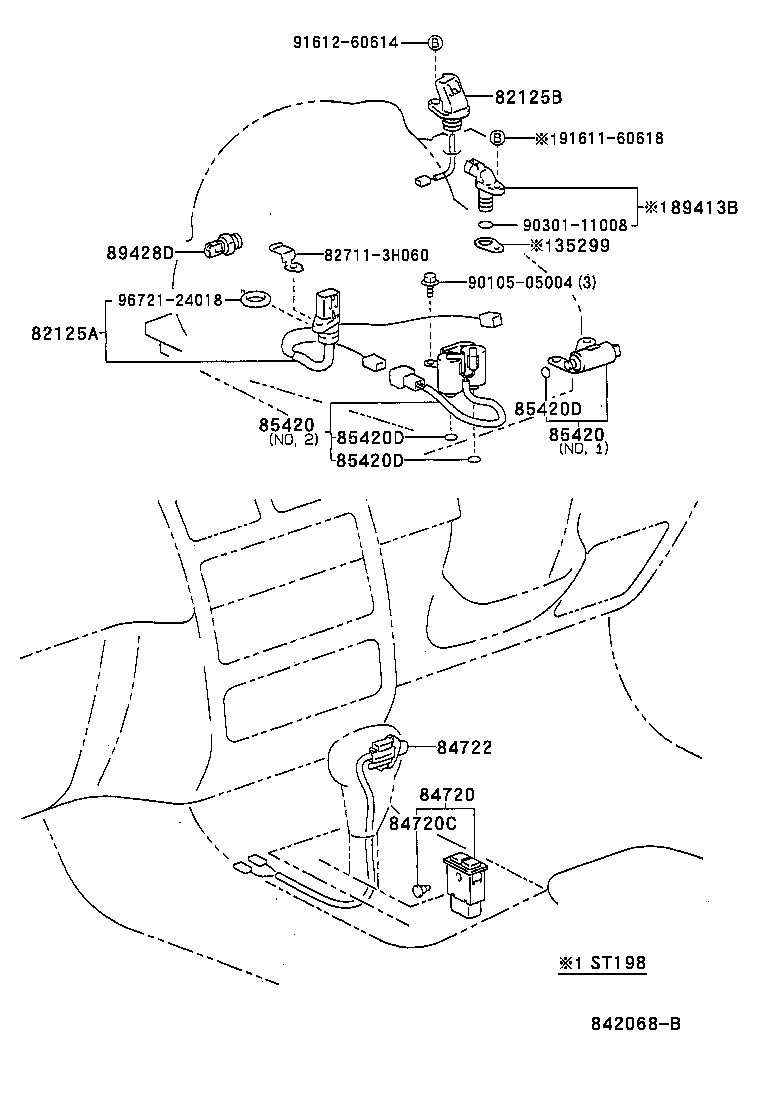

Click highlighted areas on diagram

Part #	Description	Period	Qty
82125A - WIRE, TRANSMISSION
82125-32050	ST195,198..4FC	11/1992 - 12/2999	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20170	AT191,ST19#..4FC	01/1996 - 12/2999	1
84720-20080	ST19#..4FC	11/1992 - 01/1996	1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-20110	AT191,ST19#..4FC 14V 1.4W	01/1996 - 12/2999	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20110C0	CT190,196,ST19#..4FC BLACK,TRIM2#	11/1992 - 05/1993	1
84722-20170C0	AT191,CT190,196,197,ST19#..4FC BLACK,TRIM1#	01/1996 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32120	ST195..4FC NO.1	11/1992 - 01/1997	1
85420-32111	ST195,198..4FC NO.1	01/1997 - 12/2999	1
85420-32102	ST195,198..4FC NO.2	11/1992 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32120	ST195..4FC NO.1	11/1992 - 01/1997	1
85420-32111	ST195,198..4FC NO.1	01/1997 - 12/2999	1
85420-32102	ST195,198..4FC NO.2	11/1992 - 12/2999	1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AT191,ST195,198..4FC	01/1996 - 12/2999	3
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010	ST195..4FC	02/1995 - 01/1996	1
89413-32010	ST195..4FC	11/1992 - 02/1995	1
89428D - SWITCH, TEMPERATURE, NO.2
89428-12140	ST195,198..4FC	11/1992 - 12/2999	1
Common parts
82711-3H060
90105-05004
90301-11008
91611-60618
91612-60614
96721-24018
