ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9502- )TZG

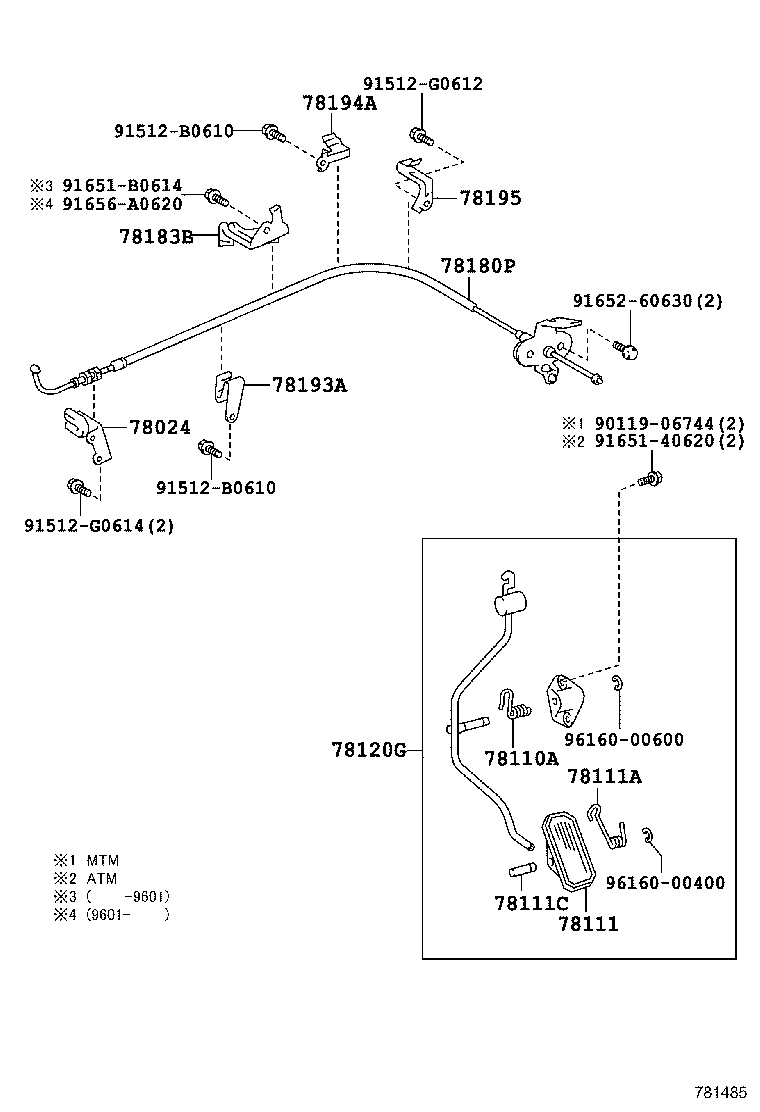

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 78193A 78194A 78195 9011906744 91512B0610 91512B0610 91512G0612 91512G0614 9165140620 91651B0614 9165260630 91656A0620 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20160

ST19#..CZ,TZ

 1
78024-88460

ST195..TZG

 1
78024-20140

ST19#..CZ,FZ,TZ

 1
78024-44020

ST19#..CZ,TZ,U,UL,UX

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03102

AT191,ST191,198;ST195..4FC..(CZ,TZ)

 1
90508-18048

ET196,ST191;ST190,195..4FC

 1
90508-18048

ET196;ST195..4FC..TZG

 1
78111 - PEDAL, ACCELERATOR
78111-20060

CT197,199,ET196;ST195..4FC..TZG;CT190,196,ST198..4FC

 1
78111-32010

ET196,ST190,195;CT190,196,ST191..4FC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

CT19#,ET196,ST19#

 1
90508-18050

CT19#,ET196,ST19#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CT19#,ET196,ST19#

 1
90249-05001

CT19#,ET196,ST19#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20540

ET196,ST191;ST190,195..4FC

 1
78120-20670

ET196;ST195..4FC..TZG

 1
78120-20690

AT191,ST191,198;ST195..4FC..(CZ,TZ)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B880

ST19#

 1
78180-2D520

ST19#..CZ,TZ

 1
78180-21070

ST195..TZG

 1
78180-2D350

ST195..TZG

 1
78180-2D680

ST19#..CZ,TZ,U,UL,UX

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

CT197..4FC;AT191,CT190,196,198,ET196,ST19#

 1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-88460

ST195..TZG

 1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-88460

ST195..4FC..TZG

 1
78195 - BRACKET, ACCELERATOR LINK
78195-88460

ST195..4FC..TZG

 1
Common parts
90119-06744
91512-B0610
91512-G0612
91512-G0614
91651-40620
91651-B0614
91652-60630
91656-A0620
96160-00400
96160-00600
