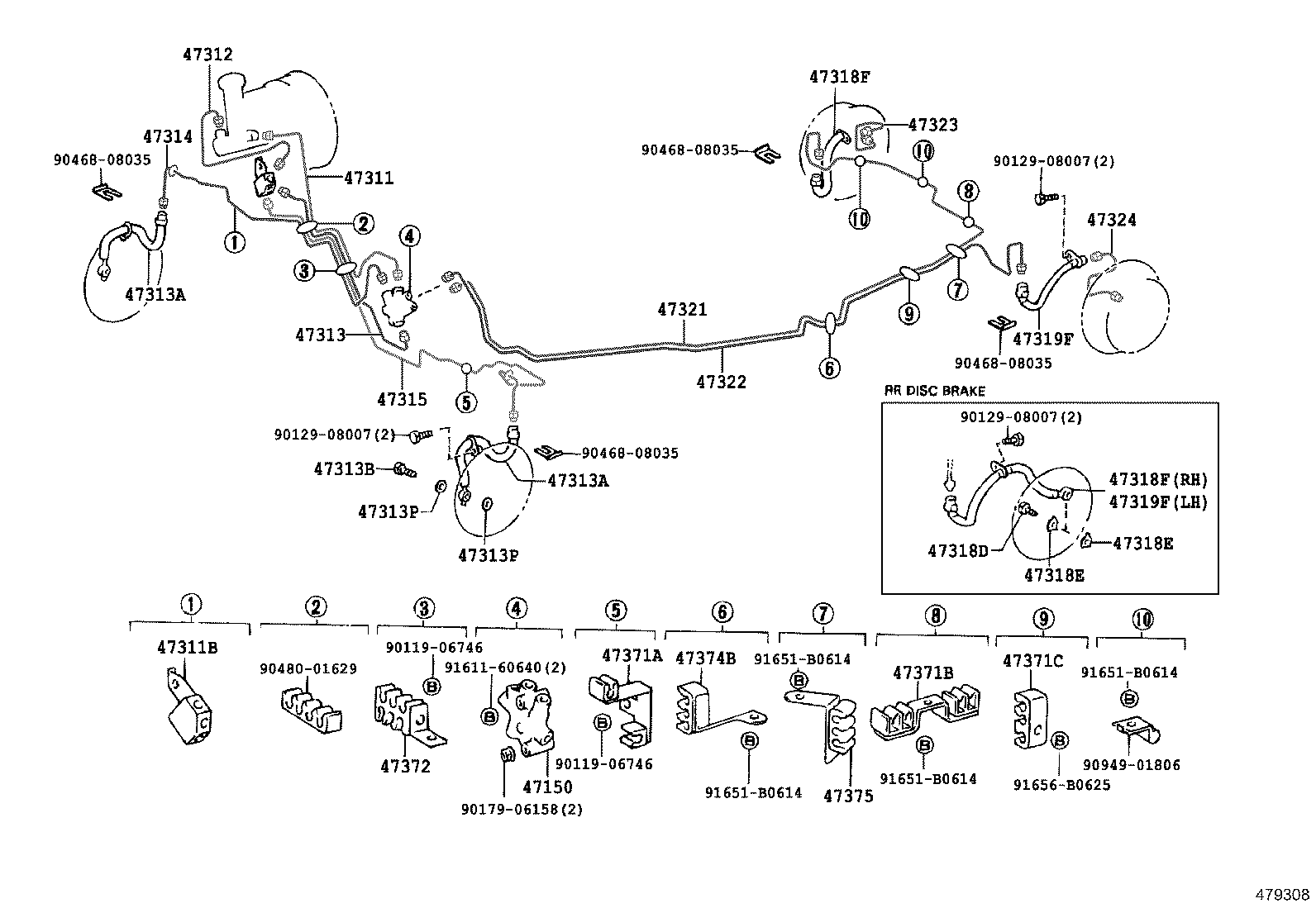

ST195G-DWPVF (1995)
Toyota Caldina
(9211-9601)CT190,ST19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12110 |
ST191,195 |
1 | ||
| 47150-20270 |
ST195 |
1 | ||
| 47150-20270 |
ST191,195 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20850 |
ST195 |
1 | ||
| 47311-2B200 |
ST19# |
1 | ||
| 47311-20880 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
CT19#,ET196,ST19# |
1 | ||
| 90413-10193 |
CT19#,ET196,ST19# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20310 |
CT19#,ET196,ST19# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20620 |
ST195 |
1 | ||
| 47313-20650 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47313-20810 |
ST19# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20480 |
CT19#,ET196,ST19# |
1 | ||
| 47314-20520 |
ST19# |
1 | ||
| 47314-20520 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20700 |
AT191,CT190,ST19# |
1 | ||
| 47315-20620 |
ST195 |
1 | ||
| 47315-20540 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST195..TZG |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20430 |
ST195 |
1 | ||
| 47321-20360 |
ST195 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20460 |
CT190,ST19# |
1 | ||
| 47322-20520 |
AT191,CT190,ST19# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20170 |
ST195..CZ,TZ |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20170 |
ST195..CZ,TZ |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20311 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20301 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47371-20660 |
AT191,CT190,197,199,ST19# ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20500 |
AT191,CT190,ST19# |
1 | ||
| 47371-20411 |
CT190,ST19# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20700 |
AT191,CT190,ST19# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20370 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20320 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20291 |
AT191,CT190,ST19# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20690 |
AT191,CT190,ST19# |
2 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90480-01629 | ||||
| 90949-01806 | ||||
| 91611-60640 | ||||
| 91651-B0614 | ||||
| 91656-B0625 | ||||

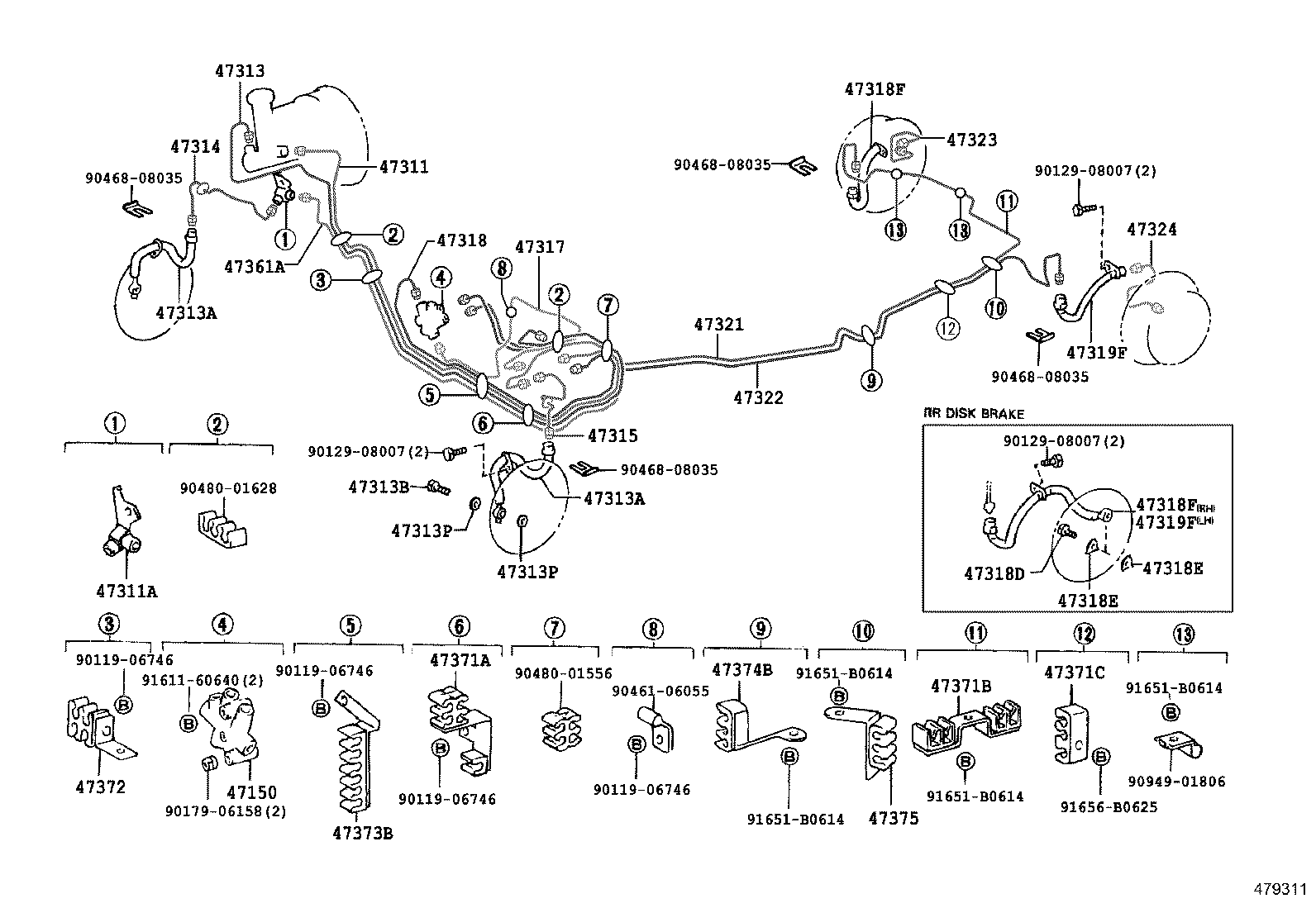

ILLUST NO. 1 OF 2(9211-9601)CT190,ST19#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12110 |
ST191,195 |
1 | ||
| 47150-20270 |
ST195 |
1 | ||
| 47150-20270 |
ST191,195 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20850 |
ST195 |
1 | ||
| 47311-2B200 |
ST19# |
1 | ||
| 47311-20880 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10201 |
CT190,ST19#..DSL,EFI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20620 |
ST195 |
1 | ||
| 47313-20650 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47313-20810 |
ST19# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20480 |
CT19#,ET196,ST19# |
1 | ||
| 47314-20520 |
ST19# |
1 | ||
| 47314-20520 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20700 |
AT191,CT190,ST19# |
1 | ||
| 47315-20620 |
ST195 |
1 | ||
| 47315-20540 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20180 |
CT190,ST19# |
1 | ||
| 47317-20250 |
AT191,CT190,ST19# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20310 |
CT190,ST19# |
1 | ||
| 47318-20380 |
AT191,CT190,ST19# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST195..TZG |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20430 |
ST195 |
1 | ||
| 47321-20360 |
ST195 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20460 |
CT190,ST19# |
1 | ||
| 47322-20520 |
AT191,CT190,ST19# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20170 |
ST195..CZ,TZ |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20170 |
ST195..CZ,TZ |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-20010 |
CT190,ST19# |
1 | ||
| 47361-20010 |
CT190,ST19# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20311 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20301 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47371-20660 |
AT191,CT190,197,199,ST19# ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20500 |
AT191,CT190,ST19# |
1 | ||
| 47371-20411 |
CT190,ST19# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20700 |
AT191,CT190,ST19# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20370 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20320 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20330 |
CT190,ST19# |
1 | ||
| 47371-20680 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20291 |
AT191,CT190,ST19# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20690 |
AT191,CT190,ST19# |
2 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90480-01628 | ||||
| 90949-01806 | ||||
| 91611-60640 | ||||
| 91651-B0614 | ||||
| 91656-B0625 | ||||

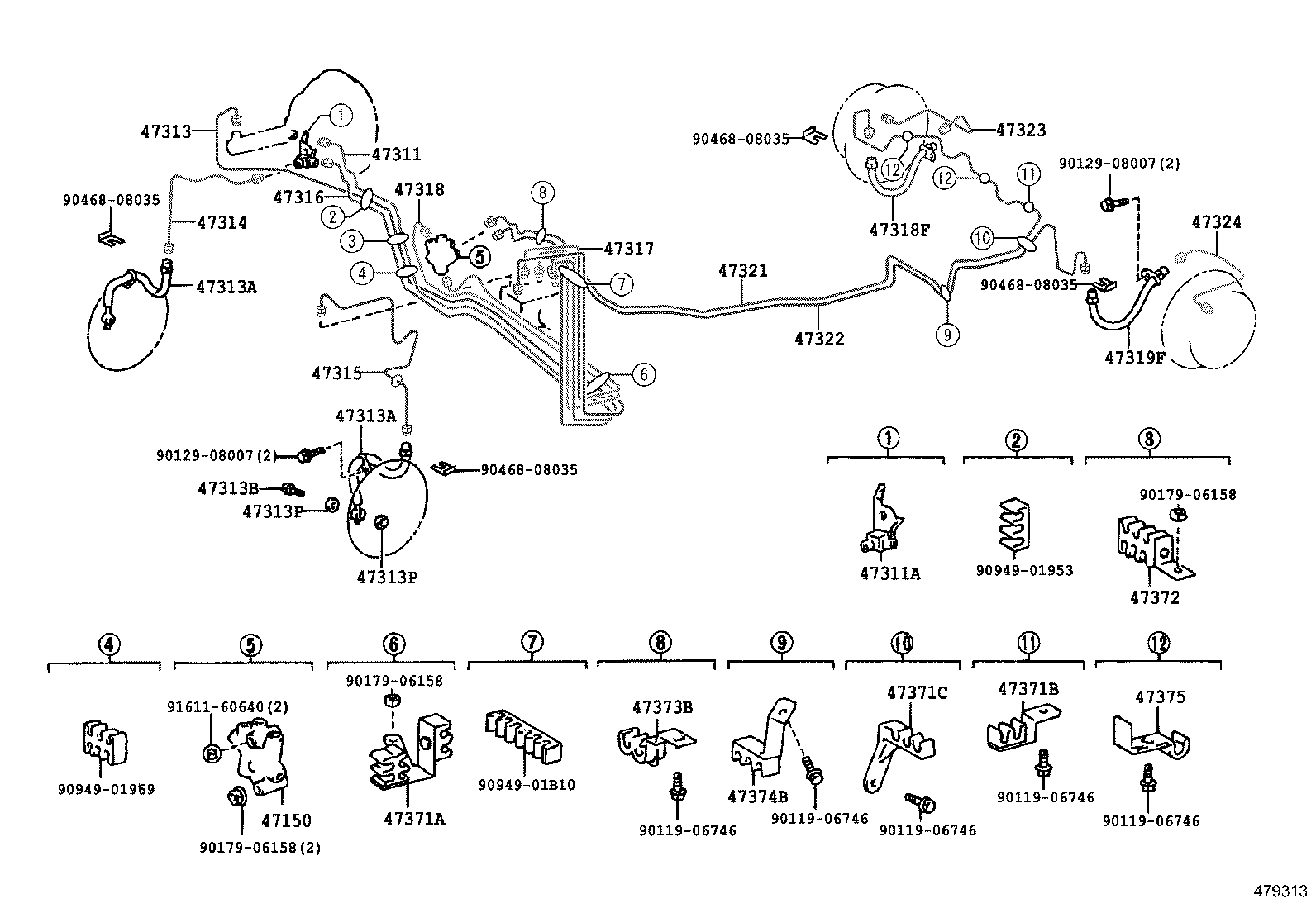

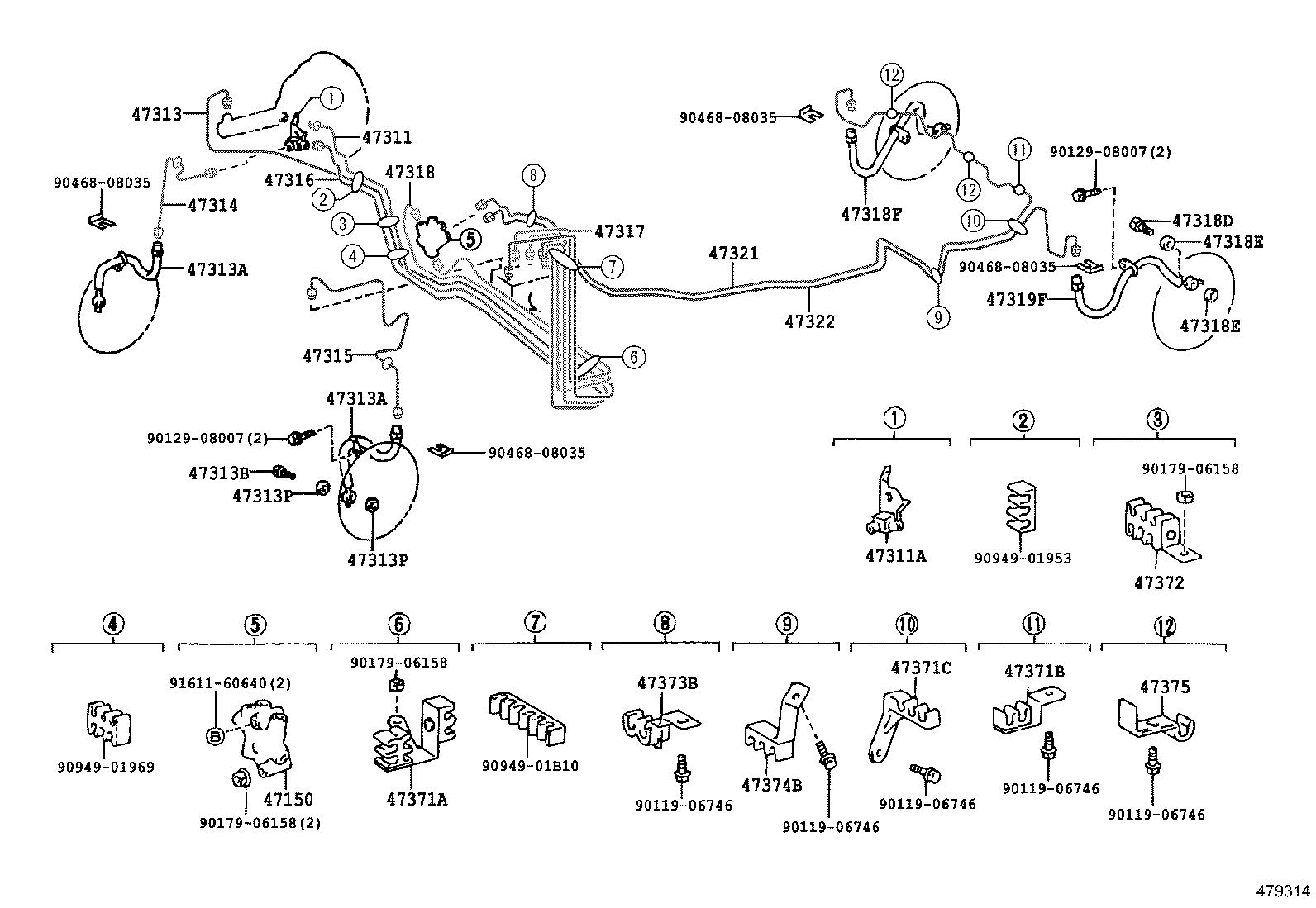

ILLUST NO. 1 OF 2(9601-9708)ST195..CZ,TZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12110 |
ST191,195 |
1 | ||
| 47150-20270 |
ST195 |
1 | ||
| 47150-20270 |
ST191,195 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20850 |
ST195 |
1 | ||
| 47311-2B200 |
ST19# |
1 | ||
| 47311-20880 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10201 |
CT190,ST19#..DSL,EFI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20620 |
ST195 |
1 | ||
| 47313-20650 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47313-20810 |
ST19# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20480 |
CT19#,ET196,ST19# |
1 | ||
| 47314-20520 |
ST19# |
1 | ||
| 47314-20520 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20700 |
AT191,CT190,ST19# |
1 | ||
| 47315-20620 |
ST195 |
1 | ||
| 47315-20540 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20610 |
ST19# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20180 |
CT190,ST19# |
1 | ||
| 47317-20250 |
AT191,CT190,ST19# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20310 |
CT190,ST19# |
1 | ||
| 47318-20380 |
AT191,CT190,ST19# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20430 |
ST195 |
1 | ||
| 47321-20360 |
ST195 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20460 |
CT190,ST19# |
1 | ||
| 47322-20520 |
AT191,CT190,ST19# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20170 |
ST195..CZ,TZ |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20170 |
ST195..CZ,TZ |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20311 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20301 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47371-20660 |
AT191,CT190,197,199,ST19# ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20500 |
AT191,CT190,ST19# |
1 | ||
| 47371-20411 |
CT190,ST19# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20700 |
AT191,CT190,ST19# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20370 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20320 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20330 |
CT190,ST19# |
1 | ||
| 47371-20680 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20291 |
AT191,CT190,ST19# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20690 |
AT191,CT190,ST19# |
2 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90949-01953 | ||||
| 90949-01969 | ||||
| 90949-01B10 | ||||
| 91611-60640 | ||||
ILLUST NO. 1 OF 2(9601-9708)TZG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12110 |
ST191,195 |
1 | ||
| 47150-20270 |
ST195 |
1 | ||
| 47150-20270 |
ST191,195 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20850 |
ST195 |
1 | ||
| 47311-2B200 |
ST19# |
1 | ||
| 47311-20880 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10201 |
CT190,ST19#..DSL,EFI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20620 |
ST195 |
1 | ||
| 47313-20650 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47313-20810 |
ST19# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02696 |
CT19#,ET196,ST19# 左側 |
1 | ||
| 90947-02695 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02821 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 90947-02820 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10045 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
AT191,CT19#,ET196,ST19# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20480 |
CT19#,ET196,ST19# |
1 | ||
| 47314-20520 |
ST19# |
1 | ||
| 47314-20520 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20700 |
AT191,CT190,ST19# |
1 | ||
| 47315-20620 |
ST195 |
1 | ||
| 47315-20540 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20610 |
ST19# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20180 |
CT190,ST19# |
1 | ||
| 47317-20250 |
AT191,CT190,ST19# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20310 |
CT190,ST19# |
1 | ||
| 47318-20380 |
AT191,CT190,ST19# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST191,195 |
2 | ||
| 90401-10015 |
ST195..TZG |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST191,195 |
4 | ||
| 47389-30010 |
ST195..TZG |
4 | ||
| 47389-30010 |
ST191,195 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02688 |
ST195 |
1 | ||
| 90947-02710 |
ST195..CZ,TZ |
1 | ||
| 90947-02824 |
ST195..TZG |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02709 |
ST195..CZ,TZ |
1 | ||
| 90947-02689 |
ST195 |
1 | ||
| 90947-02825 |
ST195..TZG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20430 |
ST195 |
1 | ||
| 47321-20360 |
ST195 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20460 |
CT190,ST19# |
1 | ||
| 47322-20520 |
AT191,CT190,ST19# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20311 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20301 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47371-20660 |
AT191,CT190,197,199,ST19# ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20500 |
AT191,CT190,ST19# |
1 | ||
| 47371-20411 |
CT190,ST19# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20380 |
CT190,ST19# |
1 | ||
| 47371-20700 |
AT191,CT190,ST19# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20370 |
CT19#,ET196,ST19# |
1 | ||
| 47371-20320 |
CT190,ST19# ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20330 |
CT190,ST19# |
1 | ||
| 47371-20680 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20291 |
AT191,CT190,ST19# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20690 |
AT191,CT190,ST19# |
2 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| 47371-20351 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90949-01953 | ||||
| 90949-01969 | ||||
| 90949-01B10 | ||||
| 91611-60640 | ||||

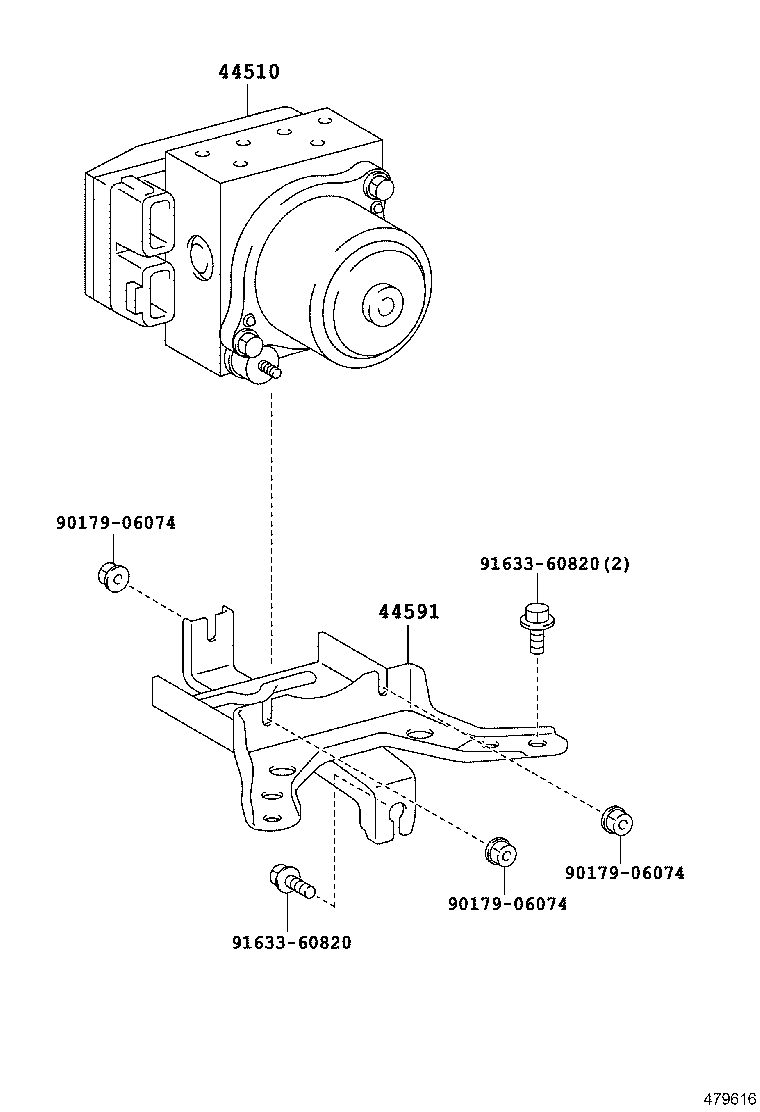

ILLUST NO. 2 OF 2(9601-9708)AT191,CT190,ST19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20901 |
AT191,CT190,ST19# |
1 | ||
| 44510-20120 |
ST195 |
1 | ||
| 44510-29025 |
AT191,CT190,ST19# |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-20090 |
AT191,CT190,ST19# |
1 | ||
| 44591-20070 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 91633-60820 | ||||
ILLUST NO. 2 OF 2(9211-9601)CT190,ST19#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20901 |
AT191,CT190,ST19# |
1 | ||
| 44510-20120 |
ST195 |
1 | ||
| 44510-29025 |
AT191,CT190,ST19# |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-10010 |
CT190,ST19# |
2 | ||
| 44543-10010 |
CT190,ST19# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-10010 |
CT190,ST19# |
3 | ||
| 44545-10010 |
CT190,ST19# |
3 | ||
| 44545-12090 |
CT190,ST19# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-10010 |
CT190,ST19# |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-20050 |
CT190,ST19# |
1 | ||
| 44551-20050 |
CT190,ST19# |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10205 |
CT190,ST19# |
1 | ||
| 90412-10205 |
CT190,ST19# |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-20090 |
AT191,CT190,ST19# |
1 | ||
| 44591-20070 |
CT190,ST19# |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20040 |
CT190,ST19# |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20050 |
CT190,ST19# |
1 | ||
| 44593-20050 |
CT190,ST19# |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-20020 |
CT190,ST19# |
1 | ||
| 44595-20020 |
CT190,ST19# |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08177 | ||||
| 90464-00657 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 91661-60816 | ||||
| 94614-10600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
