ST195G-DWPVF (1995)
Toyota Caldina
Production
Feb 1995
-
Aug 1997
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9211-9708)AT191,ET196,ST19# ; (9708- )ET196,ST198

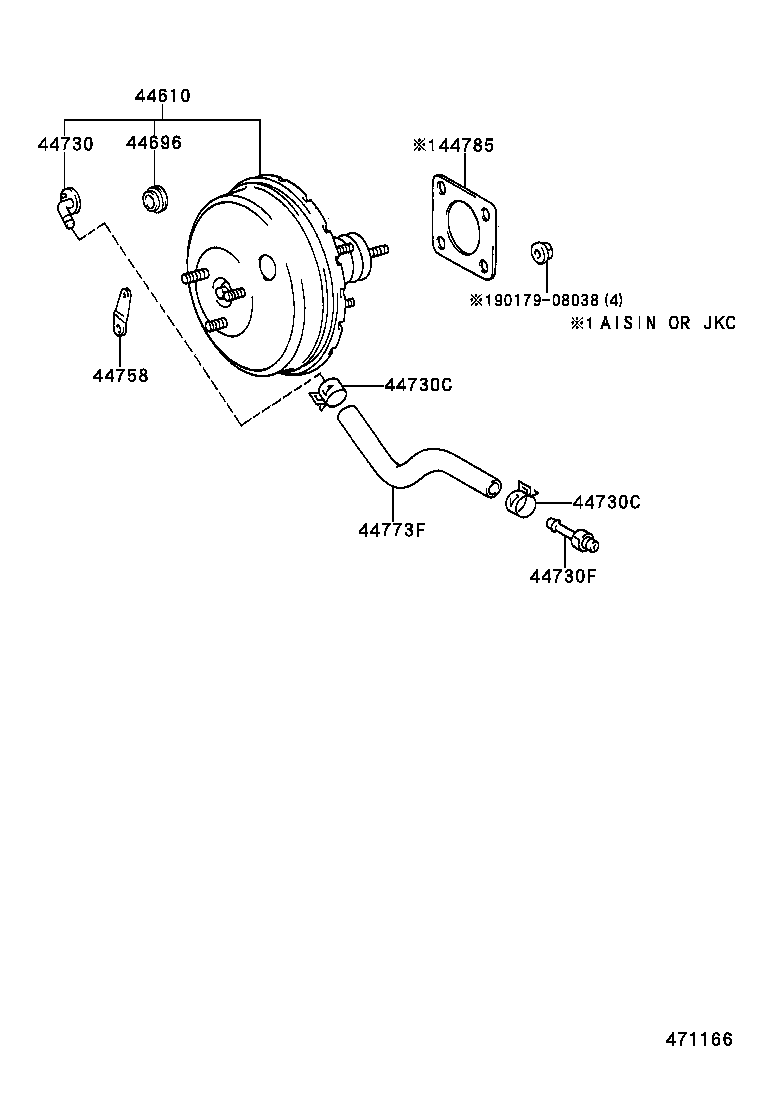

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2D320 |
ST195..CZ,TZ ｱﾘ(ABS) |
1 | ||
| 44610-2D740 |
ST195..TZG AISIN |
1 | ||
| 44610-2D280 |
ST195 |
1 | ||
| 44610-2D320 |
ST195..TZG JKC |
1 | ||
| 44610-2D740 |
ST195..TZG ｱﾘ(ABS) |
1 | ||
| 44610-2D490 |
ST195..TZG |
1 | ||
| 44610-2D810 |
ST195..CZ,TZ |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ST195 |
1 | ||
| 90480-24517 |
ST195 ｱﾘ(ABS) |
1 | ||
| 90480-24439 |
ST195..TZG AISIN |
1 | ||
| 90480-24517 |
ST195..TZG JKC |
1 | ||
| 90480-24439 |
ST195..TZG |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-28010 |
ST195 ｱﾘ(ABS) |
1 | ||
| 44730-14050 |
ST195..TZG |
1 | ||
| 44730-14050 |
ST195 |
1 | ||
| 44730-14050 |
ST195..TZG AISIN |
1 | ||
| 44730-28010 |
ST195..TZG JKC |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
ET196,ST19# |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16017 |
ET196,ST19# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT191,ST19# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20230 |
ST19# |
1 | ||
| 44758-20230 |
ST195 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-2B070 |
ST19#..CZ,TZ |
1 | ||
| 44773-2B050 |
ST195..TZG |
1 | ||
| 44773-20840 |
ST195 |
1 | ||
| 44773-20850 |
ST195..TZG ｱﾘ(ABS) |
1 | ||
| 44773-20850 |
ST195..TZG |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
