ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

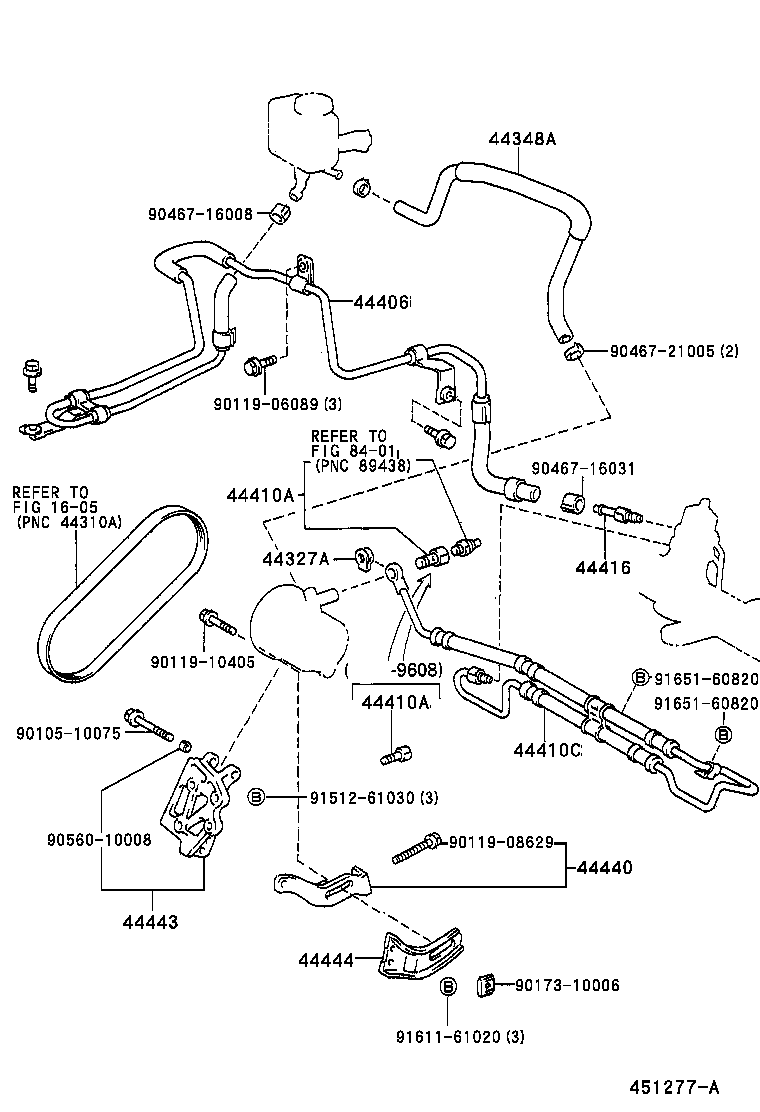

(9601-9708)ST195..CZ,TZ

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410A 44410A 44410C 44416 44440 44443 44444 8401 9010510075 9011906089 9011908629 9011910405 9017310006 9046716008 9046716031 9046721005 9056010008 9151261030 9161161020 9165160820 9165160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20280

ST19#..CZ,FZ,TZ

 1
44348-21010

ST195..TZG

 1
44348-20401

ST195..TZG

 1
44348-20480

ST195,198..CZ,TZ,U,UL,UX

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20560

ST195..CZ,TZ;ST195..5F..TZG

 1
44406-20710

ST195..CZ,TZ

 1
44406-21010

ST195..4FC..TZG

 1
44406-21020

ST195..TZG

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44338-33090

ST19#..CZ,TZ,U,UL,UX

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44338-33090

ST19#..CZ,TZ,U,UL,UX

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20730

ST195

 1
44410-20731

ST195..TZG

 1
44410-2B191

ST195..TZG

 1
44410-2B181

ST195,198..CZ,TZ,U,UL,UX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

ST195,198

 1
44443 - BRACKET, PUMP
44443-20050

ST191,195

 1
44443-20050

ST195,198

 1
44444 - STAY, PUMP, REAR
44444-20030

ST191,195

 1
44444-20030

ST195,198

 1
Common parts
90105-10075
90119-06089
90119-08629
90119-10405
90173-10006
90467-16008
90467-16031
90467-21005
90560-10008
91512-61030
91611-61020
91651-60820
Linked diagrams
1605
8401

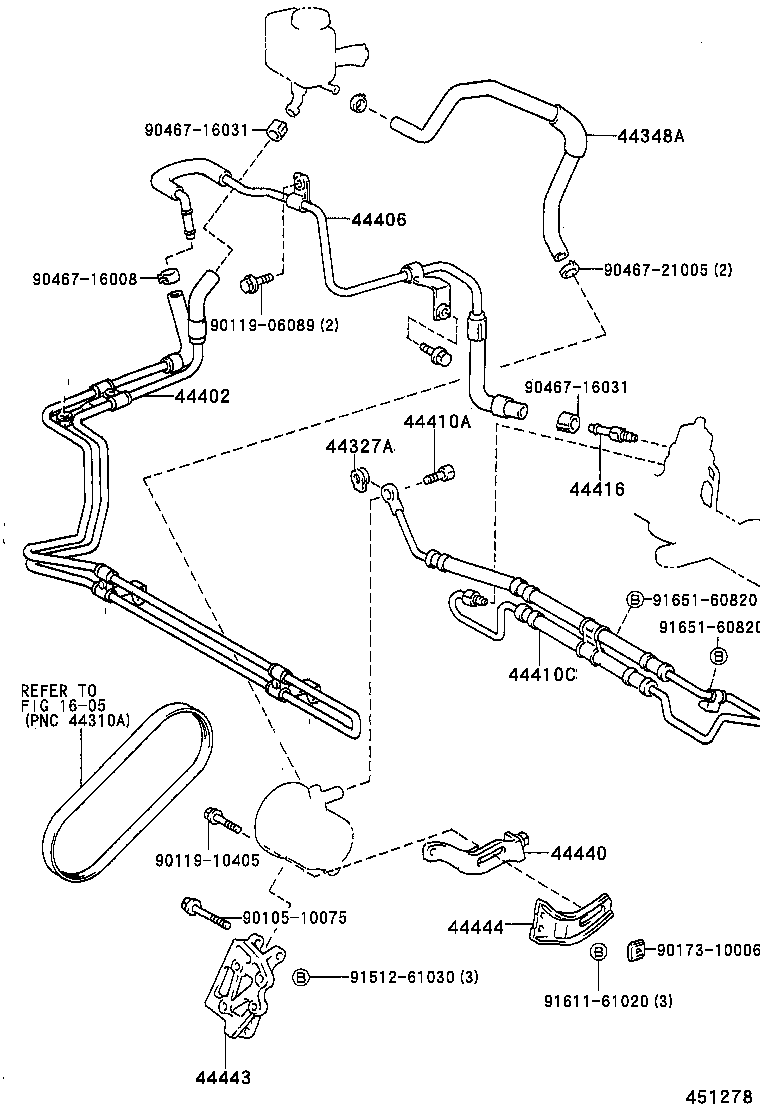

(9601-9708)TZG

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44402 44406 44410A 44410C 44416 44440 44443 44444 9010510075 9011906089 9011910405 9017310006 9046716008 9046716031 9046716031 9046721005 9151261030 9161161020 9165160820 9165160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20280

ST19#..CZ,FZ,TZ

 1
44348-21010

ST195..TZG

 1
44348-20401

ST195..TZG

 1
44348-20480

ST195,198..CZ,TZ,U,UL,UX

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-21010

ST195..TZG

 1
44402-20410

ST195..4FC..TZG

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20560

ST195..CZ,TZ;ST195..5F..TZG

 1
44406-20710

ST195..CZ,TZ

 1
44406-21010

ST195..4FC..TZG

 1
44406-21020

ST195..TZG

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44338-33090

ST19#..CZ,TZ,U,UL,UX

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20730

ST195

 1
44410-20731

ST195..TZG

 1
44410-2B191

ST195..TZG

 1
44410-2B181

ST195,198..CZ,TZ,U,UL,UX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

ST195,198

 1
44443 - BRACKET, PUMP
44443-20050

ST191,195

 1
44443-20050

ST195,198

 1
44444 - STAY, PUMP, REAR
44444-20030

ST191,195

 1
44444-20030

ST195,198

 1
Common parts
90105-10075
90119-06089
90119-10405
90173-10006
90467-16008
90467-16031
90467-21005
91512-61030
91611-61020
91651-60820
Linked diagrams
1605

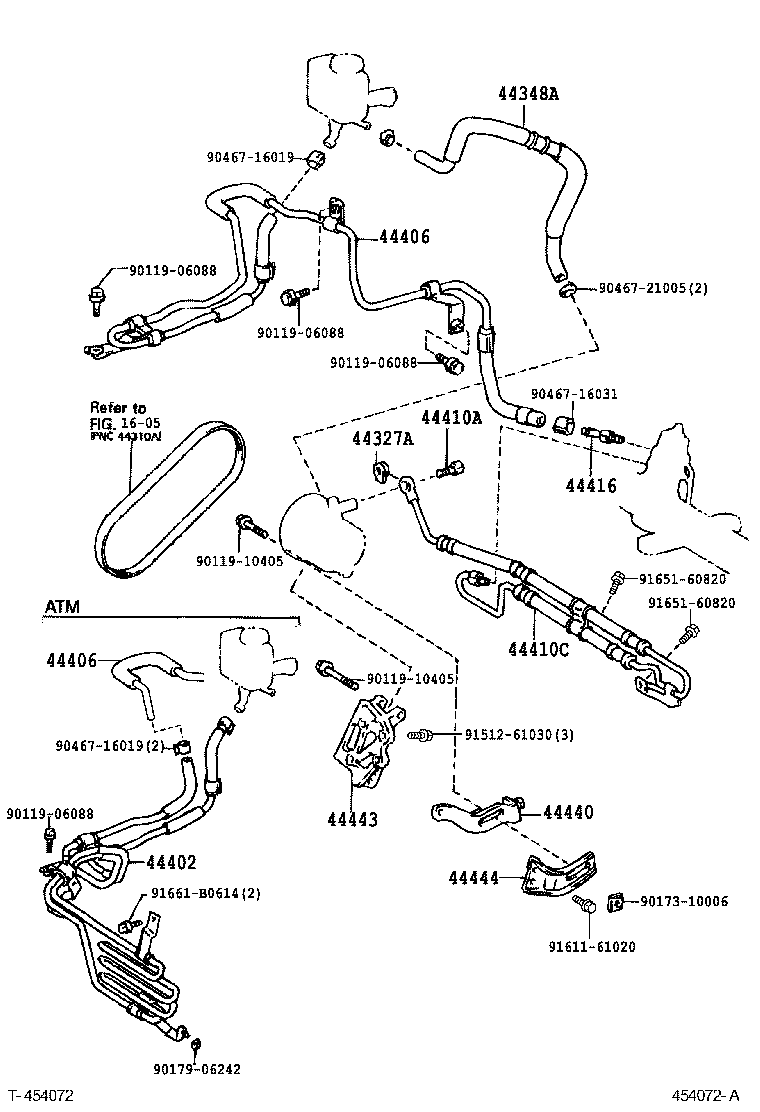

(9502-9601)TZG

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44402 44406 44406 44410A 44410C 44416 44440 44443 44444 9011906088 9011906088 9011906088 9011906088 9011910405 9011910405 9017310006 9017906242 9046716019 9046716019 9046716031 9046721005 9151261030 9161161020 9165160820 9165160820 91661B0614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20280

ST19#..CZ,FZ,TZ

 1
44348-21010

ST195..TZG

 1
44348-20401

ST195..TZG

 1
44348-20480

ST195,198..CZ,TZ,U,UL,UX

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-21010

ST195..TZG

 1
44402-20410

ST195..4FC..TZG

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20560

ST195..CZ,TZ;ST195..5F..TZG

 1
44406-20710

ST195..CZ,TZ

 1
44406-21010

ST195..4FC..TZG

 1
44406-21020

ST195..TZG

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20560

ST195..CZ,TZ;ST195..5F..TZG

 1
44406-20710

ST195..CZ,TZ

 1
44406-21010

ST195..4FC..TZG

 1
44406-21020

ST195..TZG

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44338-33090

ST19#..CZ,TZ,U,UL,UX

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20730

ST195

 1
44410-20731

ST195..TZG

 1
44410-2B191

ST195..TZG

 1
44410-2B181

ST195,198..CZ,TZ,U,UL,UX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

ST195,198

 1
44443 - BRACKET, PUMP
44443-20050

ST191,195

 1
44443-20050

ST195,198

 1
44444 - STAY, PUMP, REAR
44444-20030

ST191,195

 1
44444-20030

ST195,198

 1
Common parts
90119-06088
90119-10405
90173-10006
90179-06242
90467-16019
90467-16031
90467-21005
91512-61030
91611-61020
91651-60820
91661-B0614
Linked diagrams
1605

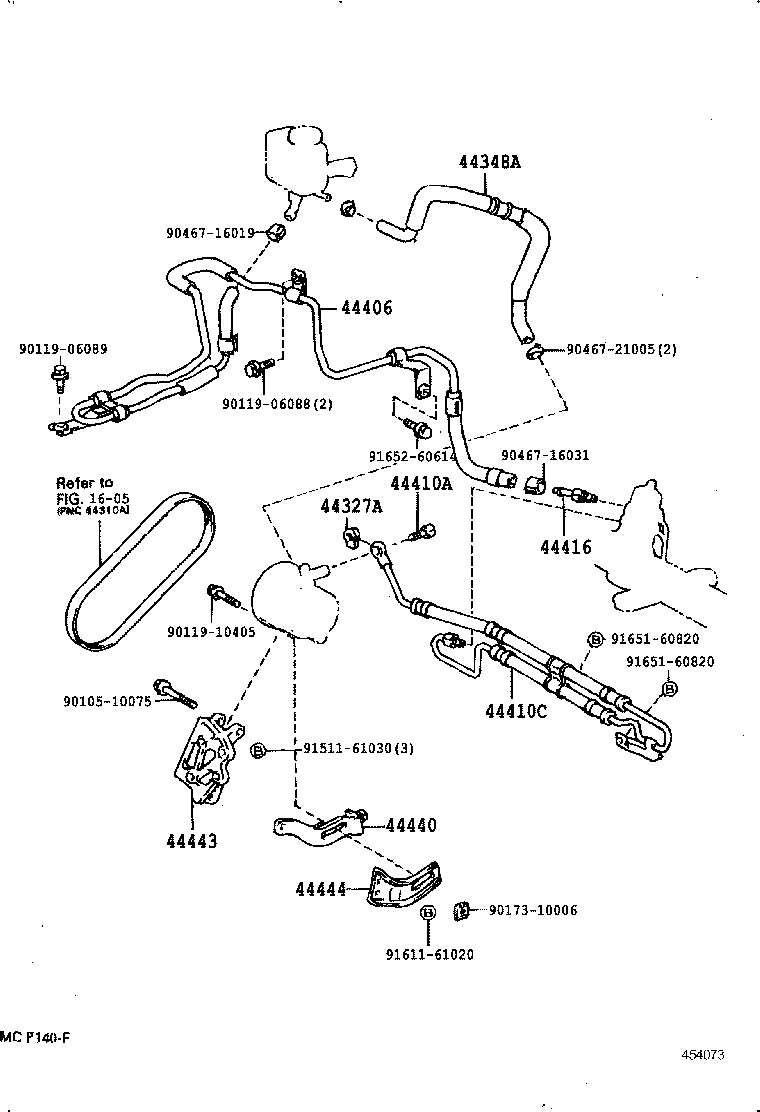

(9211-9601)ST195..CZ,TZ

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410A 44410C 44416 44440 44443 44444 9010510075 9011906088 9011906089 9011910405 9017310006 9046716019 9046716031 9046721005 9151161030 9161161020 9165160820 9165160820 9165260614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT191,CT19#,ET196,ST19#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20280

ST19#..CZ,FZ,TZ

 1
44348-21010

ST195..TZG

 1
44348-20401

ST195..TZG

 1
44348-20480

ST195,198..CZ,TZ,U,UL,UX

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20560

ST195..CZ,TZ;ST195..5F..TZG

 1
44406-20710

ST195..CZ,TZ

 1
44406-21010

ST195..4FC..TZG

 1
44406-21020

ST195..TZG

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT191,CT19#,ET196,ST19#

 1
44338-33090

ST19#..CZ,TZ,U,UL,UX

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20730

ST195

 1
44410-20731

ST195..TZG

 1
44410-2B191

ST195..TZG

 1
44410-2B181

ST195,198..CZ,TZ,U,UL,UX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT191,CT19#,ET196,ST19#

 1
44440 - BRACKET ASSY, PUMP
44440-20040

ST195,198

 1
44443 - BRACKET, PUMP
44443-20050

ST191,195

 1
44443-20050

ST195,198

 1
44444 - STAY, PUMP, REAR
44444-20030

ST191,195

 1
44444-20030

ST195,198

 1
Common parts
90105-10075
90119-06088
90119-06089
90119-10405
90173-10006
90467-16019
90467-16031
90467-21005
91511-61030
91611-61020
91651-60820
91652-60614
Linked diagrams
1605
