ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9708)ST195..4FC ; (9908- )ST198

Click highlighted areas on diagram

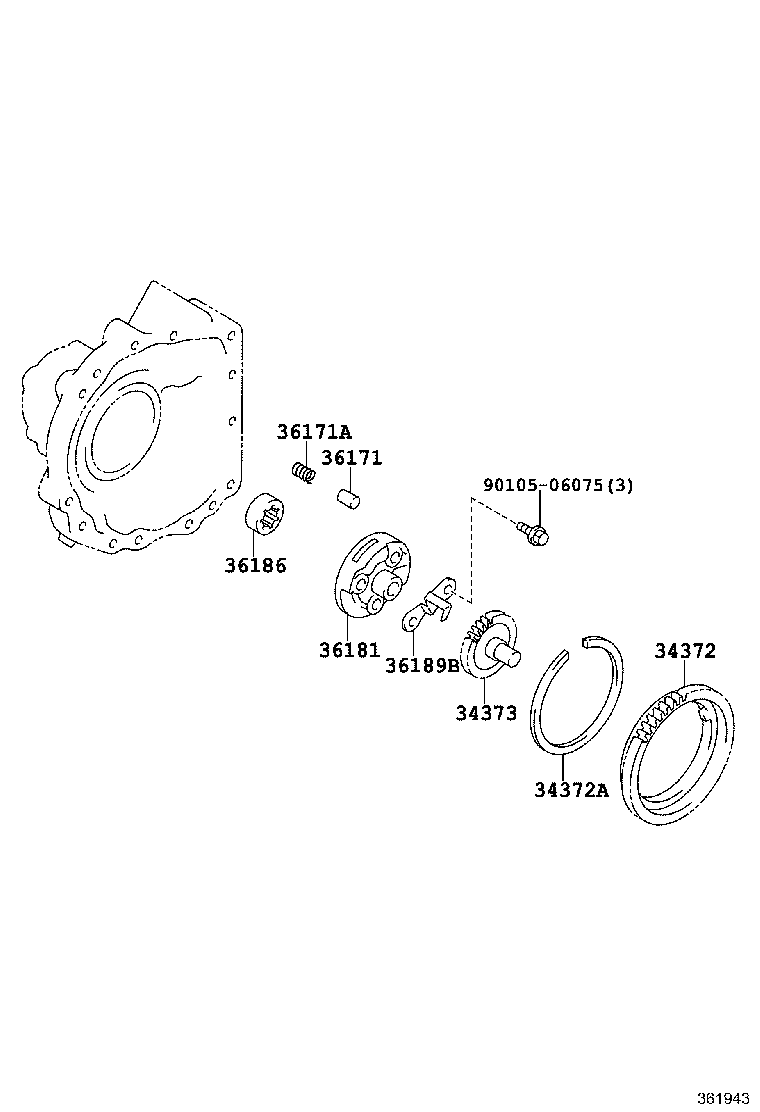

diagram 34372 34372A 34373 36171 36171A 36181 36186 36189B 9010506075
Part # Description Qty Price
34372 - GEAR, TRANSFER OIL PUMP DRIVE
34372-12010

ST195,198..4FC

 1
34372A - RING, SHAFT SNAP (FOR TRANSFER OIL PUMP DRIVE GEAR)
90520-99005

ST195,198..4FC

 1
34373 - GEAR, TRANSFER OIL PUMP DRIVEN
34373-12010

ST195,198..4FC

 1
36171 - VALVE, TRANSFER OIL COOLER RELIEF
36171-12010

ST195,198..4FC

 1
36171A - SPRING, COMPRESSION(FOR TRANSFER OIL COOLER RELIEF VALV
90501-06049

ST195,198..4FC

 1
36181 - BODY, TRANSFER OIL PUMP
36181-32010

ST195,198..4FC

 1
36186 - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-12010

ST195,198..4FC

 1
36189B - STOPPER, TRANSFER OIL PUMP DRIVEN GEAR
36189-32010

ST195,198..4FC

 1
Common parts
90105-06075
