ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9708)ST195..4FC ; (9908- )ST198

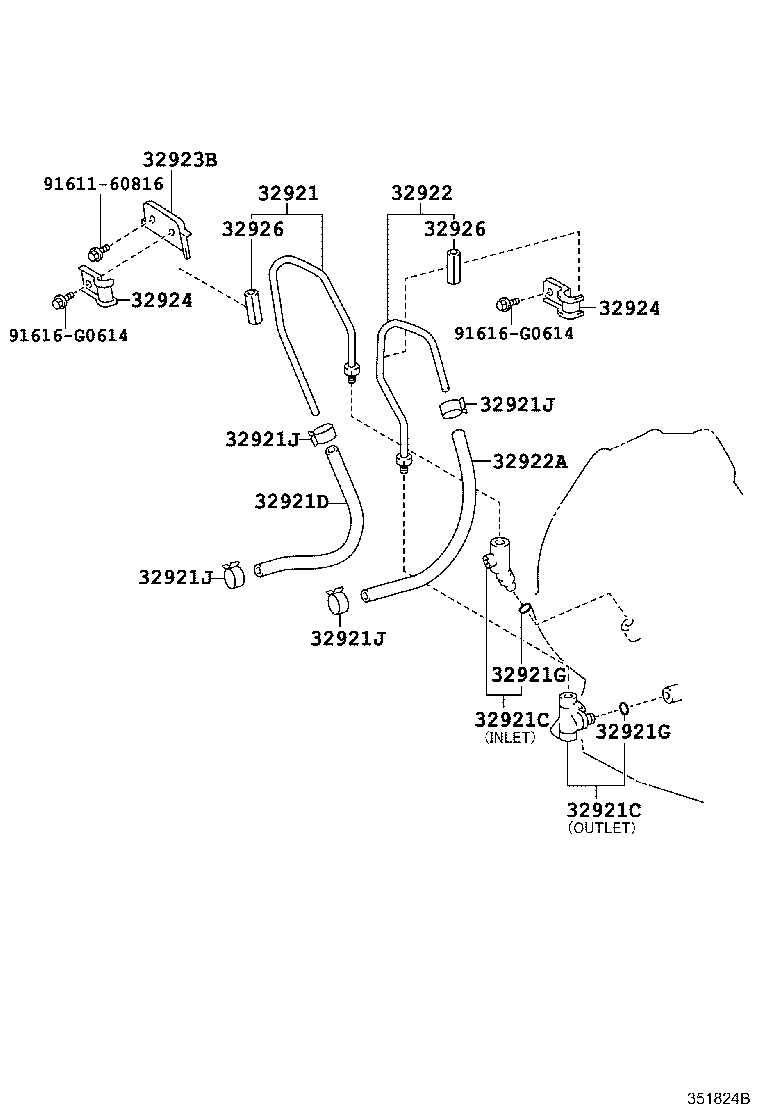

Click highlighted areas on diagram

A540H

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923B 32924 32924 32926 32926 9161160816 91616G0614 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-32140

ST195..4FC

 1
32921-20420

ST195,198..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

ET196,ST195..ATM

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST195,198..4FC

ｲﾝﾚｯﾄ

 1
32901-32060

ST195,198..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

ET196,ST195..ATM

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST195,198..4FC

ｲﾝﾚｯﾄ

 1
32901-32060

ST195,198..4FC

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

ST195..4FC

 1
32942-35011

ST195..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST195..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST195..4FC

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-32021

ST195..4FC

 1
32922-20430

ST195,198..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17127

ST195,198..4FC

 1
90445-17106

CT190,196,ST19#..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST195,198..4FC

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST195,198..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST195..4FC

長さ=35,内径=10

 1
32926-20010

ST195..4FC

長さ=25,内径=10

 1
32926-32010

ST195..4FC

長さ=40,内径=10

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST195..4FC

長さ=35,内径=10

 1
32926-20010

ST195..4FC

長さ=25,内径=10

 1
32926-32010

ST195..4FC

長さ=40,内径=10

 1
Common parts
91611-60816
91616-G0614

(9211-9601)ST195..4FC

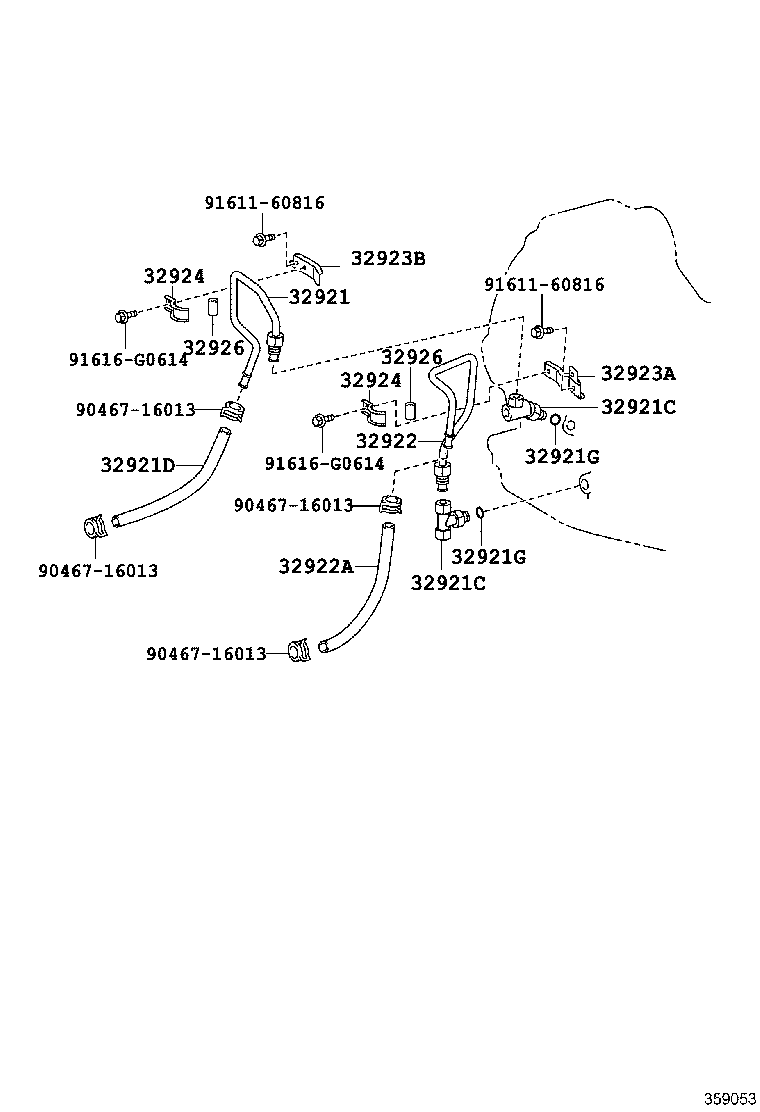

Click highlighted areas on diagram

A540H

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923A 32923B 32924 32924 32926 32926 9046716013 9046716013 9046716013 9046716013 9161160816 9161160816 91616G0614 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-32140

ST195..4FC

 1
32921-20420

ST195,198..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

ET196,ST195..ATM

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST195,198..4FC

ｲﾝﾚｯﾄ

 1
32901-32060

ST195,198..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

ET196,ST195..ATM

ｱｳﾄﾚｯﾄ

 1
32918-32010

ST195,198..4FC

ｲﾝﾚｯﾄ

 1
32901-32060

ST195,198..4FC

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

ST195..4FC

 1
32942-35011

ST195..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST195..4FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ST195..4FC

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-32021

ST195..4FC

 1
32922-20430

ST195,198..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17127

ST195,198..4FC

 1
90445-17106

CT190,196,ST19#..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-32030

ST195..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST195,198..4FC

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12071

ST195,198..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST195..4FC

長さ=35,内径=10

 1
32926-20010

ST195..4FC

長さ=25,内径=10

 1
32926-32010

ST195..4FC

長さ=40,内径=10

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST195..4FC

長さ=35,内径=10

 1
32926-20010

ST195..4FC

長さ=25,内径=10

 1
32926-32010

ST195..4FC

長さ=40,内径=10

 1
Common parts
90467-16013
91611-60816
91616-G0614
