ST195G-DWPVF (1995)
Toyota Caldina

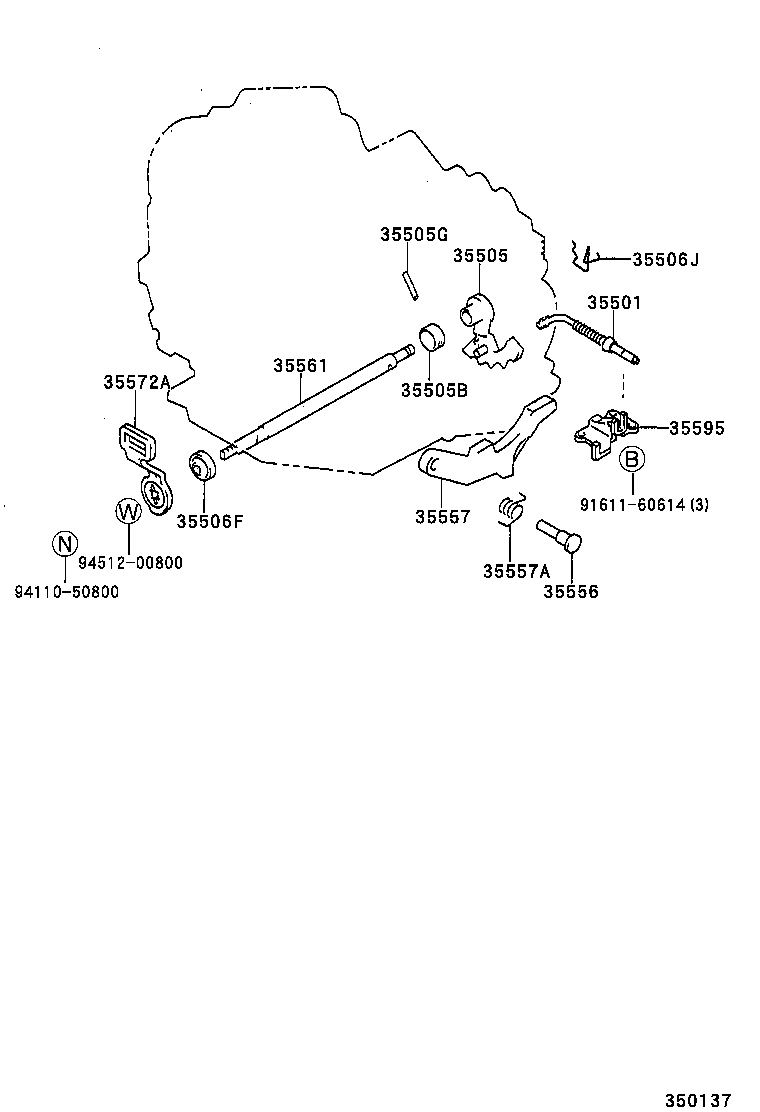

ILLUST NO. 1 OF 2(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-32040 |
ST195,198..4FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-32040 |
ET196,ST195,198..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
ET196,ST195,198..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32020 |
ST195,198..4FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32031 |
ST195,198..4FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90949-03003 |
ST195..4FC |
1 | ||
| 90949-03043 |
ST195,198..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-20150 |
ST195..4FC |
1 | ||
| 35572-32030 |
ST195,198..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-32020 |
ST195,198..4FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

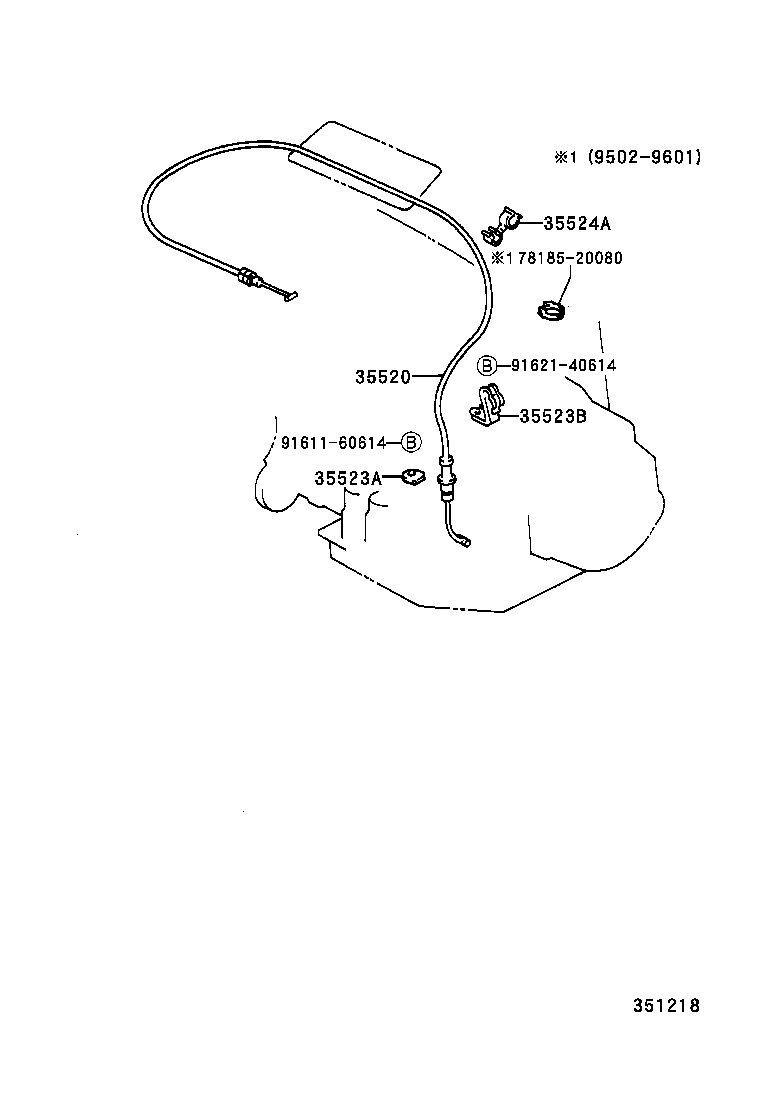

ILLUST NO. 2 OF 2(9502-9708)4FC..TZG
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-21020 |
ST195..4FC..TZG |
1 | ||
| 35520-20390 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 35520-44020 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35520-20520 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 35520-21030 |
ST195..4FC..TZG |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
ST195,198..4FC |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 35523-32210 |
ST195..4FC..TZG |
1 | ||
| 35523-20500 |
ST195..4FC..TZG |
1 | ||
| 35523-20310 |
ST19#..4FC..(CZ,TZ) |
1 | ||
| 35523-20311 |
ST19#..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35524A - CLAMP, THROTTLE CABLE, NO.6 | ||||
| 90464-00617 |
ST195..4FC..TZG |
1 | ||
| 90464-00535 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 91611-60614 | ||||
| 91621-40614 | ||||

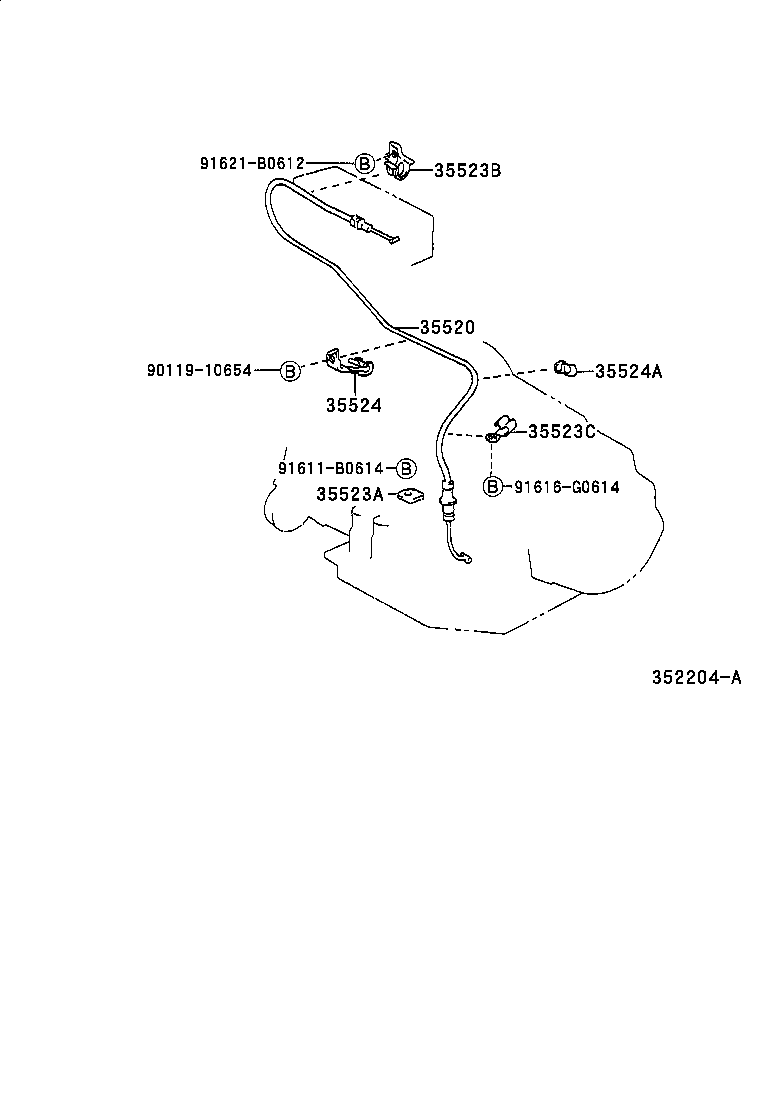

ILLUST NO. 2 OF 2(9211-9708)ST195..4FC..CZ,TZ ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-21020 |
ST195..4FC..TZG |
1 | ||
| 35520-20390 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 35520-44020 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35520-20520 |
ST195..4FC..(CZ,TZ) |
1 | ||
| 35520-21030 |
ST195..4FC..TZG |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
ST195,198..4FC |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 35523-32210 |
ST195..4FC..TZG |
1 | ||
| 35523-20500 |
ST195..4FC..TZG |
1 | ||
| 35523-20310 |
ST19#..4FC..(CZ,TZ) |
1 | ||
| 35523-20311 |
ST19#..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35523C - CLAMP, THROTTLE CABLE, NO.4 | ||||
| 35523-20370 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20380 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35524A - CLAMP, THROTTLE CABLE, NO.6 | ||||
| 90464-00617 |
ST195..4FC..TZG |
1 | ||
| 90464-00535 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| Common parts | ||||
| 90119-10654 | ||||
| 91611-B0614 | ||||
| 91616-G0614 | ||||
| 91621-B0612 | ||||
