ST195G-DWPVF (1995)
Toyota Caldina

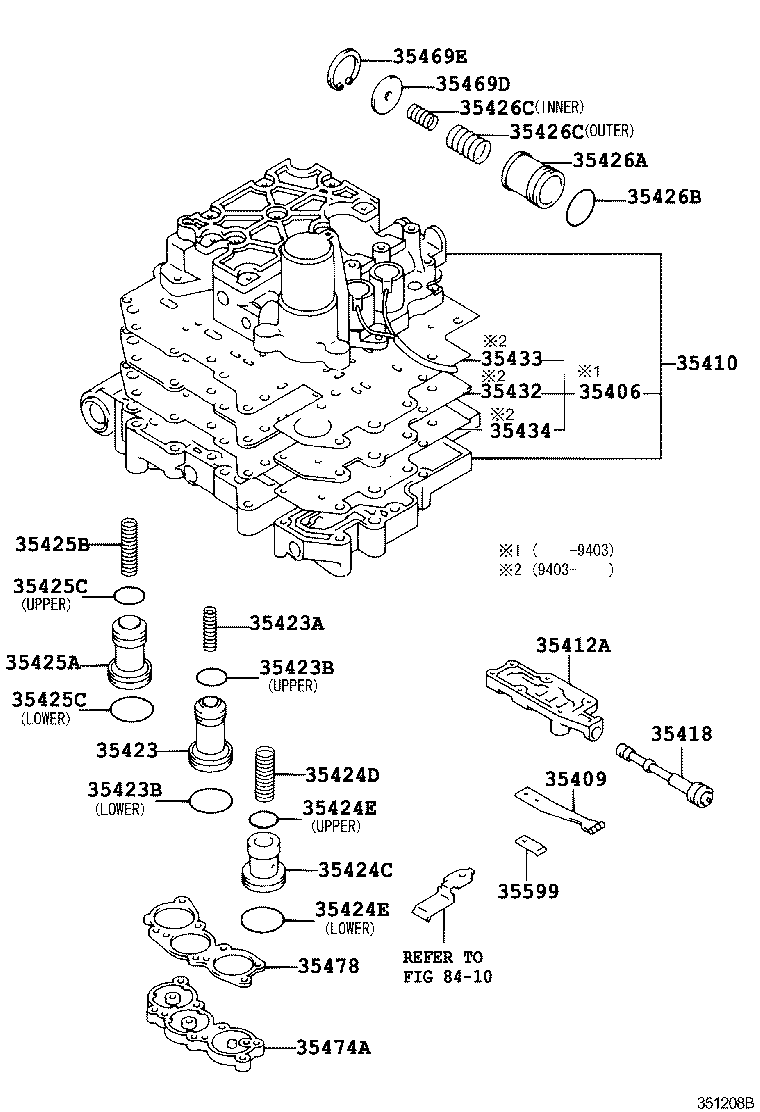

ILLUST NO. 1 OF 5(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35406 - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-32031 |
ST195..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
ET196,ST195,198..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-32152 |
ST195..4FC |
1 | ||
| 35410-20431 |
ST195..4FC..TZG |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32020 |
ST195,198..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-32010 |
ST195..4FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25031 |
ST195,198..4FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
ST195,198..4FC 上側 |
1 | ||
| 90301-30005 |
ST195,198..4FC 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
ST195,198..4FC 上側 |
1 | ||
| 90301-30005 |
ST195,198..4FC 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-32021 |
ST195,198..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-29028 |
ST195,198..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
ST195,198..4FC 下側 |
1 | ||
| 90301-30005 |
ST195,198..4FC 上側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
ST195,198..4FC 下側 |
1 | ||
| 90301-30005 |
ST195,198..4FC 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-32010 |
ST195,198..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-20126 |
ST195..4FC..TZG |
1 | ||
| 90501-20094 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
ST195,198..4FC 上側 |
1 | ||
| 90301-34007 |
ST195,198..4FC 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
ST195,198..4FC 上側 |
1 | ||
| 90301-34007 |
ST195,198..4FC 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-32020 |
ST195,198..4FC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
ST195,198..4FC |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-29019 |
ST195,198..4FC 外側 |
1 | ||
| 90501-26036 |
ST195,198..4FC 内側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-29019 |
ST195,198..4FC 外側 |
1 | ||
| 90501-26036 |
ST195,198..4FC 内側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-32093 |
ST195,198..4FC |
1 | ||
| 35469D - SPACER (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35469-32020 |
ST195,198..4FC |
1 | ||
| 35469E - RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER) | ||||
| 96151-03700 |
ST195,198..4FC |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-32030 |
ST195,198..4FC |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32020 |
ST195,198..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32020 |
ST195,198..4FC |
1 | ||

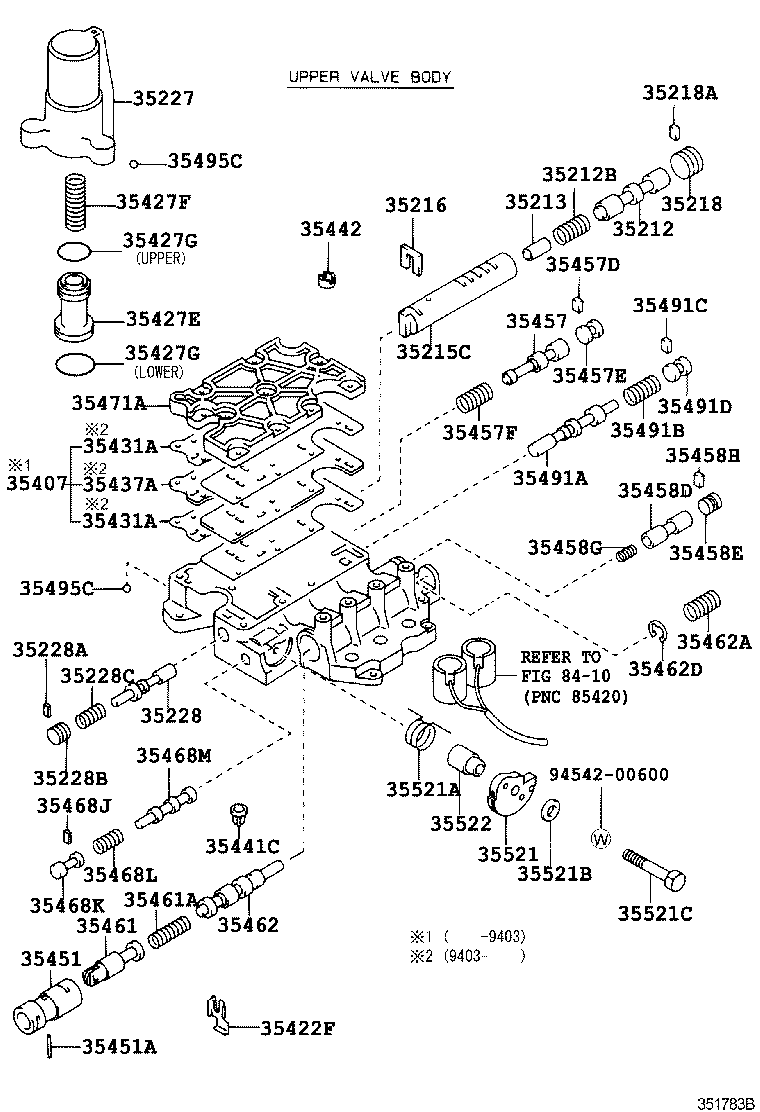

ILLUST NO. 2 OF 5(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
ET196,ST195,198..ATM |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-32020 |
ST195,198..4FC |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| 35227 - CYLINDER, B-0 ACCUMULATOR | ||||
| 35227-32011 |
ST195,198..4FC |
1 | ||
| 35228 - VALVE, 2ND MODULATOR | ||||
| 35228-32010 |
ST195,198..4FC |
1 | ||
| 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| 35228B - PLUG (FOR 2ND MODULATOR VALVE) | ||||
| 90339-04025 |
ST195,198..4FC |
1 | ||
| 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) | ||||
| 90501-09122 |
ST195,198..4FC |
1 | ||
| 35407 - PLATE SUB-ASSY, VALVE BODY COVER | ||||
| 35407-32021 |
ST195..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-32020 |
ST195,198..4FC |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35401-32011 |
ST195,198..4FC |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-17026 |
ST195..4FC..TZG |
1 | ||
| 90501-17023 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
ST195,198..4FC 下側 |
1 | ||
| 90301-20002 |
ST195,198..4FC 上側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
ST195,198..4FC 下側 |
1 | ||
| 90301-20002 |
ST195,198..4FC 上側 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
ST195,198..4FC |
3 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32020 |
ST195,198..4FC |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
ET196,ST195,198..ATM |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-04003 |
ST195,198..4FC |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
ET196,ST195,198..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-32010 |
ST195,198..4FC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
ET196,ST195,198..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
ST195,198..4FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03017 |
ST195,198..4FC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10054 |
ST195,198..4FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07022 |
ET196,ST195,198..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35468J - KEY, STRAIGHT (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90282-03001 |
ST195,198..4FC |
1 | ||
| 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90339-04022 |
ST195,198..4FC |
1 | ||
| 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08100 |
ST195,198..4FC |
1 | ||
| 35468M - VALVE, B-1 ORIFICE CONTROL | ||||
| 35468-32020 |
ST195,198..4FC |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-32020 |
ST195,198..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-32020 |
ST195,198..4FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10172 |
ST195,198..4FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04025 |
ST195,198..4FC |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ST195,198..4FC |
8 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ST195,198..4FC |
8 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-32040 |
ST195,198..4FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
CT190,196,197,ET196,ST190,191,195..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06026 |
ST195,198..4FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
| Linked diagrams | ||||
| 8410 | ||||

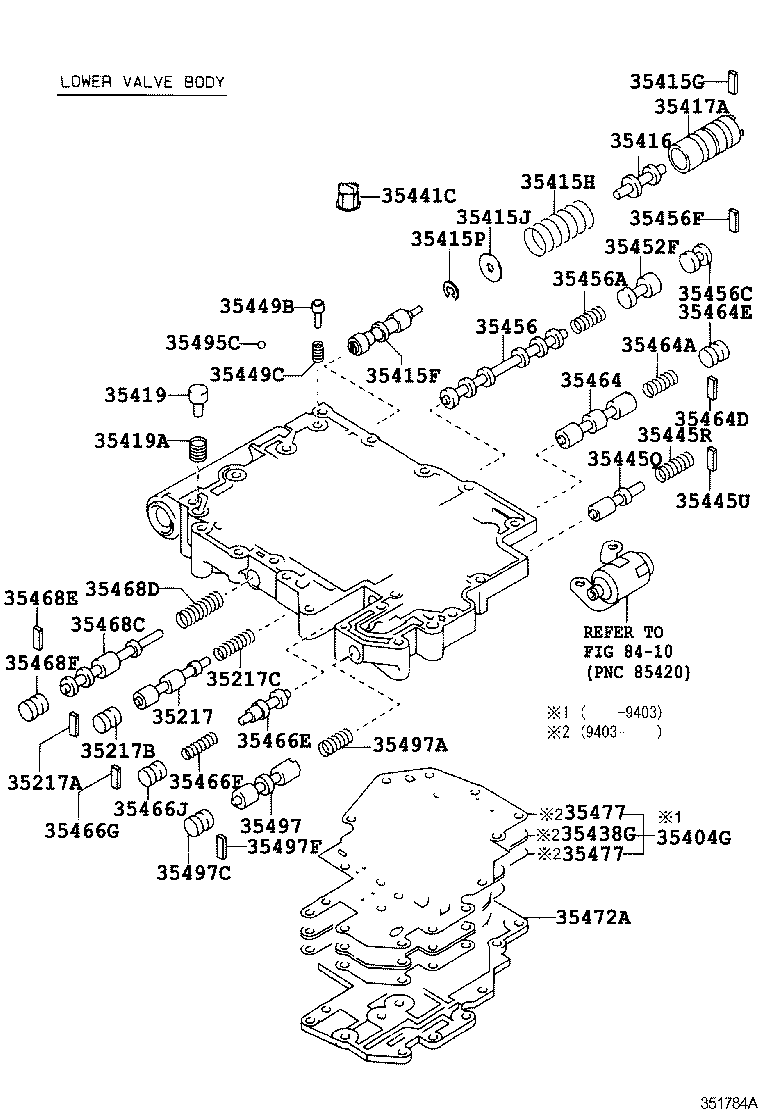

ILLUST NO. 3 OF 5(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35217 - VALVE, ACCUMULATOR CONTROL, NO.2 | ||||
| 35217-32010 |
ST195,198..4FC |
1 | ||
| 35217A - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90282-03017 |
ST195,198..4FC |
1 | ||
| 35217B - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90339-04003 |
ST195,198..4FC |
1 | ||
| 35217C - SPRING, COMPRESSION | ||||
| 90501-06034 |
ST195,198..4FC |
1 | ||
| 35404G - PLATE SUB-ASSY, VALVE BODY, NO.2 | ||||
| 35404-32010 |
ST195..4FC |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-32021 |
ST195..4FC |
1 | ||
| 35415-32025 |
ST195,198..4FC |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03017 |
ST195,198..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16120 |
ST195,198..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
ET196,ST195,198..ATM |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
ET196,ST195,198..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32030 |
ST195..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-32031 |
ST195..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
ET196,ST195,198..ATM |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35438-32012 |
ST195,198..4FC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
ST195,198..4FC |
3 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09086 |
ST195,198..4FC |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03002 |
CT190,196,197,ST195,198..4FC |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35452F - PLUG, 2-3 SHIFT VALVE | ||||
| 35452-32010 |
ST195,198..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32030 |
ST195,198..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09088 |
ST195,198..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05017 |
ST195,198..4FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03017 |
ST195..4FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-32030 |
ST195,198..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09116 |
ST195,198..4FC |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-04025 |
ST195,198..4FC |
1 | ||
| 35466E - VALVE, 2ND LOCK | ||||
| 35466-32010 |
ST195,198..4FC |
1 | ||
| 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) | ||||
| 90501-06047 |
ST195,198..4FC |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 90282-03002 |
ST195,198..4FC |
1 | ||
| 35466J - PLUG (FOR 2ND LOCK VALVE) | ||||
| 90339-04028 |
ST195,198..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32030 |
ST195..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14115 |
ST195,198..4FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03003 |
ST195,198..4FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04025 |
ST195,198..4FC |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-32060 |
ST195,198..4FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-32044 |
ST195..4FC..TZG |
1 | ||
| 35477-32044 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
2 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-32044 |
ST195..4FC..TZG |
1 | ||
| 35477-32044 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
2 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ST195,198..4FC |
8 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-32030 |
ST195,198..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09083 |
ST195,198..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04025 |
ST195,198..4FC |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03011 |
ST195,198..4FC |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||

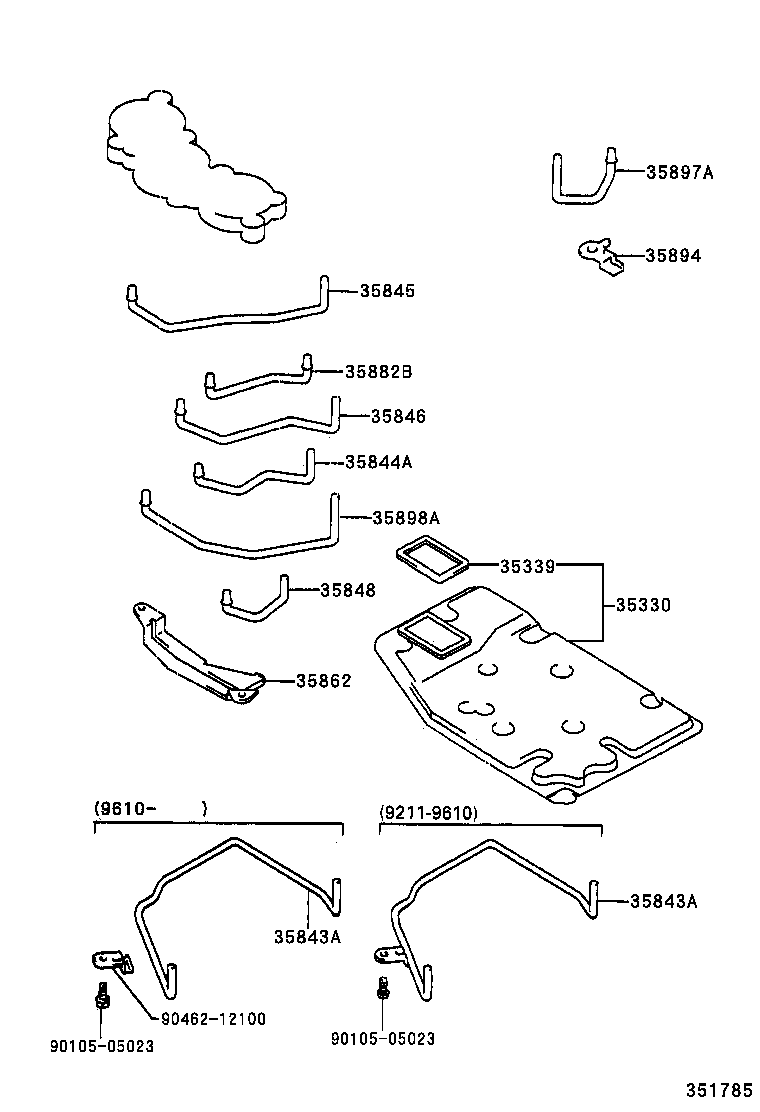

ILLUST NO. 4 OF 5(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-32030 |
ST195..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-32020 |
ST195,198..4FC |
1 | ||
| 35843A - TUBE, TRANSFER LUBRICATION APPLY | ||||
| 35843-32011 |
ST195..4FC |
1 | ||
| 35843-33020 |
ST195,198..4FC |
1 | ||
| 35843A - TUBE, TRANSFER LUBRICATION APPLY | ||||
| 35843-32011 |
ST195..4FC |
1 | ||
| 35843-33020 |
ST195,198..4FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-32030 |
ST195,198..4FC |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32020 |
ST195,198..4FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-32030 |
ST195,198..4FC |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-32020 |
ST195,198..4FC |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-32020 |
ST195,198..4FC |
1 | ||
| 35882B - TUBE, REAR SERVO APPLY | ||||
| 35882-32010 |
ST195,198..4FC |
1 | ||
| 35894 - SUPPORT, ACCUMULATOR TUBE | ||||
| 35894-32010 |
ST195,198..4FC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-32010 |
ST195,198..4FC |
1 | ||
| 35898A - TUBE, ACCUMULATOR BACK PRESSURE, NO.2 | ||||
| 35898-32010 |
ST195,198..4FC |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90462-12100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
