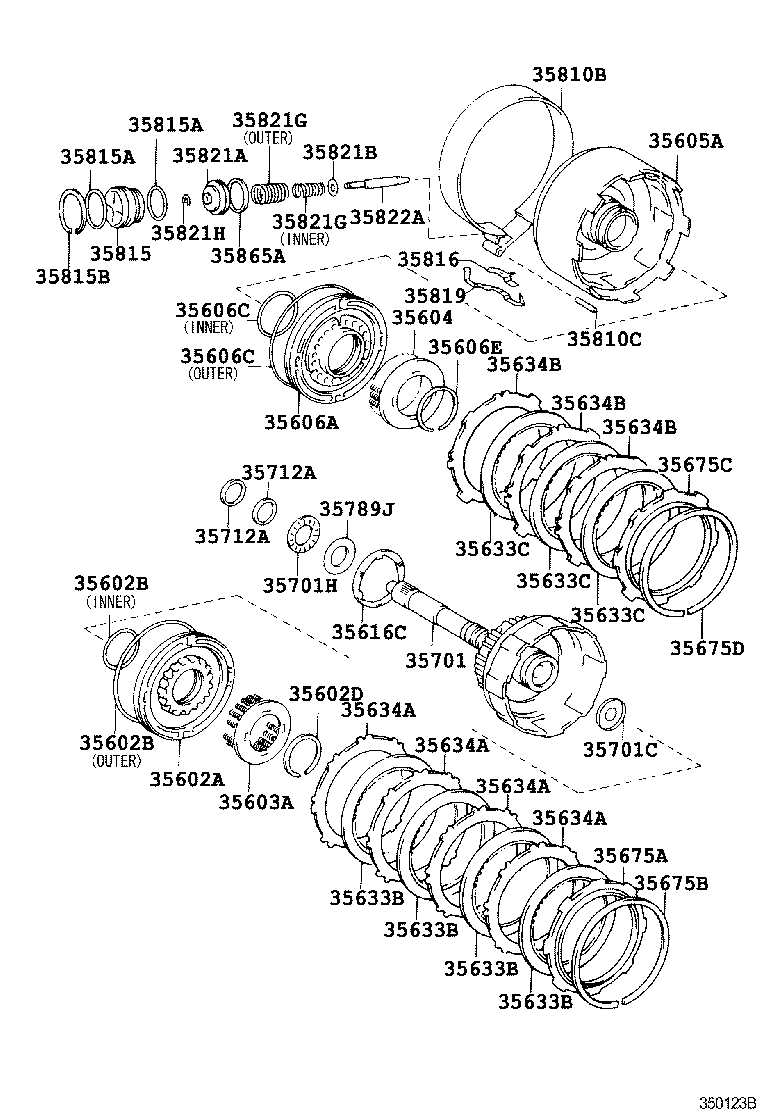

ST195G-DWPVF (1995)
Toyota Caldina
(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-32050 |
CT190,196,ET196,ST195..ATM |
1 | ||
| 35602-32050 |
ET196,ST195..ATM |
1 | ||
| 35602-32050 |
ST195,198..4FC |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 90301-46002 |
CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 90301-46002 |
CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-44001 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-32030 |
CT190,196,ET196,ST195..ATM |
1 | ||
| 35603-32030 |
ET196,ST195..ATM |
1 | ||
| 35603-32030 |
ST195,198..4FC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-17020 |
CT190,196,197,ST19#..4FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-20010 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
AT191,CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
AT191,CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-32021 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
ST195..4FC |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
ST195..4FC |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
ST195..4FC |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35635-50030 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.60,ﾏｰｸ 62 |
1 | ||
| 35675-32060 |
CT190,196,ET196,ST19#..ATM 厚さ=3.4 |
1 | ||
| 35635-50040 |
CT190,196,ET196,ST19#..ATM 厚さ=3.40,ﾏｰｸ 45 |
1 | ||
| 35675-12010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.2 |
1 | ||
| 35675-17010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=2.8 |
1 | ||
| 35675-32010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.0 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-17010 |
AT191,CT197,ST195,198..4FC 厚さ=2.8 |
1 | ||
| 35675-32010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.0 |
1 | ||
| 35675-32030 |
AT191,CT190,196,197,ST19#..4FC 厚さ=2.6 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
CT190,196,ST19#..4FC |
1 | ||
| 90521-99001 |
AT191,CT190,196,ET196,ST19#..ATM |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-32031 |
CT190,196,ST195..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-32040 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-28005 |
CT190,196,197,ET196,ST19#..ATM 外径=42.0 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32040 |
ST195,198..4FC |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07001 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-32020 |
ST195,198..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
ST195,198..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
ST195,198..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-63001 |
ST195,198..4FC |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-32010 |
ST195,198..4FC |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-12010 |
ET196,ST195,198..ATM |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32020 |
ST195,198..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06014 |
ST195,198..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-25025 |
ST195,198..4FC 内側 |
1 | ||
| 90501-24011 |
ST195,198..4FC 外側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-25025 |
ST195,198..4FC 内側 |
1 | ||
| 90501-24011 |
ST195,198..4FC 外側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32030 |
ST195,198..4FC 長さ=95.2 |
1 | ||
| 35822-32040 |
ST195,198..4FC 長さ=96.3 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32020 |
ST195,198..4FC |
1 | ||

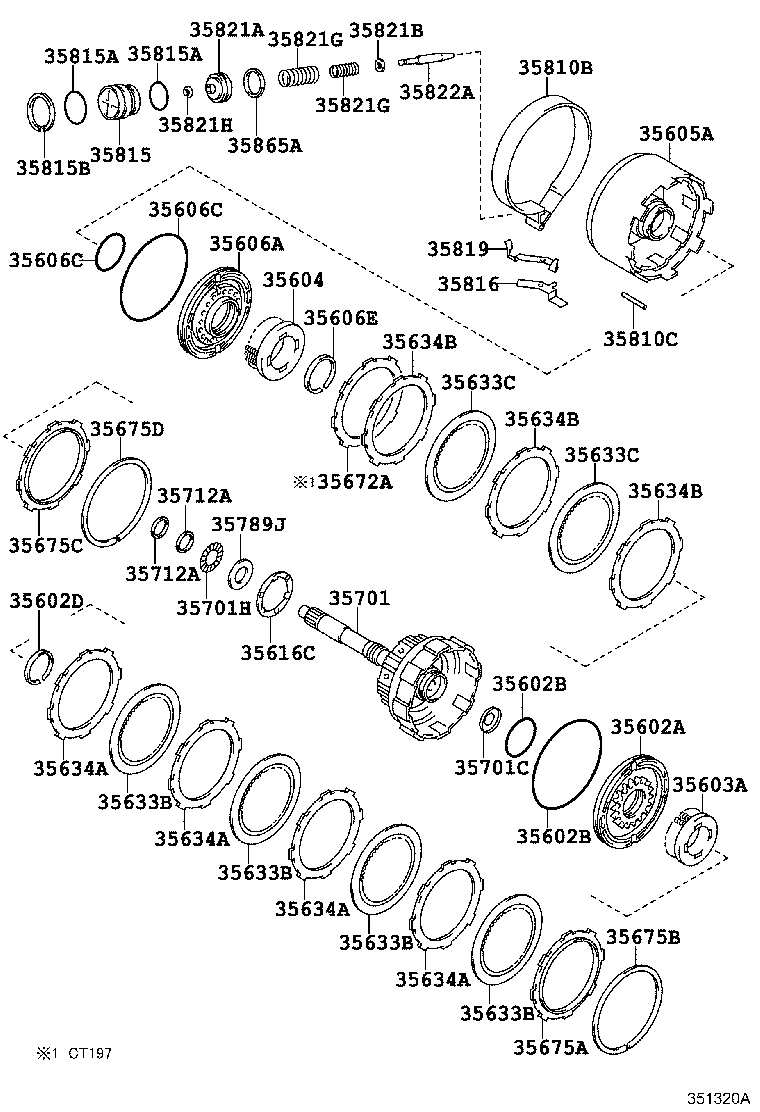

(9211-9601)CT190,196,ET196,ST190,191..ATM ; (9601- )CT190,196,197,ET196,ST191,19
A132L,A241E,A241L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-32050 |
CT190,196,ET196,ST195..ATM |
1 | ||
| 35602-32050 |
ET196,ST195..ATM |
1 | ||
| 35602-32050 |
ST195,198..4FC |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 90301-46002 |
CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 90301-46002 |
CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-44001 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-32030 |
CT190,196,ET196,ST195..ATM |
1 | ||
| 35603-32030 |
ET196,ST195..ATM |
1 | ||
| 35603-32030 |
ST195,198..4FC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-17020 |
CT190,196,197,ST19#..4FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-20010 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
AT191,CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
AT191,CT190,196,197,ET196,ST19#..ATM 内側 |
1 | ||
| 90301-99016 |
AT191,CT190,196,197,ET196,ST19#..ATM 外側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-32021 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-32050 |
CT190,196,ST19#..4FC |
4 | ||
| 35633-32050 |
ST195,198..4FC |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
ST195..4FC |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-32031 |
ST195..4FC |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
CT190,196,197,ST19#..4FC 厚さ=1.8 |
4 | ||
| 35634-32010 |
ST195..4FC 厚さ=1.8 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
CT190,196,ET196,ST19#..ATM 厚さ=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35635-50030 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.60,ﾏｰｸ 62 |
1 | ||
| 35675-32060 |
CT190,196,ET196,ST19#..ATM 厚さ=3.4 |
1 | ||
| 35635-50040 |
CT190,196,ET196,ST19#..ATM 厚さ=3.40,ﾏｰｸ 45 |
1 | ||
| 35675-12010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.2 |
1 | ||
| 35675-17010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=2.8 |
1 | ||
| 35675-32010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.0 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-17010 |
AT191,CT197,ST195,198..4FC 厚さ=2.8 |
1 | ||
| 35675-32010 |
AT191,CT190,196,197,ET196,ST19#..ATM 厚さ=3.0 |
1 | ||
| 35675-32030 |
AT191,CT190,196,197,ST19#..4FC 厚さ=2.6 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
CT190,196,ST19#..4FC |
1 | ||
| 90521-99001 |
AT191,CT190,196,ET196,ST19#..ATM |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-32031 |
CT190,196,ST195..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-32040 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-28005 |
CT190,196,197,ET196,ST19#..ATM 外径=42.0 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
CT190,196,ET196,ST19#..ATM |
2 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-32010 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32040 |
ST195,198..4FC |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07001 |
CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-32020 |
ST195,198..4FC |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
ST195,198..4FC |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-52003 |
ST195,198..4FC |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-63001 |
ST195,198..4FC |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-32010 |
ST195,198..4FC |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-12010 |
ET196,ST195,198..ATM |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32020 |
ST195,198..4FC |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06014 |
ST195,198..4FC |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-25025 |
ST195,198..4FC 内側 |
1 | ||
| 90501-24011 |
ST195,198..4FC 外側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-25025 |
ST195,198..4FC 内側 |
1 | ||
| 90501-24011 |
ST195,198..4FC 外側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32030 |
ST195,198..4FC 長さ=95.2 |
1 | ||
| 35822-32040 |
ST195,198..4FC 長さ=96.3 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32020 |
ST195,198..4FC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
