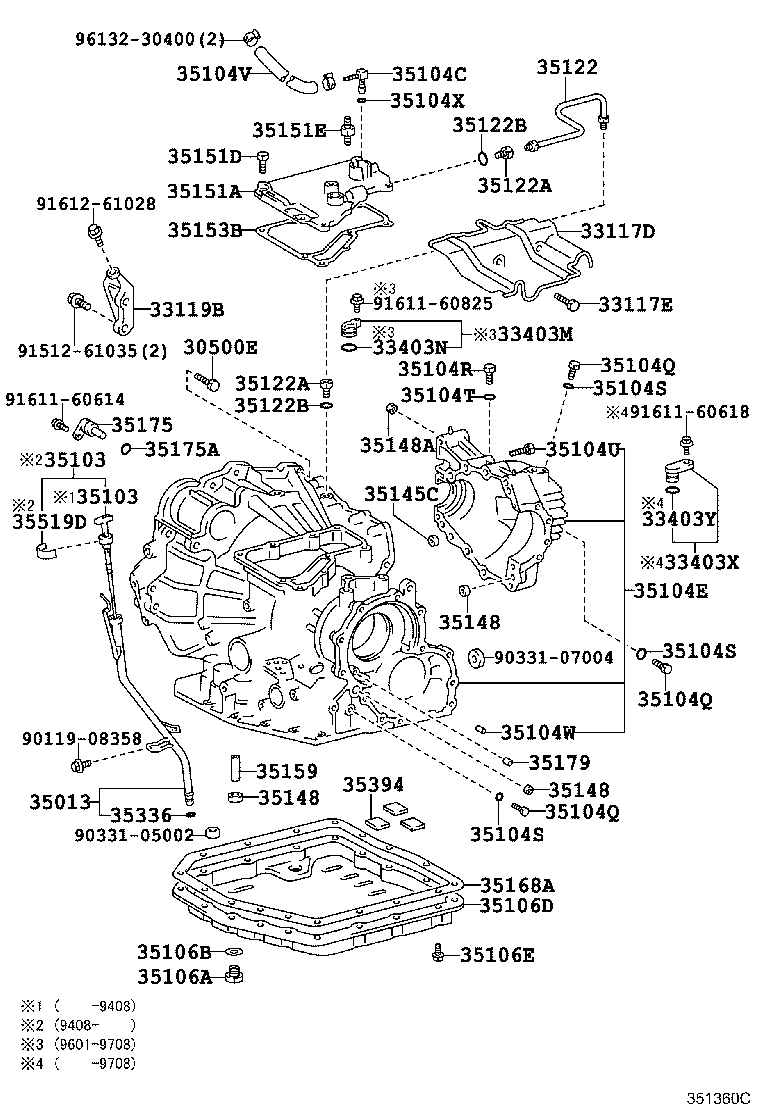

ST195G-DWPVF (1995)
Toyota Caldina
(9211-9708)ST195..4FC ; (9908- )ST198
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
CT190,196,197,ST19#..4FC *12−1.25PX45−30 |
3 | ||
| 90105-10077 |
AT191,CT190,196,197,ST19#..4FC *10−1.25PX43−26 |
1 | ||
| 91651-41022 |
CT190,196,ST19#..4FC *10−1.25PX22−22 |
1 | ||
| 90105-08040 |
CT190,196,197,ST19#..4FC *8−1.25PX18−15 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32050 |
ST195,198..4FC |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
ST195..4FC |
3 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
ST195,198..4FC..(CZ,TZ,U,UL,UX) |
1 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-35230 |
AT191,ST195..4FC |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
AT191,ST195..4FC |
1 | ||
| 33403X - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-20250 |
ST195..4FC |
1 | ||
| 33403Y - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90301-11008 |
ST195..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-20540 |
ST195..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20270 |
ST195..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20270 |
ST195..4FC |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03094 |
ST195,198..4FC |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-32063 |
ST195..4FC |
1 | ||
| 35104-32066 |
ST195,198..4FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ST195,198..4FC |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ST195,198..4FC |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ST195,198..4FC |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-13003 |
ST195,198..4FC |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ST195,198..4FC |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ST195,198..4FC |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ST195,198..4FC |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-10189 |
ST195,198..4FC |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10223 |
ST195,198..4FC *10−1.25PX75−30 |
2 | ||
| 90105-10222 |
ST195,198..4FC *10−1.25PX65−30 |
7 | ||
| 90105-10224 |
ST195,198..4FC *10−1.25PX100−30 |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-20021 |
ST195..4FC |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
ST195,198..4FC |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
ST195,198..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
ET196,ST195,198..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
ET196,ST195,198..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-32032 |
ST195,198..4FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ST195,198..4FC |
17 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-32010 |
ST195,198..4FC |
1 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
ST195,198..4FC |
2 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
ST195,198..4FC |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
ST195..4FC |
1 | ||
| 90301-10189 |
ST195,198..4FC |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
ST195..4FC |
1 | ||
| 90301-10189 |
ST195,198..4FC |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-32020 |
ST195,198..4FC |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST195,198..4FC |
3 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST195,198..4FC |
3 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
ST195,198..4FC |
3 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
ST195..4FC |
1 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-32023 |
ST195,198..4FC |
1 | ||
| 35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90105-06113 |
ST195,198..4FC *6−1.00PX20−18 |
7 | ||
| 90105-08174 |
ST195,198..4FC *8−1.25PX28−18 |
1 | ||
| 35151E - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 91512-61030 |
ST195,198..4FC |
1 | ||
| 90109-08179 |
ST195..4FC |
1 | ||
| 35153B - GASKET, TRANSAXLE CASE UPPER COVER | ||||
| 35153-32010 |
ST195,198..4FC |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
ET196,ST195,198..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-33020 |
ST195,198..4FC |
1 | ||
| 35168-32020 |
ST195..4FC |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
ET196,ST195,198..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
ET196,ST195,198..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
ST195,198..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AT191,CT190,196,197,ET196,ST19#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
CT190,196,ET196,ST19#..ATM |
3 | ||
| Common parts | ||||
| 90119-08358 | ||||
| 90331-05002 | ||||
| 90331-07004 | ||||
| 91512-61035 | ||||
| 91611-60614 | ||||
| 91611-60618 | ||||
| 91611-60825 | ||||
| 91612-61028 | ||||
| 96132-30400 | ||||
