ST195G-DWPVF (1995)
Toyota Caldina
ILLUST NO. 2 OF 2(9601-9708)3S#..ST195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
3S#..ST19# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
3S#..ST19# |
1 | ||
| 23222 - TUBE, FUEL RETURN JET | ||||
| 23222-74010 |
3S#..ST195 |
1 | ||
| 23222-74020 |
3S#..ST195 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3S#..ST19# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3S#..ST19# |
1 | ||
| 23239-74640 |
3S#..ST195 NO.3 |
1 | ||
| 23239-74630 |
3S#..ST195 NO.2 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3S#..ST19# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3S#..ST19# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
3S#,4SFE..ST19# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||

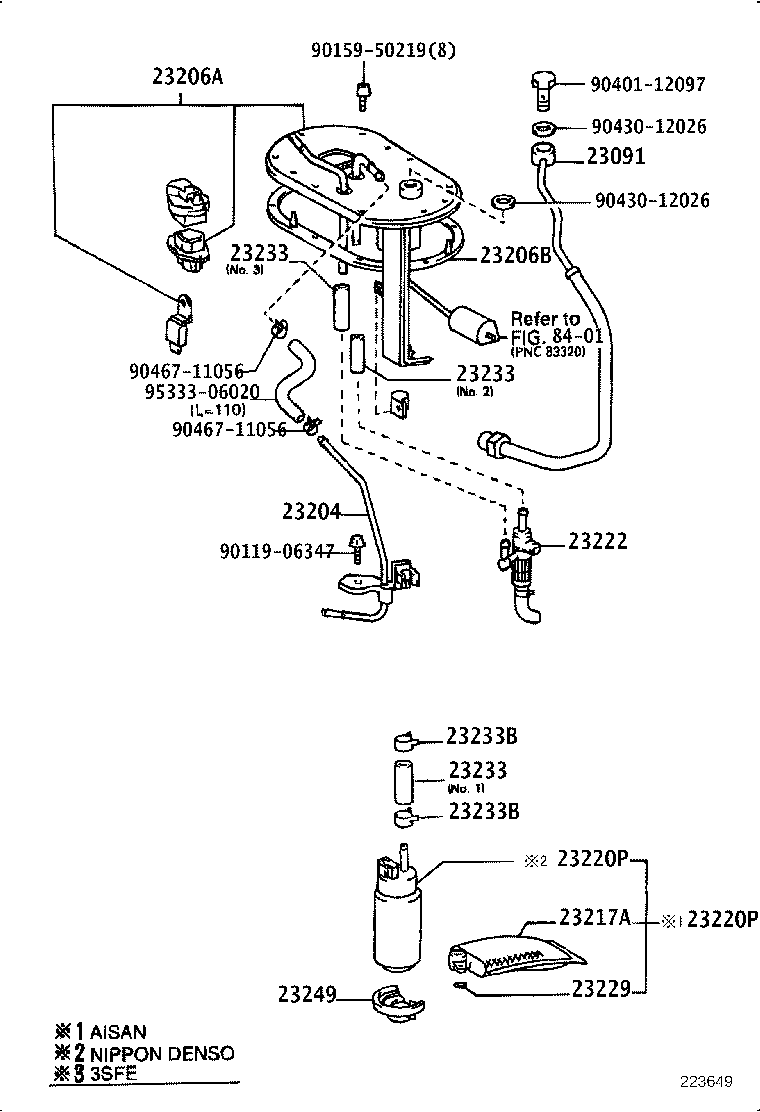

ILLUST NO. 2 OF 2(9211-9601)3S#..ST195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74220 |
3S#..ST195 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74690 |
3S#..ST195 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74690 |
3S#..ST195 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-60010 |
3S#,4SFE..ST19# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
3S#..ST19# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
3S#..ST19# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
3S#..ST19# |
1 | ||
| 23222 - TUBE, FUEL RETURN JET | ||||
| 23222-74010 |
3S#..ST195 |
1 | ||
| 23222-74020 |
3S#..ST195 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3S#..ST19# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3S#..ST19# |
1 | ||
| 23239-74640 |
3S#..ST195 NO.3 |
1 | ||
| 23239-74630 |
3S#..ST195 NO.2 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3S#..ST19# |
1 | ||
| 23239-74640 |
3S#..ST195 NO.3 |
1 | ||
| 23239-74630 |
3S#..ST195 NO.2 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3S#..ST19# |
1 | ||
| 23239-74640 |
3S#..ST195 NO.3 |
1 | ||
| 23239-74630 |
3S#..ST195 NO.2 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3S#..ST19# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3S#..ST19# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
3S#,4SFE..ST19# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90159-50219 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90467-11056 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

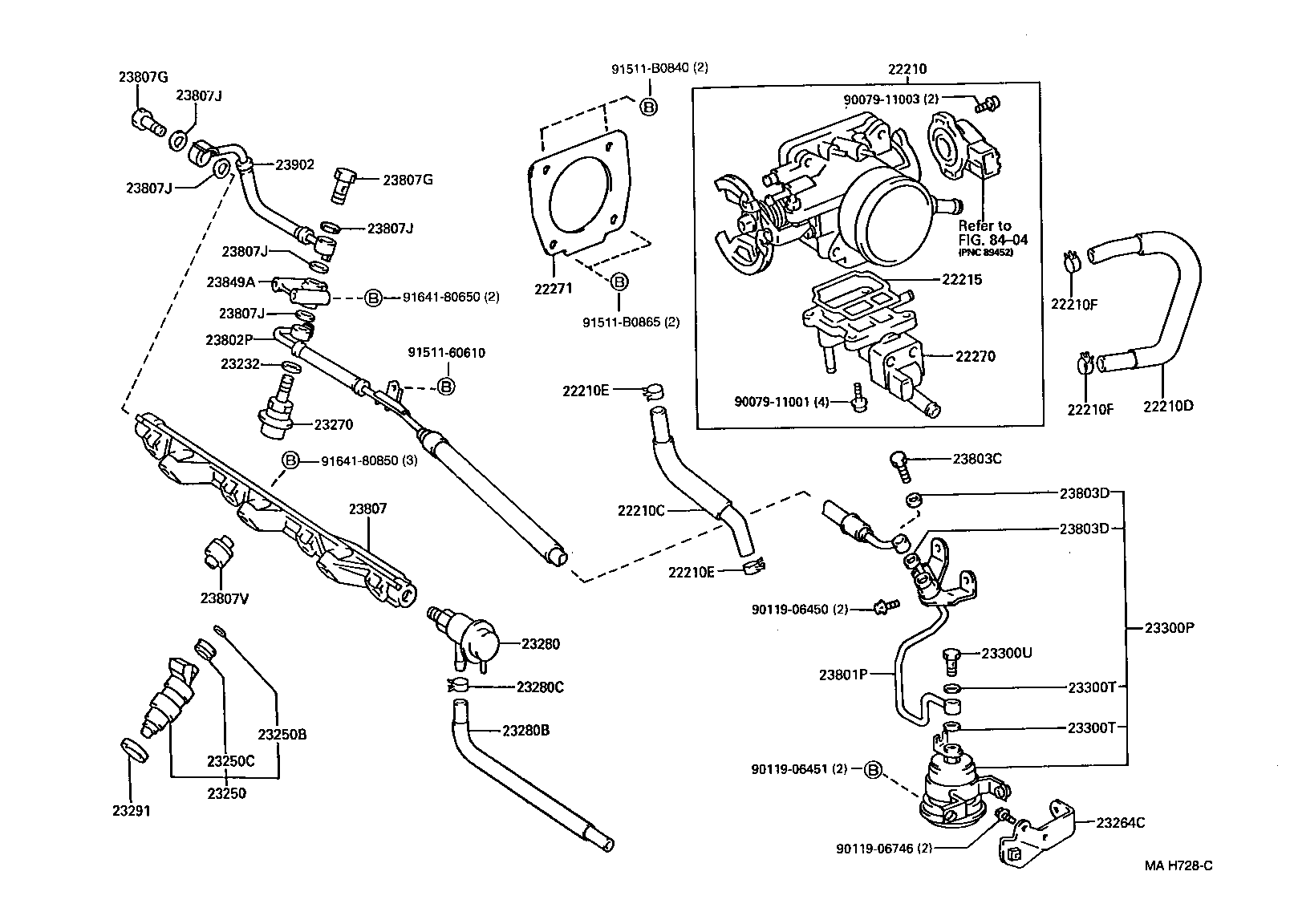

ILLUST NO. 1 OF 2(9502-9601)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A060 |
3SGE..ST195 |
1 | ||
| 22210-7A550 |
3SGE..ST195 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-88460 |
3SGE..ST195 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-88460 |
3SGE..ST195 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74380 |
3SGE..ST195 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74210 |
3SGE..ST195 |
1 | ||
| 22270-74320 |
3SGE..ST195 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88461 |
3SGE..ST195 |
1 | ||
| 22271-88460 |
3SGE..ST195 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
3S#,4SFE..ST19# |
1 | ||
| 23232-41081 |
3SGE..ST195 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74160 |
3SGE..ST195 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3S#,4SFE..ST19# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3S#,4SFE..ST19# |
4 | ||
| 23264C - BRACKET, FUEL FILTER | ||||
| 23264-74060 |
3S#,4SFE..ST19# |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70060 |
3SGE..ST195 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74110 |
3SGE..ST195 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 23271-88462 |
3SGE..ST195 |
1 | ||
| 23271-88463 |
3SGE..ST195 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11065 |
3SGE..ST195 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3S#,4SFE..ST19# |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79335 |
3S#,4SFE..ST19# |
1 | ||
| 23300-19465 |
3S#..ST19# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,4SFE..ST19# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,4SFE..ST19# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 96341-11200 |
3S#..ST19# |
1 | ||
| 90401-12097 |
3S#,4SFE..ST19# |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74070 |
3S#,4SFE..ST19# |
1 | ||
| 23802P - TUBE SUB-ASSY, FUEL, NO.3 | ||||
| 23903-88463 |
3SGE..ST195 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12097 |
3SGE..ST195 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88460 |
3SGE..ST195 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SGE..ST195 |
2 | ||
| 90401-12097 |
3SGE..ST195 |
1 | ||
| 96341-11200 |
3SGE..ST195 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SGE..ST195 |
2 | ||
| 90401-12097 |
3SGE..ST195 |
1 | ||
| 96341-11200 |
3SGE..ST195 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08051 |
3SGE..ST195 |
3 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-88461 |
3SGE..ST195 |
1 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-88465 |
3SGE..ST195 |
1 | ||
| 23902-88463 |
3SGE..ST195 |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90119-06450 | ||||
| 90119-06451 | ||||
| 90119-06746 | ||||
| 91511-60610 | ||||
| 91511-B0840 | ||||
| 91511-B0865 | ||||
| 91641-80650 | ||||
| 91641-80850 | ||||
| Linked diagrams | ||||
| 8404 | ||||

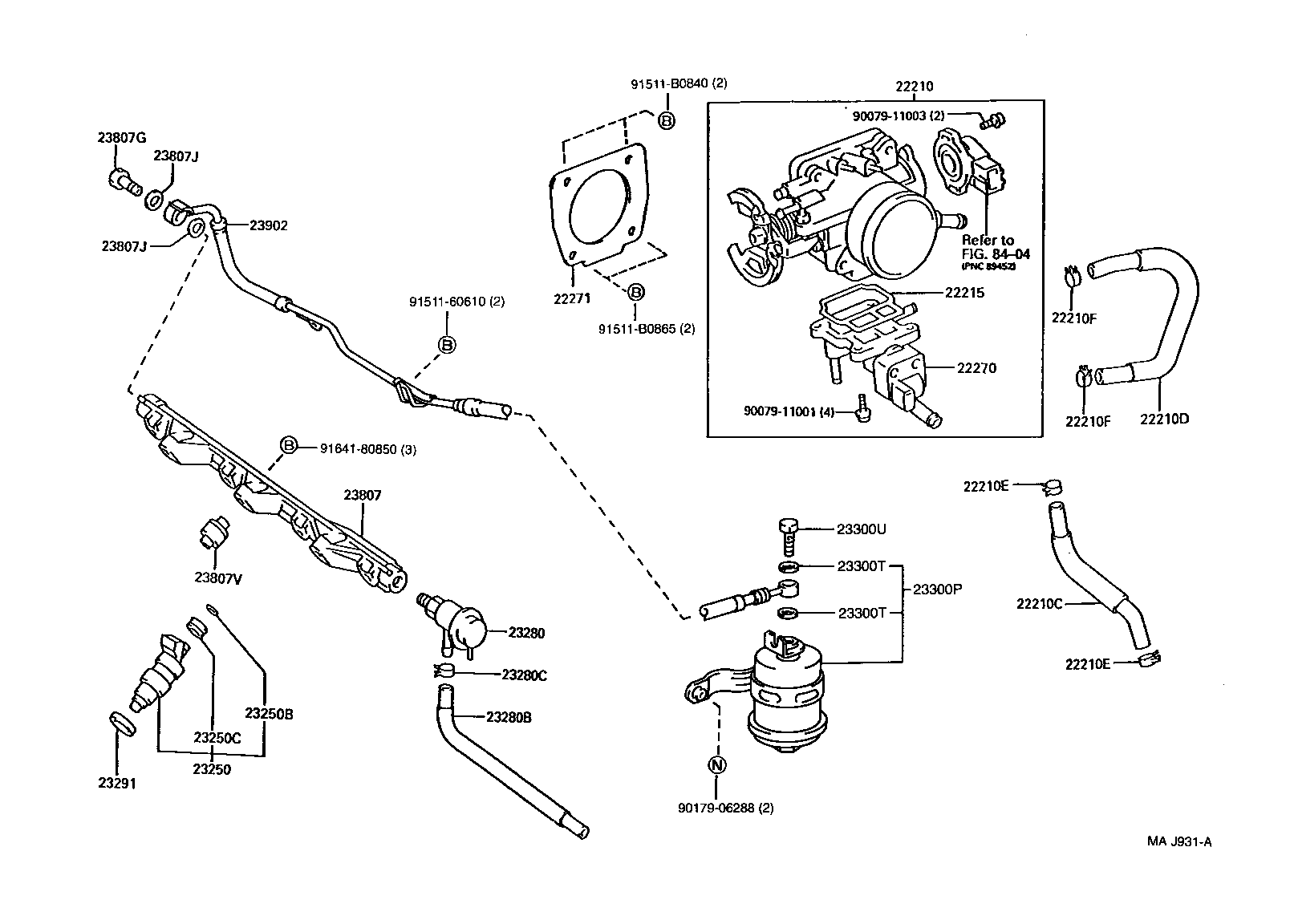

ILLUST NO. 1 OF 2(9601-9708)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A060 |
3SGE..ST195 |
1 | ||
| 22210-7A550 |
3SGE..ST195 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16264-88460 |
3SGE..ST195 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16267-88460 |
3SGE..ST195 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13128 |
3SGE..ST195 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74380 |
3SGE..ST195 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74210 |
3SGE..ST195 |
1 | ||
| 22270-74320 |
3SGE..ST195 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88461 |
3SGE..ST195 |
1 | ||
| 22271-88460 |
3SGE..ST195 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74160 |
3SGE..ST195 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3S#,4SFE..ST19# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3S#,4SFE..ST19# |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74110 |
3SGE..ST195 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 23271-88462 |
3SGE..ST195 |
1 | ||
| 23271-88463 |
3SGE..ST195 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11065 |
3SGE..ST195 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3S#,4SFE..ST19# |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79335 |
3S#,4SFE..ST19# |
1 | ||
| 23300-19465 |
3S#..ST19# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,4SFE..ST19# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3S#,4SFE..ST19# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 96341-11200 |
3S#..ST19# |
1 | ||
| 90401-12097 |
3S#,4SFE..ST19# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88460 |
3SGE..ST195 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SGE..ST195 |
2 | ||
| 90401-12097 |
3SGE..ST195 |
1 | ||
| 96341-11200 |
3SGE..ST195 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
3SGE..ST195 |
5 | ||
| 90430-12026 |
3SGE..ST195 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08051 |
3SGE..ST195 |
3 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-88465 |
3SGE..ST195 |
1 | ||
| 23902-88463 |
3SGE..ST195 |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90179-06288 | ||||
| 91511-60610 | ||||
| 91511-B0840 | ||||
| 91511-B0865 | ||||
| 91641-80850 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
