ST195G-DWPVF (1995)
Toyota Caldina

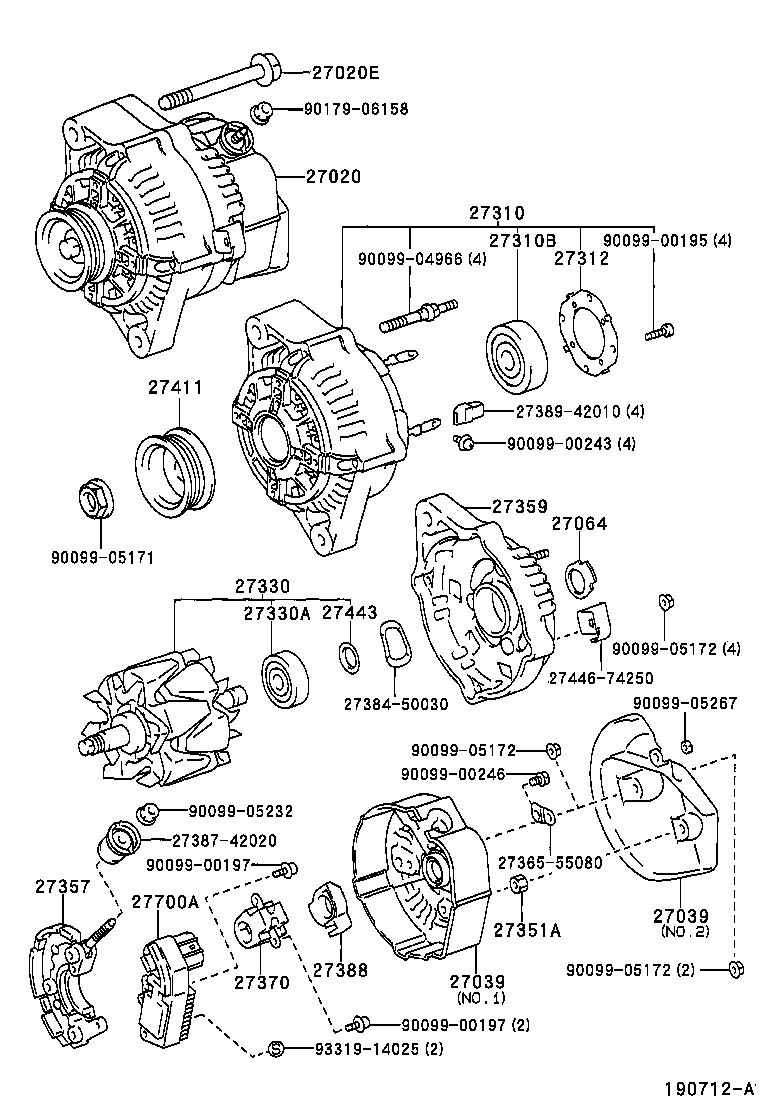

(9502-9601)3SGE..4FC
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74570 |
3SGE..ST195..4FC 12V 80A |
1 | ||
| 27060-74610 |
3SGE..ST195 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
3S#,4SFE..ST19# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3SGE..ST195..4FC NO.1 |
1 | ||
| 27039-55080 |
3SGE..ST195 NO.1 |
1 | ||
| 27039-74360 |
3SGE..ST195 NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3SGE..ST195..4FC NO.1 |
1 | ||
| 27039-55080 |
3SGE..ST195 NO.1 |
1 | ||
| 27039-74360 |
3SGE..ST195 NO.2 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27064-42010 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74440 |
3SGE..ST195..4FC |
1 | ||
| 27310-74440 |
3SGE..ST195 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 90099-10192 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27312-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
3SGE..ST195;2C#..CT190,196,198..5F;5EFE,3SFE..ET196,ST191,195..ATM |
1 | ||
| 27330-76030 |
3SGE..ST195;2C#..CT19#..5F;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27330-76030 |
2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5EFE..ET196..3FC;7AFE,2C#,3CE,3S#,4SFE..AT191,CT19#,ST19# |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
3SGE..ST195 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27357-55080 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74510 |
3SGE..ST195..4FC |
1 | ||
| 27359-74510 |
3SGE..ST195 |
1 | ||
| 27359-74550 |
3S#..ST195,198..TZG,U,UL,UX |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27370-75060 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27388-42010 |
2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3S#,4SFE..ST19#..4FC |
1 | ||
| 27411-42030 |
3SGE..ST195;7AFE,3SFE..AT191,ST19#..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
7AFE,2C#,3CE,5EFE,3S#,4SFE..AT191,CT19#,ET196,ST19# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
7AFE,3S#,4SFE..AT191,ST19# |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 27446-74250 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

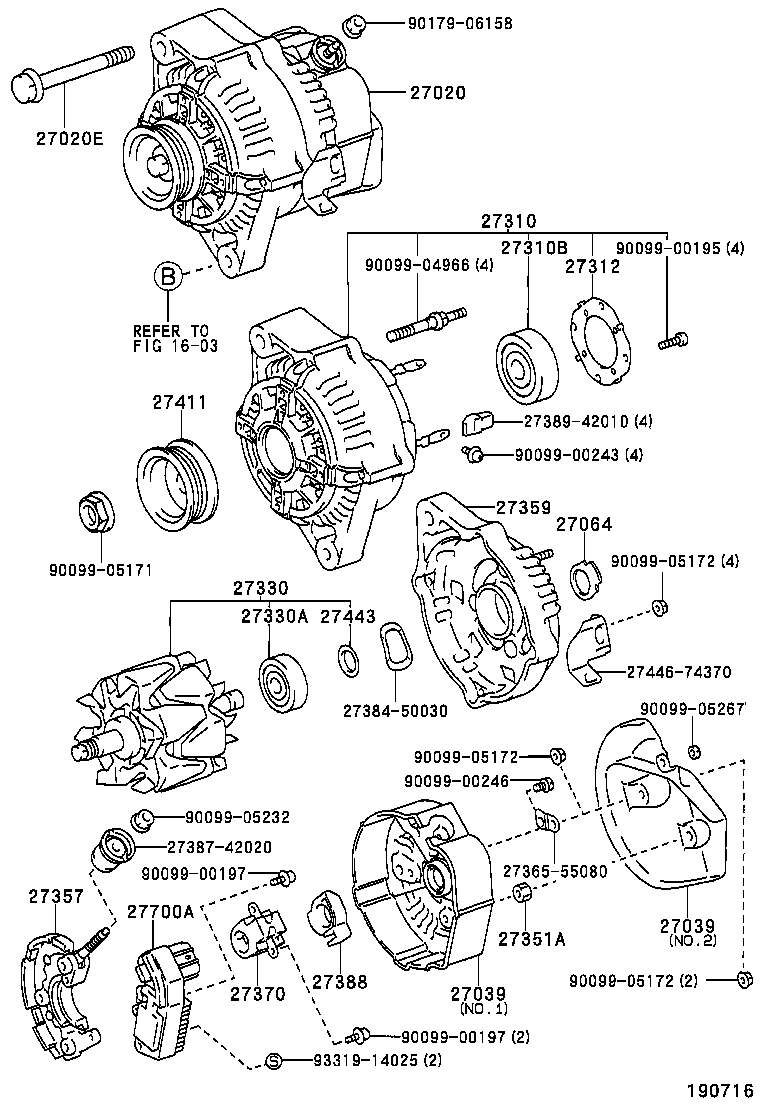

(9601-9708)3SGE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74570 |
3SGE..ST195..4FC 12V 80A |
1 | ||
| 27060-74610 |
3SGE..ST195 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
3S#,4SFE..ST19# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3SGE..ST195..4FC NO.1 |
1 | ||
| 27039-55080 |
3SGE..ST195 NO.1 |
1 | ||
| 27039-74360 |
3SGE..ST195 NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3SGE..ST195..4FC NO.1 |
1 | ||
| 27039-55080 |
3SGE..ST195 NO.1 |
1 | ||
| 27039-74360 |
3SGE..ST195 NO.2 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27064-42010 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74440 |
3SGE..ST195..4FC |
1 | ||
| 27310-74440 |
3SGE..ST195 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 90099-10192 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27312-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
3SGE..ST195;2C#..CT190,196,198..5F;5EFE,3SFE..ET196,ST191,195..ATM |
1 | ||
| 27330-76030 |
3SGE..ST195;2C#..CT19#..5F;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27330-76030 |
2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5EFE..ET196..3FC;7AFE,2C#,3CE,3S#,4SFE..AT191,CT19#,ST19# |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
3SGE..ST195 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27357-55080 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74510 |
3SGE..ST195..4FC |
1 | ||
| 27359-74510 |
3SGE..ST195 |
1 | ||
| 27359-74550 |
3S#..ST195,198..TZG,U,UL,UX |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
1 | ||
| 27370-75060 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2C#,3CE,3SGE..CT19#,ST195;7AFE,5EFE,3SFE..AT191,ET196,ST19#..ATM |
1 | ||
| 27388-42010 |
2C..CT19#..5F;5EFE,3S#,4SFE..ET196,ST19#..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3S#,4SFE..ST19#..4FC |
1 | ||
| 27411-42030 |
3SGE..ST195;7AFE,3SFE..AT191,ST19#..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
7AFE,2C#,3CE,5EFE,3S#,4SFE..AT191,CT19#,ET196,ST19# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
7AFE,3S#,4SFE..AT191,ST19# |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 27446-74370 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
