ST195G-DWPVF (1995)
Toyota Caldina
Production
Feb 1995
-
Aug 1997
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9502-9708)3SGE

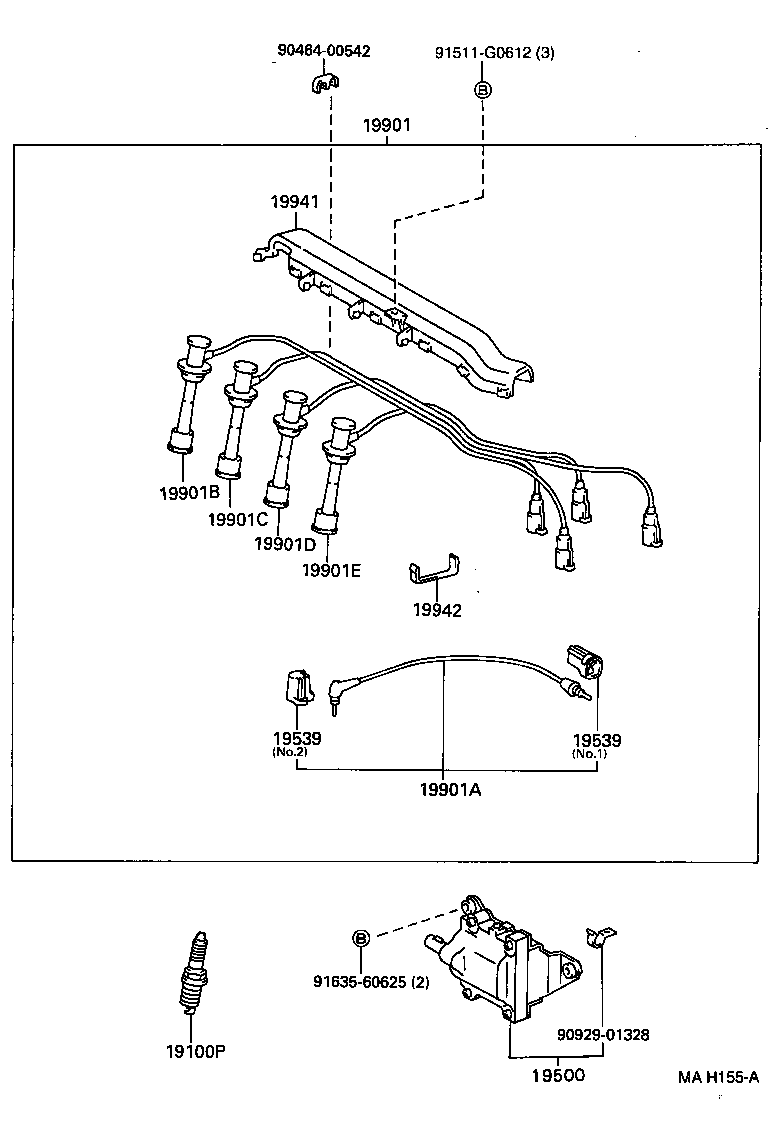

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01181 |
3SGE..ST195 BKR6EP−8 |
4 | ||
| 90919-01180 |
3SGE..ST195 PK20R8 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 19500-74091 |
3SGE,4SFE..ST190,195 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-62020 |
3SGE..ST195 NO.2 |
1 | ||
| 19539-74010 |
3SGE..ST195 NO.1 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-62020 |
3SGE..ST195 NO.2 |
1 | ||
| 19539-74010 |
3SGE..ST195 NO.1 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21591 |
3SGE..ST195 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-74191 |
3SGE..ST195 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15396 |
3SGE..ST195 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15397 |
3SGE..ST195 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15398 |
3SGE..ST195 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15399 |
3SGE..ST195 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 19941-88460 |
3SGE..ST195 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 19942-88460 |
3SGE..ST195 |
6 | ||
| Common parts | ||||
| 90464-00542 | ||||
| 90929-01328 | ||||
| 91511-G0612 | ||||
| 91635-60625 | ||||
