ST195G-DWPVF (1995)
Toyota Caldina
Production
Feb 1995
-
Aug 1997
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9502-9708)3SGE

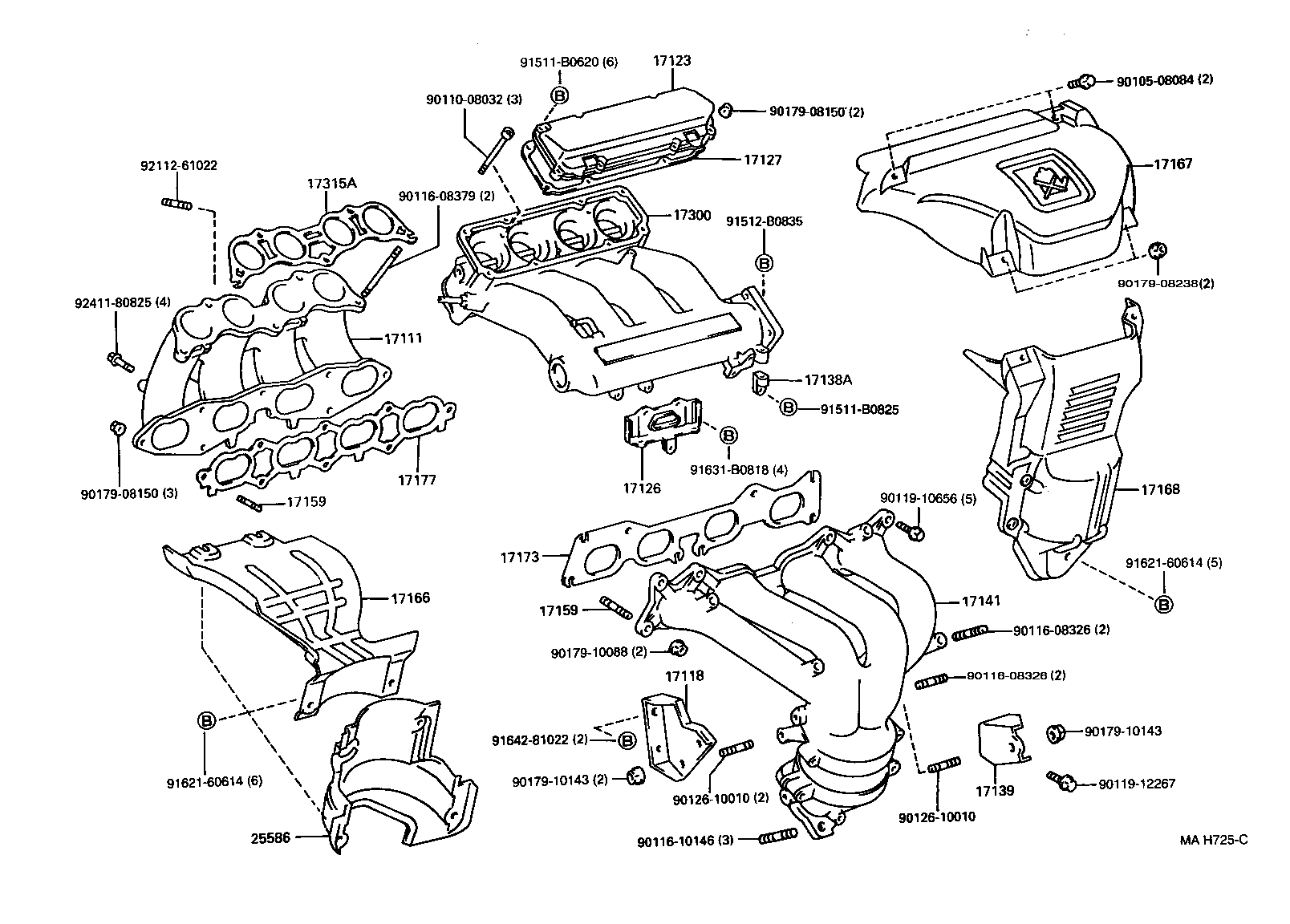

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-88460 |
3SGE..ST195 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-88461 |
3SGE..ST195 |
1 | ||
| 17123 - COVER, SURGE TANK | ||||
| 17123-88460 |
3SGE..ST195 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-88460 |
3SGE..ST195 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-88460 |
3SGE..ST195 |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-88460 |
3SGE..ST195 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-88461 |
3SGE..ST195 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-88460 |
3SGE..ST195 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08242 |
3SGE..ST195 INTAKE NANIFOLD |
3 | ||
| 90116-10169 |
3SGE..ST195 EXHAUST MANIFOLD |
2 | ||
| 90116-08242 |
3SGE..ST195 INTAKE MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08242 |
3SGE..ST195 INTAKE NANIFOLD |
3 | ||
| 90116-10169 |
3SGE..ST195 EXHAUST MANIFOLD |
2 | ||
| 90116-08242 |
3SGE..ST195 INTAKE MANIFOLD |
3 | ||
| 17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4 | ||||
| 17166-88460 |
3SGE..ST195 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-88461 |
3SGE..ST195 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-88462 |
3SGE..ST195 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88480 |
3SGE..ST195 |
1 | ||
| 17173-88580 |
3SGE..ST195 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-88460 |
3SGE..ST195 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-88463 |
3SGE..ST195 |
1 | ||
| 17300-88469 |
3SGE..ST195 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-88460 |
3SGE..ST195 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-88460 |
3SGE..ST195 |
1 | ||
| Common parts | ||||
| 90105-08084 | ||||
| 90110-08032 | ||||
| 90116-08326 | ||||
| 90116-08379 | ||||
| 90116-10146 | ||||
| 90119-10656 | ||||
| 90119-12267 | ||||
| 90126-10010 | ||||
| 90179-08150 | ||||
| 90179-08238 | ||||
| 90179-10088 | ||||
| 90179-10143 | ||||
| 91511-B0620 | ||||
| 91511-B0825 | ||||
| 91512-B0835 | ||||
| 91621-60614 | ||||
| 91631-B0818 | ||||
| 91642-81022 | ||||
| 92112-61022 | ||||
| 92411-80825 | ||||
