ST195G-DWPVF (1995)
Toyota Caldina
ILLUST NO. 2 OF 2(9601-9708)3SGE ; (9601-9708)3SFE..ST195..4FC ;(9908- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74830 |
3S#..ST195..4FC |
1 | ||
| 16400-7A211 |
3S#..ST195..4FC |
1 | ||
| 16400-7A210 |
3S#..ST195..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 23322-54010 |
3S#,4SFE..ST19# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3S#,4SFE..ST19# |
1 | ||
| 16418-15520 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3S#,4SFE..ST19# |
1 | ||
| 16401-15520 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11400 |
3S#..ST195..4FC |
1 | ||
| 16403-7A210 |
3S#..ST195..4FC |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-7A210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-7A210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74790 |
3S#,4SFE..ST19#..4FC |
1 | ||
| 16491-7A210 |
3S#..ST195..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16418-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16418-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3S#..ST195..4FC |
2 | ||
| 16493-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3S#..ST195..4FC |
2 | ||
| 16493-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
3S#..ST195..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
3S#..ST195..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
3S#..ST195..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
3S#..ST195..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-7A210 |
3S#..ST195..4FC |
1 | ||
| 16495-74790 |
3S#,4SFE..ST19#..4FC |
1 | ||
| 16497A - BRACKET(FOR ATM OIL COOLER) | ||||
| 16497-7A210 |
3S#..ST195..4FC |
1 | ||
| 16499-7A210 |
3S#..ST195..4FC |
1 | ||
| Common parts | ||||
| 16498-7A210 | ||||

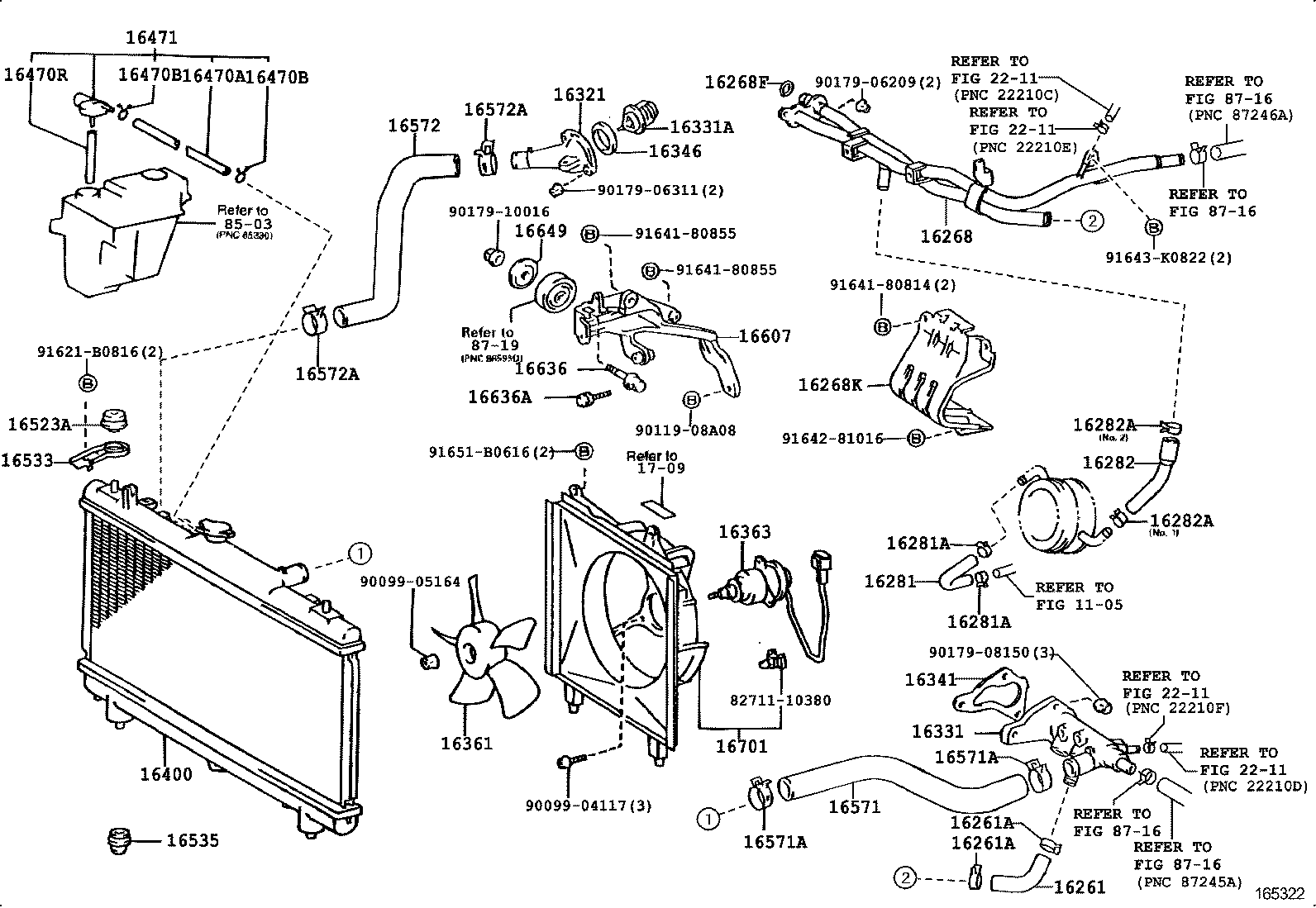

ILLUST NO. 1 OF 2(9502-9601)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88460 |
3SGE..ST195 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGE..ST195 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGE..ST195 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88460 |
3SGE..ST195 |
1 | ||
| 16268-88463 |
3SGE..ST195 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
3SGE..ST195 |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-88460 |
3SGE..ST195 |
1 | ||
| 17169-88461 |
3SGE..ST195 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88460 |
3SGE..ST195 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88460 |
3SGE..ST195 |
1 | ||
| 16282-88462 |
3SGE..ST195 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST195 NO.2 |
1 | ||
| 90467-20011 |
3SGE..ST195 NO.1 |
1 | ||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST195 NO.2 |
1 | ||
| 90467-20011 |
3SGE..ST195 NO.1 |
1 | ||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88460 |
3SGE..ST195 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88465 |
3SGE..ST195 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
3SGE..ST195 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88460 |
3SGE..ST195 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-17010 |
3SGE..ST195 |
1 | ||
| 16361 - FAN | ||||
| 16361-74110 |
3S#..ST195,198..4FC |
1 | ||
| 16361-74070 |
3S#..ST195..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11030 |
3S#..ST195..4FC |
1 | ||
| 16363-74030 |
3S#..ST195..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74830 |
3S#..ST195..4FC |
1 | ||
| 16400-7A211 |
3S#..ST195..4FC |
1 | ||
| 16400-7A210 |
3S#..ST195..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74200 |
3S#,4SFE..ST19# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#..ST19# *H,L=410 |
1 | ||
| 90445-12078 |
3S#,4SFE..ST19# *H,L=110,NO.2 |
1 | ||
| 16471-74200 |
3S#,4SFE..ST19# *H,L=435,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#..ST19# *H,L=410 |
1 | ||
| 90445-12078 |
3S#,4SFE..ST19# *H,L=110,NO.2 |
1 | ||
| 16471-74200 |
3S#,4SFE..ST19# *H,L=435,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..ST19# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..ST19# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16130 |
3S#..ST19# |
1 | ||
| 16405-74190 |
3S#,4SFE..ST19# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-72010 |
3S#,4SFE..ST19# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-16060 |
3S#..ST19# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74030 |
3S#..ST19# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-74020 |
3SGE..ST195..4FC |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-74020 |
3SGE..ST195..4FC |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-74020 |
3SGE..ST195..4FC |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-74020 |
3SGE..ST195..4FC |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74240 |
3SGE..ST195 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74300 |
3S#..ST19# |
1 | ||
| 16572-74190 |
3S#,4SFE..ST19# |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-88480 |
3SGE..ST195 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74110 |
3S#,4SFE..ST19# |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SGE..ST195 |
1 | ||
| 16636A - BOLT(FOR IDLER PULLY TENSION) | ||||
| 90109-08191 |
3SGE..ST195 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SGE..ST195 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74080 |
3S#..ST195..4FC |
1 | ||
| 16711-16300 |
3S#..ST195..4FC |
1 | ||
| 16711-16301 |
3S#..ST195,198..4FC |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90119-08A08 | ||||
| 90179-06209 | ||||
| 90179-06311 | ||||
| 90179-08150 | ||||
| 90179-10016 | ||||
| 91641-80814 | ||||
| 91641-80855 | ||||
| 91642-80855 | ||||
| 91642-81016 | ||||
| 91643-K0822 | ||||
| 91652-60612 | ||||
| 91652-B0616 | ||||
| 91652-B0816 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1709 | ||||
| 2211 | ||||
| 8716 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(9211-9601)3S#,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74830 |
3S#..ST195..4FC |
1 | ||
| 16400-7A211 |
3S#..ST195..4FC |
1 | ||
| 16400-7A210 |
3S#..ST195..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 23322-54010 |
3S#,4SFE..ST19# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3S#,4SFE..ST19# |
1 | ||
| 16418-15520 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3S#,4SFE..ST19# |
1 | ||
| 16401-15520 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-11400 |
3S#..ST195..4FC |
1 | ||
| 16403-7A210 |
3S#..ST195..4FC |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-7A210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-54790 |
3SGE..ST195;3SFE,4SFE..ST19#..4FC |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-54790 |
3SGE..ST195;3SFE,4SFE..ST19#..4FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-7A210 |
3SGE..ST195;3SFE..ST195..4FC |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74790 |
3S#,4SFE..ST19#..4FC |
1 | ||
| 16491-7A210 |
3S#..ST195..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16418-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16418-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-15660 |
3S#..ST195..4FC |
2 | ||
| 16492-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3S#..ST195..4FC |
2 | ||
| 16493-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3S#..ST195..4FC |
2 | ||
| 16493-62060 |
3S#,4SFE..ST19#..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-7A210 |
3S#..ST195..4FC |
1 | ||
| 16495-74790 |
3S#,4SFE..ST19#..4FC |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
ILLUST NO. 1 OF 2(9601-9708)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88460 |
3SGE..ST195 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGE..ST195 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGE..ST195 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88460 |
3SGE..ST195 |
1 | ||
| 16268-88463 |
3SGE..ST195 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
3SGE..ST195 |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-88460 |
3SGE..ST195 |
1 | ||
| 17169-88461 |
3SGE..ST195 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88460 |
3SGE..ST195 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88460 |
3SGE..ST195 |
1 | ||
| 16282-88462 |
3SGE..ST195 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST195 NO.2 |
1 | ||
| 90467-20011 |
3SGE..ST195 NO.1 |
1 | ||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
3SGE..ST195 NO.2 |
1 | ||
| 90467-20011 |
3SGE..ST195 NO.1 |
1 | ||
| 90467-20011 |
3SGE..ST195 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88460 |
3SGE..ST195 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88465 |
3SGE..ST195 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
3SGE..ST195 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88460 |
3SGE..ST195 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-17010 |
3SGE..ST195 |
1 | ||
| 16361 - FAN | ||||
| 16361-74110 |
3S#..ST195,198..4FC |
1 | ||
| 16361-74070 |
3S#..ST195..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11030 |
3S#..ST195..4FC |
1 | ||
| 16363-74030 |
3S#..ST195..4FC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74830 |
3S#..ST195..4FC |
1 | ||
| 16400-7A211 |
3S#..ST195..4FC |
1 | ||
| 16400-7A210 |
3S#..ST195..4FC |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#..ST19# *H,L=410 |
1 | ||
| 90445-12078 |
3S#,4SFE..ST19# *H,L=110,NO.2 |
1 | ||
| 16471-74200 |
3S#,4SFE..ST19# *H,L=435,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..ST19# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..ST19# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#..ST19# *H,L=190 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16130 |
3S#..ST19# |
1 | ||
| 16405-74190 |
3S#,4SFE..ST19# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
3S#..ST19# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-16060 |
3S#..ST19# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74030 |
3S#..ST19# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74240 |
3SGE..ST195 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74300 |
3S#..ST19# |
1 | ||
| 16572-74190 |
3S#,4SFE..ST19# |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-88480 |
3SGE..ST195 |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SGE..ST195 |
1 | ||
| 16636A - BOLT(FOR IDLER PULLY TENSION) | ||||
| 90109-08191 |
3SGE..ST195 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SGE..ST195 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74080 |
3S#..ST195..4FC |
1 | ||
| 16711-16300 |
3S#..ST195..4FC |
1 | ||
| 16711-16301 |
3S#..ST195,198..4FC |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-08A08 | ||||
| 90179-06209 | ||||
| 90179-06311 | ||||
| 90179-08150 | ||||
| 90179-10016 | ||||
| 91621-B0816 | ||||
| 91641-80814 | ||||
| 91641-80855 | ||||
| 91642-81016 | ||||
| 91643-K0822 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1709 | ||||
| 2211 | ||||
| 8503 | ||||
| 8716 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
