ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9502-9708)3SGE

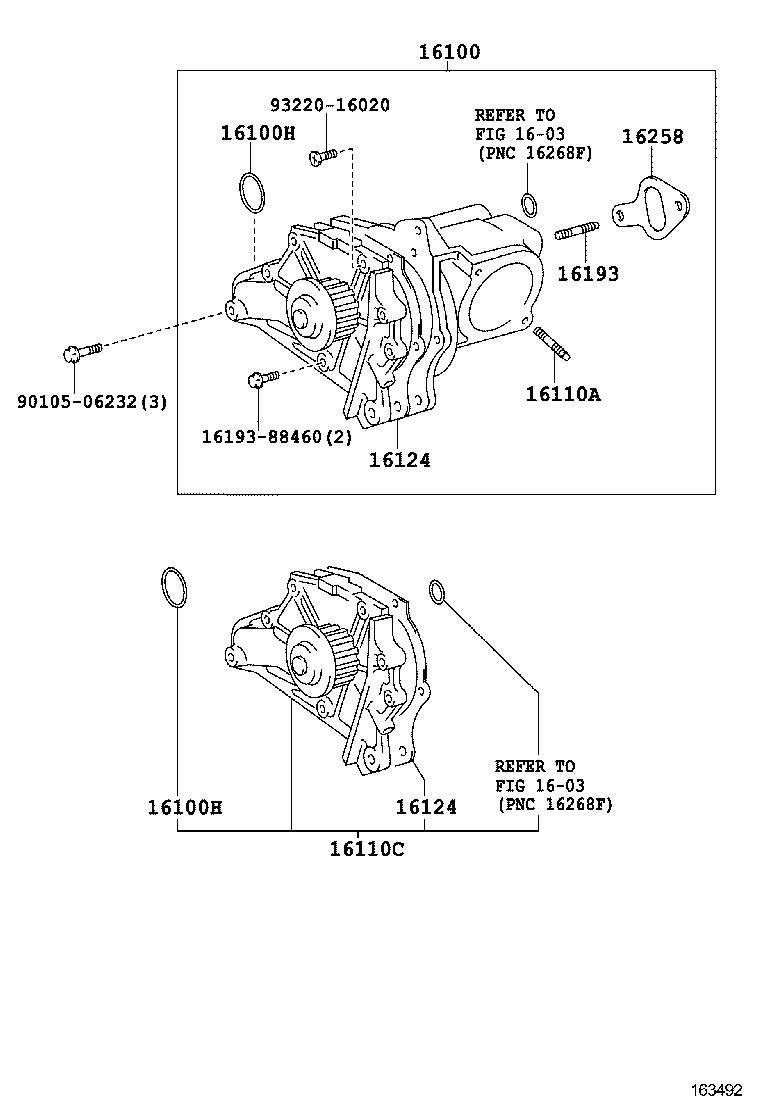

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16100H 16110A 16110C 16124 16124 16193 1619388460 16258 9010506232 9322016020
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79225

3SGE..ST195

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3S#,4SFE..ST19#

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3S#,4SFE..ST19#

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

3S#,4SFE..ST19#

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-79135

3SGE..ST195

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

3S#,4SFE..ST19#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-88460

3SGE..ST195

 1
Common parts
16193-88460
90105-06232
93220-16020
Linked diagrams
1603
