ST195G-DWPVF (1995)

Toyota Caldina

Production Feb 1995 - Aug 1997
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9502-9708)3SGE

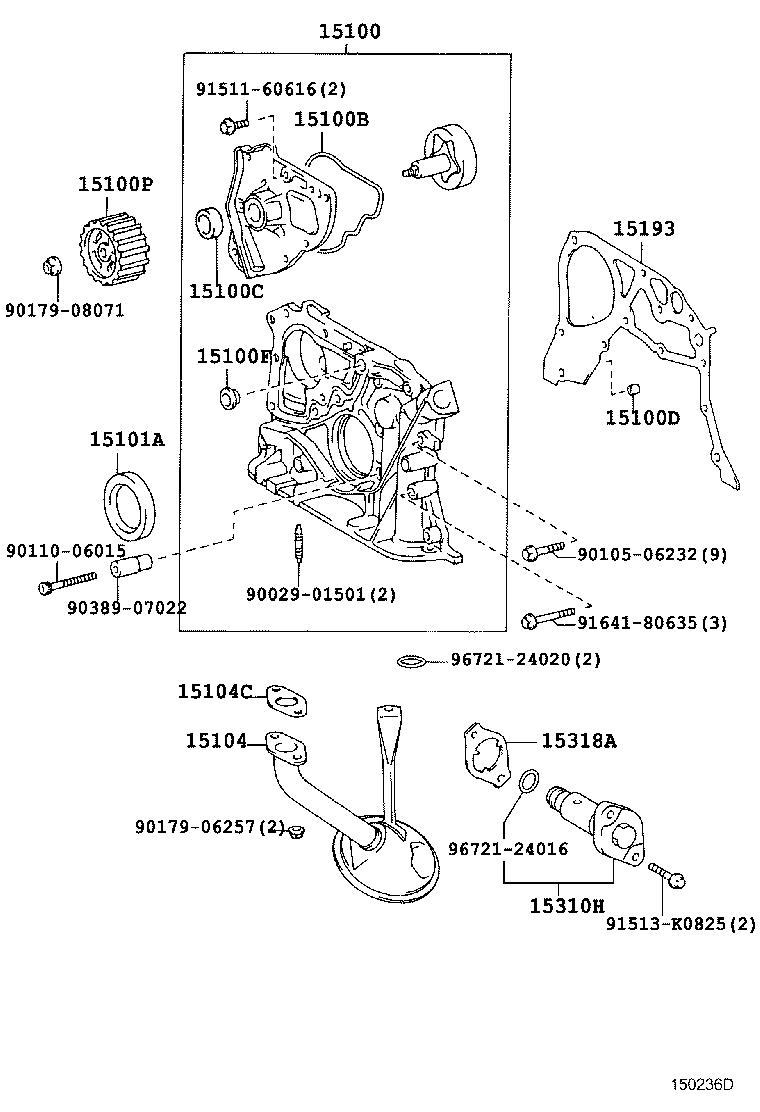

Click highlighted areas on diagram

diagram 15100 15100B 15100C 15100D 15100F 15100P 15101A 15104 15104C 15193 15310H 15318A 9002901501 9010506232 9011006015 9017906257 9017908071 9038907022 9151160616 91513K0825 9164180635 9672124016 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-88460

3SGE..ST195

 1
15100B - RING, O(FOR OIL PUMP)
15188-88382

3SGE..ST195

 1
15100C - SEAL(FOR OIL PUMP)
15165-88382

3SGE..ST195

 1
15100D - PIN(FOR OIL PUMP SET)
90253-09001

3S#,4SFE..ST19#

 2
15100F - BUSH (FOR OIL PUMP)
90029-38302

3S#,4SFE..ST19#

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-88460

3SGE..ST195

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42026

3SGE..ST195

 1
90311-42026

3S#,4SFE..ST19#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-88461

3SGE..ST195

 1
15104C - GASKET(FOR OIL STRAINER)
15149-88460

3SGE..ST195

 1
15193 - GASKET, OIL PUMP
15197-88460

3SGE..ST195

 1
15310H - REGULATOR ASSY, OIL
15310-88460

3SGE..ST195

 1
15318A - GASKET, OIL REGULATOR BODY
15318-88460

3SGE..ST195

 1
Common parts
90029-01501
90105-06232
90110-06015
90179-06257
90179-08071
90389-07022
91511-60616
91513-K0825
91641-80635
96721-24016
96721-24020
