ST195G-DWPVF (1995)
Toyota Caldina
Production
Feb 1995
-
Aug 1997
Engine
3SGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9502-9708)3SGE

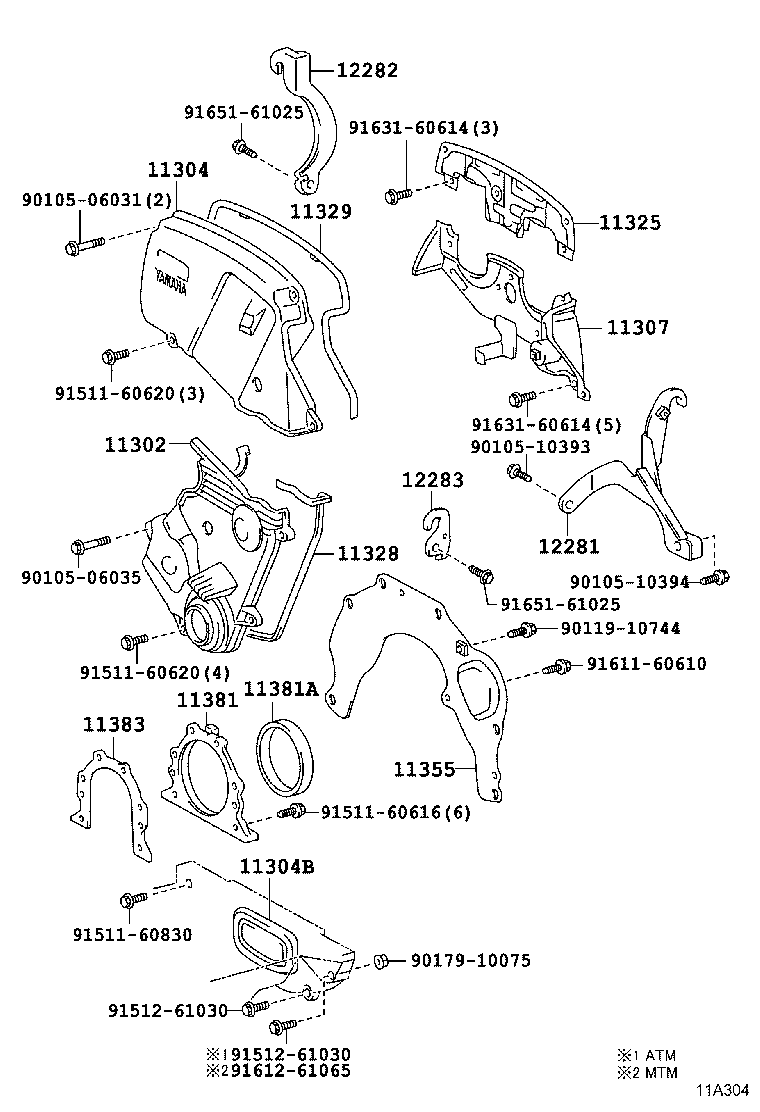

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88460 |
3SGE..ST195 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-88460 |
3SGE..ST195 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01809 |
3SGE..ST195 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11323-88460 |
3SGE..ST195 |
1 | ||
| 11325 - COVER, TIMING BELT, NO.4 | ||||
| 11325-88460 |
3SGE..ST195 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88460 |
3SGE..ST195 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-88460 |
3SGE..ST195 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-74040 |
3S#..ST195,198 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-74010 |
3SGE..ST195 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-89002 |
3SGE..ST195 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-88460 |
3SGE..ST195 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-88461 |
3SGE..ST195 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-88460 |
3SGE..ST195 |
1 | ||
| 12283 - HANGER, ENGINE, NO.3 | ||||
| 12283-74060 |
3SGE..ST195 |
1 | ||
| Common parts | ||||
| 90105-06031 | ||||
| 90105-06035 | ||||
| 90105-10393 | ||||
| 90105-10394 | ||||
| 90119-10744 | ||||
| 90179-10075 | ||||
| 91511-60616 | ||||
| 91511-60620 | ||||
| 91511-60830 | ||||
| 91512-61030 | ||||
| 91611-60610 | ||||
| 91612-61065 | ||||
| 91631-60614 | ||||
| 91651-61025 | ||||
