ST195G-DWPGK (1992)
Toyota Caldina

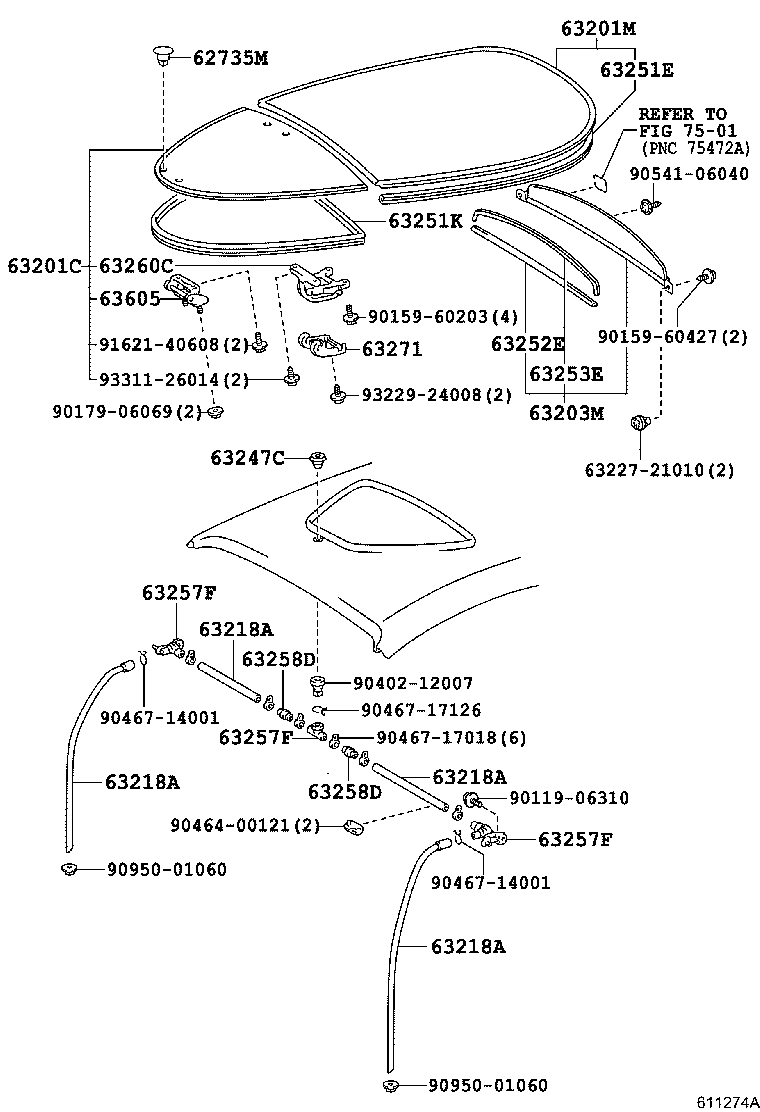

ILLUST NO. 2 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62735M - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-95D00 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
4 | ||
| 62735-95D00 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 62735-95D00 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
4 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63097 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT RH | ||||
| 63097-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63098 - RETAINER SUB-ASSY, REAR SLIDE ROOF SHOE, FRONT LH | ||||
| 63098-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||

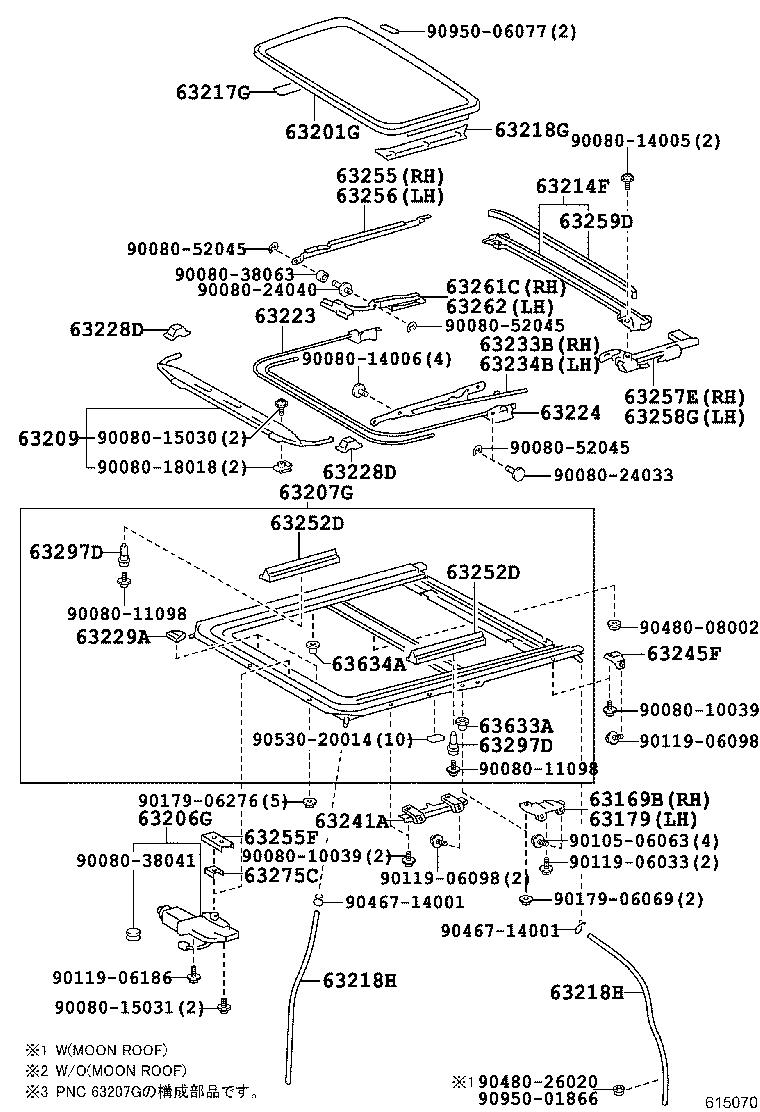

| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0W011 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63260-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63260-0W011 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63260-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63260-21022 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63260-0W011 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63255-21010G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63255-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63255-21010J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63255-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63255-21010C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLACK ME.,26V |
1 | ||
| 63255-21010C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63255-21010B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLUISH SILVER ME.,1A0 |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63256-21020G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63256-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63256-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63265A - LEVER, REMOVABLE ROOF LOCK, RH | ||||
| 63265-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63266A - LEVER, REMOVABLE ROOF LOCK, LH | ||||
| 63266-21010 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63273G - PACKING, SLIDE ROOF | ||||
| 63273-95J00 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63273R - PACKING, ROOF WINDOW DEFRECTOR | ||||
| 63273-21010 |
ST19# ｴｱﾘｱﾙ |
3 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-28030 |
ST19# 厚さ=2.0,ｴｱﾘｱﾙ |
1 | ||
| 63277-95701 |
ST19# 厚さ=1.0,ｴｱﾘｱﾙ |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63295-21010 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-21020 |
ST19# *SERT,厚さ=5.0,ｸﾞﾘｰﾝ,ｴｱﾘｱﾙ |
1 | ||
| 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE | ||||
| 63803-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63803-21011 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| Common parts | ||||
| 90119-06585 | ||||
| 90148-60019 | ||||
| 90149-50066 | ||||
| 90151-60015 | ||||
| 90159-50341 | ||||
| 90164-40072 | ||||
| 90179-06216 | ||||
| 90179-06236 | ||||
| 90189-04014 | ||||
| 90385-11005 | ||||
| 90402-12007 | ||||
| 90467-14001 | ||||
| 90467-17126 | ||||
| 90480-26020 | ||||
| 90540-06035 | ||||
| 90950-06077 | ||||
| 93383-16016 | ||||
| Linked diagrams | ||||
| 7501 | ||||

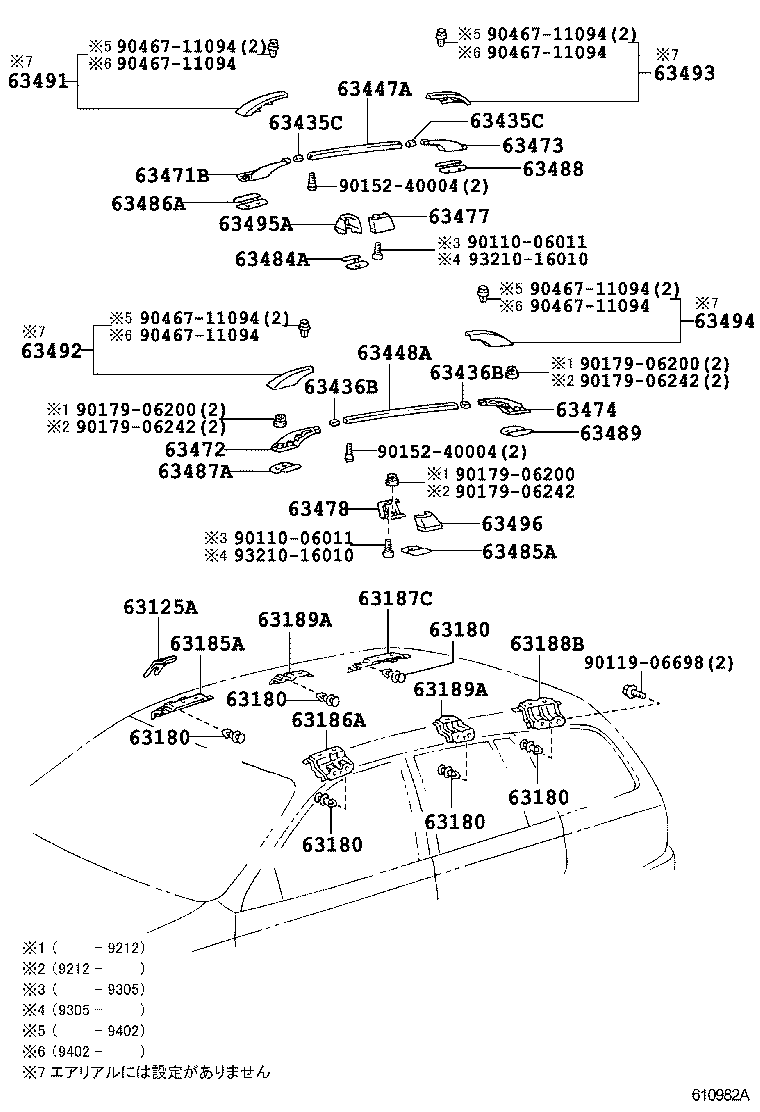

ILLUST NO. 3 OF 3(9211- )AT191,CT190,ST190,191,195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

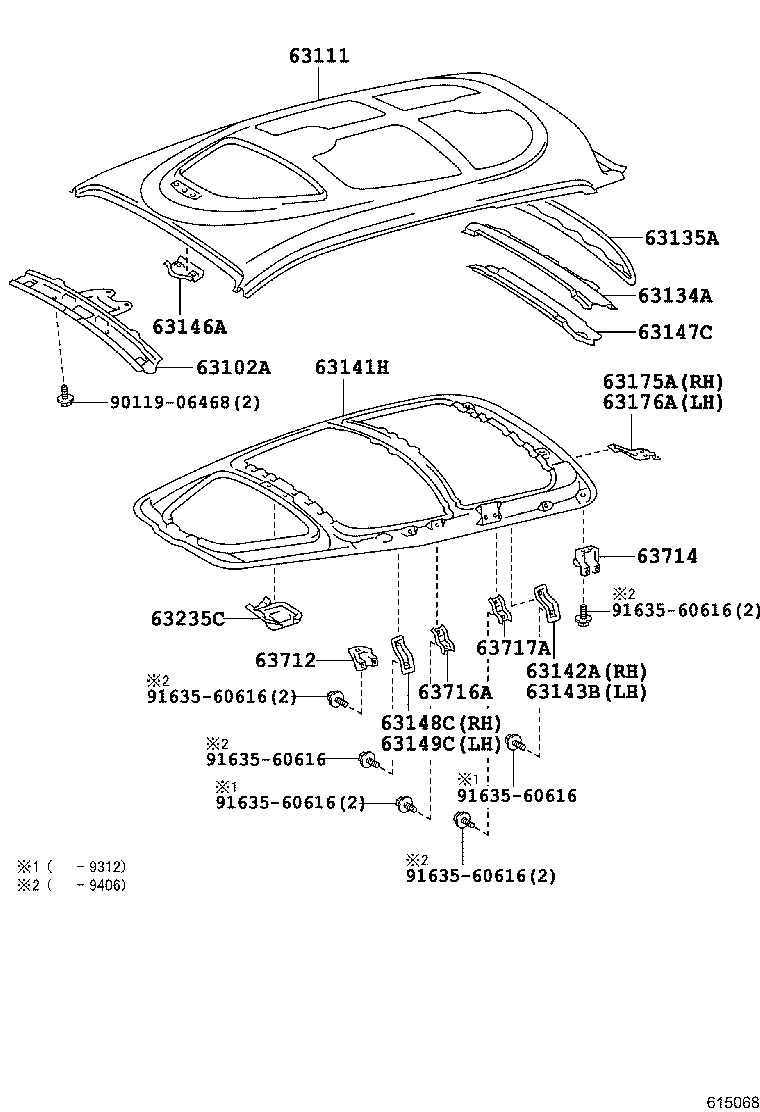

| 63125A - SHIM, ROOF PANEL | ||||
| 63125-21010 |
CT190,ST19# |
10 | ||
| 63125-21010 |
CT190,ST19# |
10 | ||
| 63125-21010 |
AT191,CT190,ST19# |
1 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63180 - CLIP(BRACKET, ROOF RACK) | ||||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM2# |
6 | ||
| 90467-05031A1 |
CT190,ST19# IVORY,TRIM1# |
6 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-21010 |
CT190,ST19# |
1 | ||
| 63185-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63185-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-21010 |
CT190,ST19# |
1 | ||
| 63186-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-21010 |
CT190,ST19# |
1 | ||
| 63187-21010 |
AT191,CT190,ST19# |
1 | ||
| 63187-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-21010 |
CT190,ST19# |
1 | ||
| 63188-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188-21010 |
AT191,CT190,ST19# |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-21010 |
CT190,ST19# |
2 | ||
| 63189-21010 |
AT191,CT190,ST19# |
2 | ||
| 63189-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-21010 |
CT190,ST19# |
2 | ||
| 63189-21010 |
AT191,CT190,ST19# |
2 | ||
| 63189-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-13030 |
CT190,ST19# REAR |
1 | ||
| 63435-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# REAR |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-13030 |
CT190,ST19# REAR |
1 | ||
| 63435-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CT190,ST19# REAR |
1 | ||
| 63436-13030 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CT190,ST19# REAR |
1 | ||
| 63436-13030 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-21020 |
CT190,ST19# |
1 | ||
| 63447-21020 |
AT191,CT190,ST19# |
1 | ||
| 63447-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-21010 |
AT191,CT190,ST19# |
1 | ||
| 63448-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448-21010 |
CT190,ST19# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-21020 |
CT190,ST19# |
1 | ||
| 63471-21030 |
AT191,CT190,ST19# |
1 | ||
| 63471-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63471-21030 |
CT190,ST19# |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-21020 |
CT190,ST19# |
1 | ||
| 63472-21900 |
ST19#..TZ,TZG ｴｱﾘｱﾙ |
1 | ||
| 63472-21020 |
AT191,CT190,ST19# |
1 | ||
| 63472-21010 |
CT190,ST19# |
1 | ||
| 63472-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-21020 |
CT190,ST19# |
1 | ||
| 63473-21010 |
CT190,ST19# |
1 | ||
| 63473-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-21010 |
CT190,ST19# |
1 | ||
| 63474-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63474-21020 |
CT190,ST19# |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63477-21010 |
AT191,CT190,ST19# |
1 | ||
| 63477-21010 |
CT190,ST19# |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-21010 |
AT191,CT190,ST19# |
1 | ||
| 63478-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63478-21010 |
CT190,ST19# |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63484-21020 |
AT191,CT190,ST19# |
1 | ||
| 63484-21020 |
CT190,ST19# |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-21010 |
CT190,ST19# |
1 | ||
| 63485-21010 |
AT191,CT190,ST19# |
1 | ||
| 63485-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-21010 |
CT190,ST19# |
1 | ||
| 63486-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486-21010 |
AT191,CT190,ST19# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-21010 |
CT190,ST19# |
1 | ||
| 63487-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63487-21010 |
AT191,CT190,ST19# |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-21010 |
CT190,ST19# |
1 | ||
| 63488-21010 |
AT191,CT190,ST19# |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-21010 |
AT191,CT190,ST19# |
1 | ||
| 63489-21010 |
CT190,ST19# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-21020 |
AT191,CT190,ST19# |
1 | ||
| 63491-21040 |
AT191,CT190,ST19# |
1 | ||
| 63491-21020 |
CT190,ST19# |
1 | ||
| 63491-21010 |
CT190,ST19# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-21010 |
CT190,ST19# |
1 | ||
| 63492-21020 |
AT191,CT190,ST19# |
1 | ||
| 63492-21020 |
CT190,ST19# |
1 | ||
| 63492-21040 |
AT191,CT190,ST19# |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-21040 |
AT191,CT190,ST19# |
1 | ||
| 63493-21020 |
CT190,ST19# |
1 | ||
| 63493-21010 |
CT190,ST19# |
1 | ||
| 63493-21020 |
AT191,CT190,ST19# |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-21020 |
AT191,CT190,ST19# |
1 | ||
| 63494-21040 |
AT191,CT190,ST19# |
1 | ||
| 63494-21010 |
CT190,ST19# |
1 | ||
| 63494-21020 |
CT190,ST19# |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-21020 |
AT191,CT190,ST19# |
1 | ||
| 63495-21010 |
AT191,CT190,ST19# |
1 | ||
| 63495-21010 |
CT190,ST19# |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-21020 |
AT191,CT190,ST19# |
1 | ||
| 63496-21010 |
CT190,ST19# |
1 | ||
| 63496-21010 |
AT191,CT190,ST19# |
1 | ||
| Common parts | ||||
| 90110-06011 | ||||
| 90119-06698 | ||||
| 90152-40004 | ||||
| 90179-06200 | ||||
| 90179-06242 | ||||
| 90467-11094 | ||||
| 93210-16010 | ||||
ILLUST NO. 2 OF 3(9302-9601)ST191,195
ｽｶｲｷｬﾉﾋﾟ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62735M - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-95D00 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
4 | ||
| 62735-95D00 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 62735-95D00 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
4 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-21010 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201-21010 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201-21010 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 | ||||
| 63201-21020 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201-21021 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201-21021 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63201-21020 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63203M - GLASS SUB-ASSY, ROOF WINDOW, NO.2 | ||||
| 63203-21010C0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,BLACK.MC,26V |
1 | ||
| 63203-21010H0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.TURQUOISE.MC,25V |
1 | ||
| 63203-21010E0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,LI.BEIGE ME,4M3 |
1 | ||
| 63203-21010A0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,SUPER WHITE,040 |
1 | ||
| 63203-21010G0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.GRAYISH OLIVE ME,6M7 |
1 | ||
| 63203-21010A0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,SUPER WHITE,040 |
1 | ||
| 63203-21010C0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,BLACK.MC,26V |
1 | ||
| 63203-21010D0 |
ST191,195..TZ *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.MAUVE MM,3K1 |
1 | ||
| 63203-21010D0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.MAUVE MM,3K1 |
1 | ||
| 63203-21010E0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,LI.BEIGE ME,4M3 |
1 | ||
| 63203-21011 |
ST191,195 *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63203-21010H0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.TURQUOISE.MC,25V |
1 | ||
| 63203-21011 |
ST191,195 *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63203-21010G0 |
ST191,195 *TT,厚さ=4.0,ｸﾞﾚｰ,ｽｶｲｷﾔﾉﾋﾟ-,DK.GRAYISH OLIVE ME,6M7 |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-21010 |
ST19# 長さ=1610,ｴｱﾘｱﾙ |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195..TZ 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195..TZ 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-21010 |
ST191,195 長さ=441,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63249-20210 |
ST191,195 長さ=1600,ｽｶｲｷﾔﾉﾋﾟ-,FRONT |
2 | ||
| 63257-21070 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63247C - PIPE, REMOVABLE ROOF DRAIN | ||||
| 63247-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63247-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63247-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63251E - DAM, ROOF WINDOW, NO.1 | ||||
| 04562-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63251-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63251-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63252E - DAM, ROOF WINDOW, NO.2 | ||||
| 04562-12010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-12010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-12010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 04562-12010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-12010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 04562-12010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63257F - JOINT, TILT ROOF DRAIN HOSE | ||||
| 63257-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21040 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257F - JOINT, TILT ROOF DRAIN HOSE | ||||
| 63257-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21040 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257F - JOINT, TILT ROOF DRAIN HOSE | ||||
| 63257-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21040 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63257-21040 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,右側 |
1 | ||
| 63257-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,CENTER |
1 | ||
| 63257-21050 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,左側 |
1 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-95J01 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-95J01 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63258-21010 |
ST19# ｴｱﾘｱﾙ,NO.1 |
4 | ||
| 63258-21020 |
ST19# ｴｱﾘｱﾙ,NO.2 |
4 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-21010B0 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM2# |
1 | ||
| 63260-21010B0 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM2# |
1 | ||
| 63260-21010B0 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM1# |
1 | ||
| 63260-21010B0 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM1# |
1 | ||
| 63271 - GARNISH, REMOVABLE ROOF LOCK | ||||
| 63271-91701B1 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM2# |
1 | ||
| 63271-21010B0 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,MD.GRAY,TRIM1# |
1 | ||
| 63271-91701B1 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ-,GRAY,TRIM2# |
1 | ||
| 63271-21010B0 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ-,MD.GRAY,TRIM1# |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63605-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63605-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| Common parts | ||||
| 63227-21010 | ||||
| 90119-06310 | ||||
| 90159-60203 | ||||
| 90159-60427 | ||||
| 90179-06069 | ||||
| 90402-12007 | ||||
| 90464-00121 | ||||
| 90467-14001 | ||||
| 90467-17018 | ||||
| 90467-17126 | ||||
| 90541-06040 | ||||
| 90950-01060 | ||||
| 91621-40608 | ||||
| 93229-24008 | ||||
| 93311-26014 | ||||
| Linked diagrams | ||||
| 7501 | ||||
ILLUST NO. 1 OF 3(9211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20230 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63102-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-20230 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63102-20240 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20230 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63102-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-20230 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63102-20240 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-21080 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63111-21080 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63014-21010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-21090 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63111-21040 |
AT191,CT190,ST19# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-21080 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63111-21080 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63014-21010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-21090 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63111-21040 |
AT191,CT190,ST19# |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-20090 |
AT191,CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63137-20090 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-20030 |
ST19#..TZ,TZG |
1 | ||
| 63138-20030 |
ST19#..TZ |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
CT19#,ET196,ST19# |
1 | ||
| 63141-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-21020 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21020 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21050 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63143-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143-20100 |
CT19#,ET196,ST19# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-21020 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63144-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63144-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-21020 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63144-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63144-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63177 - REINFORCEMENT, ROOF PANEL, NO.9 | ||||
| 63177-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63177 - REINFORCEMENT, ROOF PANEL, NO.9 | ||||
| 63177-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63178A - REINFORCEMENT, ROOF PANEL, NO.10 | ||||
| 63178-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63178A - REINFORCEMENT, ROOF PANEL, NO.10 | ||||
| 63178-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90119-06468 | ||||
ILLUST NO. 1 OF 3(9302-9601)ST191,195
ｽｶｲｷｬﾉﾋﾟｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20230 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63102-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-20230 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63102-20240 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-21080 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63111-21080 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63014-21010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-21090 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63111-21040 |
AT191,CT190,ST19# |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63135-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63135-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
CT19#,ET196,ST19# |
1 | ||
| 63141-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63142-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-21020 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21020 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21050 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63143-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143-20100 |
CT19#,ET196,ST19# |
1 | ||
| 63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1 | ||||
| 63146-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63146-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63146-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63148C - REINFORCEMENT, ROOF PANEL SIDE, RH | ||||
| 63148-21020 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63148-21020 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63149C - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63149-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63235C - BRACKET, REMOVABLE ROOF LOCK | ||||
| 63235-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63235-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63235-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63712 - BRACKET, ROOF PANEL REINFORCE, NO.2 | ||||
| 63712-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63712-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63714 - BRACKET, ROOF PANEL REINFORCEMENT, NO.4 | ||||
| 63714-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63714-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63716A - BRACKET, ROOF PANEL REINFORCEMENT, NO.6 | ||||
| 63716-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63716-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63717A - BRACKET, ROOF PANEL REINFORCEMENT, NO.7 | ||||
| 63717-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| 63717-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
2 | ||
| Common parts | ||||
| 90119-06468 | ||||
| 91635-60616 | ||||
ILLUST NO. 1 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20230 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63102-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63102-20230 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63102-20240 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-21080 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63111-21080 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63014-21010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-21090 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63111-21040 |
AT191,CT190,ST19# |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-21011 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63123-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
CT19#,ET196,ST19# |
1 | ||
| 63141-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63141-21010 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21010 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63141-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-21020 |
ST191,195..TZ ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21020 |
ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63143-21050 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63143-21030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63143-20100 |
CT19#,ET196,ST19# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-21020 |
ST19# ｽｶｲｷﾔﾉﾋﾟ- |
1 | ||
| 63144-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63144-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147C - REINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER | ||||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｴｱﾘｱﾙ ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63147-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63147-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 90179-06216 | ||||
ILLUST NO. 2 OF 3(9211- )AT191,CT190,ST190,191,195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-20030 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63169-20030 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-20030 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63179-20030 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0W010 |
CT190,ST19#..CZ,TZ *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0W011 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63260-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63260-0W011 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63260-21021 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63260-21022 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63260-0W011 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63207-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63209-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63214-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63217-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63218-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-21040 |
CT190,ST19#..CZ,TZ REAR |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ,TZG FRONT |
2 | ||
| 63249-20210 |
CT190,ST19#..CZ,TZ FRONT |
2 | ||
| 63247-21020 |
ST19# ｴｱﾘｱﾙ |
4 | ||
| 63249-21040 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),REAR |
2 | ||
| 63249-21040 |
CT190,ST19#..CZ,TZ,TZG REAR |
2 | ||
| 63249-20210 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FRONT |
2 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63223-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63224-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63228-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63228-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-05010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63229-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63233B - FRAME, SLIDING ROOF HOUSING, RH | ||||
| 63233-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63233-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63234B - FRAME, SLIDING ROOF HOUSING, LH | ||||
| 63234-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63234-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63241-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63245F - BRACKET, SLIDING REAR MOUNTING | ||||
| 63245-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63245-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63252-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
2 | ||
| 63252-0W010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63255-21010G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63255-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63255-21010J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63255-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63255-21010C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLACK ME.,26V |
1 | ||
| 63255-21010C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63255-21010B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S)*(U) & ｴｱﾘｱﾙ,BLUISH SILVER ME.,1A0 |
1 | ||
| 63255F - COVER, SLIDE ROOF MOTOR | ||||
| 63255-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63255-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020C0 |
ST19# ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020J0 |
ST19# ｴｱﾘｱﾙ,DK.BLUE M.M.,2BM |
1 | ||
| 63256-21020G0 |
ST19# ｴｱﾘｱﾙ,DK.GREEN M.M.,2BL |
1 | ||
| 63256-05010 |
ST19# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63256-05010 |
CT190,ST19#..CZ,TZ,TZG |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63256-21020C0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(S),*(U),ｴｱﾘｱﾙ,BLACK ME,26V |
1 | ||
| 63256-21020B0 |
ST19#..TZ TZ ﾘﾐﾃﾂﾄﾞ*(G),*(J),ｴｱﾘｱﾙ,BLUISH SILVER ME,1A0 |
1 | ||
| 63257E - HOLDER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63257-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63257-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63258G - HOLDER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63258-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63258-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63259D - SEAL, SLIDING ROOF, NO.2 | ||||
| 63259-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63259-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63261-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63262-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63275C - BOX, SLIDING ROOF DRIVE GEAR | ||||
| 63275-0W010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63275-0W010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63297D - PIN, SLIDING ROOF HOUSING | ||||
| 63297-05010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63297D - PIN, SLIDING ROOF HOUSING | ||||
| 63297-05010 |
CT190,ST19#..CZ,TZ |
2 | ||
| 63633A - BUSH, SLIDING ROOF HOUSING, NO.1 | ||||
| 63633-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| 63633-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63634A - BUSH, SLIDING ROOF HOUSING, NO.2 | ||||
| 63634-05010 |
CT190..4FC..CZ..TD;AT191,CT190,ST19#..(CZ,TZ,TZG)..(DSL,EFI) |
1 | ||
| 63634-05010 |
CT190,ST19#..CZ,TZ |
1 | ||
| Common parts | ||||
| 90080-10039 | ||||
| 90080-11098 | ||||
| 90080-14005 | ||||
| 90080-14006 | ||||
| 90080-15030 | ||||
| 90080-15031 | ||||
| 90080-18018 | ||||
| 90080-24033 | ||||
| 90080-24040 | ||||
| 90080-38041 | ||||
| 90080-38063 | ||||
| 90080-52045 | ||||
| 90105-06063 | ||||
| 90119-06033 | ||||
| 90119-06098 | ||||
| 90119-06186 | ||||
| 90179-06069 | ||||
| 90179-06276 | ||||
| 90467-14001 | ||||
| 90480-08002 | ||||
| 90480-26020 | ||||
| 90530-20014 | ||||
| 90950-01866 | ||||
| 90950-06077 | ||||
ILLUST NO. 3 OF 3(9601- )ST191,195
ｴｱﾘｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-21010 |
CT190,ST19# |
1 | ||
| 63185-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63185-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-21010 |
CT190,ST19# |
1 | ||
| 63186-21010 |
AT191,CT190,ST19# |
1 | ||
| 63186-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-21010 |
CT190,ST19# |
1 | ||
| 63187-21010 |
AT191,CT190,ST19# |
1 | ||
| 63187-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-21010 |
CT190,ST19# |
1 | ||
| 63188-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63188-21010 |
AT191,CT190,ST19# |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-21010 |
CT190,ST19# |
2 | ||
| 63189-21010 |
AT191,CT190,ST19# |
2 | ||
| 63189-21020 |
ST19# ｴｱﾘｱﾙ |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-13030 |
CT190,ST19# REAR |
1 | ||
| 63435-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-13020 |
CT190,ST19# REAR |
1 | ||
| 63436-13030 |
CT190,ST19# FRONT |
1 | ||
| 63435-13020 |
AT191,CT190,ST19# REAR |
1 | ||
| 63436-13030 |
AT191,CT190,ST19# FRONT |
1 | ||
| 63436-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63439A - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63439-21010 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-21020 |
CT190,ST19# |
1 | ||
| 63447-21020 |
AT191,CT190,ST19# |
1 | ||
| 63447-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-21010 |
AT191,CT190,ST19# |
1 | ||
| 63448-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63448-21010 |
CT190,ST19# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-21020 |
CT190,ST19# |
1 | ||
| 63471-21030 |
AT191,CT190,ST19# |
1 | ||
| 63471-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63471-21030 |
CT190,ST19# |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-21020 |
CT190,ST19# |
1 | ||
| 63472-21900 |
ST19#..TZ,TZG ｴｱﾘｱﾙ |
1 | ||
| 63472-21020 |
AT191,CT190,ST19# |
1 | ||
| 63472-21010 |
CT190,ST19# |
1 | ||
| 63472-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-21020 |
CT190,ST19# |
1 | ||
| 63473-21010 |
CT190,ST19# |
1 | ||
| 63473-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63473-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-21010 |
CT190,ST19# |
1 | ||
| 63474-21020 |
AT191,CT190,ST19# |
1 | ||
| 63474-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63474-21020 |
CT190,ST19# |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63477-21010 |
AT191,CT190,ST19# |
1 | ||
| 63477-21010 |
CT190,ST19# |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-21010 |
AT191,CT190,ST19# |
1 | ||
| 63478-21900 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63478-21010 |
CT190,ST19# |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63484-21020 |
AT191,CT190,ST19# |
1 | ||
| 63484-21020 |
CT190,ST19# |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-21010 |
CT190,ST19# |
1 | ||
| 63485-21010 |
AT191,CT190,ST19# |
1 | ||
| 63485-21030 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-21010 |
CT190,ST19# |
1 | ||
| 63486-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63486-21010 |
AT191,CT190,ST19# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-21010 |
CT190,ST19# |
1 | ||
| 63487-21020 |
ST19# ｴｱﾘｱﾙ |
1 | ||
| 63487-21010 |
AT191,CT190,ST19# |
1 | ||
| Common parts | ||||
| 90116-06152 | ||||
| 90119-05040 | ||||
| 90119-06698 | ||||
| 90152-40004 | ||||
| 90179-06242 | ||||
| 93210-16010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
