ST195G-DWPGK (1992)

Toyota Caldina

Production Nov 1992 - Aug 1997
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

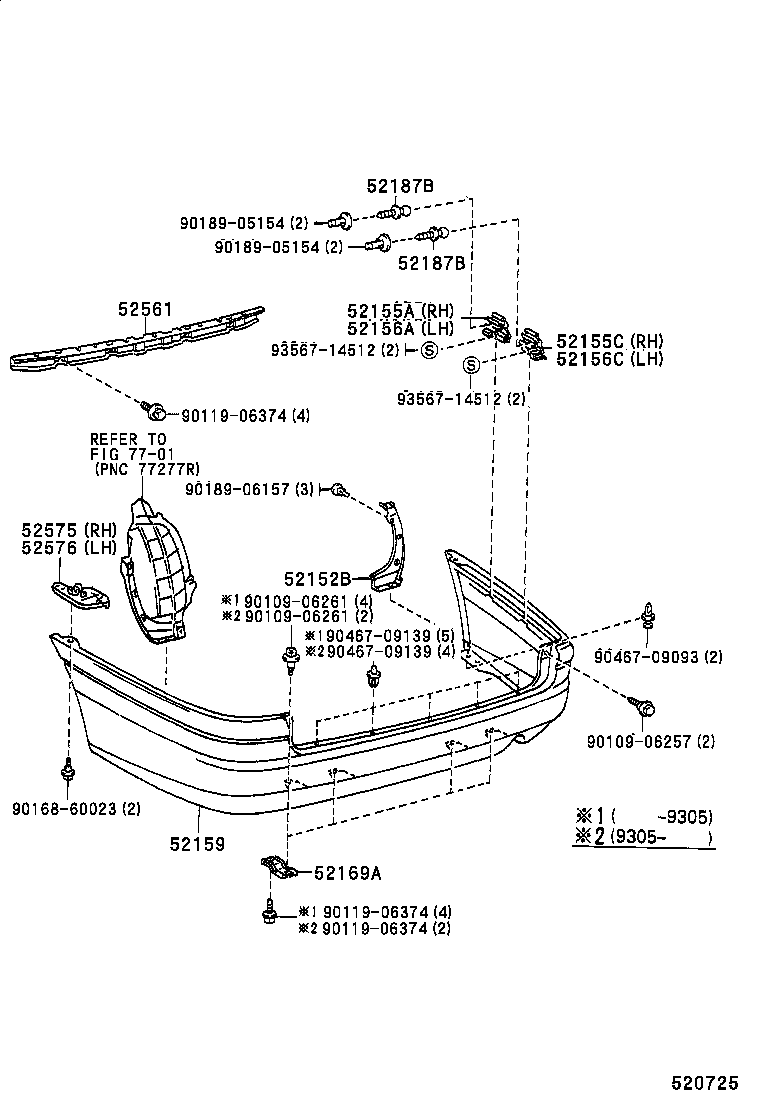

Click highlighted areas on diagram

diagram 52152B 52155A 52155C 52156A 52156C 52159 52169A 52187B 52187B 52561 52575 52576 7701 9010906257 9010906261 9010906261 9011906374 9011906374 9011906374 9016860023 9018905154 9018905154 9018906157 9046709093 9046709139 9046709139 9356714512 9356714512
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-20180

AT191,CT19#,ET196,ST19#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-21010

AT191,CT19#,ET196,ST19#

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-21020

AT191,CT19#,ET196,ST19#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-21010

AT191,CT19#,ET196,ST19#

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52155-21020

AT191,CT19#,ET196,ST19#

 1
52159 - COVER, REAR BUMPER
52159-21010D1

CT190,ST19#

DARK MAOVE MICA M,3K1

 1
52159-21010B3

ST191,195..TZ

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,SUPER SILVER 3 M,2AA ,21Y

 1
52159-21010B3

ST191,195..TZ

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,SUPER SILVER 3 M,2AA ,27Y

 1
52159-21010A0

CT190,ST19#

SUPER WHITE 2,040

 1
52159-21010B0

CT190,ST19#..CZ,TZ,TZG

BLUEISH GRAY ME,23V ,25V ,26V

 1
52159-21010G0

CT190,ST19#

DK.GRAYISH OLIVE ME,6M7

 1
52159-21020

CT19#,ET196,ST19#

 1
52159-21010B0

AT191,CT190,ST19#..CZ,TZ,TZG

BLUEISH GRAY ME,2BL ,2BM ,26V

 1
52159-21010E0

CT190,ST19#

LIGHT BEIGE ME,4M3

 1
52159-21010B3

ST191,195..TZ

ﾄｸﾍﾞﾂｼﾖｳｼﾔ,SUPER SILVER 3 M,27Y

 1
52159-21010B0

CT190,ST19#..CZ,TZ

BLUEISH GRAY ME,25V ,26V

 1
52159-21010D2

AT191,CT190,ST19#

MAGENTA MC,3L3

 1
52159-21010B2

CT190,ST19#

LT.GRAIGE ME,1A2

 1
52159-21010B4

AT191,CT190,ST19#

BLUISH SILVER ME.,1A0

 1
52159-21010B5

ST191,195..TZ

ｽﾍﾟｼﾔﾙﾊﾟｹ-ｼﾞ,SILVER ME,199

 1
52159-21010J2

AT191,CT190,ST19#

DK.BLUE M.M.,8L3

 1
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-21020

AT191,CT19#,ET196,ST19#

 2
52169-21020

CT19#,ET196,ST19#

 4
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT191,CT19#,ET196,ST19#

 4
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT191,CT19#,ET196,ST19#

 4
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-21020

AT191,CT19#,ET196,ST19#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20030

AT191,CT19#,ET196,ST19#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20030

AT191,CT19#,ET196,ST19#

 1
Common parts
90109-06257
90109-06261
90119-06374
90168-60023
90189-05154
90189-06157
90467-09093
90467-09139
93567-14512
Linked diagrams
7701
